Position Sensors

• LPPS-12 Series
• Slim Body Linear Potentiometer
• Stroke lengths available from 10 to 300 mm (0.4 to 12 inches)
• Rod End Joints for simple mounting
• Environmental rating of IP61
• Compact Size, housing is 0.47" (12 mm) diameter

• LPPS-12 Series
• Slim Body Linear Potentiometer
• Stroke lengths available from 10 to 300 mm (0.4 to 12 inches)
• Axial cable exit
• Environmental rating of IP61
• Compact Size, housing is 0.47" (12 mm) diameter

• LPPS-22 Series
• Ruggedized Linear Potentiometer
• Stroke lengths available from 25 to 300 mm (1 to 12 inches)
• Rod End Joints for simple mounting
• Environmental rating of IP61
• Compact Size, housing is 0.90" (22 mm) diameter

• LPPS-36B Series
• Ruggedized Linear Potentiometer
• Stroke lengths available from 350 mm up to 700 mm (14 to 28 inches)
• Rod End Joints for simple mounting
• Environmental rating of IP61 (Dust tight, Water resistant)
• Housing is 1.4" (36 mm) diameter

• Spring Loaded Linear Potentiometer
• Stroke lengths available from 10 to 100 mm (0.4 to to 4 inches)
• Environmental rating of IP61
• Compact Size, housing is 0.7" x 0.7" (18 mm x 18 mm) square

• Spring Loaded Miniature Linear Potentiometer
• Stroke lengths available from 5 to 100 mm (0.2 to to 4 inches)
• Environmental rating of IP61
• Compact Size, housing is 0.63" (16 mm) diameter

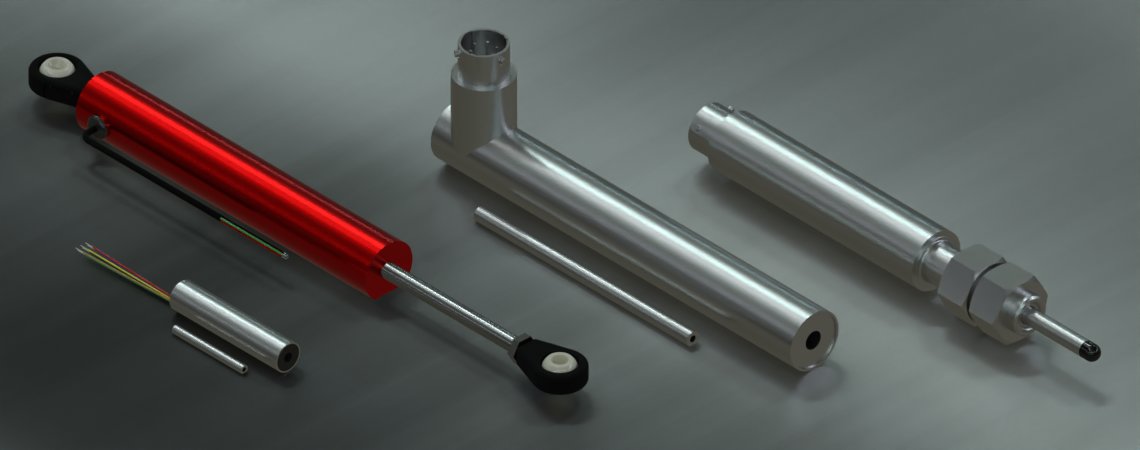

• Linear Variable Inductive Transducer (LVIT)
• 0.75" (19 mm) diameter body
• Stroke lengths available from 25 to 200 mm (1 to 8 inches)
• ILPS-19 is Automation & Motorsports duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• A more robust alternative to Linear Potentiometers

• Linear Variable Inductive Transducer (LVIT)
• 1.05" (27 mm) diameter body
• Stroke lengths available from 50 to 450 mm (2 to 18 inches)
• ILPS-27 is Industrial duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• A more robust alternative to Linear Potentiometers

• Linear Variable Inductive Transducer (LVIT)
• 1.75" (45 mm) diameter body
• Stroke lengths available from 100 to 450 mm (4 to 18 inches)
• ILPS-45 is Heavy duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• A more robust alternative to Linear Potentiometers

• Linear Variable Inductive Transducer (LVIT)
• 0.75" (19 mm) diameter body
• Stroke lengths available from 12.5 to 100 mm (0.5 to 4 inches)
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Spring loaded for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• A more robust alternative to Linear Potentiometers

• Linear Variable Inductive Transducer (LVIT)
• 0.75" (19 mm) diameter body
• Stroke lengths available from 6.5 to 100 mm (0.25 to 4 inches)
• Lower cost of ownership than a potentiometer or LVDT
• Tested to over 110 million cycles
• Spring loaded for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• A more robust alternative to Linear Potentiometers

• Linear Variable Inductive Transducer (LVIT)
• 0.50" (13 mm) diameter body
• Stroke lengths available from 2.5 to 200 mm (0.1 to 8 inches)
• Through-bore design
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• A more robust alternative to Linear Potentiometers

• Linear Variable Inductive Transducer (LVIT)
• 0.375" (9.5 mm) diameter body
• Stroke lengths available from 6.4 to 150 mm (0.25 to 6 inches)
• Through-bore design
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• A more robust alternative to Linear Potentiometers

• LVIT Technology(Linear Variable Inductance Transducer)
• UL and CUL approved for Class 1 Div 2 Groups C and D locations
• Contactless operation prevents wearout from dithering or cycling
• Excellent stroke-to-body ratio
• Full Scale ranges from 0.1 to 30 inches (2.5 to 750 mm)
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• Through-bore design eliminates mechanical overstroking
• Proprietary SenSetfield adjustable range scaling
• DC in / DC out operation with built-in electronics

• Spring loaded AC LVDT probe
• 0.315" (8mm) or 0.375" (9.5mm) O.D. size body
• Stroke lengths from ±0.020" to ±0.200"
• Stainless steel housing sealed to IP65

• Spring loaded AC LVDT probe
• 0.750" (19mm) O.D. size body
• Stroke lengths from ±0.050" to ±2.0"
• Stainless steel housing sealed to IP68
• Air-extend option available

• Spring loaded AC LVDT probe
• 0.750" (19 mm) O.D. size body
• Stroke lengths from ±0.100" to ±0.300"
• Stainless steel housing sealed to IP61

• Free core AC LVDT design
• 0.375" (9.5mm) O.D. size body
• Stroke Lengths from ±0.025" to ±1.0"
• Stainless steel housing sealed to IP61

• Free Core AC LVDT design
• 0.750" (19mm) O.D. size body
• Stroke lengths from ±0.05" to ±10.0"
• Stainless steel housing sealed to IP61

• Free Core AC LVDT design
• 0.812" (20mm) O.D. size body
• Stroke lengths from ±0.05" to ±10.0"
• Stainless steel housing rated to IP61

• Free Core design
• 0.750" (19mm) O.D. size body
• Stroke lengths from 0.100" to 20.0"
• Stainless steel housing sealed to IP68

• Spring loaded DC LVDT probe
• 0.750" (19mm) O.D. size body
• Stroke lengths from ±0.050" to ±2.0"
• Stainless steel housing sealed to IP68
• Air-extend option available

• Free Core DC LVDT design
• 0.750" (19mm) O.D. size body
• Stroke lengths from 0.100" to 20.0"
• Stainless steel housing rated to IP61
• Chose output: ±10VDC, 0-10VDC, or 4-20mA

• Free Core DC LVDT design
• 0.750" (19mm) O.D. size body
• Stroke lengths from 0.100" to 20.0"
• Stainless steel housing rated to IP68
• Chose output: ±10VDC, 0-10VDC, or 4-20mA

• Guided Core design
• 1.05" (27mm) O.D. size body
• Stroke lengths from 3" to 16"
• Stainless steel housing sealed to IP68

• Guided Core design
• 1.05" (27mm) O.D. or 1.32" (34mm) size body
• Stroke lengths from 3" to 15"
• Stainless steel housing sealed to IP62

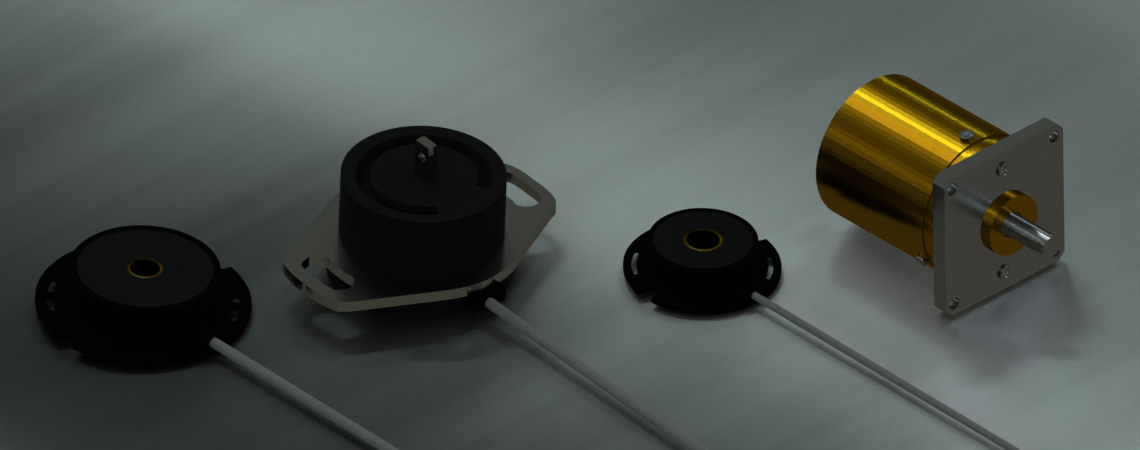

Features

• 0° to 200° rotational angle
• 200° rotation technology
• Non-linearity less than ±0.5% of FRO
• Environmentally sealed to IEC IP61
• DC-in / DC-out electronics

Applications

• Quarter-turn valves
• Flue dampers
• Throttle position
• Dancer arm tensioning

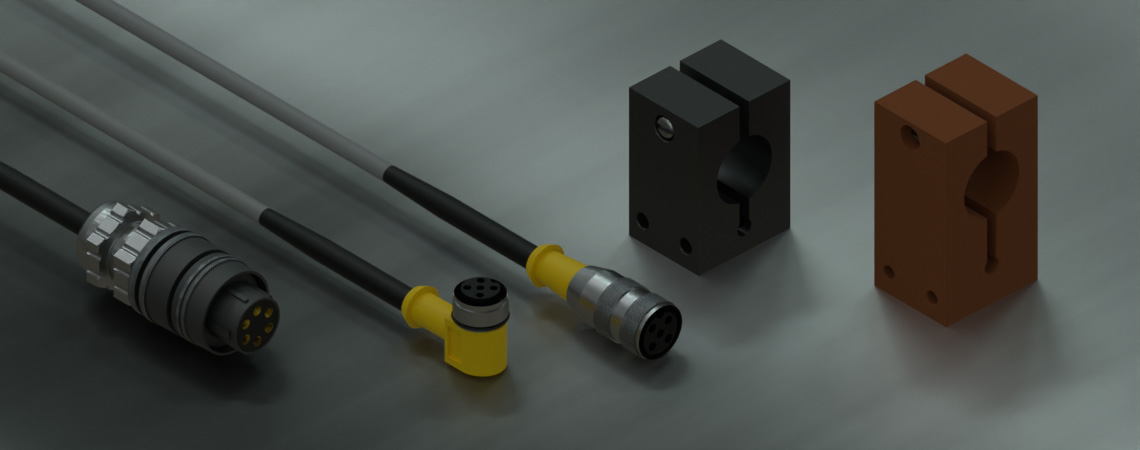

• Mates with most HGSI, MACRO SENSORS, and MSI brand LVDT Position Sensors with PT02 connector
• Attached water resistant 6-pin female Amphenol plug connector
• Available in 10, 20, 30 and 50 foot lengths
• Rated to +90°C (+194°F)

• Mates with most HGSI, MACRO SENSORS, and MSI brand LVDT Position Sensors with PT02 connector
• Attached water resistant 6-pin female Amphenol plug connector
• Available in 10, 20, 30 and 50 foot lengths
• Rated to +200°C (+392°F)

• Mates with ILPS series Linear LVIT Position Sensors with M12 connector
• Attached water resistant 5-pin female M12 90 degree plug connector
• Available in 10 foot length

• Mates with ILPS series Linear LVIT Position Sensors with M12 connector
• Attached water resistant 5-pin female M12 straight plug connector
• Available in 10 and 30 foot lengths

• Mates with ILPS series Linear LVIT Position Sensors with PT02 connector
• Attached water resistant 6-pin female Amphenol plug connector
• Available in 10, 30 and 50 foot lengths

• LVIT position sensor mounting block
• Made from Delrin
• For 0.750" (19 mm) O.D. LVIT sensors

• LVDT position sensor mounting block
• Made from Phenolic
• For 0.375", 0.750", or 0.812" O.D. LVDT sensors

• Compatible with all HGSI LVITs or Linear Potentiometers
• Max travel recall function
• High travel set-point alarm LED with single internal relay contact
• Miniature Size, Panel cutout is 1.77" x 0.87" (45 x 22 mm) (1/32 DIN)
• 12 or 24 VDC powered

• Compatible with all HGSI LVITs or Linear Potentiometers
• Max and Min travel recall functions
• High and Low travel set-point alarm LEDs with dual internal relay contacts
• Remote push button input for zeroing of displayed value
• Size ~ 1.9" high x 3.8" wide x 4.5" deep (1/8 DIN)
• 12 to 24 VDC powered or 110 to 240 VAC powered

• Compatible with all HGSI LVITs or Linear Potentiometers
• Max and Min travel recall functions
• High and Low travel set-point alarm LEDs with dual internal relay contacts
• Remote push button input for zeroing of displayed value
• Size ~ 1.9" high x 3.8" wide x 4.5" deep (1/8 DIN)
• 12 to 24 VDC powered or 110 to 240 VAC powered

• Designed for Industrial and Laboratory applications
• LVDT excitation frequencies of 2.5, 5, 7.5, and 10 kHz
• Cybersecurity lock to prevent tampering
• Smart calibration by front panel push buttons
• Differential input for superior noise immunity
• Auto-mastering
• Hot swapability
• Smart diagnostics

• Designed for Power Generation applications
• LVDT excitation frequencies of 1, 3, 5, and 10 kHz
• Cybersecurity lock to prevent tampering
• Smart calibration with front panel push buttons
• Differential input for superior noise immunity
• Auto-mastering
• Hot swapability
• Smart diagnostics

• Low cost OEM LVDT signal conditioner
• LVDT excitation frequencies of 2.5, 5, 8 and 10 kHz
• Zero and span adjustment potentiometers
• DIP switch selectable gain and excitation
• Multiple unipolar and bipolar output options

2 wire Audible Piezo Buzzer

• AC Input: 100V to 240V, DC Output: 12 volt at 2 amp
• Regulated switching power supply
• Long 8 foot cord

• AC Input: 100V to 240V, DC Output: 24 volt at 0.6 amp
• Regulated switching power supply
• DC voltage output is adjustable via screw potentiometer
