Hazardous Location Linear Position Sensor LVIT LZ-19-UL Series UL Approved

OVERVIEW

• LVIT Technology(Linear Variable Inductance Transducer)
• UL and CUL approved for Class 1 Div 2 Groups C and D locations
• Contactless operation prevents wearout from dithering or cycling
• Excellent stroke-to-body ratio
• Full Scale ranges from 0.1 to 30 inches (2.5 to 750 mm)
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• Through-bore design eliminates mechanical overstroking
• Proprietary SenSetfield adjustable range scaling
• DC in / DC out operation with built-in electronics


MADE IN THE USA


UL approved for use in Hazardous Locations

The LZ-19 Series of LVIT (Linear Variable Inductance Transducer) position sensors are contactless devices designed for use in hazardous locations such as oil and gas exploration, power generation valve feedback and chemical/food processing where UL approval is required.

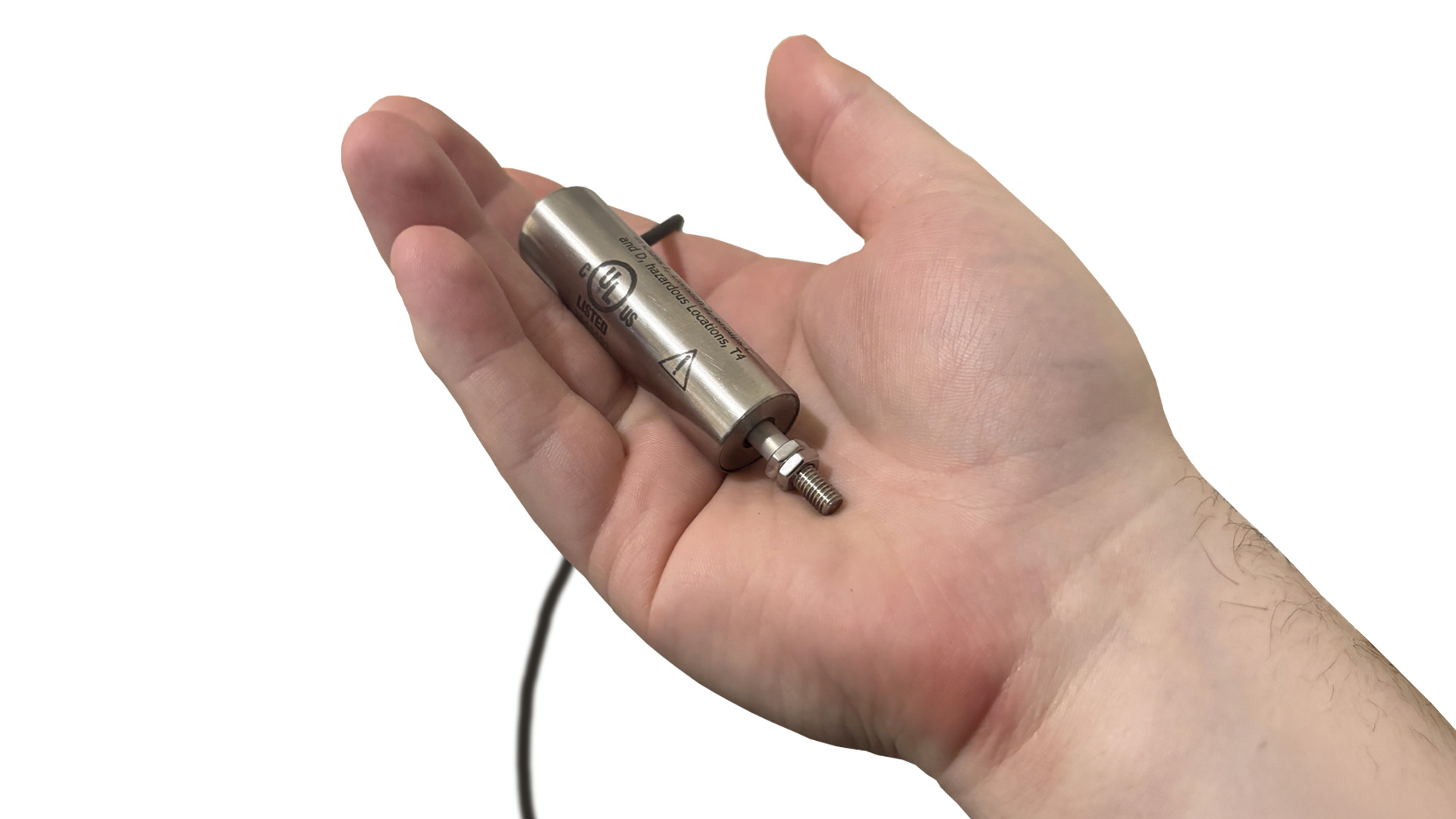

The LVIT is offered in nominal full scale ranges from 0.1 to 30 inches (2.5 to 750 mm) with an excellent stroke-to-length ratio. The sensor has a 19 mm (3/4 inch) outside diameter stainless steel with a 1 m axial cable for I/O connections. The 6 mm (0.236 inch) diameter through-bore of an LZ-19 provides clearance for its 5.2 mm (0.200 inch) diameter, PVDF-sheathed moving rod, which is made of the same material as its housing. This through-bore feature also means that the sensor is not subject to damage from typical mechanical overstroking.



Options:

ILPS Electrical Termination
ILPS Measuring Range
ILPS Signal Output
ILPS Housing Material
SKU
LZI-19-2.5-R-00-20-S-UL00
Availability
3 weeks
1
Out of Stock
0
Discontinued
Off
Price
$999.99
Add to Cart

TECHNICAL SPECIFICATIONS

Analog I/Os:0-5 V or 0.5-4.5 V output with 8 -30 V input, 35 mA max.
0-10 V output; 12—30 V input; 35 mA max.
4-20 mA (3-wire sourcing) output; 18-30 V input, 60 mA max (75 C max).
Measuring Ranges:0.10 to 30 inches (2.5 to 750 mm) full scale (nominal)
Linearity Error:± 0.15% of Full Scale Output (FSO) typical, ± 0.25%max
Resolution:0.025% of full stroke
Update Rate:300 Hz (3.3 mS)
Operating Temperature:-20 to 85 C (-40 to 105 C Extended Range)
Output:0 to 5 VDC or 0 to 10 VDC
Temperature Coefficient:≤0.015% of FS/deg C
Vibration:5-20 Hz, 0.5 inch p-p; 20-2000 Hz, 4.2 g p-p
Shock:1000 g, 11 msec
Terminations:IEC IP-67
Humidity:95% Max. RH (non-condensing)



DOCUMENTS & DOWNLOADS

PRODUCT NUMBERS

LZ-19-UL Series UL Approved Linear Variable Inductance Transducer (LVIT) Position Sensor

Product Overview

The LZ-19-UL Series Linear Variable Inductance Transducer (LVIT) from Harold G. Schaevitz Industries is an advanced linear position sensor specifically engineered for hazardous location environments. With UL and CUL approvals for Class I, Division 2, Groups C and D hazardous areas, this sensor is ideally suited for industries such as oil and gas, chemical processing, and power generation where both durability and hazardous location certification are essential.

Designed with contactless LVIT technology, the LZ-19-UL Series offers exceptional reliability, longevity, and resistance to environmental challenges, making it the go-to solution for critical position monitoring in demanding applications.

Key Features

  • UL and CUL Approved for use in Class I, Division 2, Groups C and D hazardous locations

  • Contactless Inductive Technology prevents wear from dithering and cycling

  • Stroke ranges from 0.1 to 30 inches (2.5 to 750 mm)

  • Through-bore design eliminates risk of mechanical over-stroking

  • Compact 19 mm (0.75 inch) diameter stainless steel housing

  • Excellent stroke-to-body length ratio for efficient installation in tight spaces

  • IP67 environmental rating for protection against dust and water ingress

  • Built-in signal conditioning electronics for DC input/output operation

  • SenSet™ Field Programmability for easy zero and span adjustment

  • Made in the USA

Hazardous Location Certified

The LZ-19-UL is certified by UL and CUL for use in Class I, Division 2, Groups C and D hazardous environments where flammable gases or vapors may be present. This makes it ideal for applications in:

  • Oil and gas wellheads and pipeline monitoring

  • Chemical processing equipment

  • Food and beverage processing areas with potential vapor hazards

  • Power generation systems requiring position feedback on turbine and valve actuators

Advanced LVIT Technology

Utilizing HGSI’s proprietary Linear Variable Inductance Transducer (LVIT) technology, the LZ-19-UL Series provides contactless linear position measurement, eliminating the mechanical wear, noise, and signal drift issues associated with traditional potentiometers. With no moving electrical contacts and robust internal electronics, the sensor offers reliable long-term operation even in vibration and high-cycle installations.

Through-Bore Design for Added Protection

The LZ-19-UL Series features a 6 mm diameter through-bore to accommodate a 5.2 mm PVDF-sheathed rod, creating a protected, wear-resistant internal motion system. The through-bore design provides an important mechanical advantage: elimination of sensor damage from overtravel. This is critical in field environments where mechanical motion may exceed expected limits.

Applications

Oil and Gas Exploration

Safely monitor valve positions and actuator movements in hazardous wellhead environments or pipeline systems where flammable gases may be present.

Power Generation

Used for feedback in turbine throttle, governor, and bypass valves, the LZ-19-UL stands up to heat, vibration, and electrical noise typical of generation environments.

Chemical and Food Processing

The stainless-steel housing and IP67 protection make the sensor ideal for installations in washdown or vapor-heavy areas in processing plants.

Industrial and Mobile Equipment

When position feedback is required in rugged environments with exposure to chemicals, dust, or harsh outdoor conditions, the LZ-19-UL delivers dependable results without failure.

Electrical Integration

With DC input/output operation and integrated signal conditioning, the LZ-19-UL simplifies installation and system integration. The sensor interfaces easily with most PLCs, control systems, and data acquisition units—no external signal conditioner required.

SenSet™ Field Programmability

Every LZ-19-UL sensor includes SenSet™, HGSI’s proprietary field calibration feature that allows zero and full-scale output adjustment with a simple two-step procedure—no programming tools required. This feature:

  • Speeds up installation and setup

  • Allows for easy calibration around application-specific mechanics

  • Reduces the need for custom firmware or sensor variants

Built for Harsh Environments

The stainless steel housing, PVDF-sheathed moving rod, and IP67 rating make the LZ-19-UL an ideal sensor for applications requiring resistance to:

  • Water immersion

  • Dust and fine particulates

  • Temperature variations

  • Mechanical vibration and shock

Why Choose the LZ-19-UL?

  • Certified by UL and CUL for use in Class I, Division 2, Groups C and D hazardous locations

  • Through-bore design eliminates overstroke risk

  • Built-in signal electronics – no external signal conditioner needed

  • SenSet™ programmable output scaling

  • Compact size, durable materials, and Made in the USA

Need help selecting the right configuration?
Contact HGSI’s expert application engineers today for support, specs, and integration assistance.
