LVIT Position Sensors
Linear Variable Inductance Transducer (LVIT) sensors are a simple yet effective choice for position sensing applications.
Linear Variable Inductance Transducers (LVITs) offer an excellent price-to-performance ratio compared to other linear position sensing technologies such as LVDTs, linear potentiometers, and magnetostrictive devices. The sensor's overall length only increases by a relatively small percentage beyond their stroke. As a result, LVITs may offer better stroke-to-length ratio than many other linear position sensor technologies.
Best for applications...
- That require a sensor with internal amplifier electronics
- That require a sensor with a short stroke-to-body length ratio
- Where the sensor will be exposed to fluids
- That require a sensor with an unlimited mechanical life
Need help choosing the right solution for your project? Contact our knowledgeable Application Engineers today.
• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 25 to 200 mm (1 to 8 inches)
• ILPS-19 is Automation & Motorsports duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles

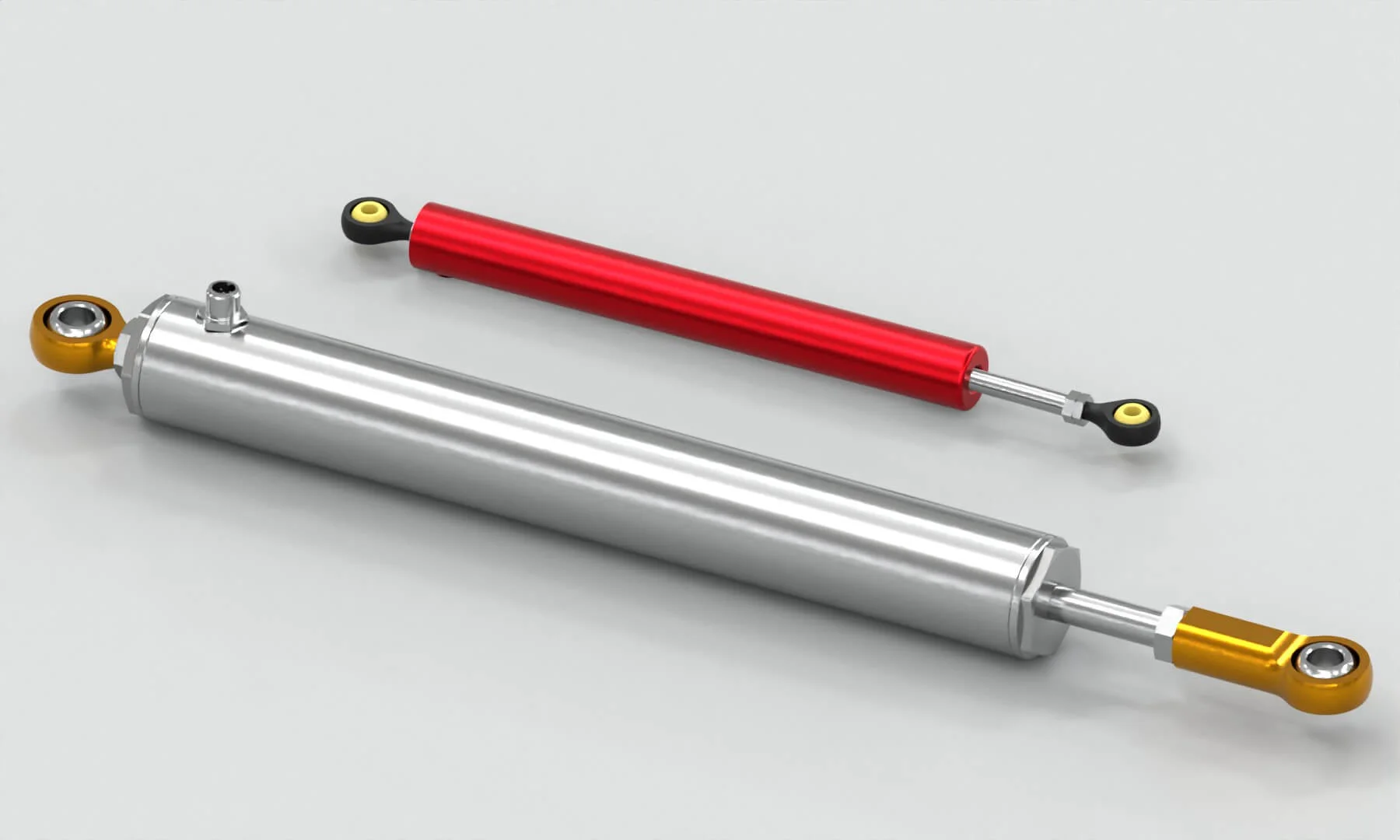

• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 0.75" (19 mm) diameter
• A more robust alternative to Linear Potentiometers
• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 50 to 450 mm (2 to 18 inches)
• ILPS-27 is Industrial duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 1.05" (27 mm) diameter
• A more robust alternative to Linear Potentiometers
• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 100 to 450 mm (4 to 18 inches)
• ILPS-45 is Heavy duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 1.75" (45 mm) diameter
• A more robust alternative to Linear Potentiometers

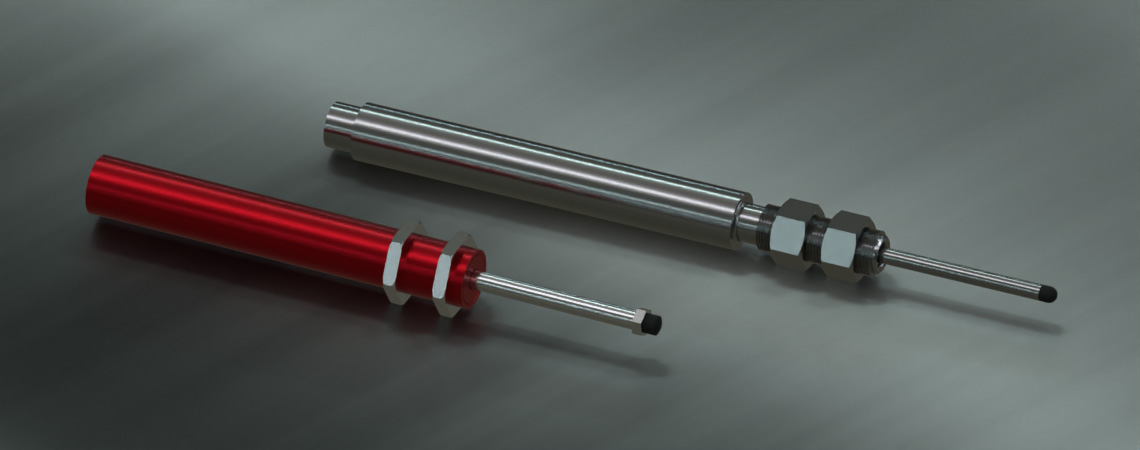

• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 12.5 to 100 mm (0.5 to 4 inches)
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles

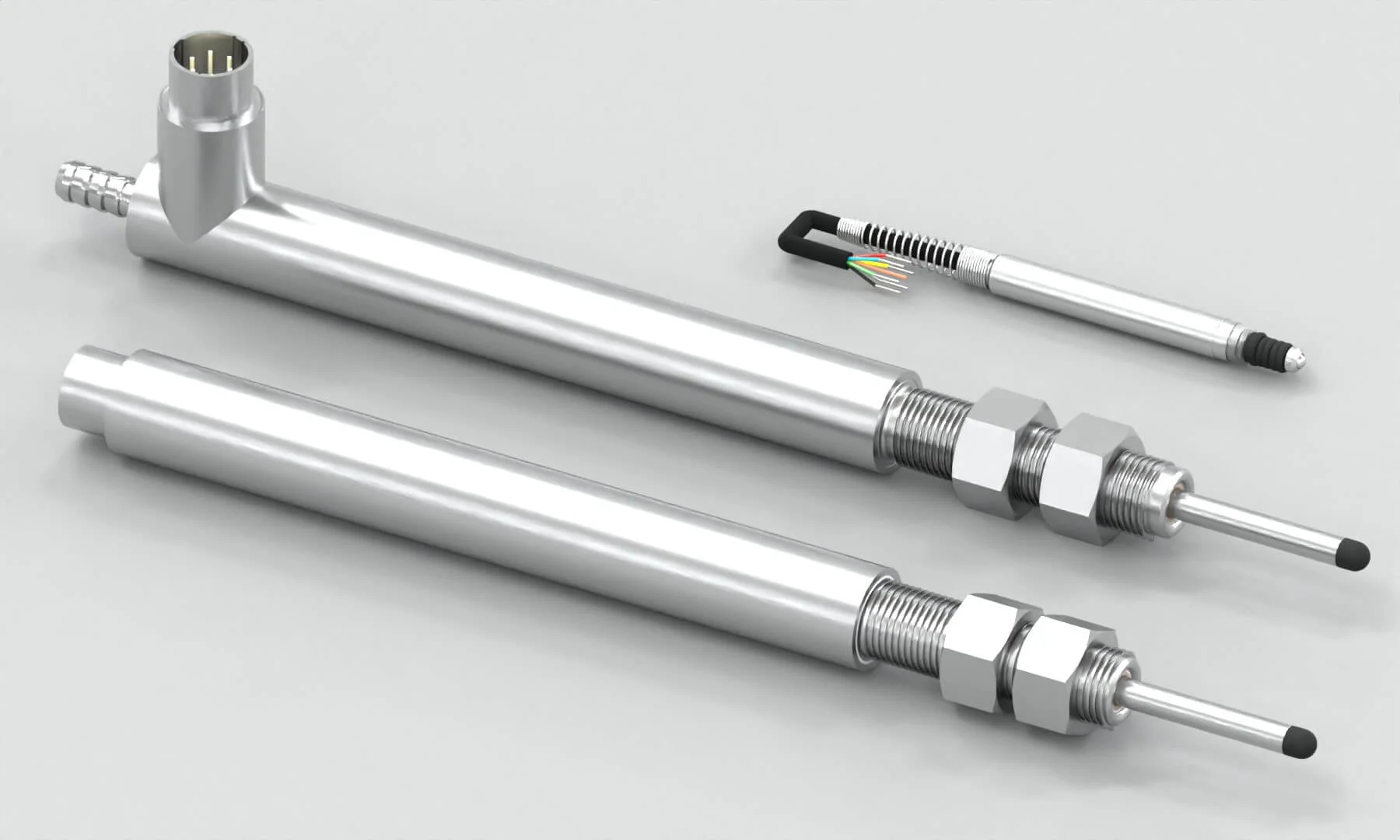

• Spring loaded for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 0.75" (19 mm) diameter
• A more robust alternative to Linear Potentiometers
• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 6.5 to 100 mm (0.25 to 4 inches)
• Lower cost of ownership than a potentiometer or LVDT
• Tested to over 110 million cycles
• Spring loaded for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 0.75" (19 mm) diameter
• A more robust alternative to Linear Potentiometers
