LVDT Position Sensors
Linear Variable Differential Transformer (LVDT) sensors are a simple yet effective choice for position sensing applications.
The letters LVDT are an acronym for Linear Variable Differential Transformer, a common type of electromechanical transducer that can convert the rectilinear motion of an object to which it is coupled mechanically into a corresponding electrical signal. LVDT linear position sensors are readily available that can measure movements as small as a few millionths of an inch up to several inches, but are also capable of measuring positions up to ±20 inches (±0.5 m).
Best for applications...
- That require a sensor with excellent repeatability
- That require a sensor resistant to shock and vibration
- That require a sensor with an unlimited mechanical life
Need help choosing the right solution for your project?
Contact our knowledgeable Application Engineers today.

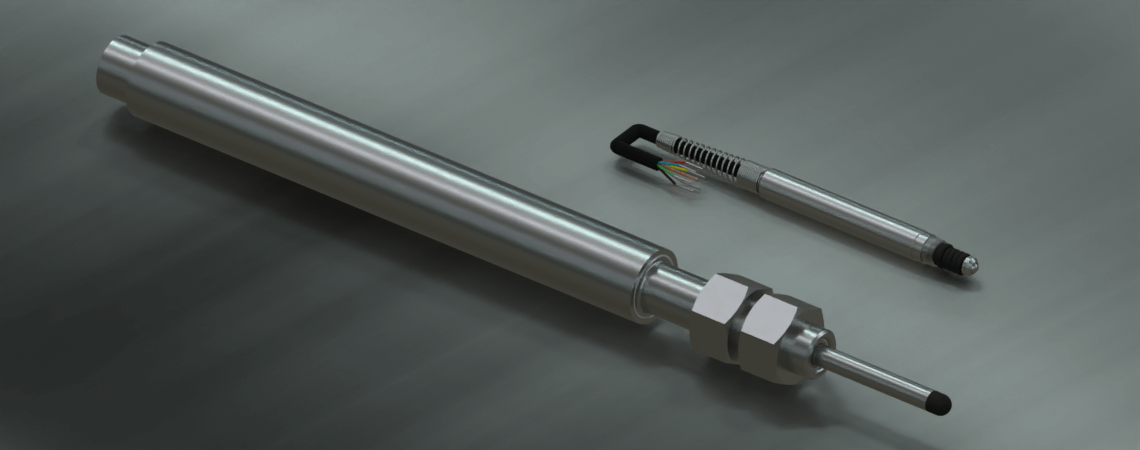

- Spring loaded AC LVDT probe
- Smooth 0.315" (8 mm) O.D. stainless steel housing
- Stroke lengths from ±0.040 to ± 0.200 inches
- Non-linearity better than ±0.5% of FS
- Sealed to IP65
- Spring loaded AC LVDT probe
- Smooth 0.375" (9.5 mm) O.D.stainless steel housing
- Stroke lengths from ±0.040 to ± 0.200 inches
- Non-linearity better than ±0.5% of FS
- Sealed to IP65
- Spring loaded AC LVDT probe
- Threaded 0.375" (9.5 mm) O.D.stainless steel housing
- Stroke lengths from ±0.040 to ± 0.200 inches
- Non-linearity better than ±0.5% of FS
- Sealed to IP65
- Spring loaded AC LVDT probe
- Smooth 0.750" (19 mm) O.D. stainless steel housing
- Stroke lengths from ±0.100 to ± 0.300 inches
- Non-linearity better than ±0.5% of FS
- Sealed to IP61
