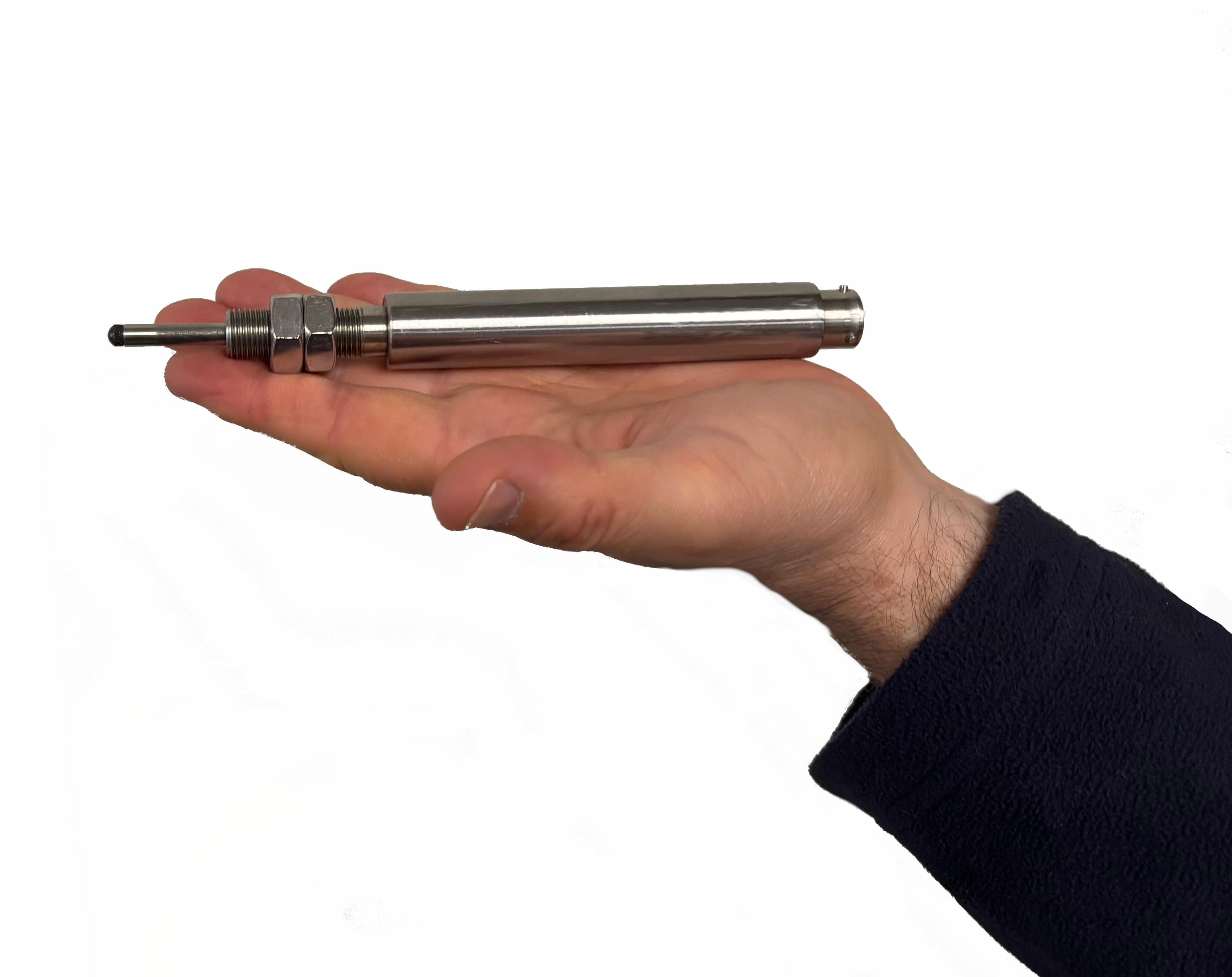

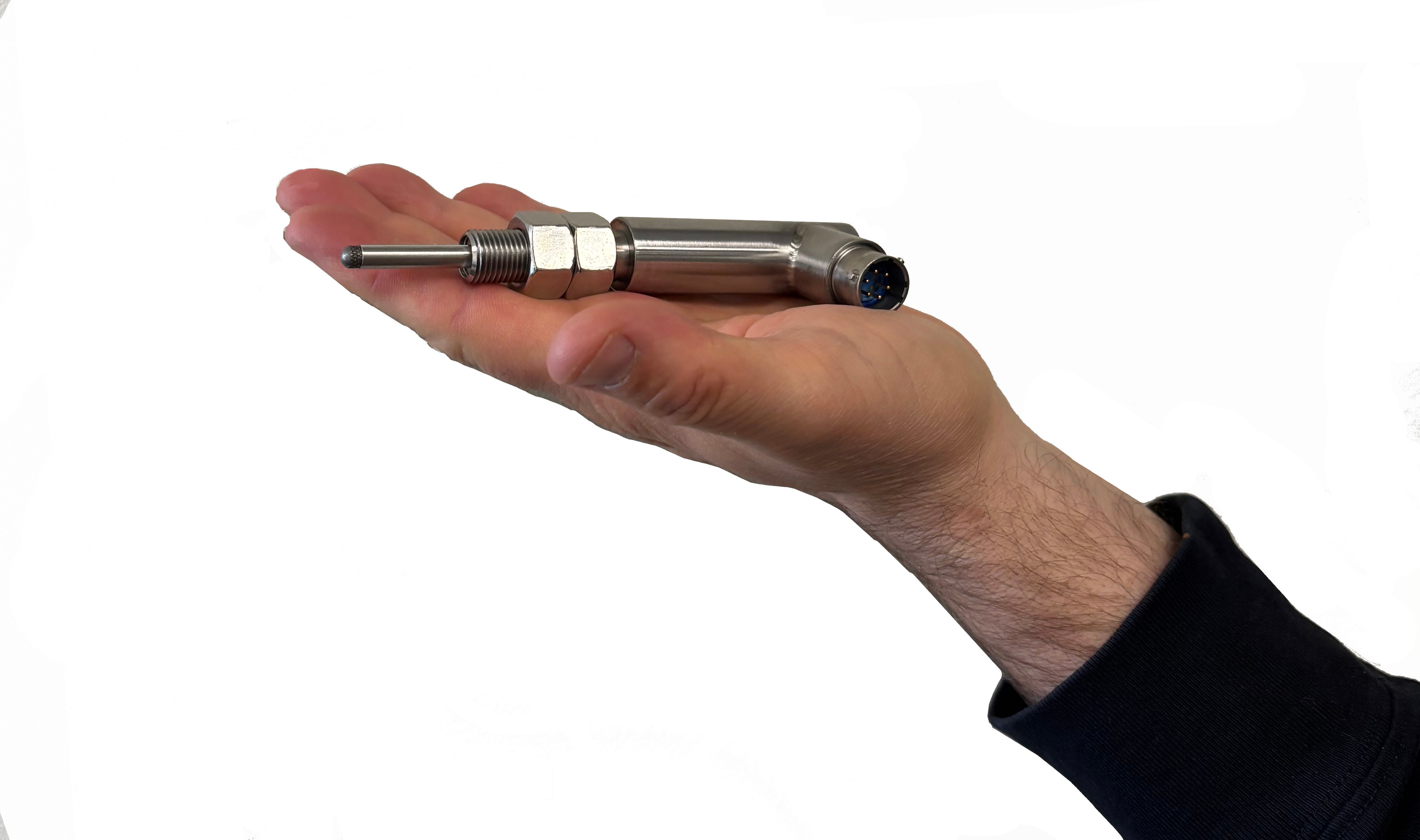

GH-750-A Series LVDT AC Spring Loaded Position Sensor

OVERVIEW

• Spring loaded probe

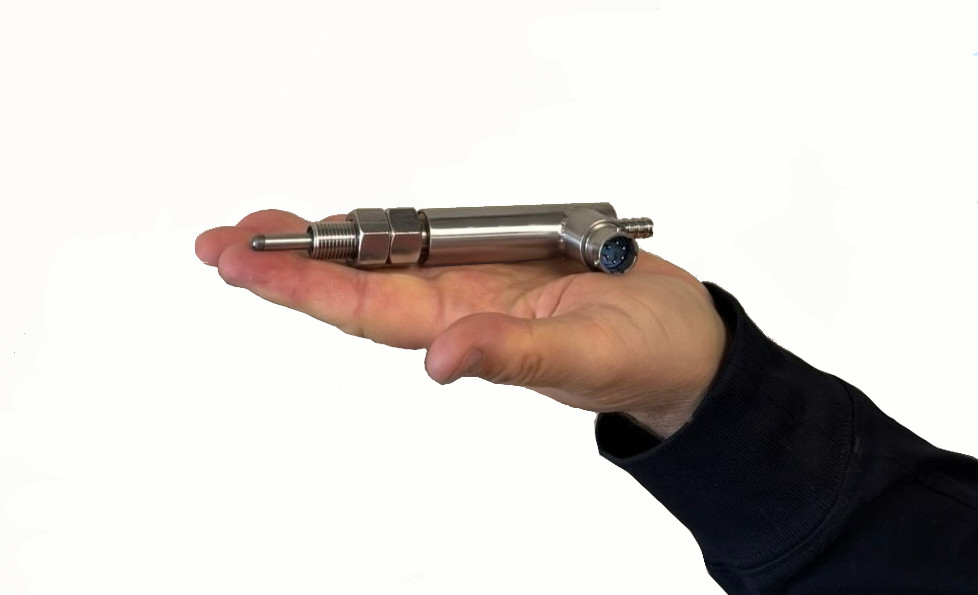

• Air-extend option available
• 0.750" (19mm) O.D. size body
• Stroke lengths from ± 0.05 to ± 2 inches (±1.2mm to  ±50mm)
• Non-Linearity better than ± 0.25% of FS
• Stainless steel housing sealed to IP68
• Applications: Laboratory R&D Materials Testing, Industrial Gauging Test Stands, Factory Automation


MADE IN THE USA


The HGSI GH-750-A series AC Spring Loaded Linear Variable Differential Transformer (LVDT) Position Sensors are used to monitor
and track the linear motion or position of a target. These spring-loaded ruggedized sensors are ideal for use in industrial and laboratory
applications including automotive R&D, motorsports, industrial, motion control, medical, military and aerospace.

The sensor shaft is spring loaded and guided by a pair of precision sleeve bearings. These hermetically sealed sensors are constructed
entirely of stainless steel and are resistant to dust, water, temperature, shock, and vibration. For the air-extend option, the shaft is
extended by introduction of a low pressure (10-30 psi), clean, dry air supply, with a regulated flow, through a 1/4 barbed fitting on the
end of the unit. With the release of pressure, an internal spring returns the probe to its fully retracted position.

The GH-750-A series will operate with most any conventional differential input AC LVDT signal conditioner, but operation with
ratiometric signal conditioning is not recommended. HGSI offers a full line of compatible AC LVDT signal conditioners.



Options:

Variations
LVDT Bi-Polar Measuring Range
LVDT Connector Exit
SKU
GH-750-A-050
Availability
Request Availability
Call For Price
1
Out of Stock
0
Discontinued
Off
Price
$999.99
Add to Cart

TECHNICAL SPECIFICATIONS

Technical Specifications

Input Voltage:

3 Vrms (nominal)

Input Frequency:

400 Hz to 10 kHz

Linearity Error:

≤ ± 0.15% of FSO typical, ± 0.25% maximum

Null Voltage:

0.5% of FS

Repeatability:

0.01% of FS

Hysteresis:

0.01% of FS

Bandwidth:

3 Hz (mechanical)

Operating Temperature:

Standard Version: -54 to +135°C (-65 to +275°F)
High Temperature Version: -54 to +204°C (-65 to +400°F)

Thermal Coefficient:

< -0.02%/°C of FS (< -0.01%/°F of FS)

Humidity:

90% RH

Housing:

Stainless steel

Contact Tip:

AGD #9 hardened tool steel, chrome plated, #4-48 thread, interchangeable

Mating Connector:

Amphenol PT06A-10-6S(SR) or equivalent

Life Expectancy:

> 100 million cycles

Shock Rating:

1000g, 11 mS

Vibration Rating::

20 g to 2 kHz

IP Rating:

IEC IP68
