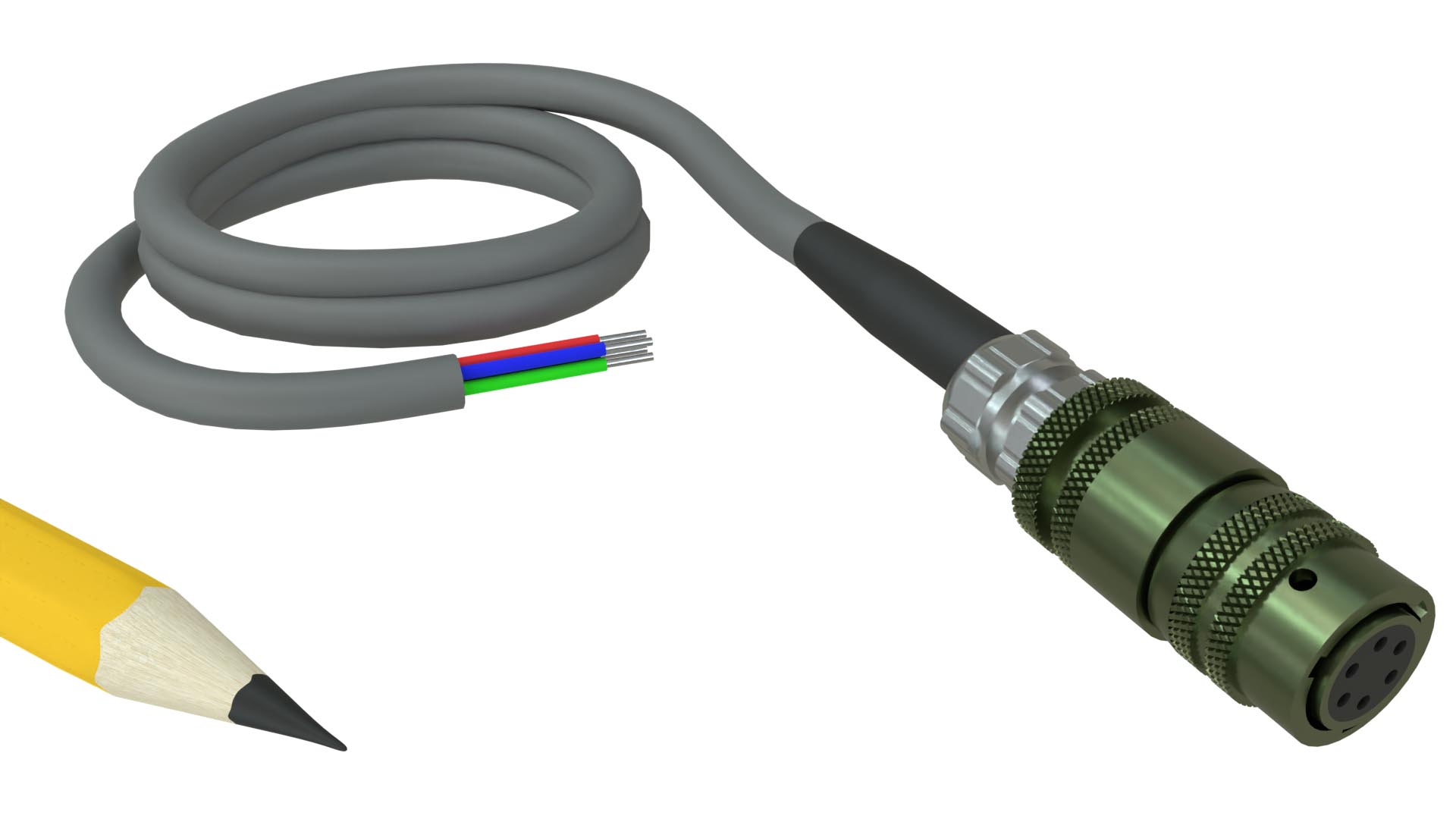

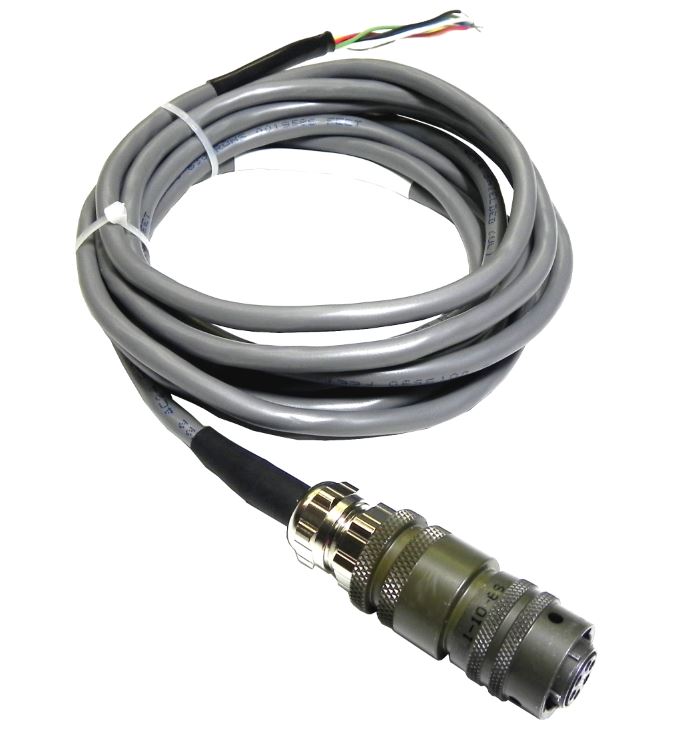

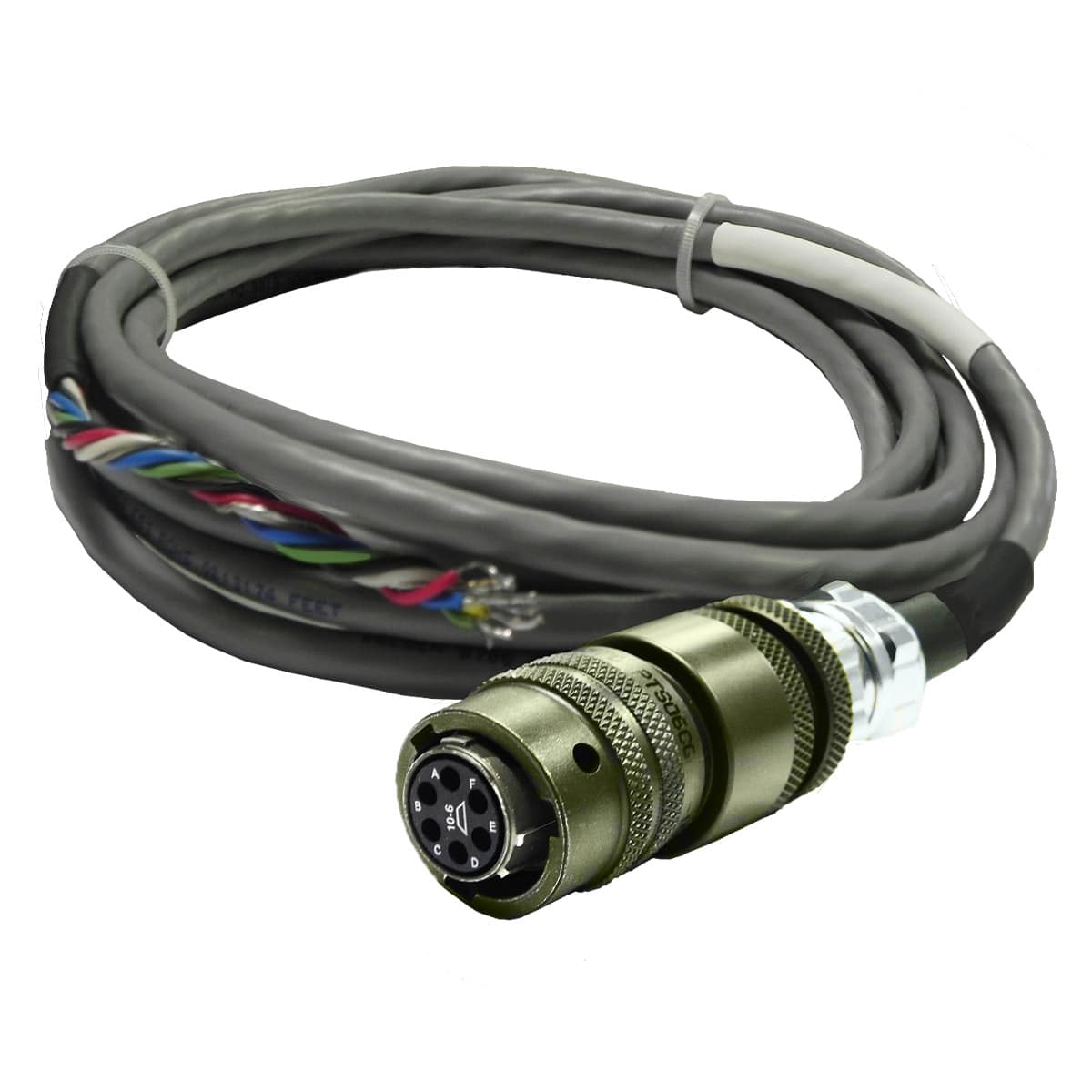

OVERVIEW
• Mates with most HGSI, MACRO SENSORS, and MSI brand LVDT Position Sensors with PT02 connector
• Attached water resistant 6-pin female Amphenol plug connector
• Available in 10, 20, 30 and 50 foot lengths
*Wiring pin-out conforms to HGSI, Macro Sensors, and MSI Schaevitz standard wiring color codes:
AC LVDT Cable Pin-Out:
| A | Red |
| B | Yellow |
| C | Green |
| D | Black |
| E | White |
| F | Blue |
DC LVDT Cable Pin-Out:
| A | White |
| B | (Not Connected) |
| C | (Not Connected) |
| D | Green |
| E | Red |
| F | Black |
Drop-in substitutes for the following TE Macro Sensors LVDT cable assemblies...
AC LVDT Cable Assemblies:
| 010887864010 | 10 foot |
| 010887864020 | 20 foot |
| 010887864030 | 30 foot |
| 010887864050 | 50 foot |
DC LVDT Cable Assemblies:
| 010887861010 | 10 foot |
| 010887864020 | 20 foot |
| 010887864030 | 30 foot |
| 010887864050 | 50 foot |
Options:
SKU
LVDT-AC-CABLE-10-WT
Availability
In stock
Price
$119.00
TECHNICAL SPECIFICATIONS
Connector:
Amphenol p/n: PTS06CGML1-10-6S
Circular, 6-pin, Female
Cable:
| Belden p/n: | AC: 8786, DC: 8723 (or equivalent) |
| Type: | Twisted Pair, Foil shielded with drain wire |
| Number of Conductors: | AC: 3 pair, DC: 2 pair |
| Conductors: | Tinned Copper, Stranded |
| Conductor Insulation: | Polypropylene (PP) |
| Shield: | Aluminum Drain Wire, Polyester Tape |
| Outer Jacket: | Polyvinyl Chloride (PVC) |
| Temperature Rating: | -20°C to +90°C (-4°F to 194°F) |
