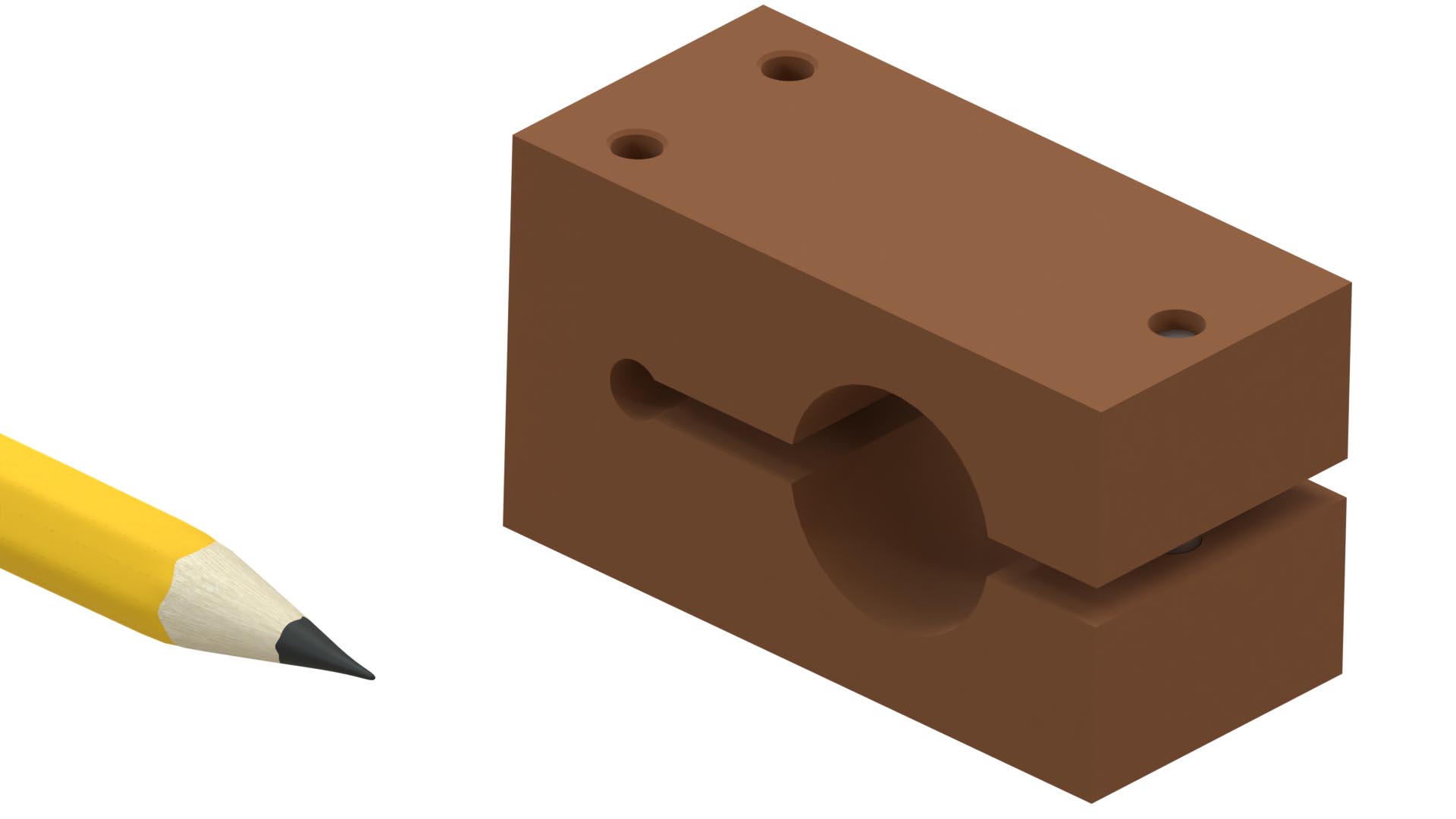

MTD Series Linear LVDT Position Sensor Mounting Block

OVERVIEW

• LVDT position sensor mounting block
• Made from Phenolic
• For 0.375", 0.750", or 0.812" O.D. LVDT sensors


LVDT mounting blocks provide an easy means of mounting an LVDT. Made from linen based Phenolic with a split block design that will not stress or distort the LVDT body.  These blocks are available with bore diameters to accommodate standard LVDT body diameters.  They also feature pre-drilled and tapped holes on their side and bottom to facilitate mounting, and include the clamp screw for securing the LVDT.

Please choose correct ID size when adding to shopping cart


Options:

Variations
LVDT Mounting Block Sensor OD
SKU
LVDT-MTD-375
Availability
In stock
Call For Price
0
Price
$45.00
Add to Cart

TECHNICAL SPECIFICATIONS

Technical Specifications

• Made from Phenolic
• Rated to +257°F (+125°C)
