Mechanically Linked LVITs

 Mechanically Linked LVITs  Spring Loaded LVITs

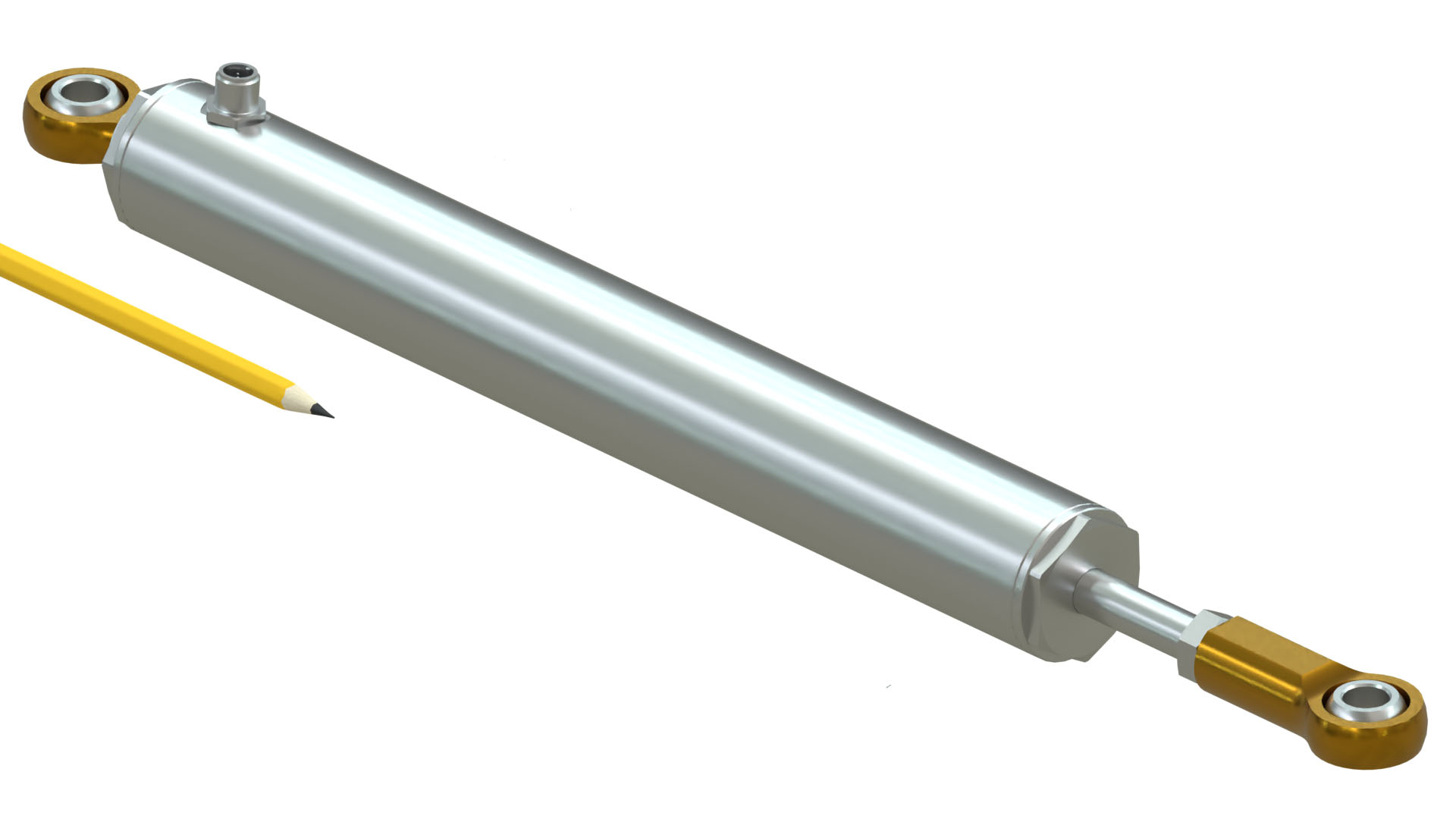

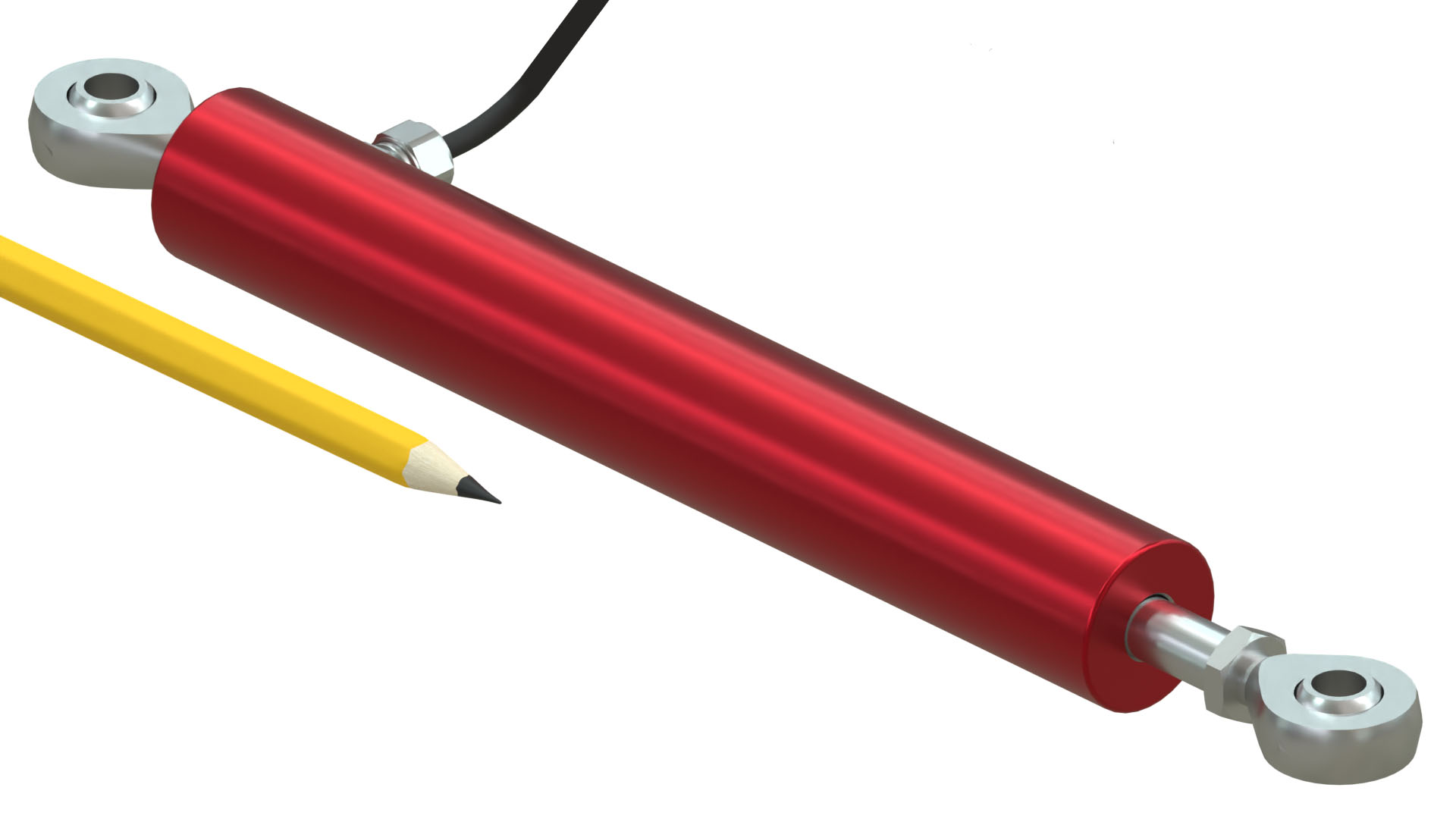

Choose from a wide variety of in stock Mechanically LVIT sensors. Order online today for fast delivery. Mechanically linked LVIT sensors employ rod end joints for simple yet flexible installation in your project.


An Overview of Linear LVIT Position Sensor Technology
Linear Variable Inductance Transducers (LVITs) offer an excellent price-to-performance ratio compared to other linear position sensing technologies such as LVDTs and linear potentiometers. The sensor's overall length only increases by a relatively small percentage beyond their stroke. As a result, LVITs may offer better stroke-to-length ratio than many other linear position sensor technologies.

Because LVITs are inductive, the sensing element is contactless with no friction issues or moving parts that can wear out. As is common for inductive sensors, they exhibit outstanding repeatability, with resolution limited only by the electronics used with them. LVITs offer the performance of contactless sensors like LVDTs or magnetostrictive sensors, but at lower price; comparable to industrial grade linear potentiometers.

Best for applications...
- That require a sensor with internal amplifier electronics
- That require a sensor with a short stroke-to-body length ratio
- Where the sensor will be exposure to fluids
- That require a sensor with an unlimited mechanical life


Pricing or Technical questions?

Contact us today by messaging us HERE or calling 248-636-1515

Showing 1 - 3 of 3 results
Starting at $282

• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 25 to 200 mm (1 to 8 inches)
• ILPS-19 is Automation & Motorsports duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 0.75" (19 mm) diameter
• A more robust alternative to Linear Potentiometers

Starting at $416

• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 50 to 450 mm (2 to 18 inches)
• ILPS-27 is Industrial duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 1.05" (27 mm) diameter
• A more robust alternative to Linear Potentiometers

Starting at $875

• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 100 to 450 mm (4 to 18 inches)
• ILPS-45 is Heavy duty
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Rod End Joints for simple mounting
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 1.75" (45 mm) diameter
• A more robust alternative to Linear Potentiometers
