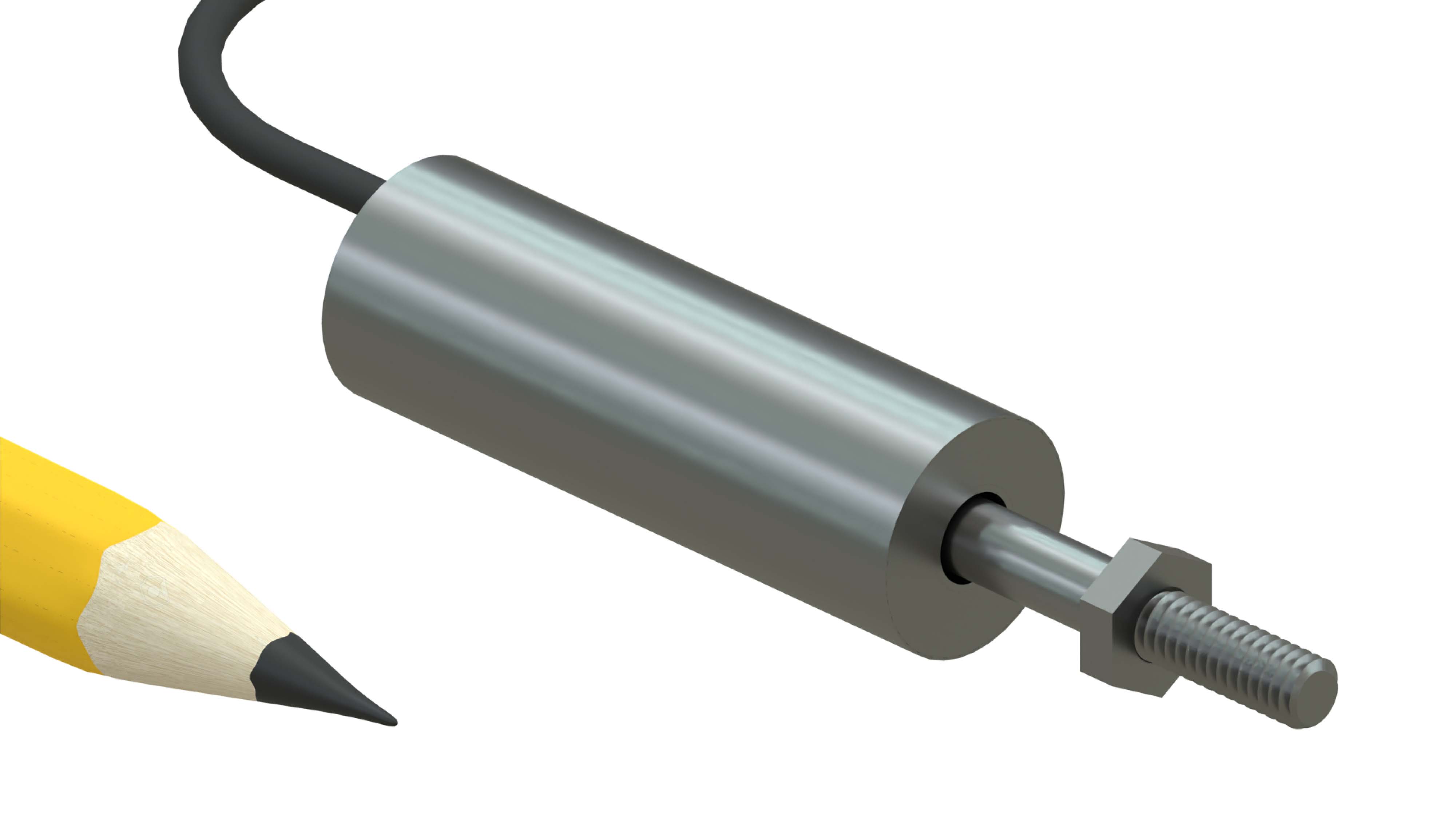

ILPS-13Z Mini Linear LVIT Position Sensor

OVERVIEW

• Linear Variable Inductive Transducer (LVIT)
• Stroke lengths available from 2.5 to 200 mm (0.1 to 8 inches)
• Through-bore design
• Sensing element is contactless, virtually wear-free
• Tested to over 110 million cycles
• Environmental rating of IP67 (Dust tight, Short term water immersion)
• 0.50" (13 mm) diameter
• A more robust alternative to Linear Potentiometers


MADE IN THE USA


LVIT Technology = a longer life-span than a Potentiometer!

HGSI ILPS-13Z series Miniature Linear Variable Inductive Transducer (LVIT) Position Sensor with Rod End Joints are used to monitor and track the linear motion or position of a target. These ruggedized sensors are ideal for use in industrial and laboratory applications including automotive R&D, motorsports, industrial, motion control, medical, military and aerospace.

The inductive coil and spoiler combination is a contactless solution, eliminating the wear and dithering issues commonly experienced with Potentiometer type sensors. The amplifier electronics are contained within the housing, no need for an external signal conditioner.

The ILPS-13Z series sensor is made from industrial duty materials for resistance to dust, water, temperature, shock, and vibration.

The SenSet Field Programmability feature allows for quick and easy recalibration of the units’ zero and full scale electrical output.



Options:

ILPS Electrical Termination
ILPS Measuring Range
ILPS Signal Output
ILPS Housing Material
SKU
ILPS-13Z-12.7-A-00-50-S
Availability
5 in stock
0
Price
$335.00
Add to Cart

TECHNICAL SPECIFICATIONS

Stroke Lengths: from 0.1" (2.5mm) to 8" (200mm)
Non-Linearity (BFSL method): +/- 0.15% of full stroke typical
Resolution: 0.025% of full stroke
Repeatability: 0.025% of full stroke
Bandwidth: 300 Hz (3.3 mS)
Element Type: Variable Inductive
Output: 0 to 5 VDC or 0 to 10 VDC
Excitation Voltage: 12 to 30 VDC
Current Draw: ~35 mA (nominal)
Output Cable: 4 conductor with drain, 28 AWG, PVC jacket, 3 foot long
Operating Temperature Range: -40 to +105°C (-40 to +220°F)
Thermal Coefficient of Sensitivity: +/- 0.015%/°C nominal
Humidity: 95% Max. RH (non-condensing)
Liquid & Dust Protection: IP67
Shock Rating: 1000 g, 11 ms
Vibration Rating: 5-20 Hz 0.5 inch p-p; 20-2000 Hz 4.2 g p-p
Housing Dimension (O.D): 0.50 inch (13 mm)
