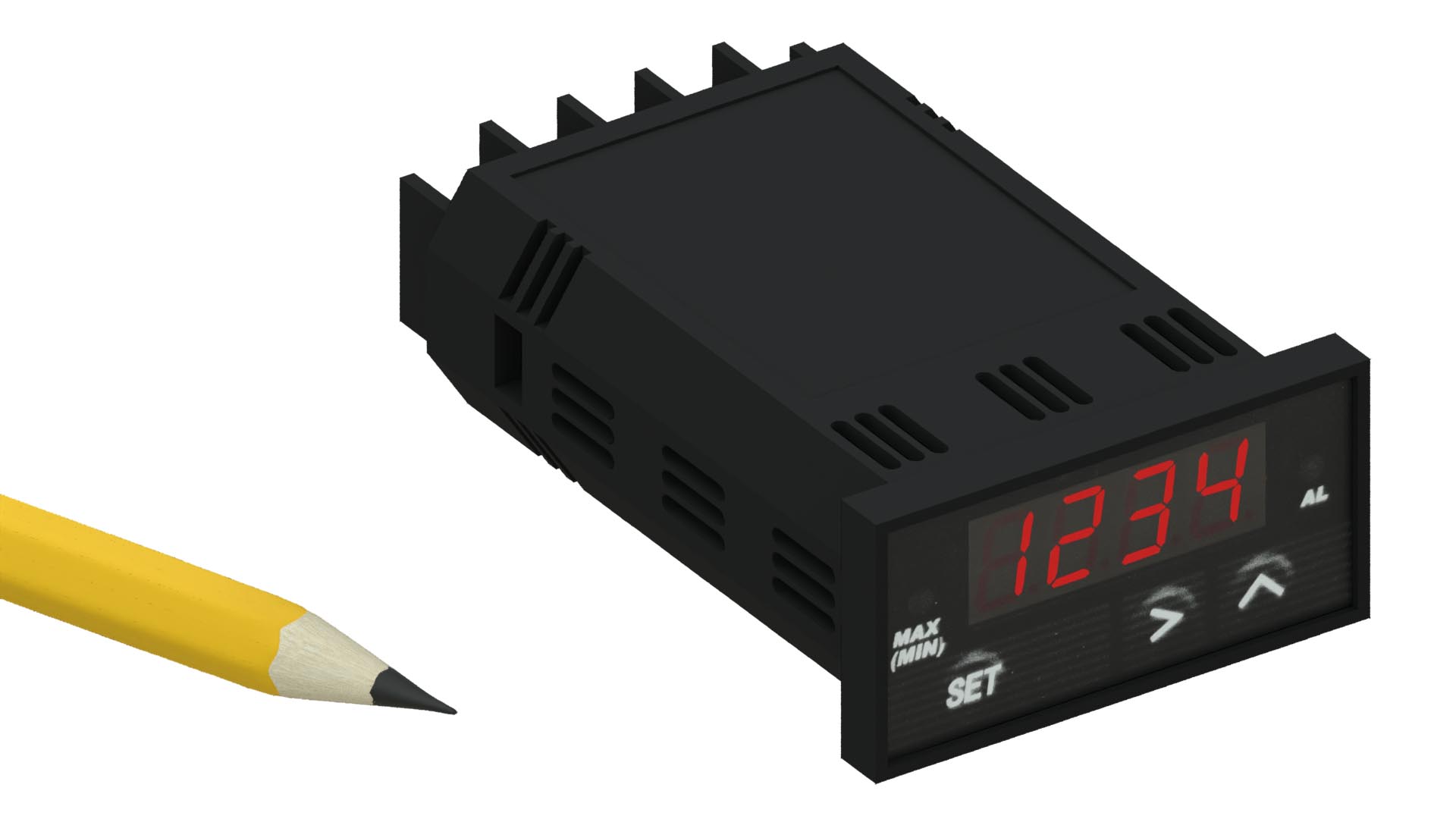

PMD1XT Single Channel Mini Digital Panel Meter - LVIT or Potentiometer Input

OVERVIEW

• Compatible with all HGSI LVITs or Linear Potentiometers
• Max travel recall function
• High travel set-point alarm LED with single internal relay contact

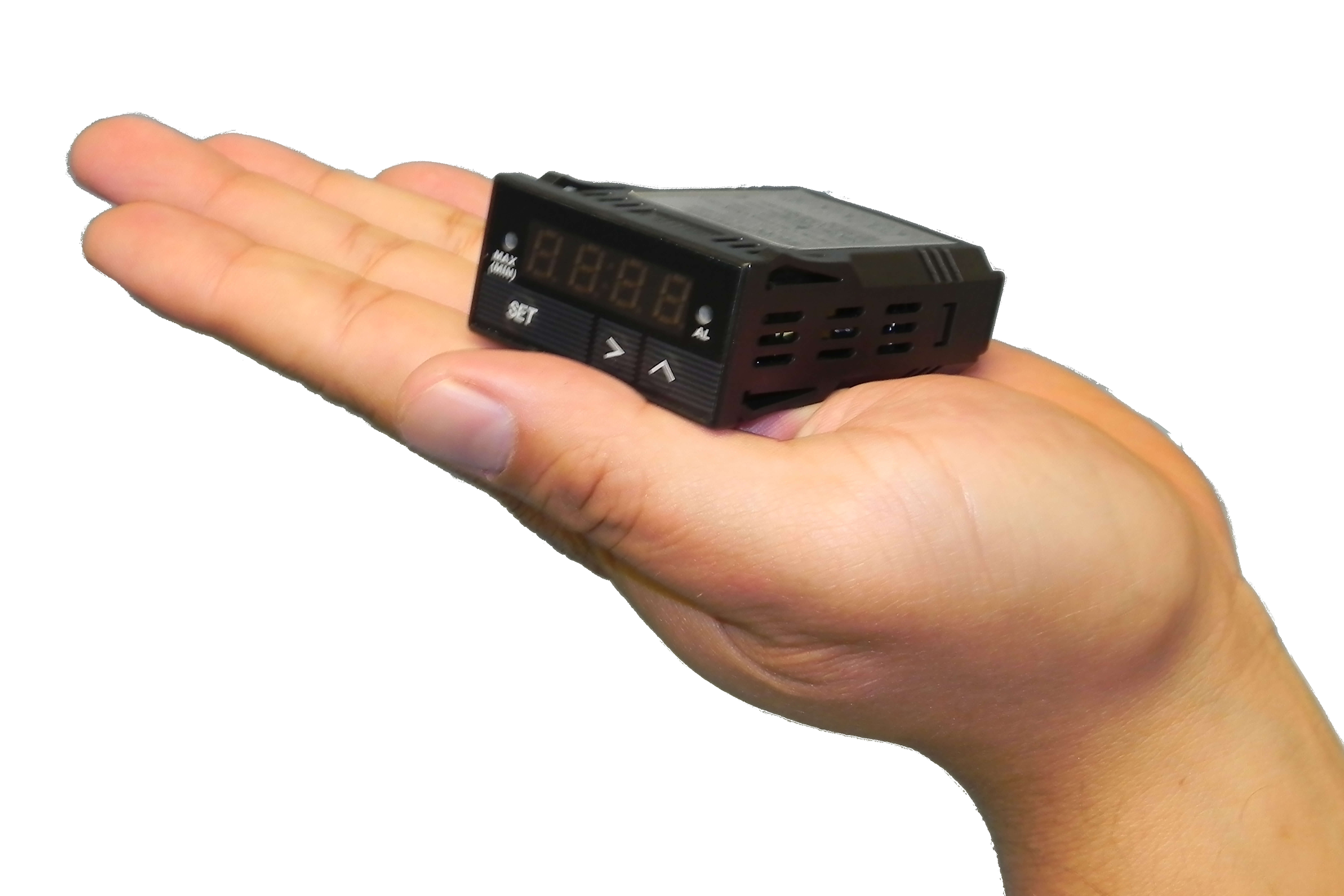

• Miniature Size, Panel cutout is 1.77" x 0.87" (45 x 22 mm) (1/32 DIN)
• 12 or 24 VDC powered

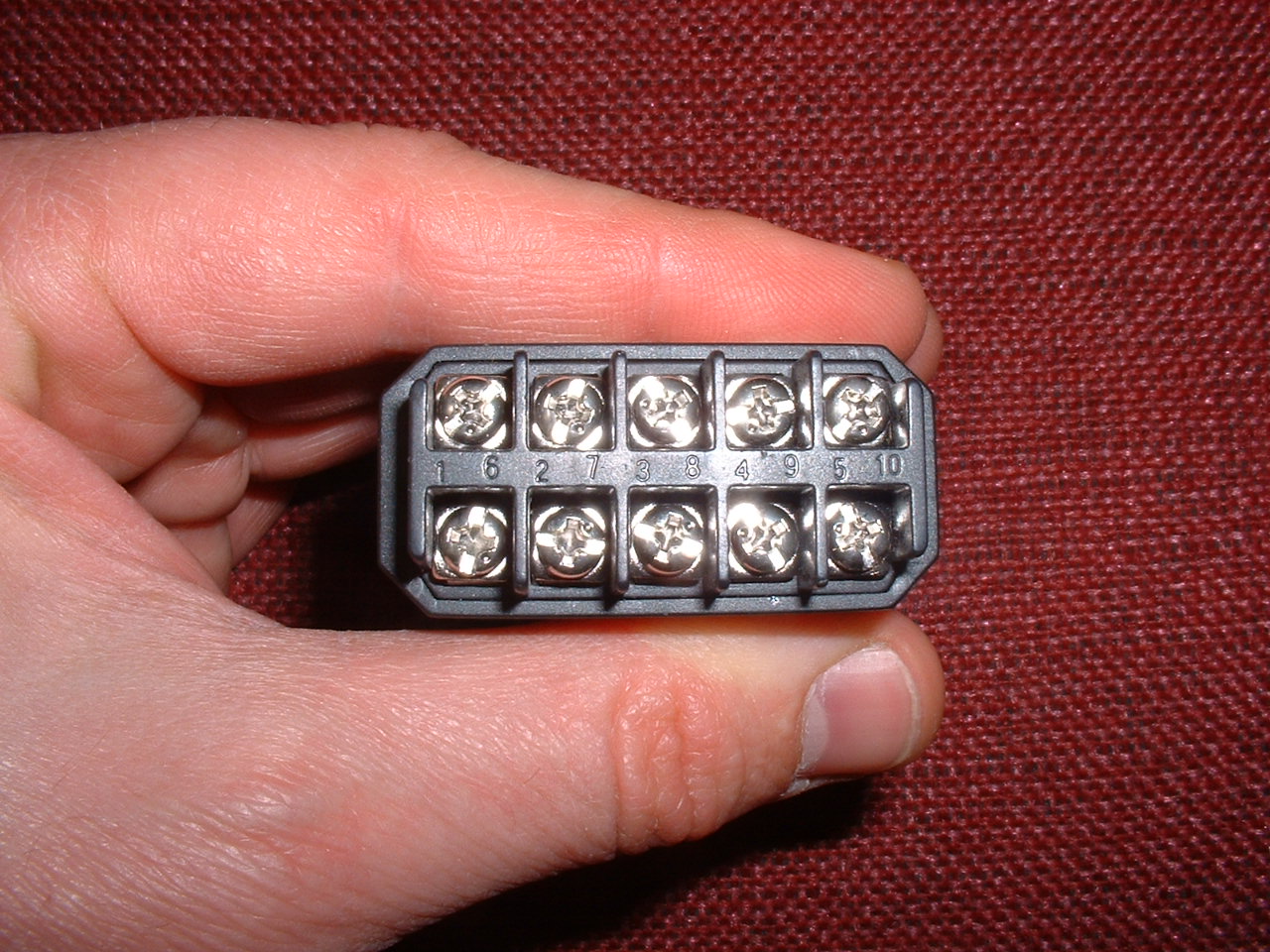

The PMD-1XT Series gauge has advanced operations including max temperature recall, high temperature alarm, and analog retransmitting output. The gauge’s high resolution digital microprocessor ensures accurate temperature measurement. The PMD-1XT Series gauge features a bright four digit LCD display with selectable decimal point position that is easy to read, even in direct sunlight and an industrial grade screw terminal strip allows for quick and easy connection of power and signal wires. Setup and programming of your PMD-1XT gauge is simple using the three front panel push buttons. The gauge includes a fast response feedback alarm that gives a visual warning alert, plus an internal relay is triggered that can be used to control an external device, such as a fan or buzzer. You can easily access the max temperature recall feature to display the peak temperature stored in memory. All of our gauges are manufactured from high quality materials for optimum performance in your demanding application.


Input Table (User Selectable)

Input Type Options Range Settings
Thermocouple
RTD
Resistance
mV (DC)
Volts (DC)
mA (DC)
K, T, J, R, S, E
PT100, Cu50
0-375 ohms
0-30 mV
0-5V, 1-5V, 0-10V
0-10 mA, 0-20 mA, 4-20 mA



Options:

Add a Protective Aluminum Enclosure Housing?
PMD1XT Display Engineering Units
PMD1XT Power Input
PMD1XT LED Display Color
SKU
PMD1XT-RD-012-0-(INCH)
Availability
In Stock
Price
$78.50
0
Add to Cart

TECHNICAL SPECIFICATIONS

Number of Inputs: 1
Input: 0 to 10 VDC (default)
Other Input Types: Thermocouple, RTD, mA (user selectable)
Display Range: -999 to 9999
Accuracy: +/-0.2% of reading
Display Resolution: .9999, 9.999, 99.99, 999.9, or 9999
LED Display: Red, 4-digit, 0.275 inch (7 mm high), 0.5 second update rate
Microprocessor Sampling Rate: 4 samples/second
Microprocessor A/D Resolution: 16 bit
A/D Accuracy: +/- 0.2% FS +/- 1 unit
Environment: 0 to 50C, 85% Max. RH (non-condensing)
Operating Temperature: +32 to +125°F (0 to +50°C)
Front Bezel Rating: IP51
Input Voltage: 10 to 16 VDC (24 VDC powered available upon request)
Current Draw: < 100 mA @ 24 VDC
Alarm Relay Contact Rating: 1A @ 30VDC
Case Dimensions: 1" x 2" x 3" (24mm x 48mm x 75mm)
Panel Cutout Dimensions: 1.77" x 0.87" (45 x 22 mm) (1/32 DIN)
Weight: 2.1 ounces
