OVERVIEW
• Free Core design
• DC LVDT
• 0.750" (19mm) O.D. size body
• Stroke lengths from 0.100" to 20.0" (2.5mm to 508mm)
• Non-Linearity better than ± 0.25% of FS
• Stainless steel housing rated to IP61
• Chose output: ±10VDC, 0-10VDC, or 4-20mA
• Applications: Laboratory R&D Materials Testing, Valve Position Sensing, Factory Automation
MADE IN THE USA

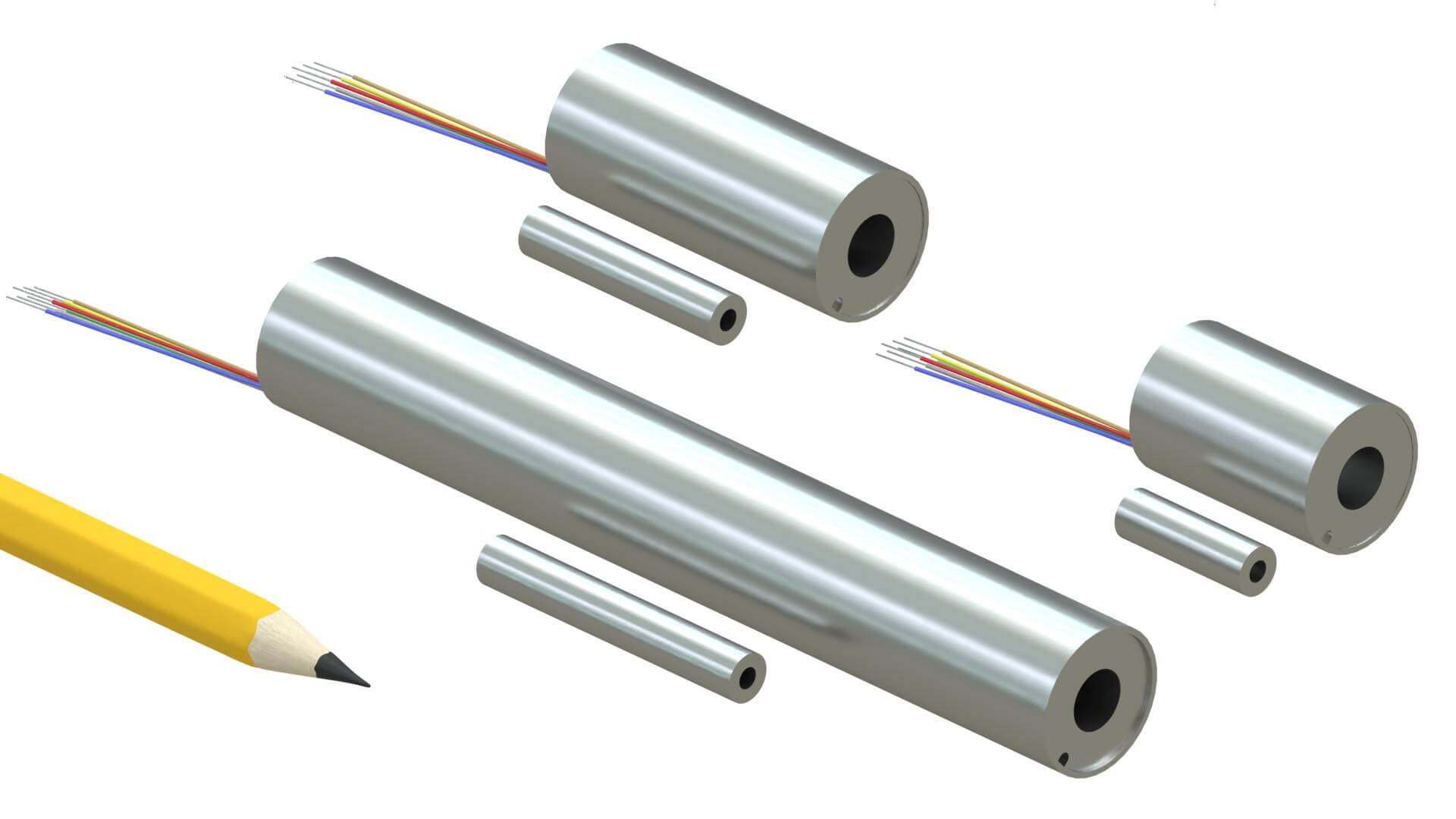

The HGSI T-750-D/E/I series DC Linear Variable Differential Transformer (LVDT) Position Sensors are used to monitor and track the linear motion or position of a target. These ruggedized sensors are ideal for use in industrial and laboratory applications including automotive R&D, motorsports, industrial, motion control, medical, military and aerospace.
These swaged-end sensors are constructed entirely of stainless steel and are resistant to dust and temperature. The coil windings are sealed using an epoxy potting compound providing excellent protection against shock and vibration.
The amplifier electronics are contained within the housing, no need for an external signal conditioner.
Options:
TECHNICAL SPECIFICATIONS
|
Linearity Error: |
≤ ± 0.15% of FSO typical, ± 0.25% maximum |
|
Bandwidth: |
125 Hz update rate (analog signal output) |
|
Repeatability: |
0.01% of FS |
|
Hysteresis: |
0.01% of FS |
|
Operating Temperature: |
-20 to +85°C (0 to +185°F) |
|
Thermal Coefficient: |
< -0.02%/°C of FS (< -0.01%/°F of FS) |
|
Humidity: |
90% RH |
|
Housing: |
Stainless steel |
|
Lead Wires: |
28 AWG Teflon™ insulated, 12” length (305 mm) |
|
Life Expectancy: |
> 100 million cycles |
|
Shock Rating: |
1000g, 11 mS |
|
Vibration Rating:: |
20 g to 2 kHz |
|
IP Rating: |
IEC IP61 |
|
Country of Manufacture: |
Made in USA |
