TH-750-A Series LVDT AC Free Core Sealed Position Sensor

OVERVIEW

• Free Core Design
•
0.750" (19mm) O.D. size body
• Stroke lengths from 0.100 to 20 inches (2.5mm to 508mm)
• Non-Linearity better than ± 0.25% of FS
• Stainless steel housing sealed to IP68

• Applications: Laboratory R&D Materials Testing, Valve Position Sensing, Factory Automation


MADE IN THE USA

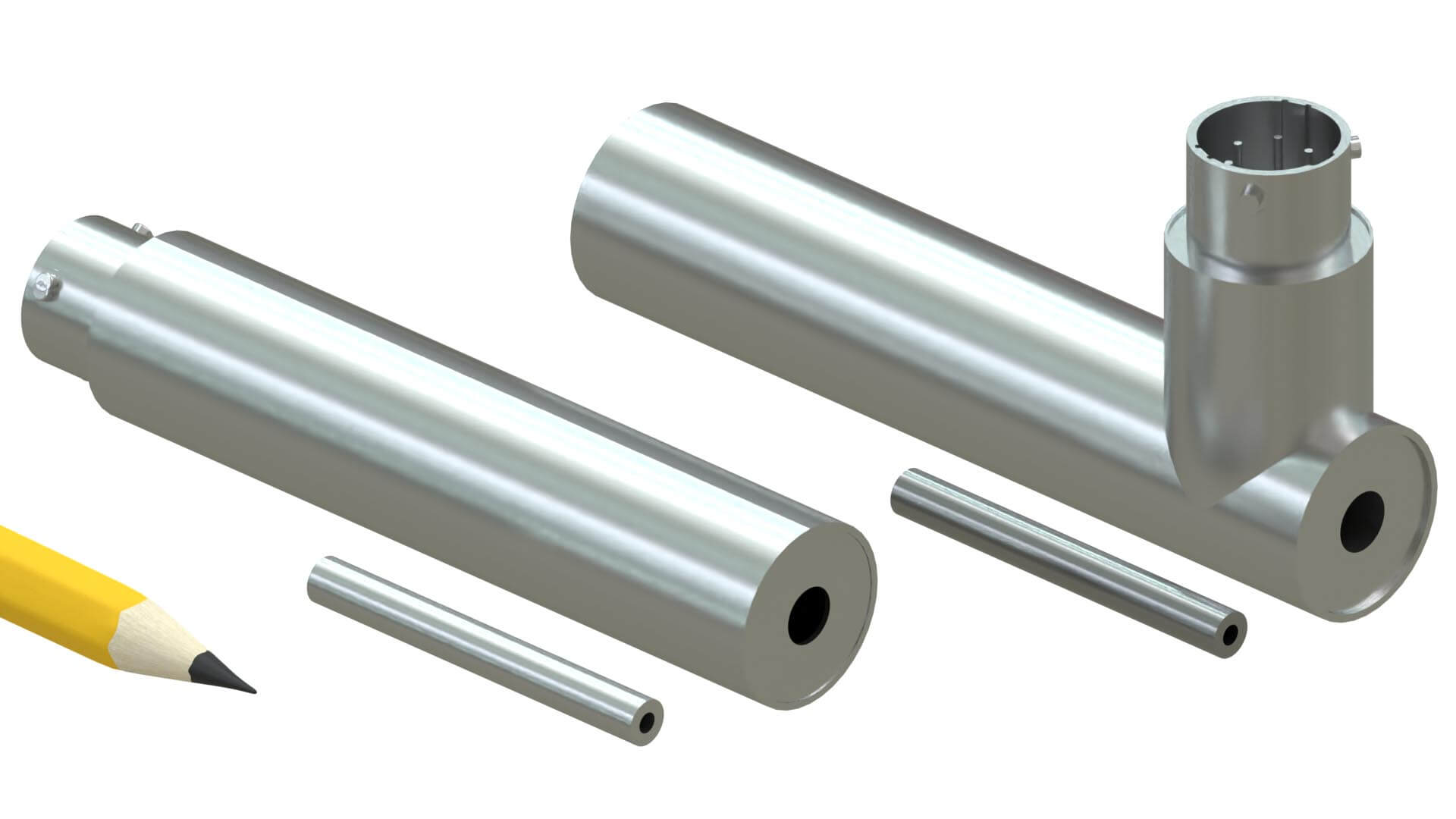

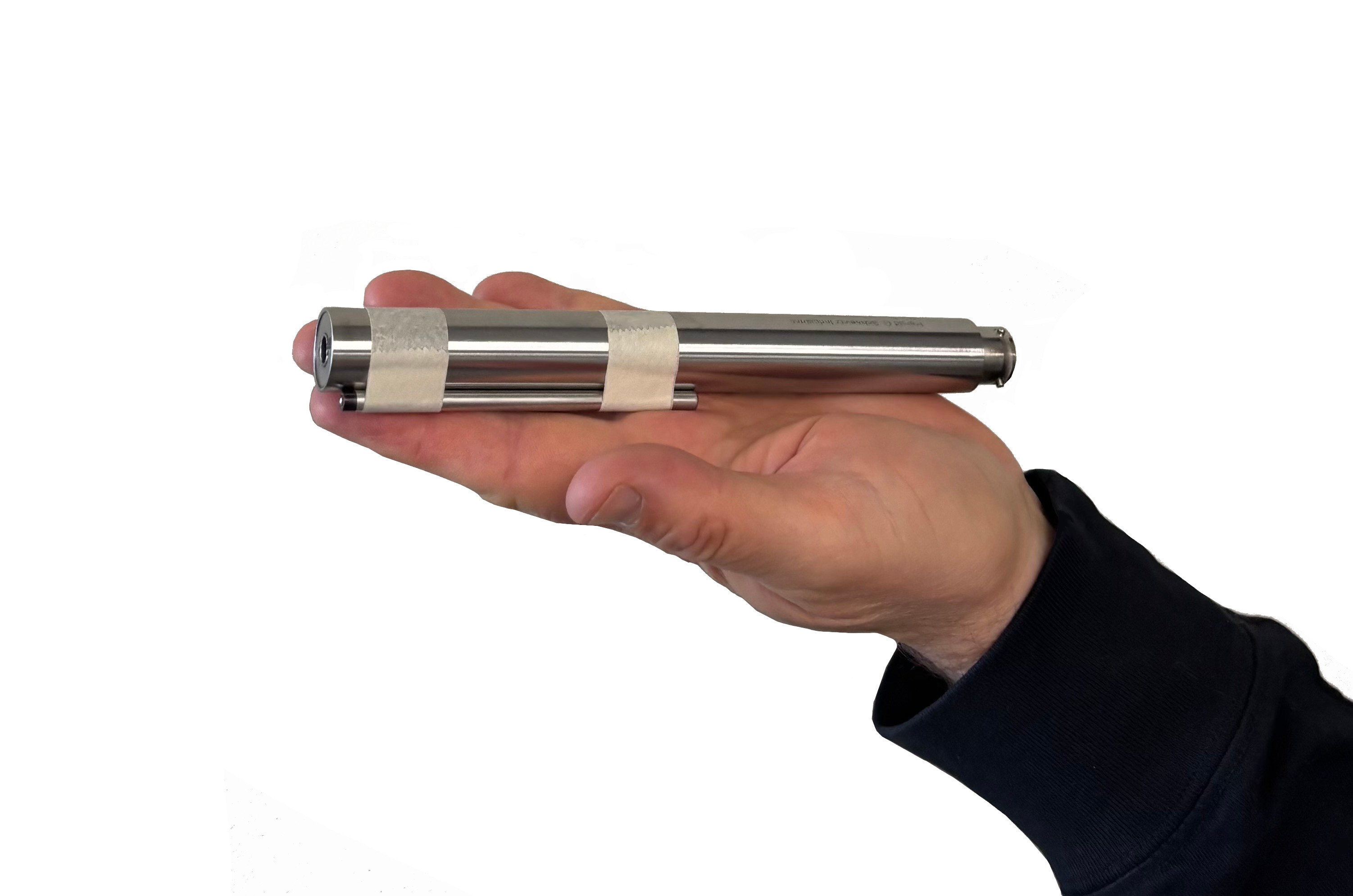

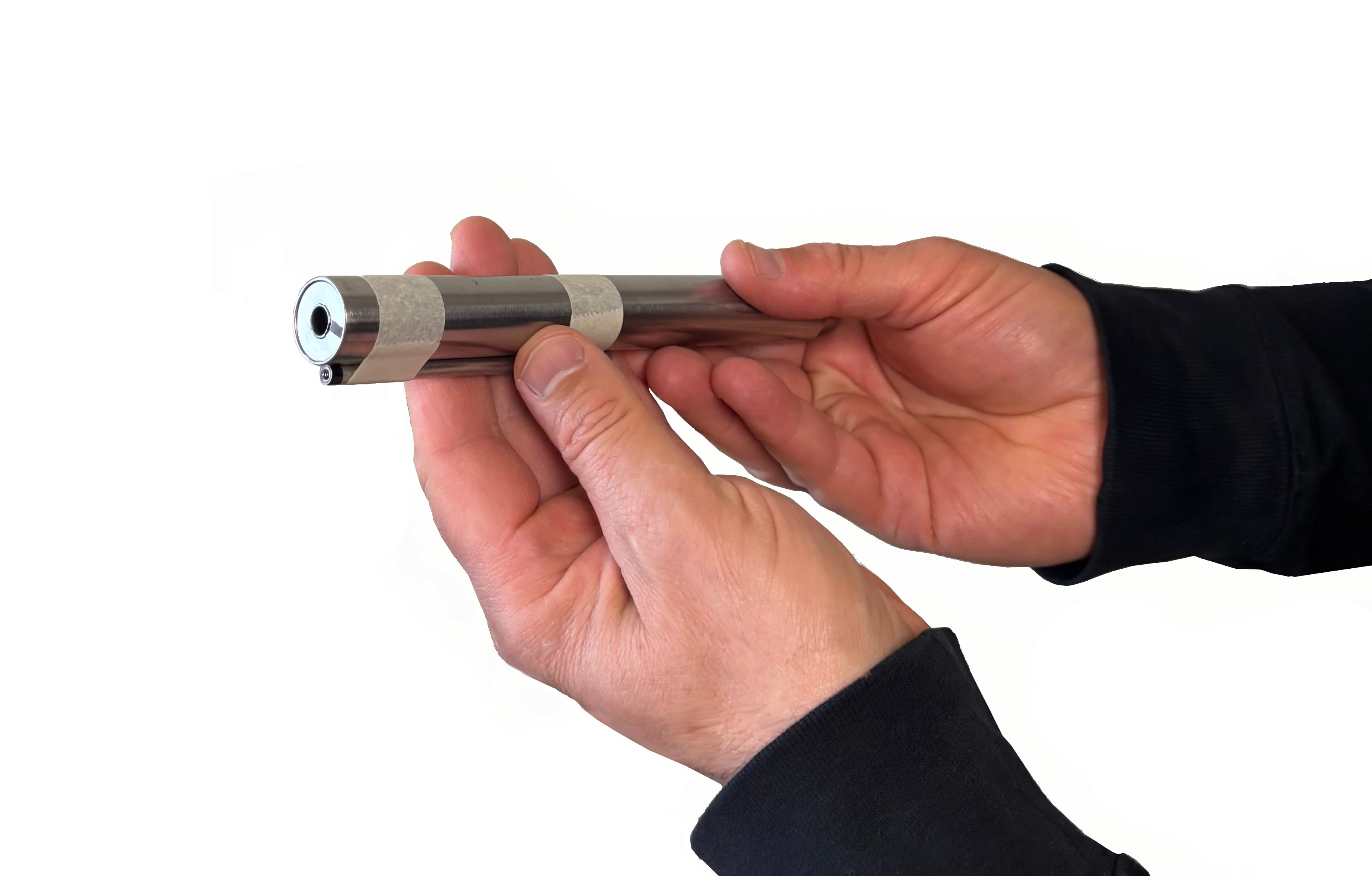

The HGSI TH-750-A series AC Linear Variable Differential Transformer (LVDT) Position Sensors are used to monitor and track the linear motion or position of a target. These ruggedized sensors are ideal for use in industrial and laboratory applications including automotive R&D, motorsports, industrial, motion control, medical, military and aerospace.

These hermetically sealed sensors are constructed entirely of stainless steel and are resistant to dust, water, and temperature. The coil windings are sealed using an epoxy potting compound providing excellent protection against shock and vibration.

The TH-750-A series will operate with most any conventional differential input AC LVDT signal conditioner, but operation with ratiometric signal conditioning is not recommended. HGSI offers a full line of compatible AC LVDT signal conditioners. Please contact us for a recommendation.



Options:

Variations
LVDT Bi-Polar Measuring Range
LVDT Connector Exit
SKU
TH-750-A-050
Availability
Request Availability
Call For Price
1
Out of Stock
0
Discontinued
Off
Price
$999.99
Add to Cart

TECHNICAL SPECIFICATIONS

Technical Specifications

Linearity Error:

≤ ± 0.15% of FSO typical, ± 0.25% maximum

Resolution:

16 bit

Repeatability:

0.01% of FS

Hysteresis:

0.01% of FS

Bandwidth:

125 Hz update rate (analog signal output)

Operating Temperature:

-20 to +85°C (0 to +185°F)

Thermal Coefficient:

< -0.025%/°C of FS (< -0.014%/°F of FS)

Humidity:

90% RH

Housing:

Stainless steel

Mating Connector:

Amphenol PT06A-10-6S(SR) or equivalent

Life Expectancy:

> 100 million cycles

Shock Rating:

1000g, 11 mS

Vibration Rating:

20 g to 2 kHz

IP Rating:

IEC IP68

Country of Manufacture:

Made in the USA
