LVC-4000 TE Macro Sensors AC LVDT Signal Conditioner

OVERVIEW

HGSI is a factory authorized TE Connectivity Macro Sensors distributor.

Have Pricing or Technical questions? Contact us today.

Complete the contact form, call us at 248-636-1515, or email us at sales@hgsind.com

• Push-button auto-calibration
• Analog voltage or current output
• Digital RS-485 interface
• Supports most standard AC LVDTs, RVDTs, and VR half-bridge sensors

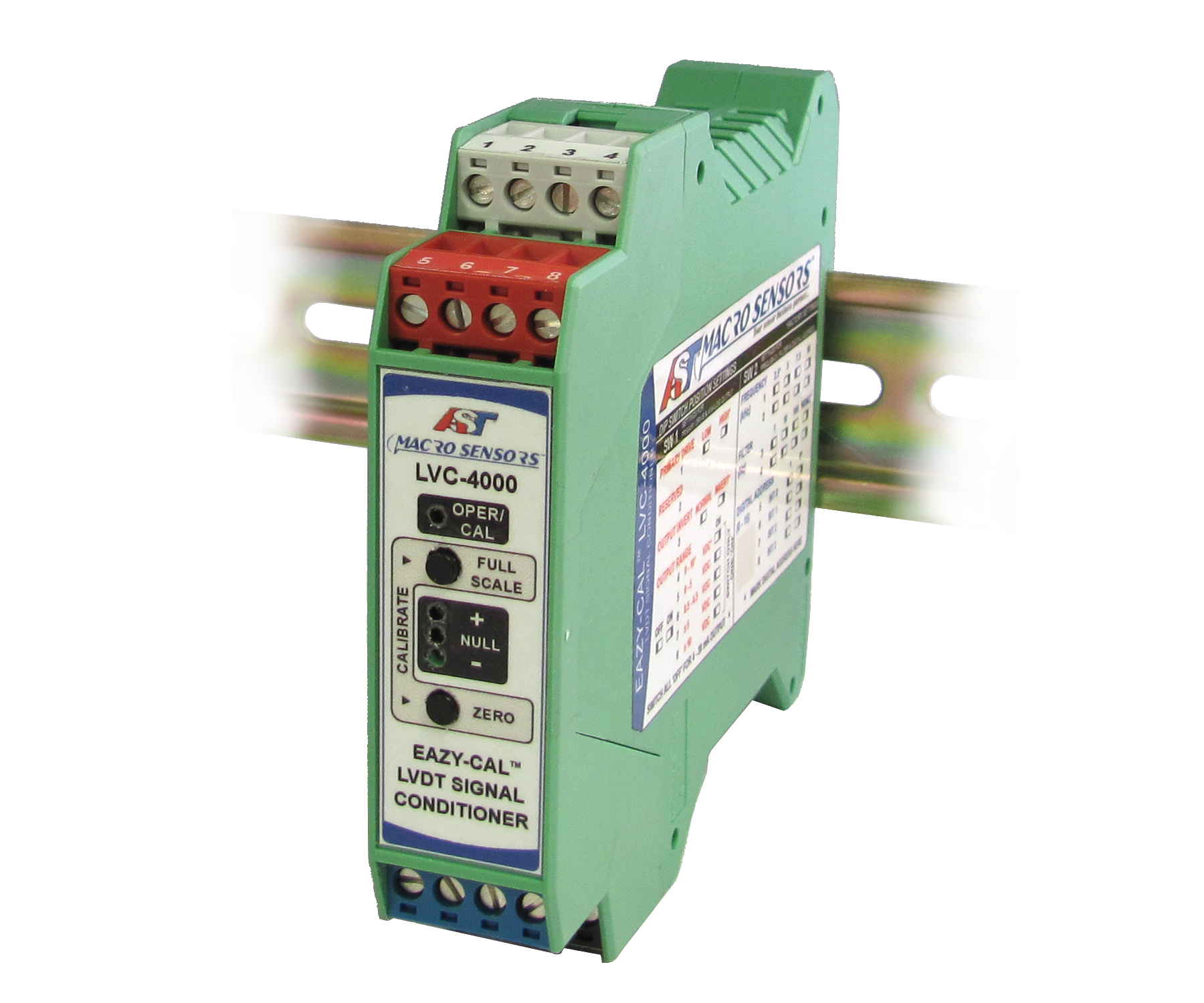

• DIN-rail mountable

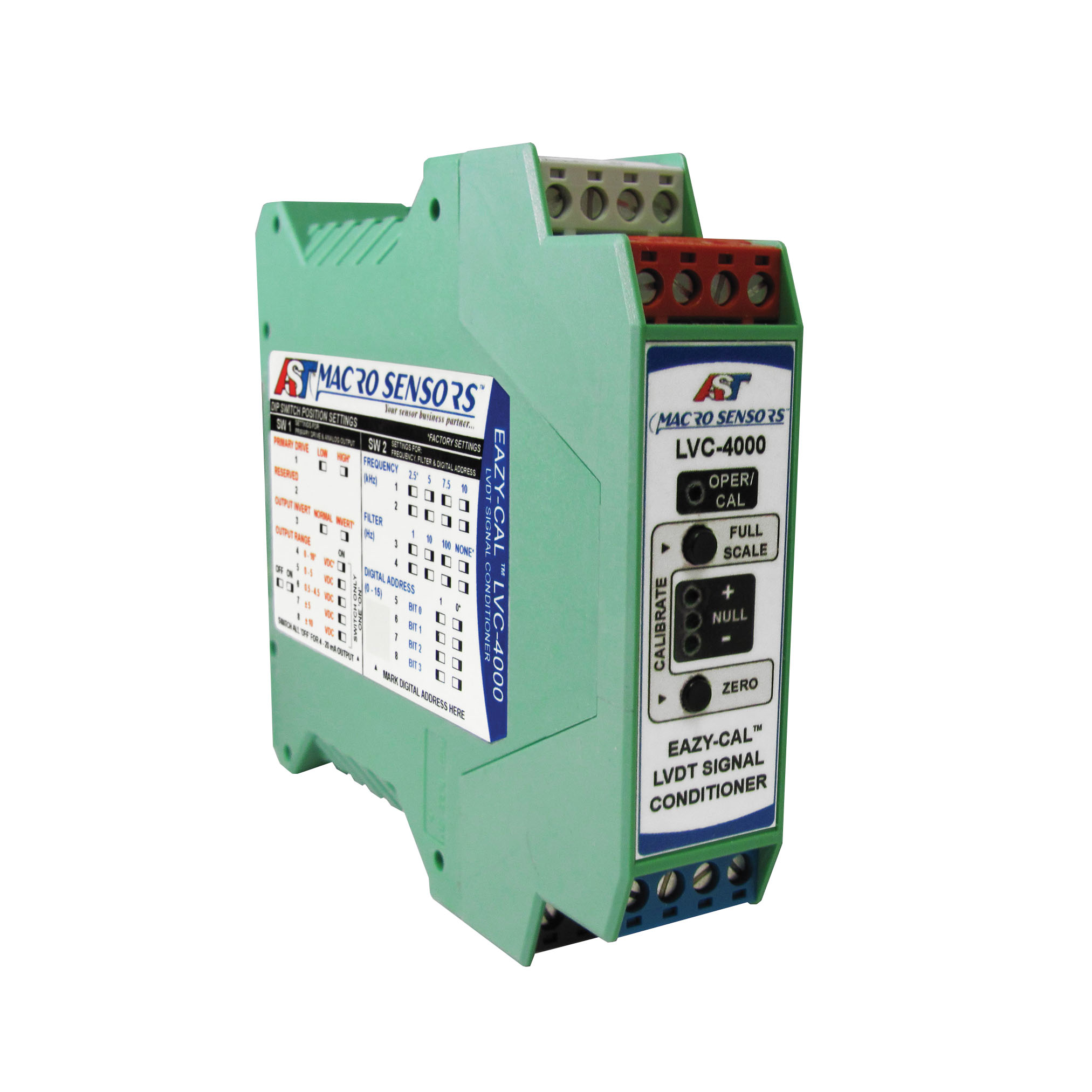

TE Connectivity Macro Sensors LVC-4000 standalone AC LVDT signal conditioner featuring push-button calibration.

Model Part Number

LVC-4000 050326000003-M

SKU

LVC-4000

Availability

8 in stock

Quantity

Price

$749.00

Add to Cart

TECHNICAL SPECIFICATIONS

Power Input:	9-30V DC (90 mA max @ 24V DC)
Sensor Excitation Frequency:	2.5 kHz, 5 kHz, 7.5 kHz, or 10 kHz
Input Sensitivity Range:	55 mVrms to 5.5 Vrms full scale input produces full scale DC output
Full Scale Output:	0-5V DC, 0-10V DC, 0.5-4.5V DC, ±5V DC, ±10V DC or 4-20 mA
Output Non-Linearity:	≤ ±0.1% Full Scale Output
Output Voltage Ripple:	2 mVrms max (10 kHz excitation, no filter)
Frequency Response (-3dB):	500 Hz max
