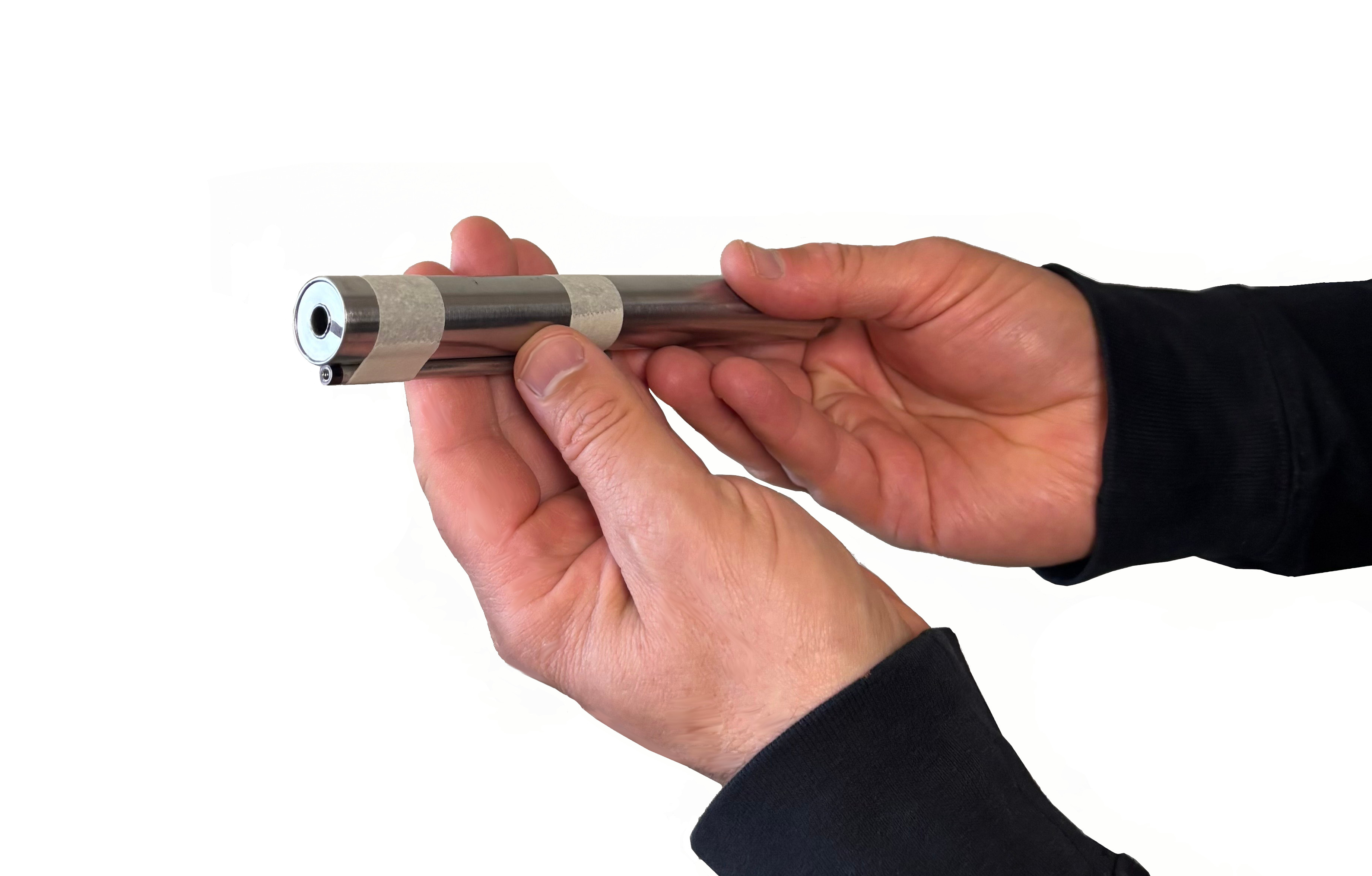

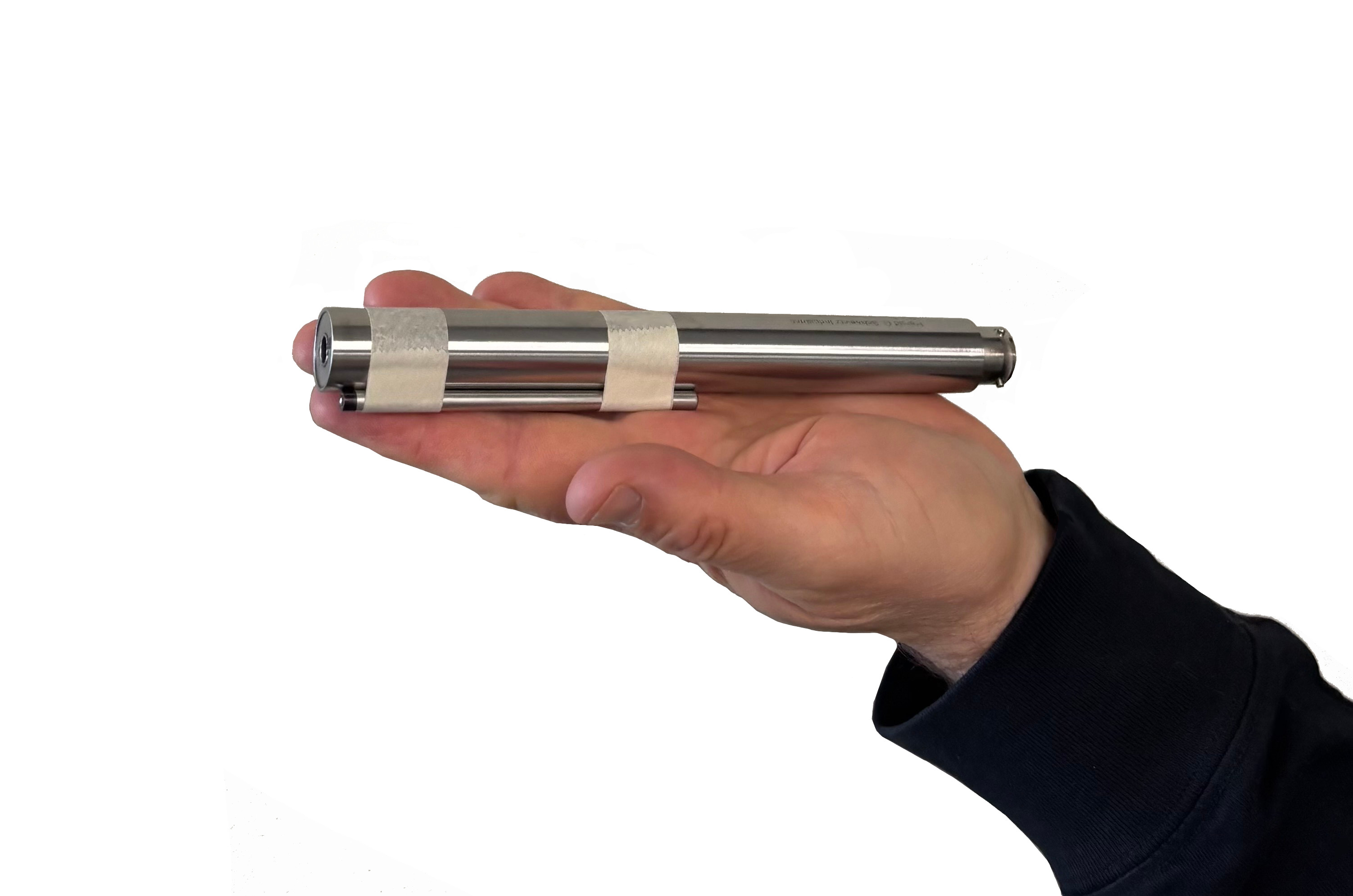

TH-750-D/E/I Series LVDT DC Free Core Sealed Position Sensor

OVERVIEW

• Free Core design
• 0.750" (19mm) O.D. size body
• Stroke lengths from 0.100" to 20.0" (2.5mm to 508mm)
• DC LVDT
• Non-Linearity better than ± 0.25% of FS
• Stainless steel housing rated to IP68
• Chose output: ±10VDC, 0-10VDC, or 4-20mA
• Applications: Laboratory R&D Materials Testing, Valve Position Sensing, Factory Automation


MADE IN THE USA


The HGSI TH-750-D series DC Linear Variable Differential Transformer (LVDT) Position Sensors are used to monitor and track the linear motion or position of a target. These ruggedized sensors are ideal for use in industrial and laboratory applications including automotive R&D, motorsports, industrial, motion control, medical, military and aerospace.

These hermetically sealed sensors are constructed entirely of stainless steel and are resistant to dust, water, and temperature. The coil windings are sealed using an epoxy potting compound providing excellent protection against shock and vibration.

The amplifier electronics are contained within the housing, no need for an external signal conditioner. The ± 10 VDC output is precalibrated at the factory.

Options:

Variations
LVDT Bi+Uni-Polar Measuring Range

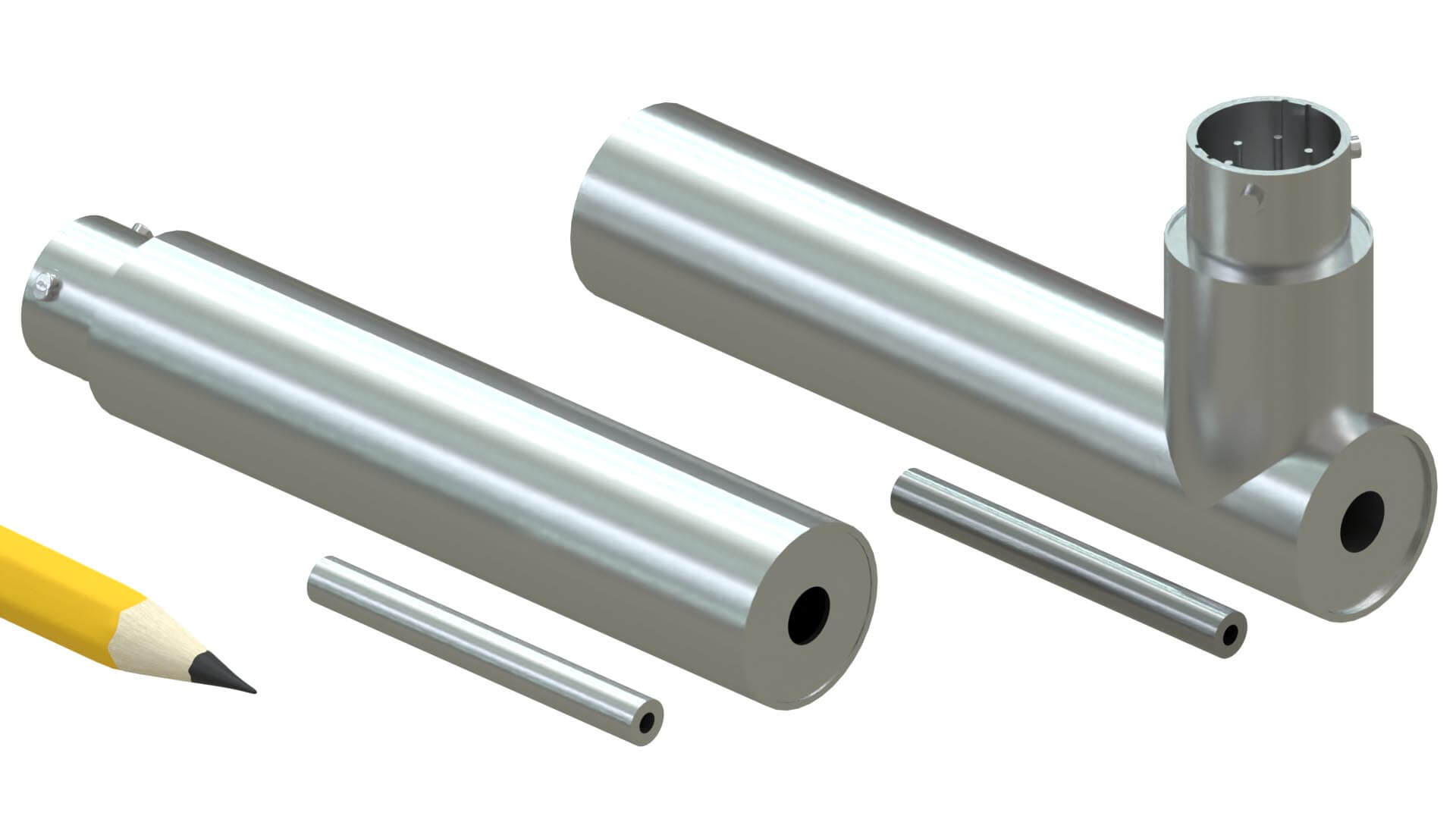

LVDT Connector Exit
LVDT Signal Output
SKU
TH-750-E-100
Availability
Request Availability
Call For Price
1
Out of Stock
0
Discontinued
Off
Price
$999.99
Add to Cart

TECHNICAL SPECIFICATIONS

Technical Specifications

Linearity Error:

≤ ± 0.15% of FSO typical, ± 0.25% maximum

Bandwidth:

125 Hz update rate (analog signal output)

Resolution:

16 bit

Repeatability:

0.01% of FS

Hysteresis:

0.01% of FS

Operating Temperature:

-20 to +85°C (0 to +185°F)

Thermal Coefficient:

< -0.025%/°C of FS (< -0.014%/°F of FS)

Humidity:

90% RH

Housing:

Stainless steel

Mating Connector:

Amphenol PT06A-10-6S(SR) or equivalent

Life Expectancy:

> 100 million cycles

Shock Rating:

1000g, 11 mS

Vibration Rating::

20 g to 2 kHz

IP Rating:

IEC IP68

Country of Manufacture:

Made in USA



PRODUCT NUMBERS

Product Overview

The TH-750-D/E/I Series DC LVDT Position Sensors from Harold G. Schaevitz Industries are hermetically sealed, free-core displacement transducers designed for reliable performance in harsh industrial and laboratory environments. With precision DC output, stainless steel construction, and an IP68-rated seal, these sensors provide accurate linear position feedback in the most demanding applications.

Built in the USA and designed for longevity, the TH-750 series offers stroke lengths from 0.100 to 20.0 inches (2.5 mm to 508 mm), making them ideal for motion control, automation, and data acquisition system applications where water and dust resistance, mechanical durability, and ease of integration are essential.

Key Features

  • Free-core AC LVDT with built-in DC signal conditioning

  • Available output types:

    • T-750-D: ±10 VDC

    • T-750-E: 0–10 VDC

    • T-750-I: 4–20 mA current loop

  • Stroke lengths from 0.100" to 20.0" (2.5 mm to 508 mm)

  • Non-linearity better than ±0.25% of full scale

  • 0.750" (19 mm) O.D. stainless steel housing

  • IP68 environmental rating – protected against dust and long-term submersion

  • Epoxy-potted windings for vibration and shock protection

  • Made in the USA

Built to Perform in Harsh Environments

The TH-750-D/E/I Series is hermetically sealed to an IP68 rating, ensuring maximum protection against water and chemical ingress and particulate contamination. Constructed entirely of stainless steel, the sensor body resists corrosion, temperature extremes, and mechanical stress, making it an ideal choice for outdoor, washdown, or heavy-duty industrial environments.

The coil windings are encapsulated in an epoxy compound to absorb shock and vibration while maintaining long-term signal stability.

Integrated Electronics – Simplified Installation

The TH-750 series integrates the amplifier electronics into the sensor housing. This all-in-one design streamlines installation and wiring while improving noise immunity.

Each model is factory-calibrated for its designated output type, eliminating the need for external adjustments during setup. Choose from:

  • ±10 VDC for high-resolution control and feedback systems

  • 0–10 VDC for compatibility with most industrial controllers

  • 4–20 mA for long-distance current loop applications or electrically noisy environments

Free-Core Flexibility

The free-core design allows the core to move independently within the sensor body, providing mechanical flexibility. This is particularly advantageous while tracking motion from a remote target via a mechanical linkage or core extension rod.

This design eliminates mechanical wear and ensures smooth operation with minimal hysteresis or signal drift, even after millions of cycles.

Applications

Industrial Automation & Factory Equipment

  • Position feedback in hydraulic or pneumatic cylinders

  • Valve position sensing in process control systems

  • Monitoring linear displacement in assembly and robotics

Laboratory & R&D Testing

  • Displacement measurement in fatigue and materials testing rigs

  • Motion tracking in automotive, aerospace, or medical device development

  • Linear sensing in electromechanical test equipment

Harsh and Outdoor Environments

  • Submersible position sensing for marine or energy applications

  • Exposure to washdowns or corrosive atmospheres

  • Mobile or off-highway equipment subject to dust and vibration

Electrical Integration

  • Compatible with PLCs, industrial controllers, and DAQ systems

  • Built-in amplifier simplifies system design

  • Signal types support standard automation protocols

  • No external signal conditioning required

Why Choose the TH-750-D/E/I Series?

  • IP68 protection for high-moisture, high-dust environments

  • Stainless steel construction for corrosion resistance and durability

  • Integrated DC electronics save space and simplify wiring

  • Free-core design offers mechanical versatility

  • Multiple output options for easy system integration

  • Factory-calibrated output ensures plug-and-play setup

  • Made in the USA for quality, support, and fast delivery

Need assistance choosing the right model for your application?
Our experienced application engineers are here to help—contact us today for expert support and technical guidance.
