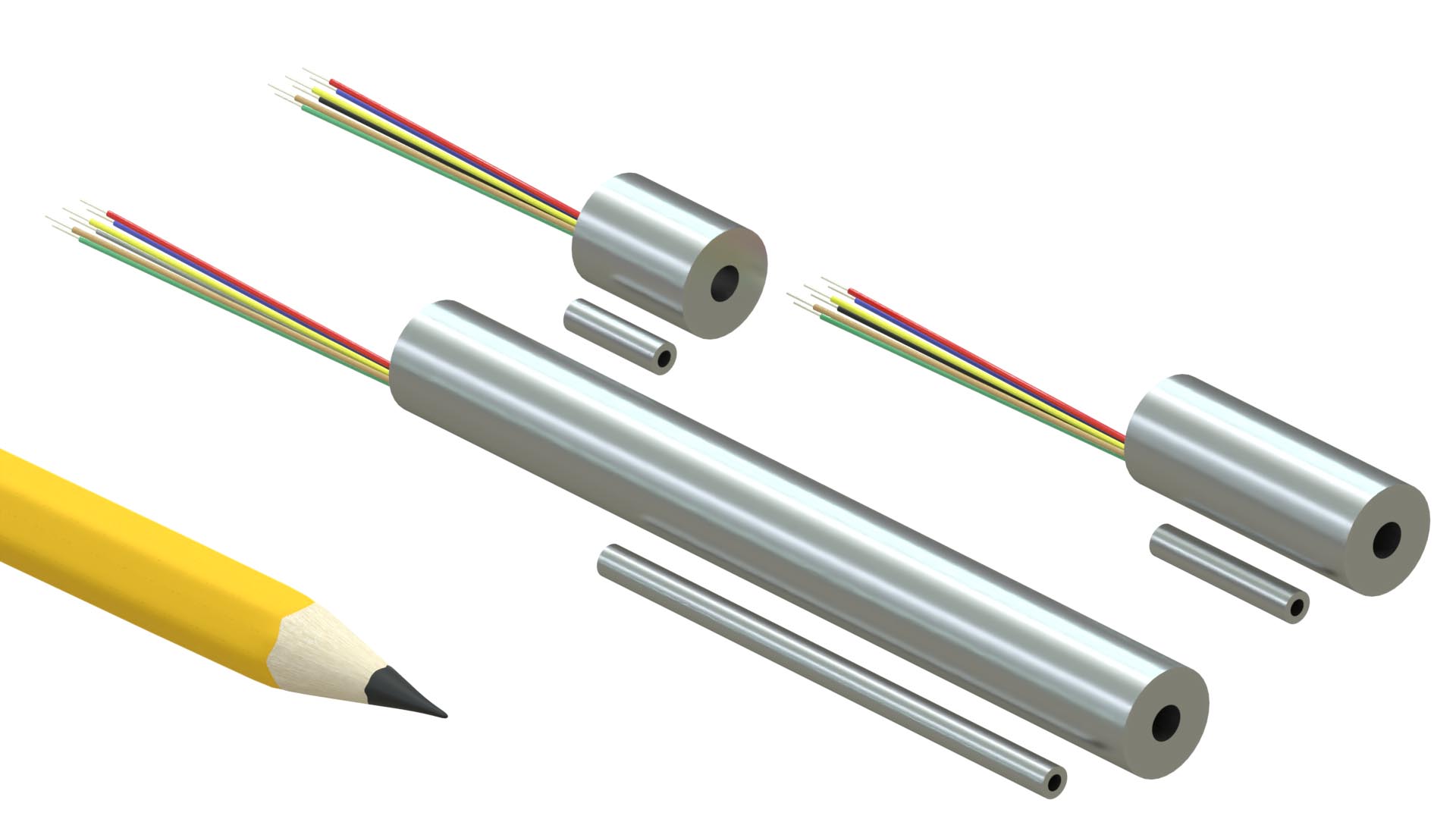

T-375-A Series LVDT AC Miniature Free Core Position Sensor

OVERVIEW

• Free core AC LVDT sensor

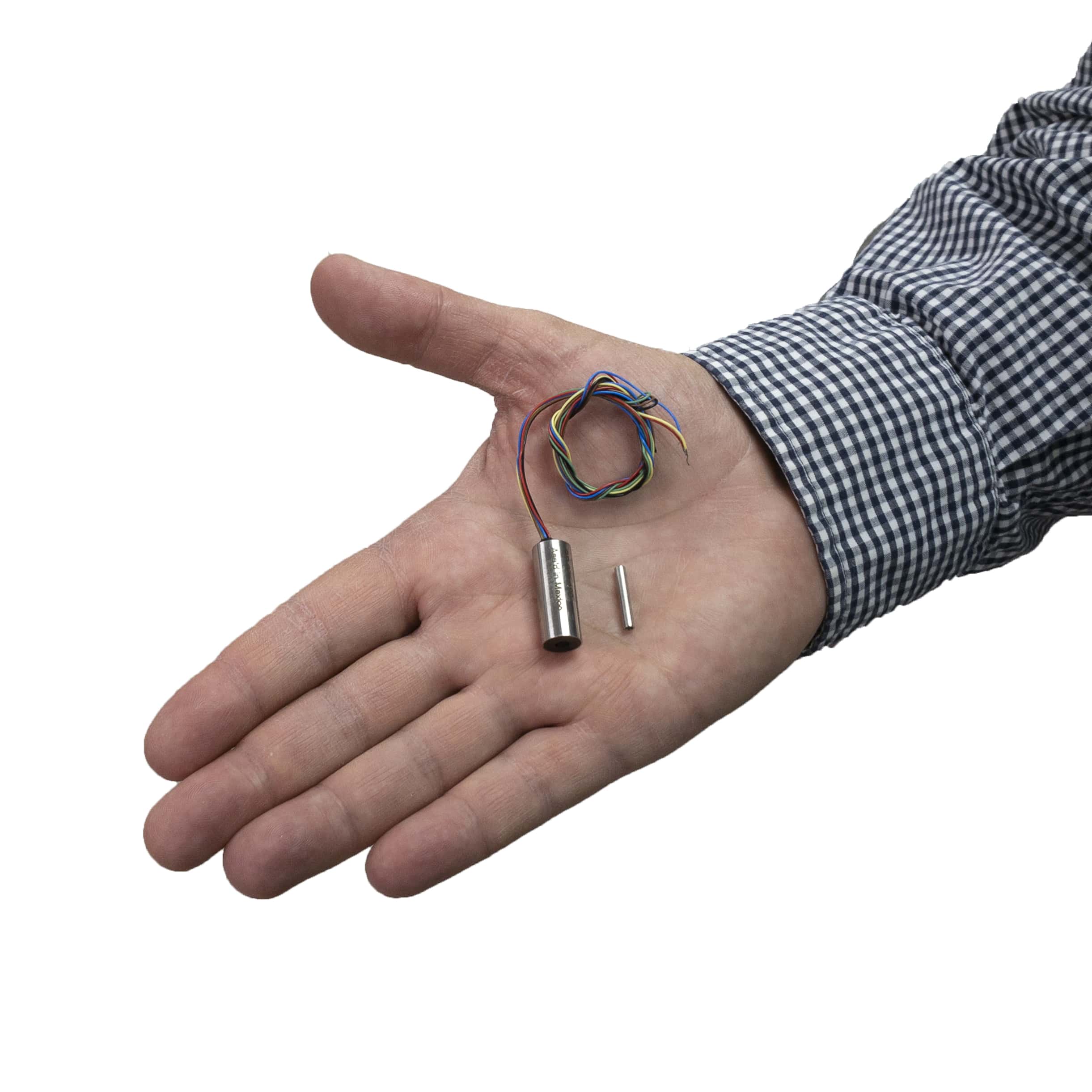

• Miniature
0.375" (9.5mm) O.D. size body, low core mass
• Stroke Lengths from ±0.025 inch to ±1.0 inches (0.65mm to 25mm)
• Non-linearity less than ±0.25% of FS
• Sealed to IP61
• Applications: Laboratory R&D Materials Testing, Valve Position Sensing, Factory Automation


MADE IN THE USA


The HGSI T-375-A series AC Linear Variable Differential Transformer (LVDT) Position Sensors are used to monitor and track the linear
motion or position of a target. These miniature sensors are ideal for use in industrial and laboratory applications including automotive
R&D, motorsports, industrial, motion control, medical, military and aerospace.

These swaged-end sensors are constructed entirely of stainless steel and are resistant to dust and temperature. The coil windings are
sealed using an epoxy potting compound providing excellent protection against shock and vibration.

The T-375-A series will operate with most any conventional differential input AC LVDT signal conditioner, but operation with ratiometric
signal conditioning is not recommended. HGSI offers a full line of compatible AC LVDT signal conditioners. Please contact us for a
recommendation.

Options:

Variations
LVDT Bi-Polar Measuring Range
SKU
T-375-A-025
Availability
Request Availability
Call For Price
1
Out of Stock
0
Discontinued
Off
Price
$999.00
Add to Cart

TECHNICAL SPECIFICATIONS

Technical Specifications

Input Voltage:

3 Vrms (nominal)

Input Frequency:

400 Hz to 10 kHz

Linearity Error:

≤ ± 0.15% of FSO typical, ± 0.25% maximum

Null Voltage:

0.5% of FS

Repeatability:

0.01% of FS

Hysteresis:

0.01% of FS

Operating Temperature:

Standard Version: -54 to +135°C (-65 to +275°F)
High Temperature Version: -54 to +204°C (-65 to +400°F)

Thermal Coefficient:

< -0.02%/°C of FS (< -0.01%/°F of FS)

Humidity:

90% RH

Housing:

Stainless steel

Contact Tip:

32 AWG Teflon™ insulated, 12” length (305 mm)

Life Expectancy:

> 100 million cycles

Shock Rating:

1000g, 11 mS

Vibration Rating:

20 g to 2 kHz

IP Rating:

IEC IP61

Country of Manufacture:

Made in the USA
