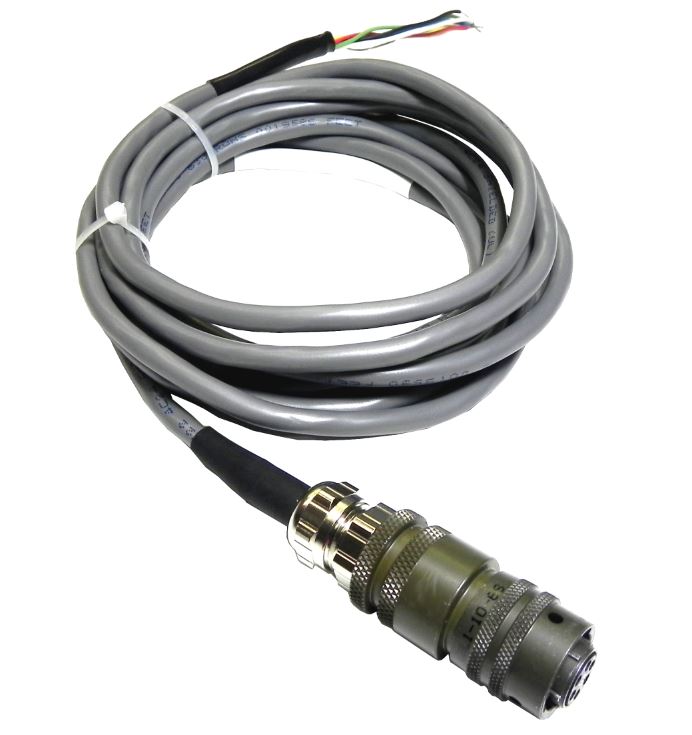

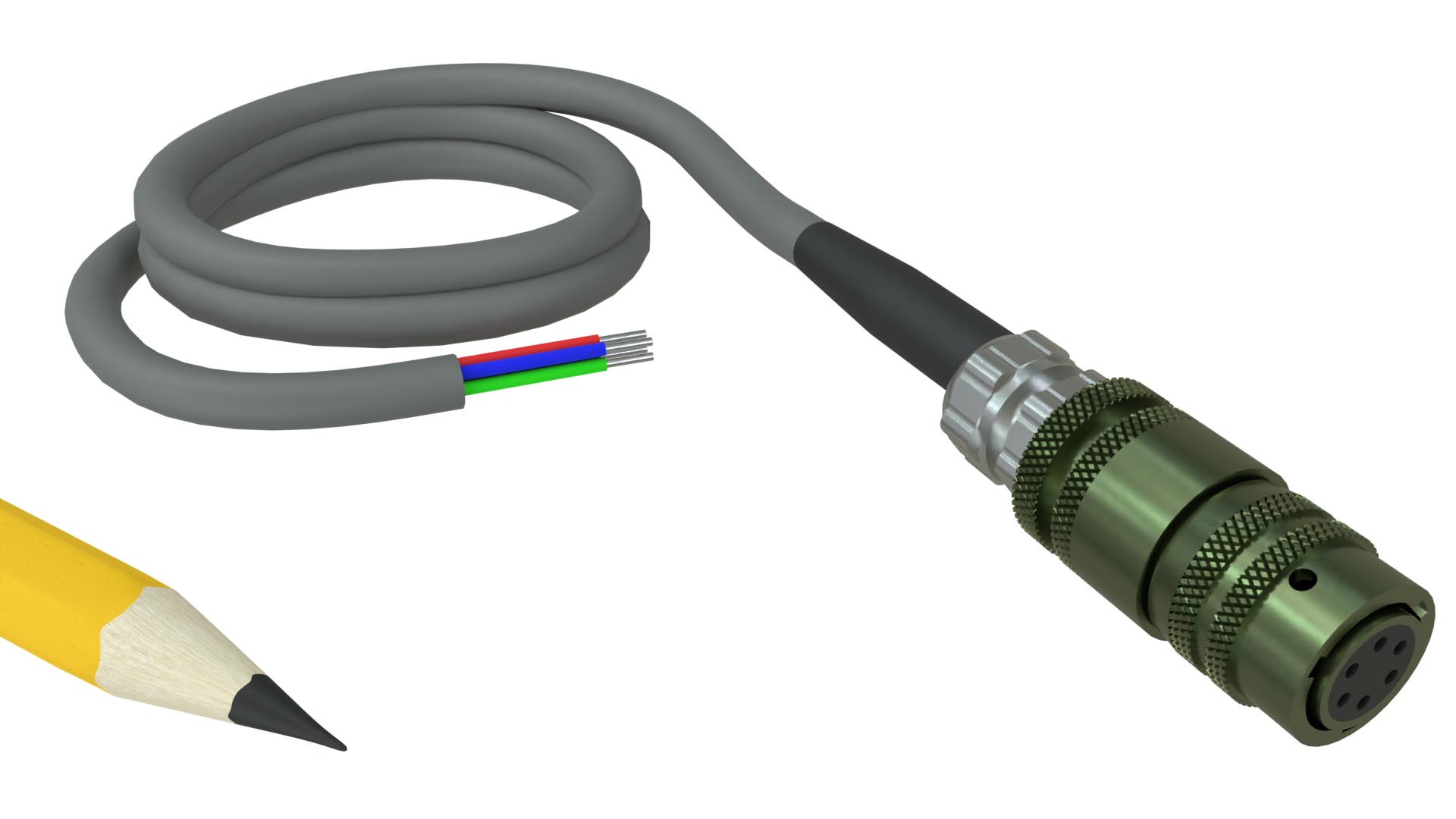

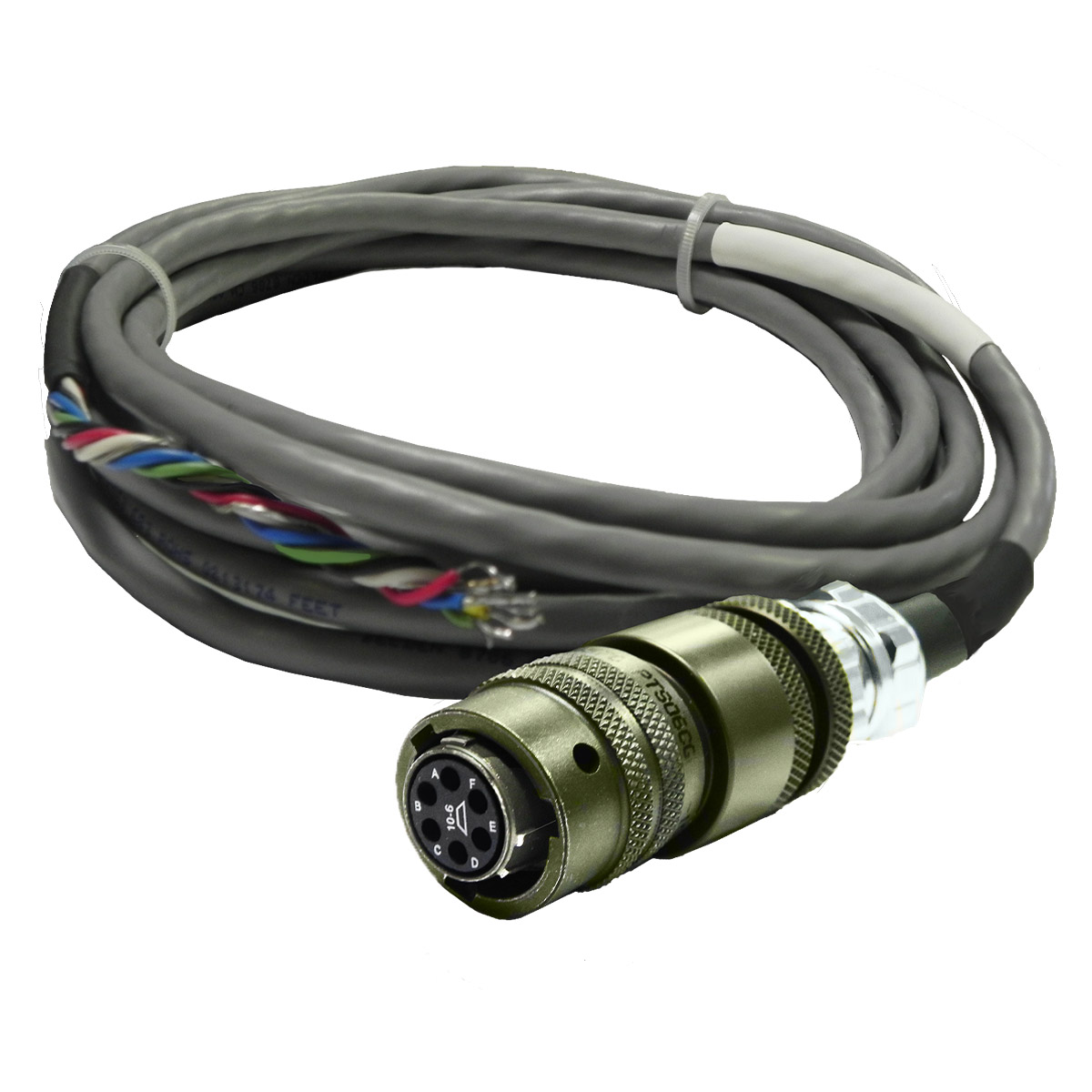

ILPS Series Linear LVIT Position Sensor PT06 Cable Assembly

The ILPS Series Linear LVIT Position Sensor PT06 Cable Assembly is a high-quality, shielded cable designed specifically for use with ILPS Series Linear Variable Inductive Transducer (LVIT) position sensors equipped with PT02 connectors. Built for durability, signal integrity, and ease of installation, this cable assembly provides a dependable connection between your LVIT sensor and signal conditioning or data acquisition system.

Featuring a factory-installed mating connector and premium Belden shielded cable, the PT06 cable assembly ensures accurate, noise-resistant signal transmission in demanding industrial and motorsports environments.

Designed for ILPS Series LVIT Position Sensors

This cable assembly is purpose-built to mate directly with ILPS Series LVIT position sensors using a PT02 connector interface.

• Compatible with ILPS Linear LVIT sensors

• Plug-and-play connection with no custom wiring required

• Secure, reliable interface for accurate signal transmission

By using a dedicated cable assembly designed for your sensor, you eliminate compatibility issues and ensure optimal performance.

Factory-Terminated Connector for Easy Installation

The PT06 cable assembly includes a pre-installed mating connector:

• Connector type: Circular, 6-pin, female

• Manufacturer: Amphenol

• Part number: PTS06CGML1-10-6S

This high-quality connector provides:

• Secure mechanical connection

• Reliable electrical contact

• Resistance to vibration and environmental stress

The factory-terminated design simplifies installation and reduces setup time, making it ideal for both field and laboratory applications.

Shielded Cable for Noise-Free Signal Transmission

Accurate position measurement depends on clean signal transmission. The PT06 cable assembly uses premium shielded cable to protect against electrical noise and interference.

• Cable manufacturer: Belden

• Part number: 8723

• Type: Twisted pair, shielded

Shielding features include:

• Aluminum foil shield with drain wire

• Polyester tape for added protection

• Reduced electromagnetic interference (EMI)

This design ensures stable and reliable signal transmission, even in electrically noisy environments such as industrial machinery, motorsports applications, or automated systems.

Twisted Pair Design for Signal Integrity

The cable features a 2-pair twisted conductor design, which helps maintain signal quality over long distances:

• Minimizes crosstalk between conductors

• Reduces susceptibility to external noise

• Maintains signal accuracy

This is particularly important for LVIT sensors, where precise analog signal integrity is critical for accurate position measurement.

High-Quality Conductors and Insulation

The PT06 cable assembly is constructed using premium materials to ensure durability and performance:

• Conductors: Tinned copper, stranded

• Insulation: Polypropylene (PP)

These materials provide:

• Excellent conductivity

• Flexibility for routing and installation

• Resistance to corrosion and environmental degradation

Durable Outer Jacket for Industrial Use

The cable is protected by a rugged outer jacket:

• Material: Polyvinyl Chloride (PVC)

• Designed for durability and flexibility

The jacket provides protection against:

• Mechanical wear

• Abrasion

• Environmental exposure

This ensures long service life in both indoor and outdoor applications.

NEMA Rated for Harsh Environments

The PT06 cable assembly is rated for use in a variety of environments:

• NEMA ratings: 1, 3, 4, and 6P

These ratings indicate suitability for:

• Indoor and outdoor use

• Protection against dust and moisture

• Resistance to washdown environments

This makes the cable assembly ideal for industrial, automotive, and test environments where environmental conditions can be challenging.

Available in Multiple Lengths

To accommodate different installation requirements, the PT06 cable assembly is available in multiple lengths:

• 10 feet

• 30 feet

• 50 feet

These options provide flexibility for:

• Short-range connections in compact setups

• Longer cable runs in industrial systems

• Custom installation layouts

Optimized for LVIT Signal Performance

LVIT sensors rely on precise analog signal transmission for accurate position measurement. The PT06 cable assembly is designed to support this requirement by:

• Maintaining signal integrity over distance

• Reducing electrical noise and interference

• Providing consistent and reliable connectivity

Using a high-quality, shielded cable assembly ensures that your LVIT sensor delivers accurate and repeatable data.

Typical Applications

The ILPS PT06 cable assembly is ideal for use in:

• Industrial automation systems

• Factory equipment and machinery

• Motorsports and vehicle testing

• Suspension and shock travel measurement

• Data acquisition and instrumentation systems

Its robust construction and reliable performance make it suitable for both permanent installations and temporary test setups.

Why Use a Dedicated LVIT Cable Assembly?

Using a purpose-built cable assembly offers several advantages over generic wiring:

• Guaranteed compatibility with sensor connectors

• Improved signal integrity

• Reduced installation time

• Enhanced durability and reliability

The PT06 cable assembly is specifically designed to work seamlessly with ILPS LVIT sensors, ensuring optimal performance.

Key Features at a Glance

• Designed for ILPS Series LVIT position sensors

• PT02 mating connector interface

• Amphenol 6-pin circular female connector

• Belden 8723 shielded twisted pair cable

• 2-pair conductor design for signal integrity

• Tinned copper stranded conductors

• Polypropylene insulation

• Aluminum foil shield with drain wire

• PVC outer jacket for durability

• NEMA 1, 3, 4, 6P rated

• Available in 10, 30, and 50 foot lengths

A Reliable Connection for Accurate Position Measurement

The ILPS Series PT06 Cable Assembly provides a dependable, high-performance connection between your LVIT sensor and measurement system. Its combination of robust construction, shielding, and precision connector design ensures reliable operation in demanding environments.

Optimize Your LVIT Sensor System

Whether you are integrating LVIT sensors into industrial equipment, motorsports applications, or laboratory setups, the PT06 cable assembly delivers the performance and reliability needed for accurate signal transmission.

Contact us today to learn more or select the right cable length for your application.
