OVERVIEW

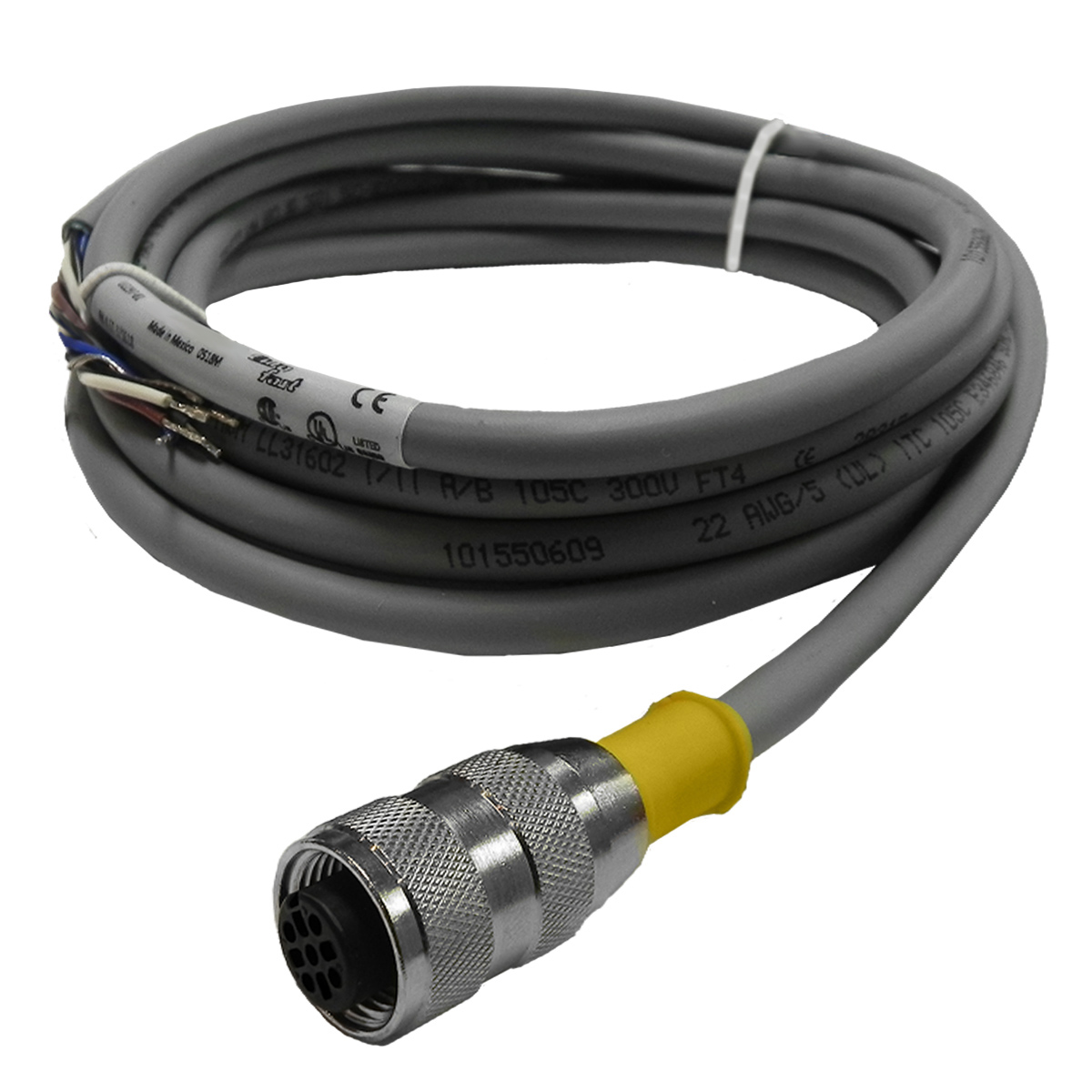

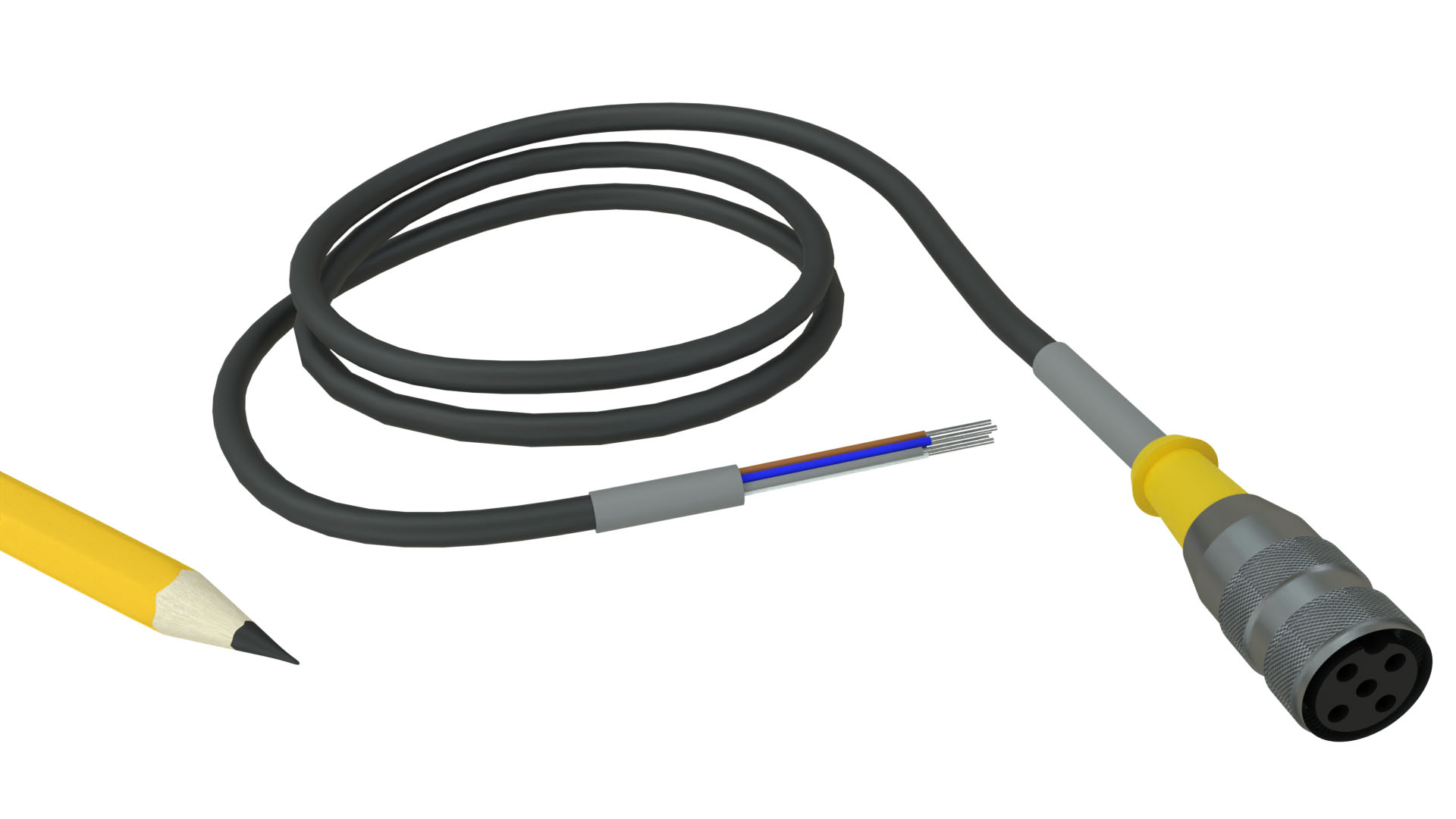

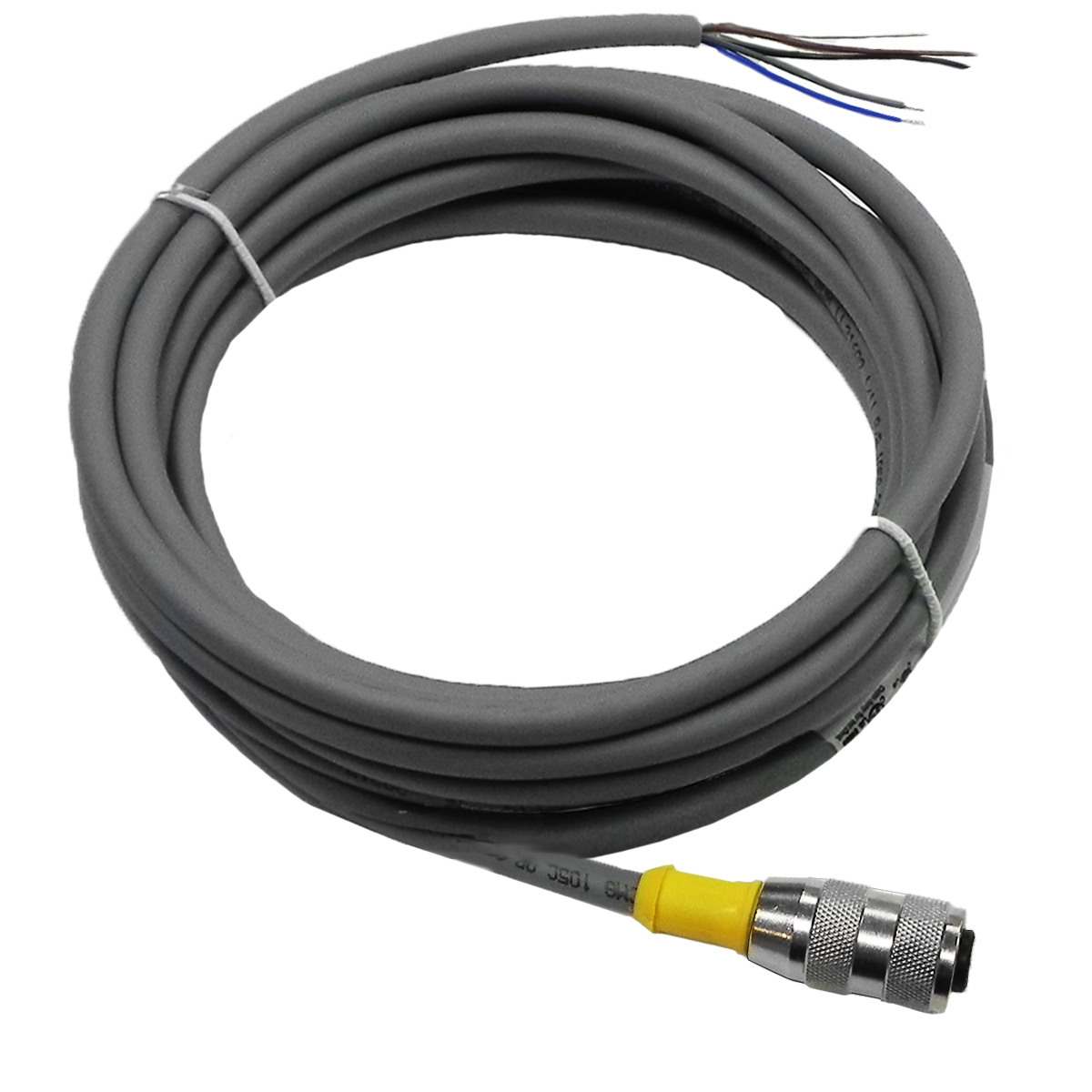

Mates with ILPS series Linear LVIT Position Sensors with M12 straight connector. Attached water resistant 5-pin female M12 straight plug connector. Sold in 10 and 30 foot lengths.
*Wiring pin-out conforms to HGSI ILPS series Linear LVIT Position Sensor standard wiring color code:
Cable Pin-Out:
| 1 | Brown (+ Power Input) |
| 2 | White (Common Ground) |
| 3 | Blue (Voltage Signal Output) |
| 4 | Black (Current Voltage Output) |
| 5 | Gray (SenSet Calibration) |
Options:
SKU
ILPS-CABLE-M12-00-10
Availability
In stock
Price
$85.00
TECHNICAL SPECIFICATIONS
Connector:
M12
Circular, 5-pin, Female
Cable:
| Number of Conductors: | 5 |
| Conductor AWG: | 22 |
| Conductors: | Tinned Copper, Stranded |
| Conductor Insulation: | Polyvinyl Chloride (PVC) |
| Outer Jacket: | Polyvinyl Chloride (PVC) |
| Temperature Range: | -40°C to +105°C (-40°F to +221°F) |
| NEMA Rating: | 1, 3, 4, 6P |
| IP Rating: | IP68, IP69K |
