OVERVIEW

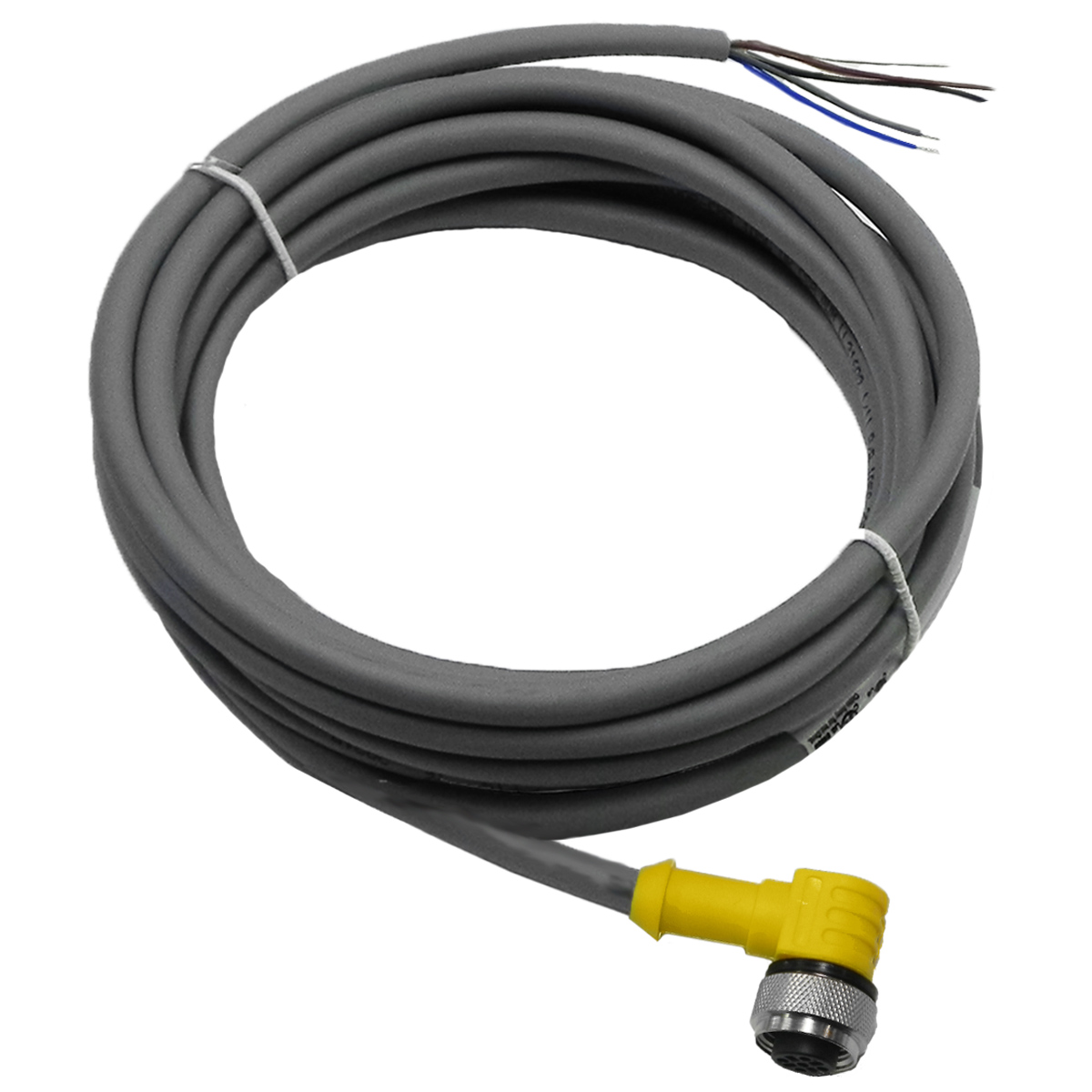

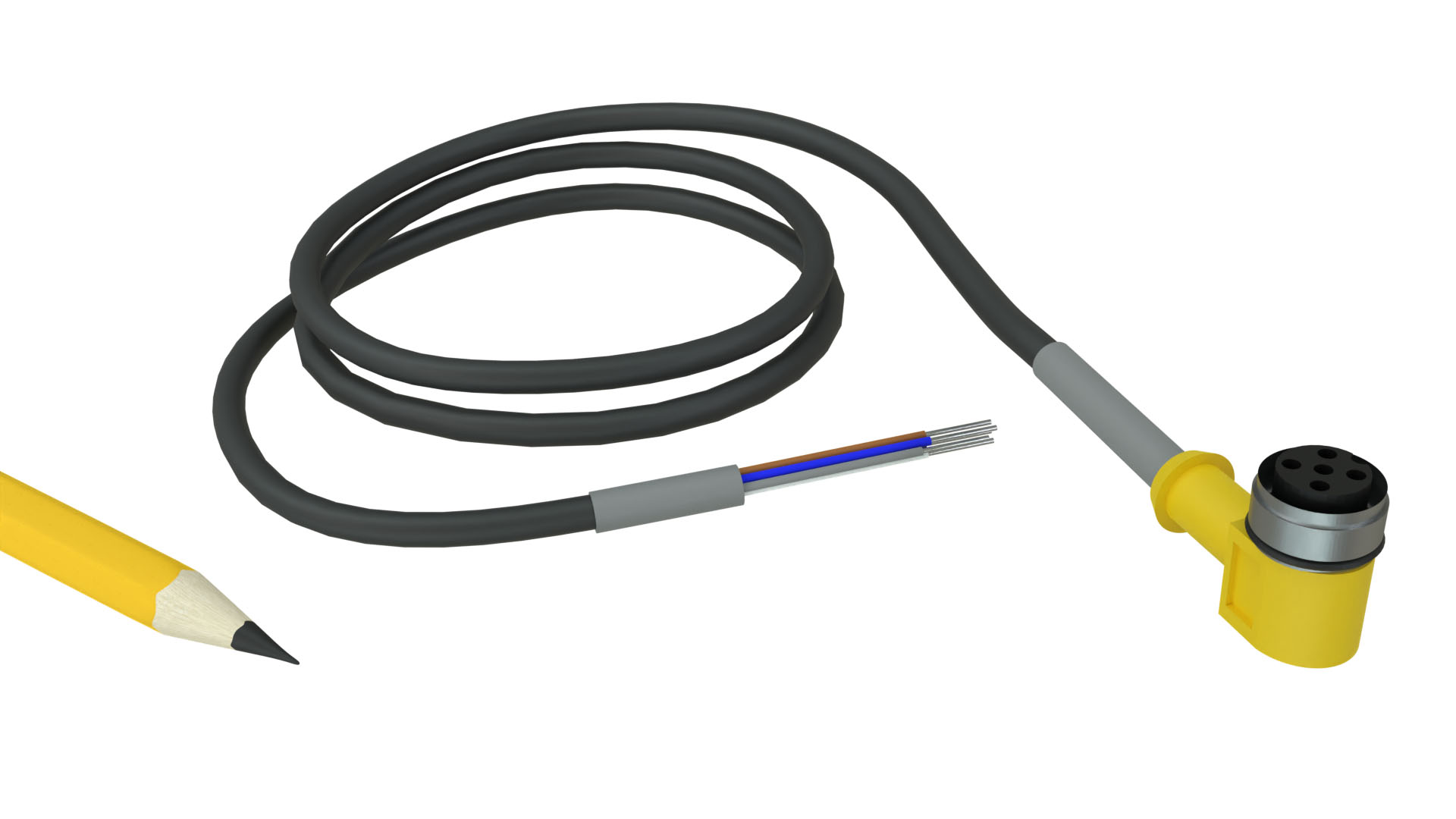

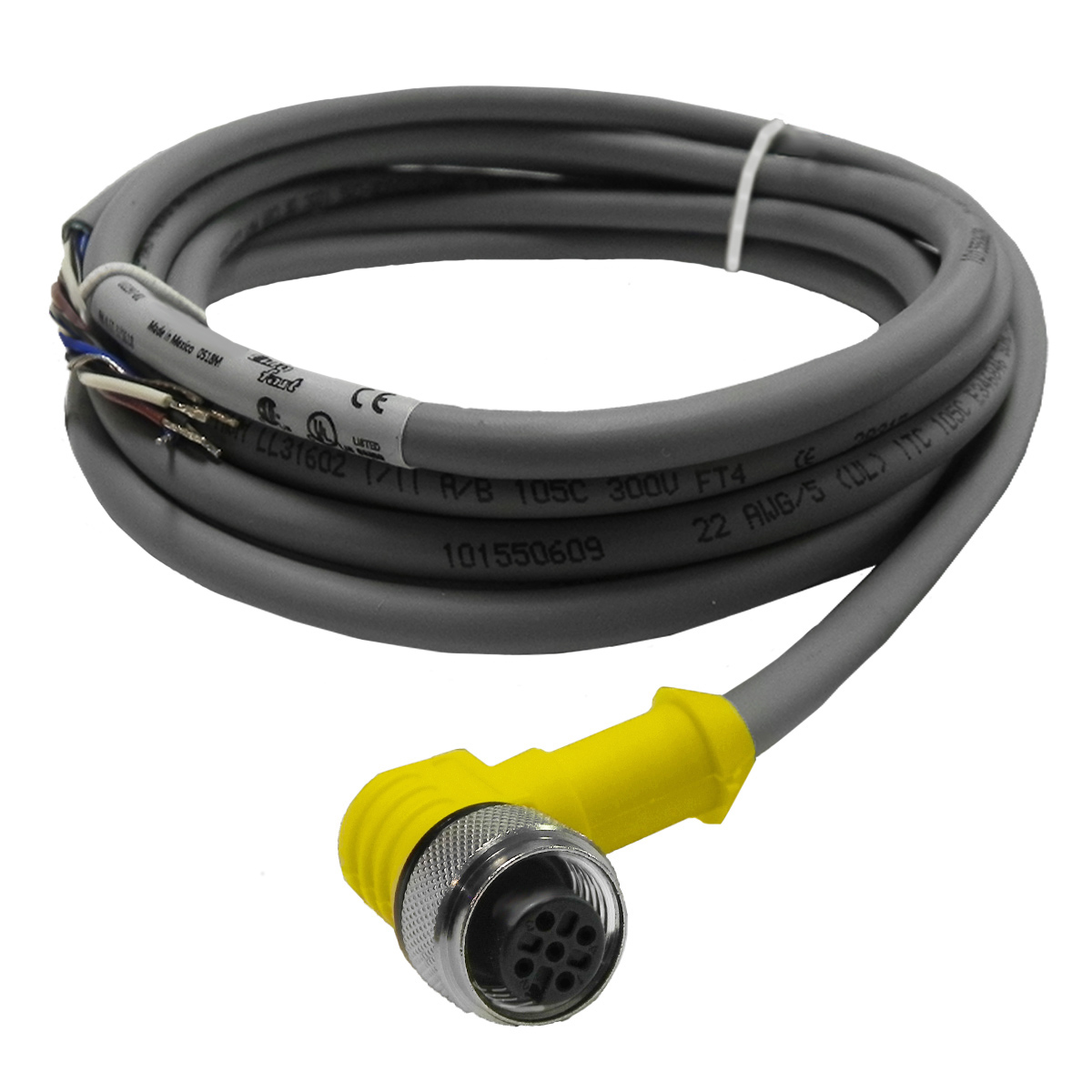

Mates with ILPS series Linear LVIT Position Sensors with M12. Attached water resistant 5-pin female M12 90 degree plug connector. Sold in 10 foot length.
*Wiring pin-out conforms to HGSI ILPS series Linear LVIT Position Sensor standard wiring color code:
Cable Pin-Out:
| 1 | Brown (+ Power Input) |
| 2 | White (Common Ground) |
| 3 | Blue (Voltage Signal Output) |
| 4 | Black (Current Voltage Output) |
| 5 | Gray (SenSet Calibration) |
TECHNICAL SPECIFICATIONS
Connector:
M12
Circular, 5-pin, Female
Cable:
| Number of Conductors: | 5 |
| Conductor AWG: | 22 |
| Conductors: | Tinned Copper, Stranded |
| Conductor Insulation: | Polyvinyl Chloride (PVC) |
| Outer Jacket: | Polyvinyl Chloride (PVC) |
| Temperature Range: | -40°C to +105°C (-40°F to +221°F) |
| NEMA Rating: | 1, 3, 4, 6P |
| IP Rating: | IP68, IP69K |
DOCUMENTS & DOWNLOADS
VIDEOS
No Result Found
PRODUCT NUMBERS
Rugged, Water-Resistant M12 Cable for Reliable LVIT Sensor Connectivity
The ILPS Series Linear LVIT Position Sensor M12 90° Cable Assembly is a high-quality, industrial-grade cable designed to provide secure and reliable connectivity between ILPS Series Linear Variable Inductive Transducer (LVIT) position sensors and your control or data acquisition system. Featuring a compact 90-degree M12 connector, durable PVC construction, and IP68/IP69K-rated protection, this cable assembly is engineered for use in harsh environments where performance and reliability are critical.
Designed specifically for ILPS sensors with M12 connectors, this cable provides a plug-and-play solution that ensures optimal signal integrity and simplifies installation.
Designed for ILPS Series LVIT Position Sensors
This cable assembly is purpose-built to mate directly with ILPS Series LVIT position sensors equipped with M12 connectors.
Compatible with ILPS Linear LVIT sensors
5-pin female M12 connector for secure connection
Plug-and-play installation with no custom wiring required
By using a cable designed specifically for your sensor, you ensure consistent performance and eliminate compatibility concerns.
90-Degree M12 Connector for Space-Constrained Installations
One of the key features of this cable assembly is its 90-degree M12 connector, which offers several installation advantages:
Reduces cable bend radius at the connection point
Ideal for tight or confined mounting locations
Minimizes strain on the connector and cable
Helps maintain a clean and organized installation
This makes it especially useful in compact machinery, motorsports applications, and industrial systems where space is limited.
Rugged M12 Connector Design
The M12 connector is widely used in industrial automation due to its durability and reliability:
Connector type: Circular, 5-pin, female M12
Secure threaded coupling for vibration resistance
Designed for industrial environments
The robust design ensures a stable electrical connection even in high-vibration or mobile applications.
Water-Resistant and Environmentally Sealed
The ILPS M12 cable assembly is built for use in harsh environments:
IP68 rating: Protection against dust and long-term immersion
IP69K rating: Protection against high-pressure, high-temperature washdowns
NEMA ratings: 1, 3, 4, 6P
These ratings make the cable suitable for:
Outdoor installations
Washdown environments
Industrial equipment exposed to moisture and contaminants
This level of protection ensures reliable operation in demanding conditions.
High-Quality Conductors for Reliable Signal Transmission
The cable is constructed with premium materials to ensure consistent signal transmission:
Number of conductors: 5
Conductor size: 22 AWG
Material: Tinned copper, stranded
Tinned copper conductors provide:
Excellent electrical conductivity
Resistance to corrosion
Long-term reliability in industrial environments
The stranded design adds flexibility, making the cable easier to route and install.
Durable PVC Insulation and Jacket
The cable features robust insulation and outer protection:
Conductor insulation: Polyvinyl Chloride (PVC)
Outer jacket: Polyvinyl Chloride (PVC)
These materials provide:
Flexibility for routing in tight spaces
Resistance to abrasion and mechanical wear
Protection against environmental exposure
The durable jacket ensures the cable maintains performance over time.
Wide Operating Temperature Range
The ILPS M12 cable assembly is designed to operate in a broad range of temperatures:
Temperature range: –40°C to +105°C (–40°F to +221°F)
This allows the cable to be used in:
Cold outdoor environments
High-temperature industrial applications
Automotive and motorsports systems
Optimized for LVIT Signal Performance
LVIT sensors rely on precise analog signals to deliver accurate position measurements. This cable assembly is designed to support that requirement by:
Maintaining signal integrity over the cable length
Minimizing electrical noise and signal degradation
Providing stable and reliable connectivity
Using a high-quality cable ensures that the performance of your LVIT sensor is not compromised.
Standard Length for Versatile Use
The cable assembly is supplied in a convenient standard length:
Length: 10 feet
This length provides flexibility for a wide range of installations, including:
Bench testing setups
Industrial equipment connections
Vehicle and motorsports applications
Typical Applications
The ILPS M12 90° Cable Assembly is ideal for:
Industrial automation systems
Factory equipment and machinery
Motorsports and performance vehicle applications
Suspension and shock travel measurement
Data acquisition and instrumentation systems
Its rugged design and environmental protection make it suitable for both indoor and outdoor use.
Why Use a Dedicated LVIT Cable Assembly?
Using a purpose-built cable assembly offers several advantages over generic wiring solutions:
Guaranteed compatibility with sensor connectors
Improved signal integrity
Faster installation and reduced wiring errors
Enhanced durability and environmental protection
The ILPS M12 cable assembly is specifically engineered to deliver optimal performance with LVIT position sensors.
Key Features at a Glance
Designed for ILPS Series LVIT position sensors
5-pin female M12 connector
90-degree connector for compact installations
IP68 and IP69K rated for harsh environments
NEMA 1, 3, 4, 6P rated
5-conductor, 22 AWG tinned copper wire
PVC insulation and outer jacket
Temperature range: –40°C to +105°C
10-foot standard length
Rugged, industrial-grade construction
A Reliable Connection for Accurate Position Measurement
The ILPS Series Linear LVIT Position Sensor M12 90° Cable Assembly provides a dependable and durable connection between your sensor and measurement system. Its combination of environmental protection, flexible design, and high-quality construction ensures reliable performance in even the most demanding applications.
Optimize Your LVIT Sensor System
Whether you are integrating LVIT sensors into industrial equipment, motorsports applications, or laboratory setups, this M12 cable assembly delivers the performance and reliability needed for accurate and consistent signal transmission.
