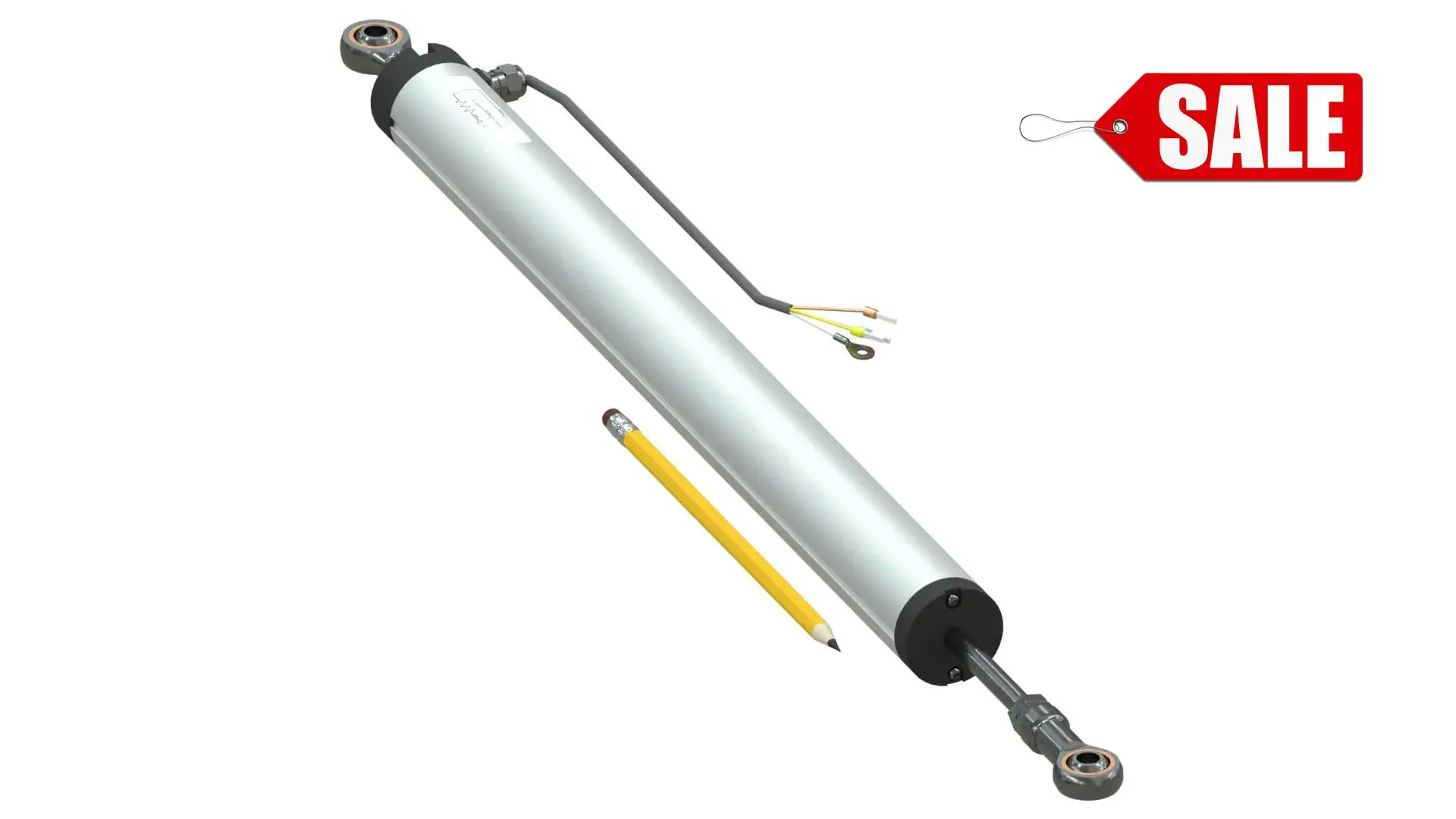

LPPS-36 Linear Potentiometer Position Sensor with Rod End Joints

Price
$330.00
SKU
LPPS-36-425
Availability
4 in stock
0
Add to Cart

OPTION

LPPS Measuring Range

OVERVIEW

LPPS-36 series has been replaced by LPPS-36B series

LPPS-36-350 replaced by LPPS-36B-350
LPPS-36-400 replaced by LPPS-36B-400
LPPS-36-450 replaced by LPPS-36B-450
LPPS-36-500 replaced by LPPS-36B-500
LPPS-36-550 replaced by LPPS-36B-550
LPPS-36-600 replaced by LPPS-36B-600
LPPS-36-650 replaced by LPPS-36B-650
LPPS-36-700 replaced by LPPS-36B-700

• Ruggedized Linear Potentiometer
• Measure the linear motion or position of target

• Stroke lengths available from 350 to 700 mm (14 to 28 inches)
• Rod End Joints for simple mounting
• Anodized aluminum corrosion resistant housing
• Environmental rating of IP61 (Dust tight, Water resistant)
• 1.4" (36 mm) diameter


Features

HGSI's LPPS-36 series Linear Potentiometer Travel Sensor with Rod End Joints are used to monitor and track the linear motion or position of a target. These ruggedized sensors are ideal for use in industrial and laboratory applications including automotive, industrial, motion control, medical, and aerospace.

Resistive potentiometric element is made from conductive plastic. Output is ratiometric; from 0% to 100% of excitation voltage.

The LPPS-36 series sensor is made from industrial duty materials for resistance to dust, temperature, shock, and vibration.

Rod End Joint thru-holes are 8 mm in diameter.


TECHNICAL SPECIFICATIONS

Stroke Lengths: From 14" (350mm) up to 28" (700 mm)
Mechanical Stroke Length: Stroke Length + 0.28" (7 mm)
Non-Linearity (BFSL method): +/- 0.50% of full stroke (typical), +/- 1.0% (max)
Resolution: Infinite
Repeatability: 0.0004" (0.01 mm)
Maximum Operating Velocity: 5 m per second
Element Type: Conductive plastic
Output: 0 to 100% of excitation voltage
Element Resistance: 5.0K ohm (+/- 20%) to 10.0K ohm (+/- 20%), Depending on Measuring Range
Maximum Excitation Voltage: 36 VDC
Current Draw: ~10 mA (nominal)
Output Cable: 3 conductor with drain, 22 AWG, PVC jacket, 3 foot long
Operating Temperature Range: -40 to +195°F (-40 to +95°C)
Thermal Coefficient of Sensitivity: <0.03%/°C nominal
Humidity: 95% Max. RH (non-condensing)
Liquid & Dust Protection: IP61
Shock Rating: 50g (single hit), IEC68-2-29:1968
Vibration Rating: 20g, IEC68-2-6:1982
Housing Dimension (O.D): 1.4 inch (36 mm)
