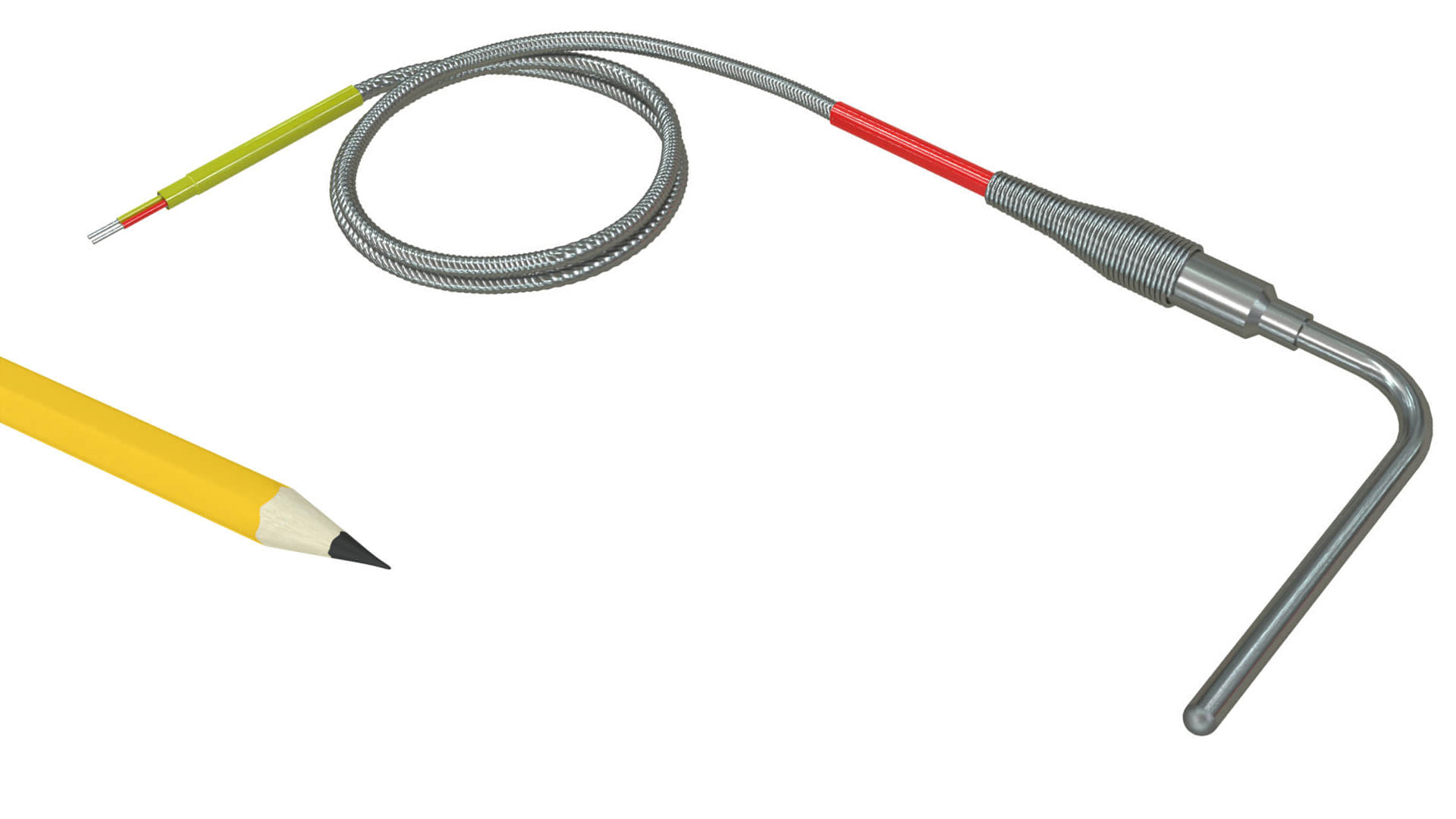

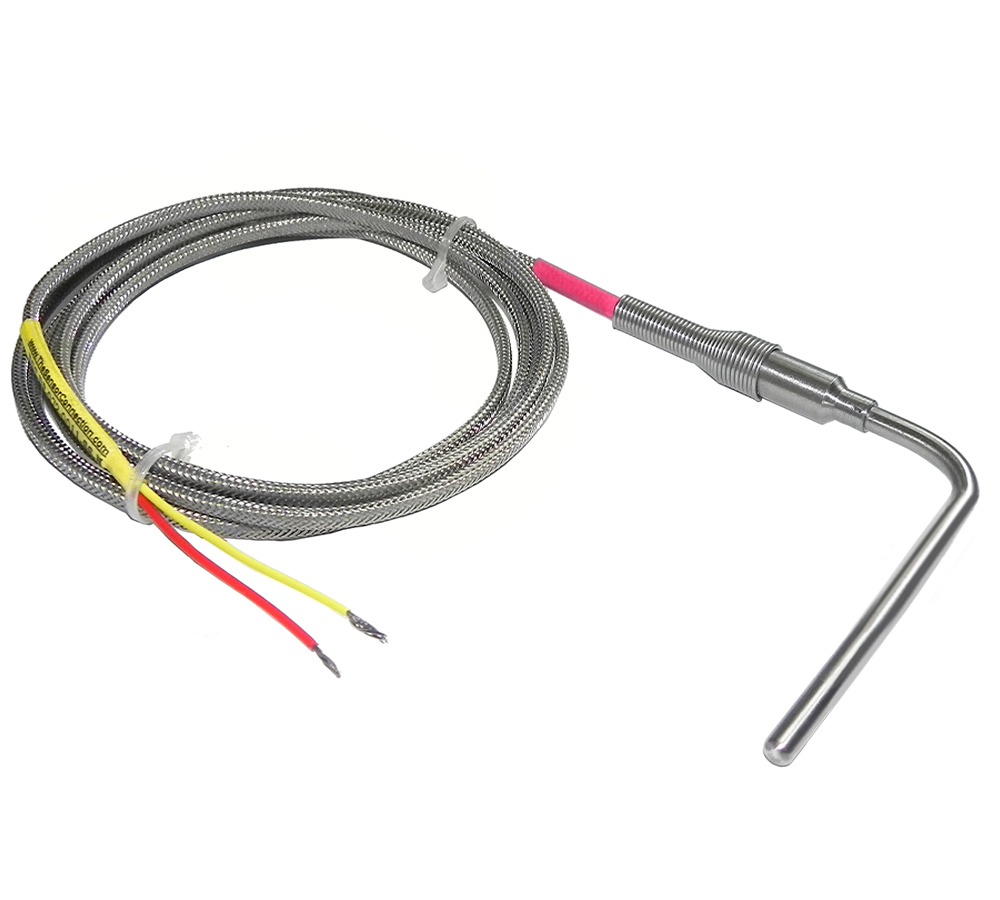

TTJ9 Transition Joint Thermocouple Probe 90 Degree Sheath - Enclosed Junction

Price
$51.75
SKU
TTJ9-K187A030U072B0
Availability
In Stock
0
Add to Cart

OPTION

Thermocouple Type
Thermocouple Cable Insulation
Thermocouple Cable Length
Thermocouple Connector

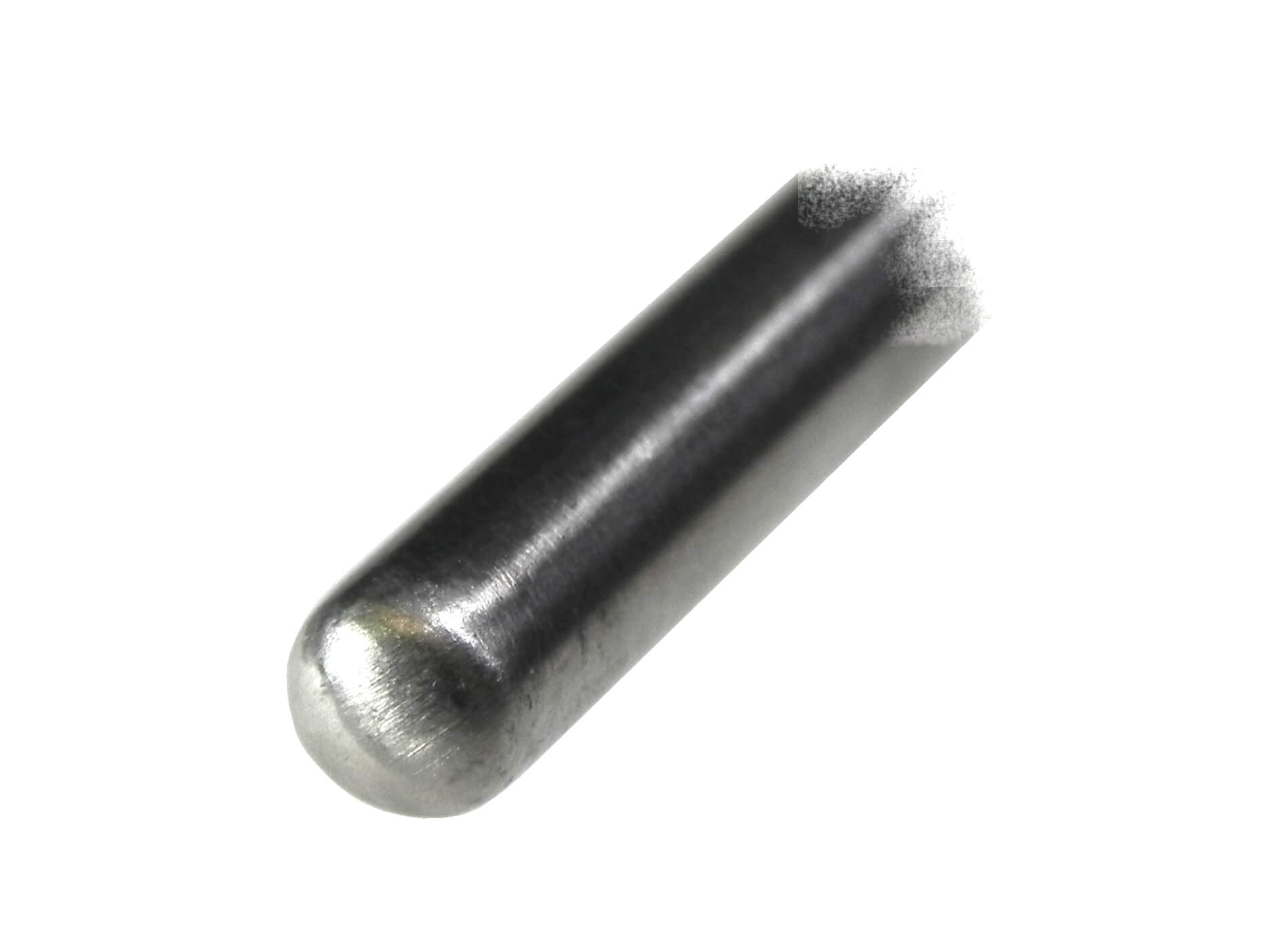

Thermocouple Junction Type
Thermocouple Sheath Length
Thermocouple Sheath Material
Thermocouple Sheath OD

OVERVIEW

• Made with special limits of error materials
• MgO mineral insulated sheath
• Cable transition joint with spring strain relief
• Designed for industrial applications


MADE IN THE USA


TTJ9 transition joint thermocouples are an ideal solution for temperature measuring applications. These thermocouples feature a heavy-duty transition joint with spring strain relief and special Limits of Error accuracy. The mineral sheath is insulated for high strength.

Contact us for volume pricing. Custom configurations available.


TECHNICAL SPECIFICATIONS

Thermocouple type:

Type K

Operating Range:

-148°F to 2372°F range (-100°C to 1300°C)

Accuracy:

Special Limits of Error accuracy (greater of +/- 0.4% of reading or +/- 1.1°C)

Probe Diameter:

3/16 inch (0.187 inch) (4.75 mm)

Max Tip Insertion Depth:

2.8 inch

Sheath:

Inconel 600 protective sheathing for longevity at high temperatures, 0.023" (.58 mm), MgO insulated

Cable:

Stainless steel over-braid cable with FEP insulated conductors; 6, 12 or 25 foot

Response time constant:

1200 milliseconds
