PMD-MXT 8, 16, 24, or 32 Channel Digital Temperature Scanner - Universal Thermocouple

Price
$765.00
SKU
PMD-MXT-08-THC
Availability
1 week
1
Add to Cart

OPTION

PMD-MXT Number of Input Channels

• Available in 8, 16, 24, or 32 channels
• Thermocouple Input version accepts any combination of J, K, T, E, B, N, R, or S
• RTD Input version accepts any combination of PT100, CU100, or CU50 (2- or 3-wire)
• Dual Limit Alarm trip points adjustable per channel
• RS-485 serial communication interface


Features

• Temperature units field selectable for °F or °C
• Auto or Manual scanning
• Adjustable Auto scan rate
• RS-485 Communications
• Dual Limit Alarm trip points adjustable per channel (HI/HI, HI/LO, or LO/LO)
• Latching or Non-Latching alarms
• Dual alarm relays rated at 2 Amps
• Powered by 20 to 28 VDC

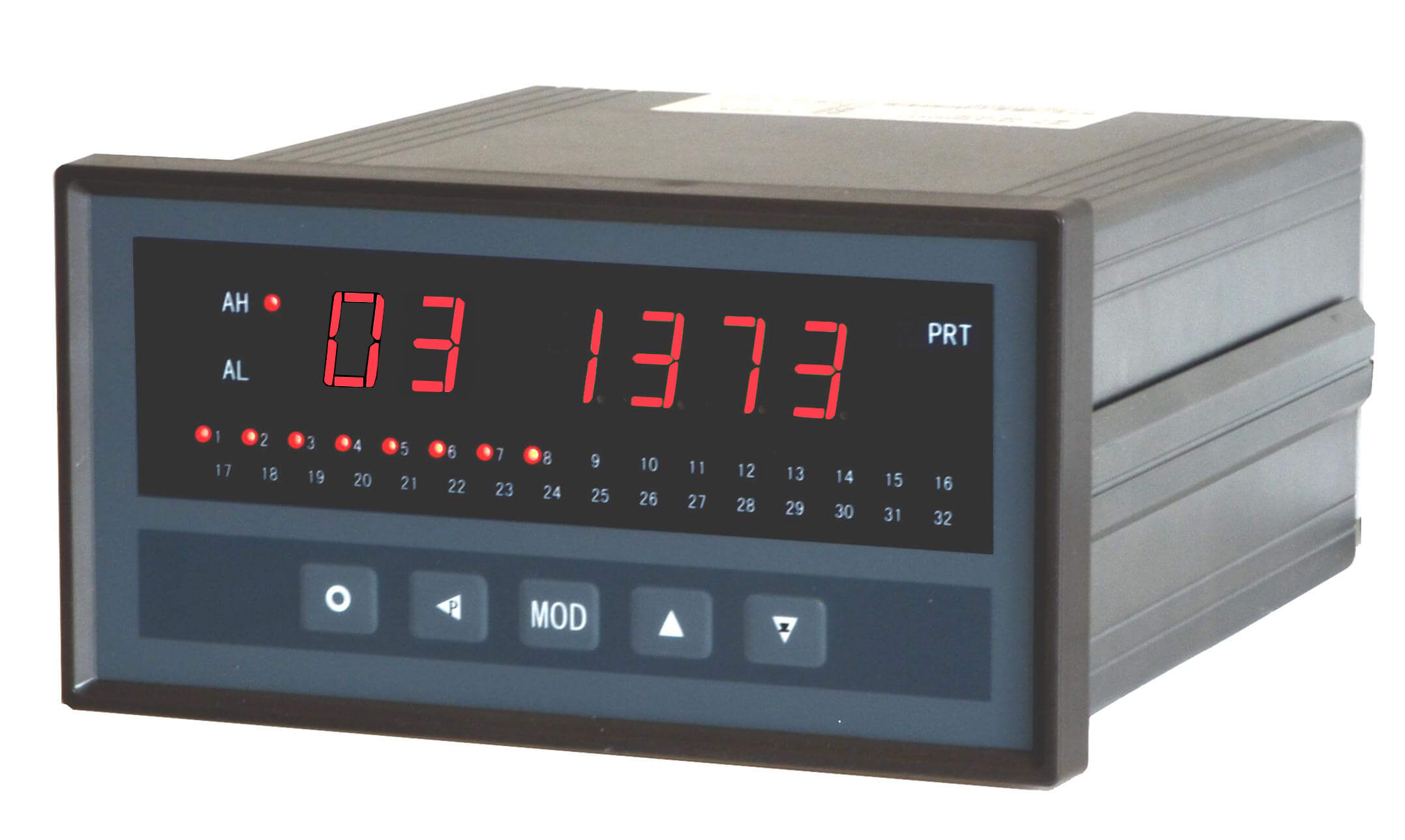

The PMD-MXT series microprocessor-based temperature scanners provide continuous monitoring of up to 32 channels of thermocouple or RTD sensors. The large 14 mm tall digit red LED display is easy to read, even at a distance. Rows of LED annunciators warn of specific channel alarm conditions.

The scanner has 2 user-selectable HI/LO, HI/HI, or LO/LO alarm set points, configured through the front panel push buttons. During an alarm condition a front panel LED annunciator is enabled & an internal 2 Amp relay contact output is engaged.

The scanner's display will auto cycle through all input channels at a user determined rate of 0.5~10 seconds per channel.

24 VDC powered. A must have for multi-point thermocouple or RTD temperature monitoring in the Lab, control room, or Dynamometer.

• Thermocouple Input Types: K, T, J, B, E, N, R, S (user selectable)
• RTD Input Types: PT100, CU100, CU50 (user selectable)
• Display Resolution RTD (0.1°): -167.9 to +999.9°F (-189.9 to +596.9°C)
• Display Resolution TC (0.1°): -167.9 to +999.9°F (-199.9 to +999.9°C)
• Display Resolution TC (1°): -412 to 3271°F (-257 to 1800°C)
• Accuracy RTD: +/-1.0% of full scale
• Accuracy TC: +/-0.3% of full scale
• Channel Select Indication LEDs: Red, 2-digit, 0.56 inch (14 mm) tall
• Measured Value Indication LEDs: Red, 4-digit, 0.56 inch (14 mm) tall
• Microprocessor Sampling Rate: 0.1 second per channel
• Microprocessor A/D Resolution: 16 bit
• A/D Accuracy: +/- 0.2% FS +/- 1 unit
• Environment: 0 to 60°C, 85% Max. RH (non-condensing)
• Operating Temperature: +32 to +125°F (0 to +50°C)
• Front Bezel Rating: IP51
• Power: +20 to +28 VDC
• Current Draw: < 400 mA @ 24 VDC
• Alarm Relay Contact Rating: 2A @ 250 VAC
• Case Dimensions: 6.3" x 3" x 7" (160 mm x 80 mm x 182 mm)
• Panel Cutout Dimensions: 6" x 3" (152 mm x 76 mm)
• Weight: 2 pounds (900 grams)
