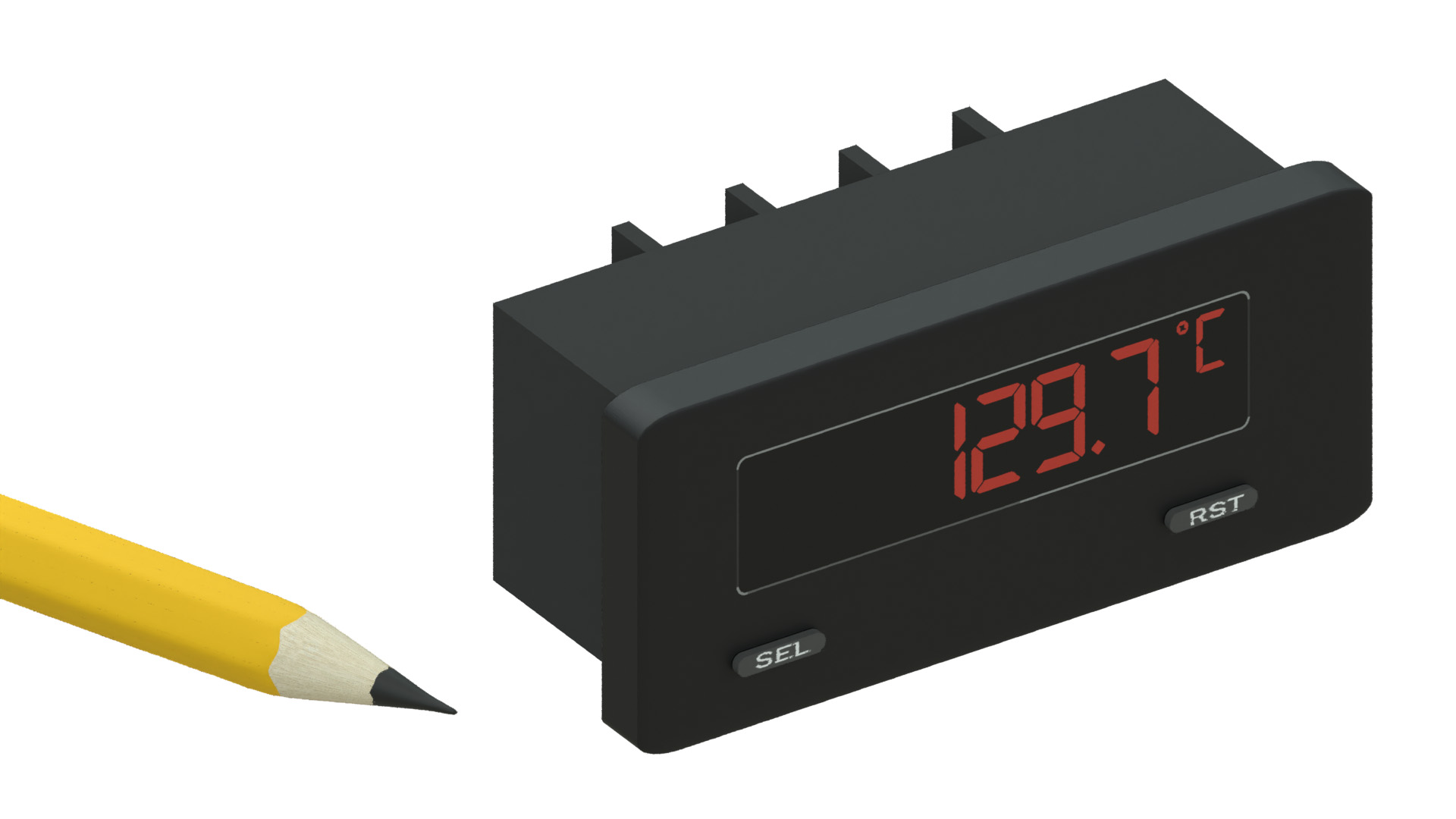

PMDW Single Channel Mini Digital Panel Meter - Universal Thermocouple

OVERVIEW

• Compatible J, K, T, E, R, S, B, N Type thermocouples (user selectable)
• Accepts one probe
• Visible high temperature alarm LED
• °F/°C selectable
• Small Size ~ 1.5" high x 3.0" wide x 1.75" deep
• Max temperature "Peak hold" display capture capability
• HI alarm relay & front panel LED annunciator light
• Alarm relay can be wired as Normally Open (NO) or Normally Closed (NC)
• NEMA4X / IP65 Sealed Front Bezel

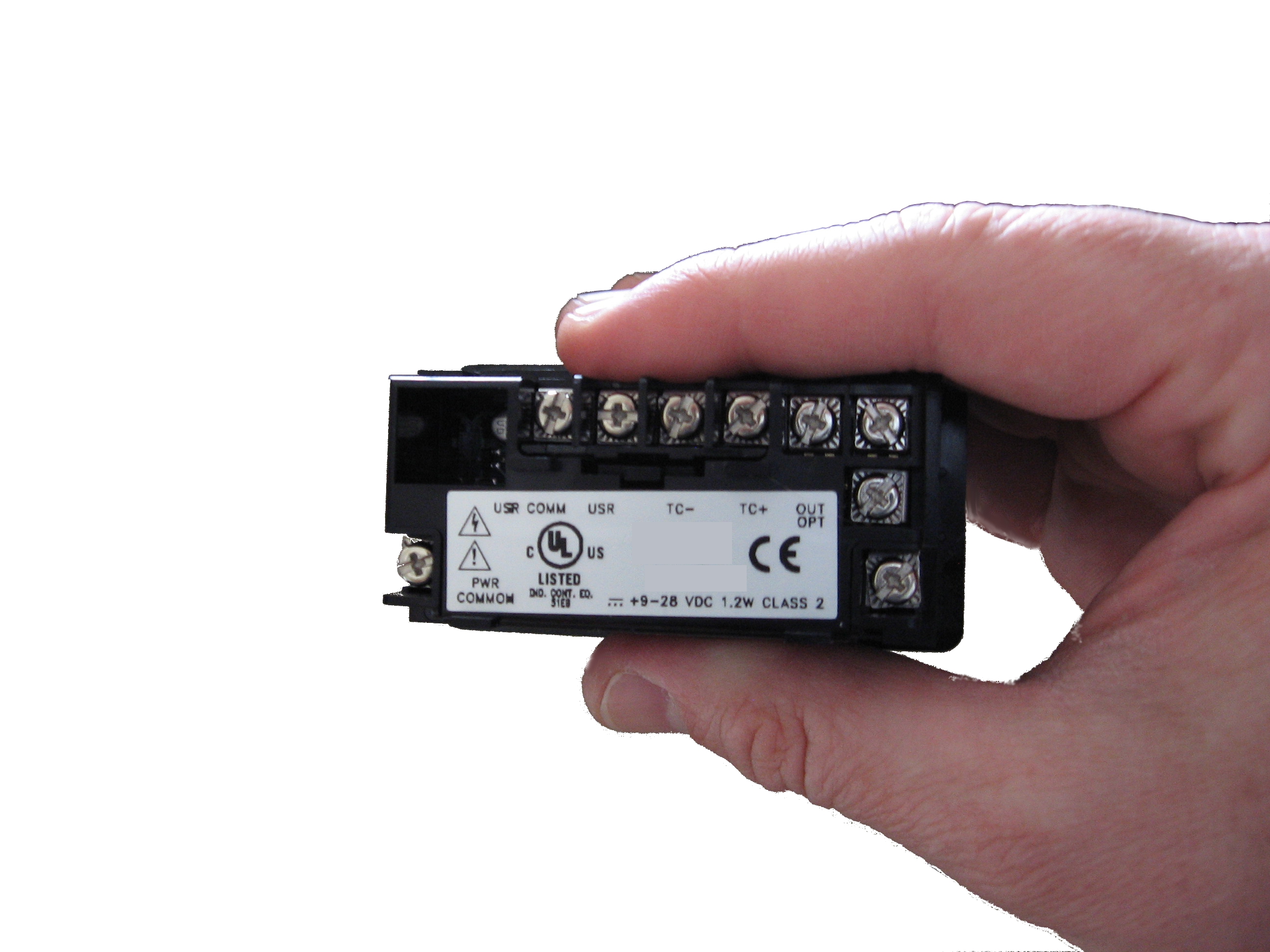

• Screw terminal connection


MADE IN THE USA

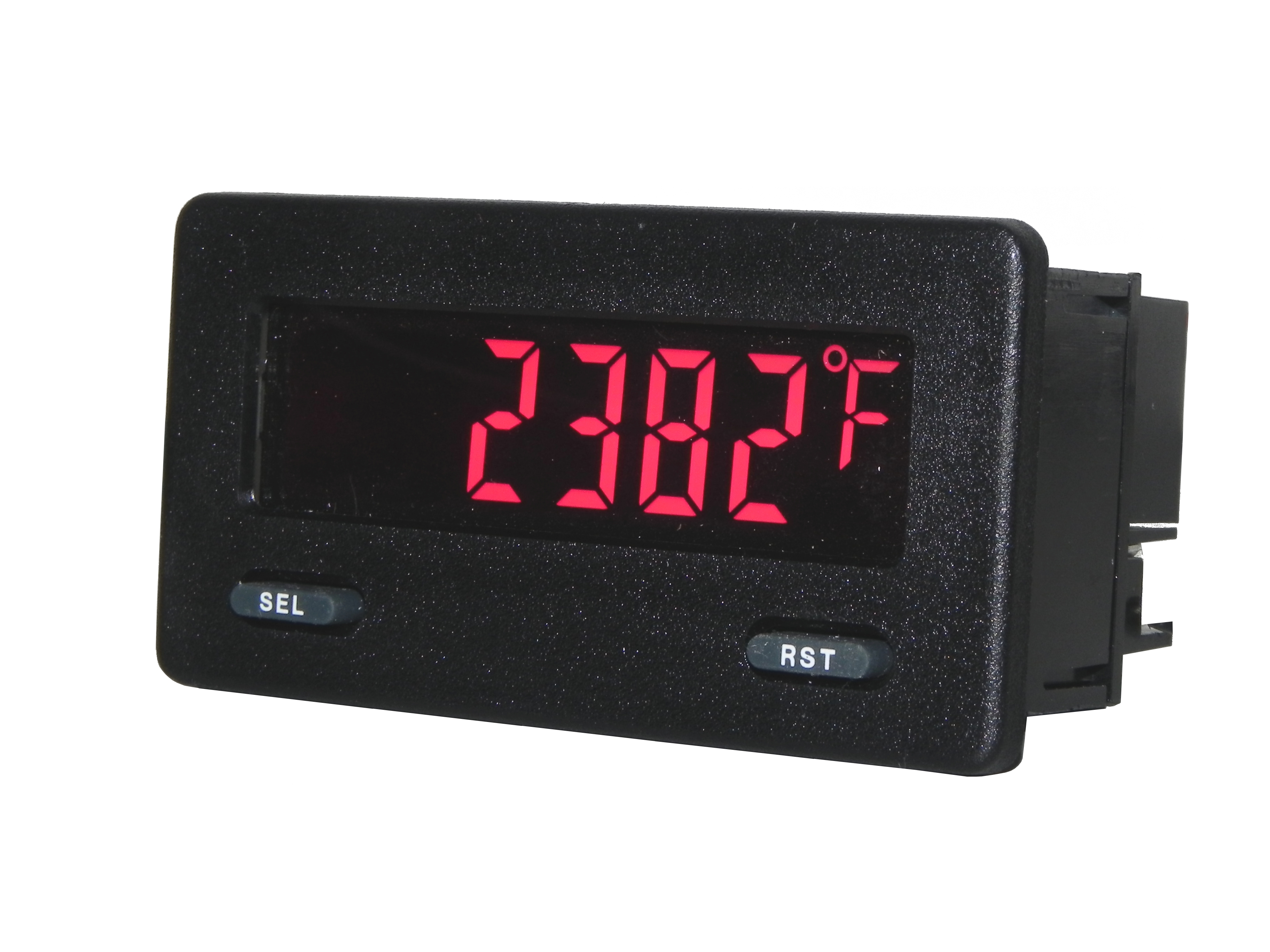

The PMDW Single Channel Mini Digital Panel Meter has advanced operations including Max temperature "Peak hold" display capture capability and high set-point alarm with internal relay contact. The gauge features a bright four digit LCD display that is easy to read, even in direct sunlight and an industrial grade screw terminal strip allows for quick and easy connection of power and signal wires. All of our gauges are manufactured from high quality materials for optimum performance in your demanding application.



IMPORTANT DISCLAIMER IF YOU ARE CONSIDERING USING THIS INSTRUMENT IN AN AIRCRAFT:

This instrument is not certified by the FAA. Fitting of this instrument to certified aircraft is subject to the rules and conditions pertaining to such in your country. Please check with your local aviation authorities if in doubt. This instrument is intended for ultralight, microlight, homebuilt and experimental aircraft. Operation of this instrument is the sole responsibility of the pilot in command (PIC) of the aircraft. This person must be proficient and carry a valid and relevant pilot’s license. This person has to make themselves familiar with the operation of this instrument and the effect of any possible failure or malfunction. Under no circumstances does The Sensor Connection or manufacturer condone usage of this instrument for IFR flights.

Options:

SKU
PMDW-RLC5TCBB1
Availability
In Stock
Price
$205.00
0
Add to Cart

TECHNICAL SPECIFICATIONS

Number of Inputs: 1
Input: K type thermocouple (default)
Other Input Options: J, T, E, R, S, B, N Type thermocouple (user selectable)
Display Range: -328 to 2502°F (-200 to 1372°C); (default setting of K type thermocouple)
Accuracy: +/-2.3 °F/°C
Display Resolution: 1°F (1°C)
LED Display: 4-digit LED, 0.5 inch (12 mm high), 1 second update rate, Red or Green
Microprocessor Sampling Rate: 1.25 samples/second
Environment: -35 to +60C, 85% Max. RH (non-condensing)
Operating Temperature: -30 to 140°F (-35 to 60°C)
Front Bezel Rating: NEMA4X / IP65
Current Draw: 125 mA @ 24 VDC
Alarm Relay Contact Rating 1A @ 30VDC resistive, 0.3A @ 125VAC resistive

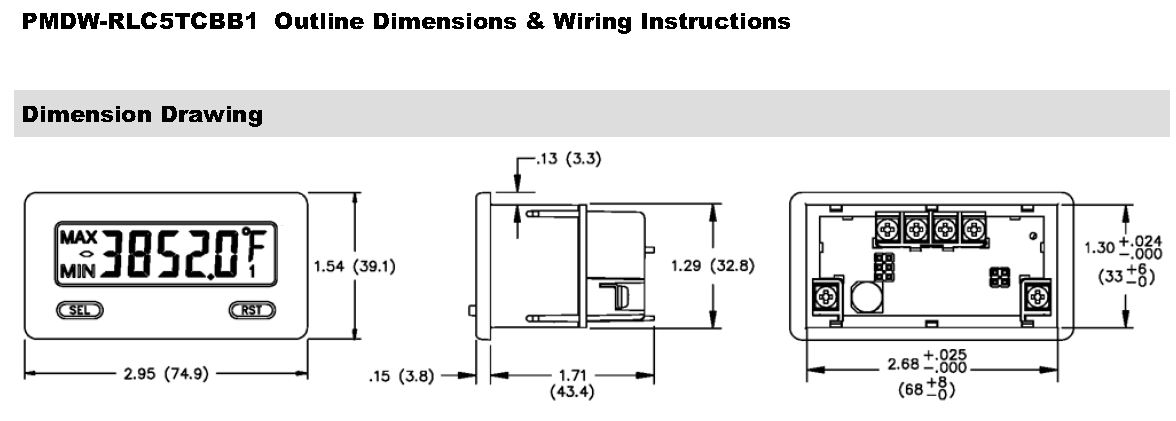

Case Dimensions: 1.5" x 2.9" x 1.7" (38mm x 74mm x 43mm)
Panel Cutout Dimensions: 2.68" x 1.30" (68 x 33 mm)
Weight: 2.5 ounces
