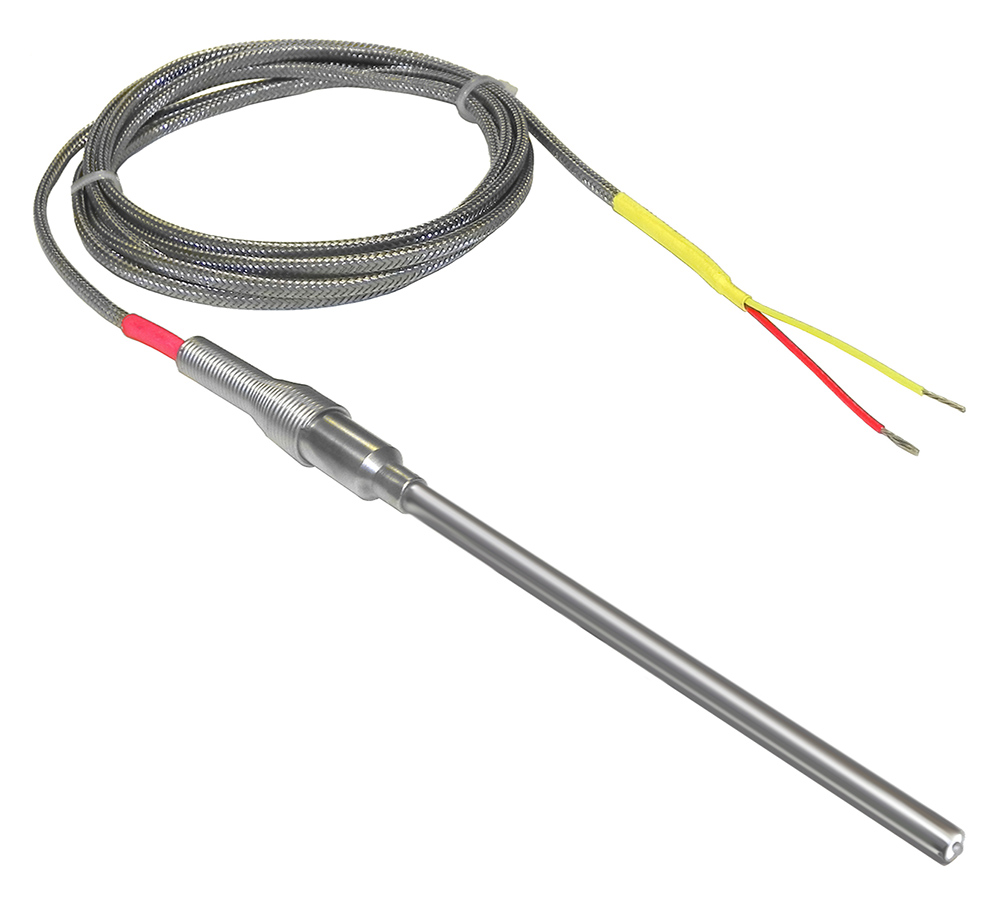

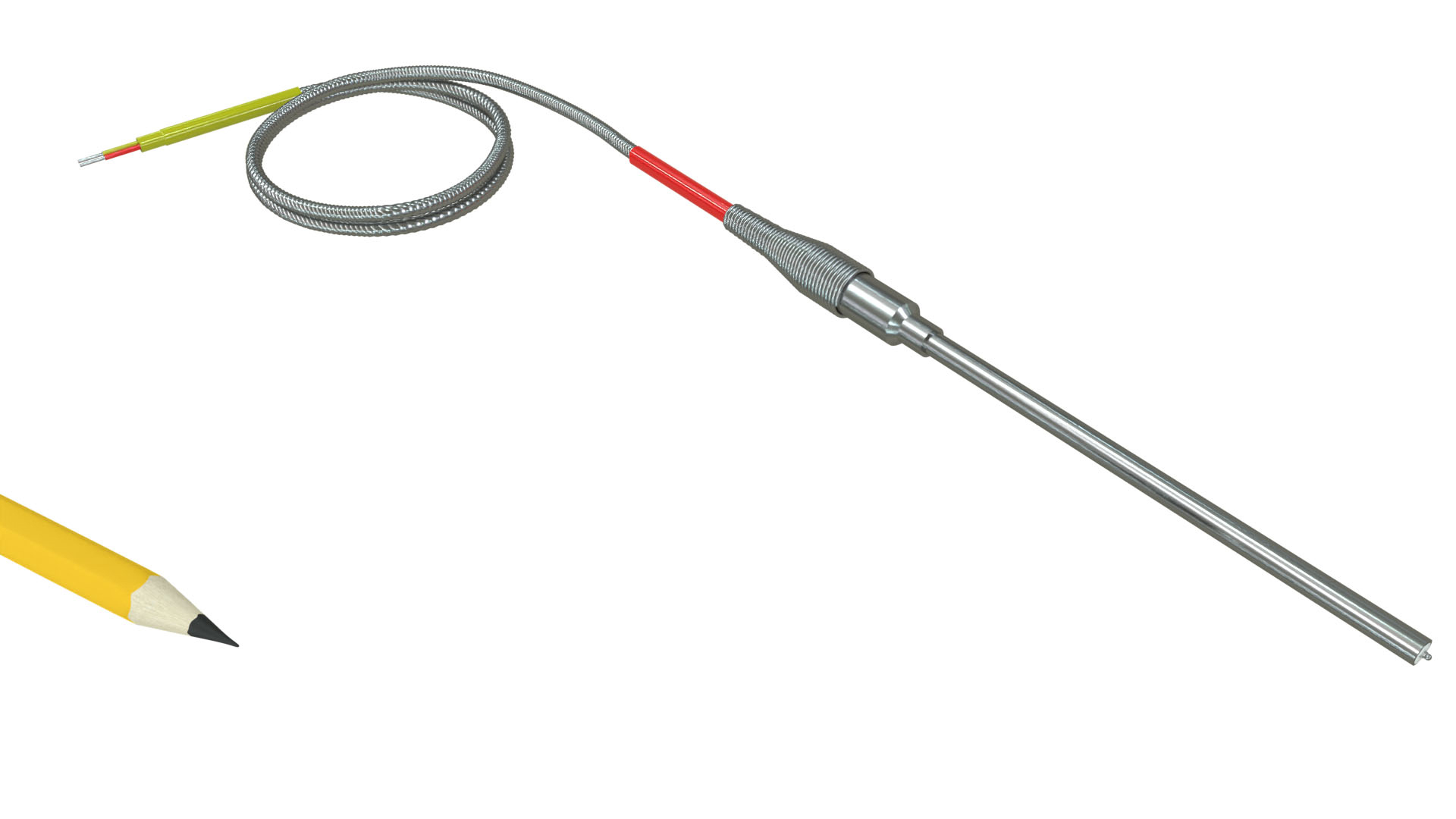

TTJ0 Transition Joint Thermocouple Probe Straight Sheath - Exposed Junction

Price
$52.25
SKU
TTJ0-K187A040E072B0
Availability
In Stock
0
Add to Cart

OPTION

Thermocouple Type
Thermocouple Cable Insulation
Thermocouple Cable Length
Thermocouple Connector
Thermocouple Junction Type
Thermocouple Sheath Length
Thermocouple Sheath Material
Thermocouple Sheath OD

• Heavy Duty Transition Joint with Spring Strain Relief
• Special Limits of Error accuracy
• Mineral insulated sheath for high strength

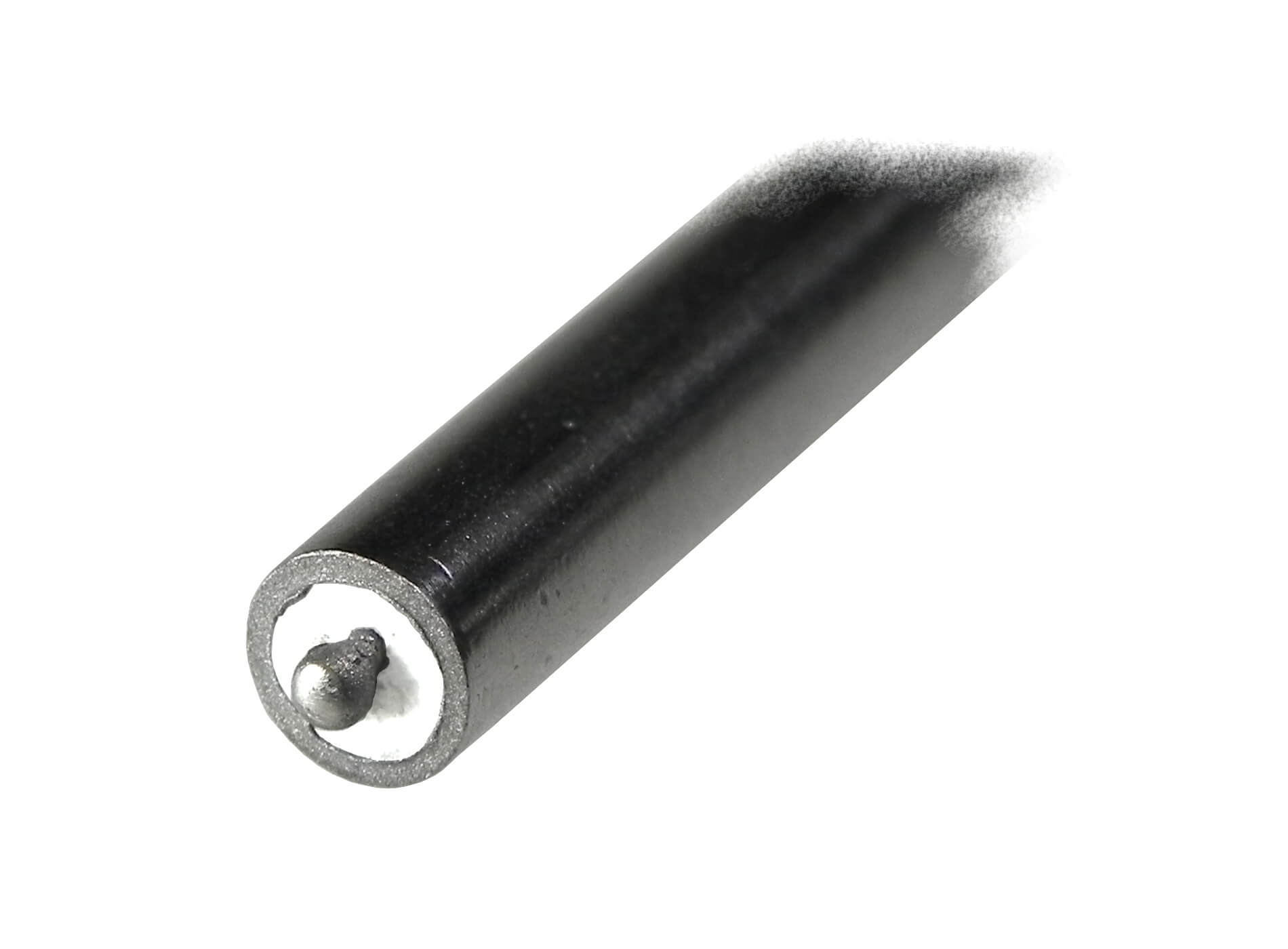

• Exposed Tip Sensing Junction



Made in the USA



Contact us for volume pricing. Custom configurations available.

• Type K Thermocouple
• -148°F to 2372°F range (-100°C to 1300°C)
• Special Limits of Error accuracy (+/- 0.4% of reading)
• Probe diameter 3/16 inch (0.187 inch) (4.75 mm)
• Max tip insertion depth = 2.7 inch
• Inconel 600 protective sheathing for longevity at high temperatures
• Sheath Wall Thickness 0.023" (.58 mm), MgO insulated
• Stainless steel over-braid cable with FEP insulated conductors; 6 foot
• Response time constant: 250 milliseconds
