HSTA-750 TE Macro Sensors AC LVDT

OVERVIEW

HGSI is a factory authorized TE Connectivity Macro Sensors distributor.

Have Pricing or Technical questions? Contact us today.

Complete the contact form, call us at 248-636-1515, or email us at sales@hgsind.com

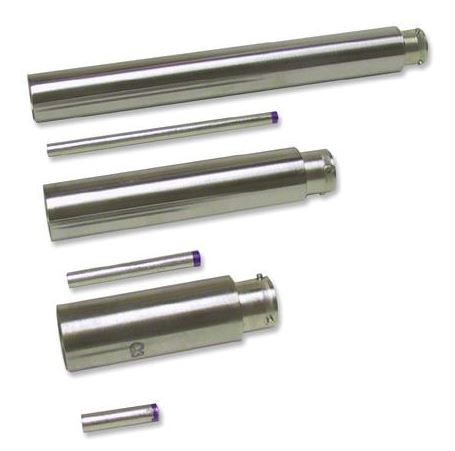

TE Connectivity Macro Sensors’ HSTA 750 series of 3/4 inch (19 mm) diameter AC-operated LVDTs is designed for a wide range of position measurement applications. These are rugged hermetically sealed sensors, constructed entirely of stainless steel, and intended for use at high temperatures (400°F). The coil windings are sealed against hostile environments to IEC standard IP-68 and electrical termination is through a sealed axial connector. The mating connector plug is supplied with the unit.

Available in ranges of ±0.050 inch (±1.25 mm) to ±10.0 inches (±250 mm), HSTA 750 Series sensors feature the high resolution, excellent repeatability, and low hysteresis associated with LVDT technology, as well as the highest sensitivity consistent with good linearity. The maximum linearity error for any of these sensors is ±0.25% of full range output using a statistically best-fit straight line derived by the least squares method. Macro Sensors offers several standard options that permit a user to customize HSTA 750 LVDTs, including PTFE bore liners and metric threaded cores, as well as smaller diameter and low mass cores. In addition, Macro Sensors can provide a range of mounting accessories and core extension rods. HSTA Series units can also be supplied to withstand exposure to mild radiation (3x107 Rads). On special order, the HSTA 750 Series can also be constructed for immersion in pressurized fluids.

Features

Ranges of ±0.050 inch to ±10.0 inches
400°F (200°C) operating temperature
In-line connector, mating plug included
Environmentally sealed to IEC IP-68
Non-linearity less than ±0.25% of FRO

Part Numbers

HSTA-750-050
HSTA-750-125
HSTA-750-250
HSTA-750-500
HSTA-750-1000
HSTA-750-2000
HSTA-750-3000
HSTA-750-4000
HSTA-750-5000
HSTA-750-7500
HSTA-750-10000

Options:

Variations
LVDT Bi-Polar Measuring Range
SKU
HSTA-750-050
Availability
Request Availability
Call For Price
1
Out of Stock
0
Discontinued
Off
Price
$9,999.99
Add to Cart
