TCA-MS Single Channel Amplifier - Type K Thermocouple

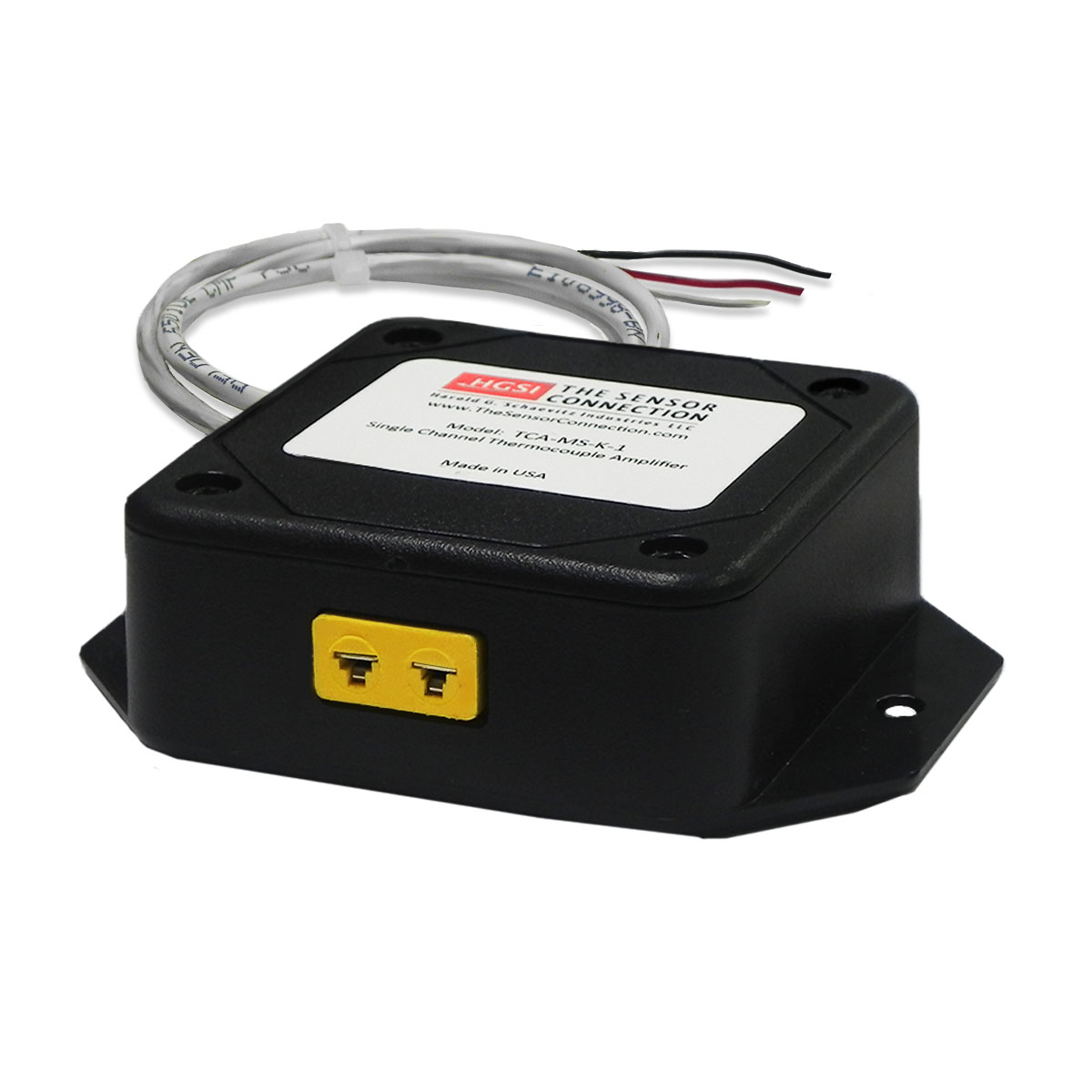

The HGSI TCA-MS-K-1 is a compact, single-channel thermocouple signal conditioning amplifier designed specifically for Type K thermocouples. This palm-sized unit converts the low-level millivolt signal from a Type K thermocouple probe into a linearized 0 to 5 VDC analog output suitable for direct interface with data loggers, aftermarket ECUs, temperature indicators, chart recorders, and industrial controllers.

With its extremely compact 2.5" x 2.5" x 0.9" housing and integrated mini-thermocouple jack input, the TCA-MS-K-1 provides a simple, self-contained solution for applications requiring a single linearized temperature channel. The unit includes on-board cold junction compensation, eliminating the need for external reference temperature measurement or compensation circuitry.

Made in the USA with over 40 years of sensor engineering expertise.

Why Thermocouple Signal Conditioning Is Essential

Raw thermocouple signals cannot be directly used by most data acquisition equipment or controllers. Three fundamental characteristics of thermocouple operation require dedicated signal conditioning:

Low Signal Levels Require Amplification

Type K thermocouples produce approximately 41 microvolts per degree Celsius of temperature difference. At a typical EGT operating temperature of 800°C, the thermocouple output is only about 33 millivolts—a signal level that is easily corrupted by electrical noise from ignition systems, alternators, motors, or switching power supplies. The TCA-MS-K-1 provides high-gain, low-noise amplification that raises this millivolt signal to a robust 0-5 VDC level while rejecting common-mode noise and interference.

Non-Linear Output Requires Linearization

The voltage produced by a thermocouple is not linearly proportional to temperature. The Seebeck coefficient (voltage per degree) varies across the measurement range—for Type K, ranging from about 39 µV/°C at lower temperatures to approximately 42 µV/°C at higher temperatures. Without linearization, a simple voltage-to-temperature conversion would produce significant errors at different points in the range. The TCA-MS-K-1 applies the appropriate Type K linearization algorithm internally, producing an output voltage that is directly proportional to actual temperature with less than ±2% non-linearity.

Cold Junction Compensation

A thermocouple measures the temperature difference between its measuring junction (the probe tip in contact with the measured surface or medium) and its reference junction (where the thermocouple alloy wires connect to the amplifier's copper input terminals). Without compensation, the indicated temperature would be in error by the amount of the reference junction temperature. For example, if the amplifier input terminals are at 25°C and the probe tip is at 500°C, the uncompensated thermocouple output corresponds to only 475°C. The TCA-MS-K-1 includes an on-board temperature sensor that continuously measures the reference junction temperature and automatically compensates the output to represent true absolute temperature at the probe tip.

Compact Single-Channel Design

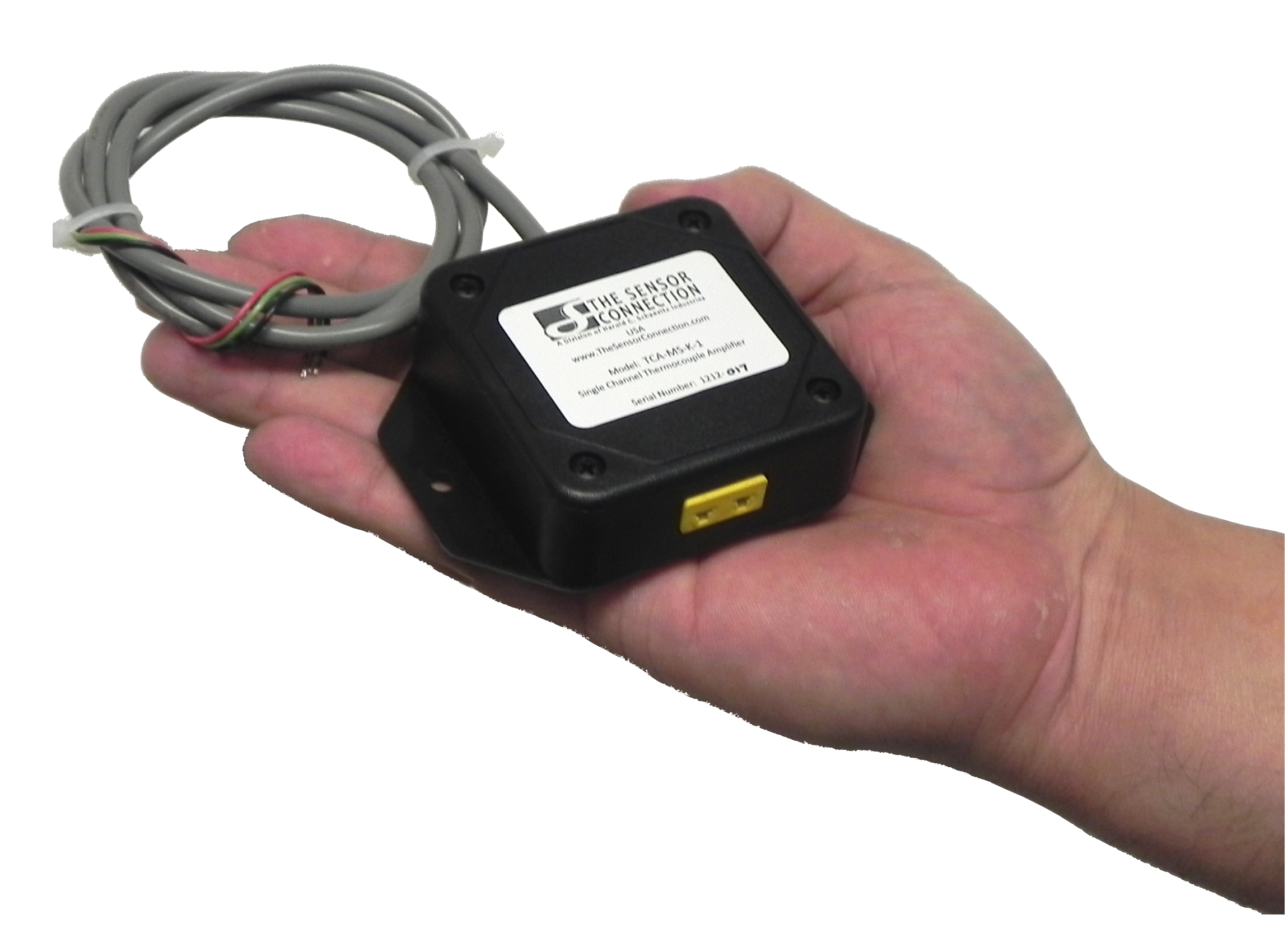

The TCA-MS-K-1 addresses applications where only a single temperature measurement point is needed, or where multiple single-channel units provide more flexible installation than a multi-channel amplifier. At just 2.5" x 2.5" x 0.9" (about the size of a matchbox), the unit can be mounted in tight spaces close to the measurement point, minimizing the length of thermocouple extension wire required.

The compact form factor makes the TCA-MS-K-1 ideal for retrofitting temperature monitoring capability to existing equipment, adding individual temperature channels to modular data acquisition systems, or embedding temperature measurement within custom equipment where space is at a premium.

Type K Thermocouple Characteristics

The TCA-MS-K-1 is designed and calibrated specifically for Type K thermocouples—the most widely used thermocouple type in industrial and motorsports applications:

Type K is favored for EGT and general high-temperature measurement because its upper temperature limit of 1260°C (2300°F) exceeds typical exhaust and process temperatures, the Chromel/Alumel alloys provide good oxidation resistance, and the alloys are mechanically robust enough to survive vibration and thermal cycling in demanding environments.

Analog Output System

Linearized 0-5 VDC Output

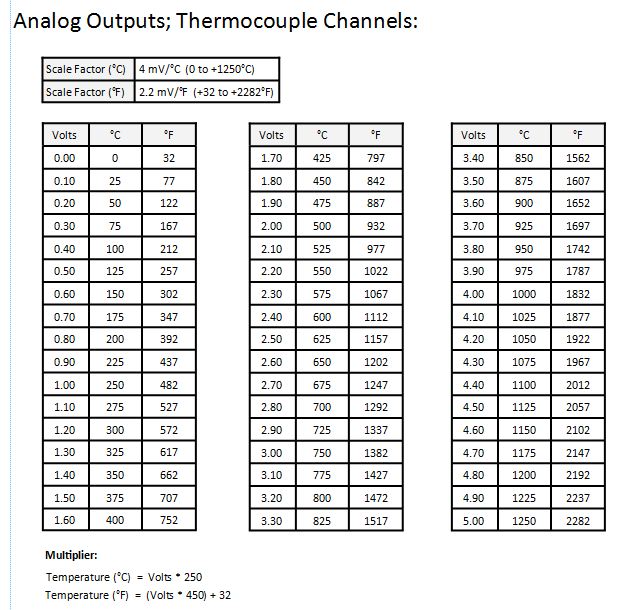

The TCA-MS-K-1 provides a linearized analog output ranging from 0 VDC to +5 VDC, with 0 VDC corresponding to 0°C (32°F). The nominal output scale factor is 4.0 mV per degree Celsius (2.2 mV per degree Fahrenheit), providing direct temperature-to-voltage conversion:

Note: Unlike the 8-channel TCA-MS-K-8-A4 which extends to -0.5 VDC for sub-zero temperatures, the single-channel TCA-MS-K-1 output range starts at 0 VDC corresponding to 0°C. This matches the requirements of most motorsports and industrial applications where temperatures remain above freezing.

Infinite Analog Resolution

The TCA-MS-K-1 provides a truly analog output with infinite resolution—there is no quantization or step size limitation in the amplifier itself. The actual measurement resolution in your system is determined by the analog-to-digital converter in your data acquisition equipment. This gives you flexibility to use higher-resolution A/D converters for precision measurement or lower-resolution converters for cost-effective monitoring without any limitation from the amplifier.

1 Millisecond Response Time

With a response time faster than 1 millisecond, the TCA-MS-K-1 can track rapid temperature changes in real time. In motorsports EGT monitoring, exhaust temperatures can change hundreds of degrees within a single combustion cycle. The amplifier's fast response ensures that the thermocouple probe—not the signal conditioning electronics—is the limiting factor in capturing transient thermal events.

Input Connection and Requirements

Mini Thermocouple Jack with Quick Connection

The thermocouple input uses an industry-standard mini thermocouple jack with Type K alloy contacts (Chromel/Alumel). A matching mini-plug connector is included with the unit. This quick-connect interface allows direct connection of thermocouple probes terminated with mini plugs, or connection of extension cables from probes with other termination styles. The mini connector format is the most common thermocouple connector style for motorsports and portable instrumentation applications.

Ungrounded Thermocouples Required

IMPORTANT: Use only ungrounded (insulated junction) thermocouples with this amplifier. In an ungrounded thermocouple, the measuring junction is electrically isolated from the probe sheath by a mineral insulation barrier (typically magnesium oxide).

Grounded thermocouples—where the measuring junction is welded directly to the inside of the probe sheath—can create ground loops when the probe contacts a surface at a different electrical potential than the amplifier ground. In automotive and motorsports environments, engine and chassis grounds often carry noise from ignition systems, alternators, and other electrical equipment. A ground loop through a grounded thermocouple junction can introduce measurement errors, erratic readings, or signal noise.

If you have existing grounded-junction EGT probes, either electrically isolate the probe mounting from the exhaust system, or replace them with ungrounded probes for reliable measurements.

High Input Resistance

The 60 kΩ input resistance minimizes current draw from the thermocouple circuit. This high input impedance ensures accurate measurement even with long extension cables, and reduces measurement errors caused by thermocouple wire resistance variations between channels or installations.

Power Supply and Installation

The TCA-MS-K-1 operates from a wide DC supply voltage range of 10 to 32 VDC, compatible with 12V automotive systems, 24V industrial systems, and portable power sources. Current draw is less than 50 mA, allowing operation from vehicle auxiliary circuits or small batteries without significant power impact.

A 3-foot output cable with 3 conductors (22 AWG, PVC jacket) provides connection to the data acquisition system. The cable carries DC power input, ground, and the 0-5 VDC analog output signal.

The IP51 rated housing provides protection against dripping water and dust infiltration. Operating temperature range is +32°F to +125°F (0°C to +50°C)—note that this is the electronics temperature, not the thermocouple measuring range. Mount the amplifier in a location protected from direct engine heat and weather exposure.

Applications

Single-Cylinder EGT Monitoring

For single-cylinder engines, turbocharged applications requiring only one EGT point, or when adding EGT monitoring to an existing system that already has most channels populated, the TCA-MS-K-1 provides a cost-effective single-channel solution. The compact size allows mounting near the exhaust, minimizing thermocouple extension cable length.

Modular Multi-Channel Systems

Multiple TCA-MS-K-1 units can be deployed in distributed configurations where separate single-channel amplifiers offer installation advantages over a centralized multi-channel unit. Each amplifier can be mounted close to its thermocouple, with only the low-impedance 0-5V output cables running to the central data acquisition system. This approach is particularly useful in large vehicles or equipment where thermocouple extension cables would otherwise need to run long distances.

OEM Equipment Integration

The compact form factor and simple 3-wire interface make the TCA-MS-K-1 suitable for embedding within custom equipment, test fixtures, or control panels. Equipment manufacturers can integrate linearized thermocouple input capability without designing custom signal conditioning circuits.

Retrofit Temperature Monitoring

When adding temperature monitoring capability to existing equipment or vehicles, the small size and plug-and-play operation of the TCA-MS-K-1 simplifies installation. No configuration software or setup procedures are required—connect power, connect the thermocouple, and read the linearized 0-5V output.
