OVERVIEW
• Dual Channel
• Portable battery powered digital LCD temperature display readout
• °C/°F selectable
• For Type K or J thermocouple sensor
• Accepts two thermocouple probes
• Connect probe inputs using mini-thermocouple plugs

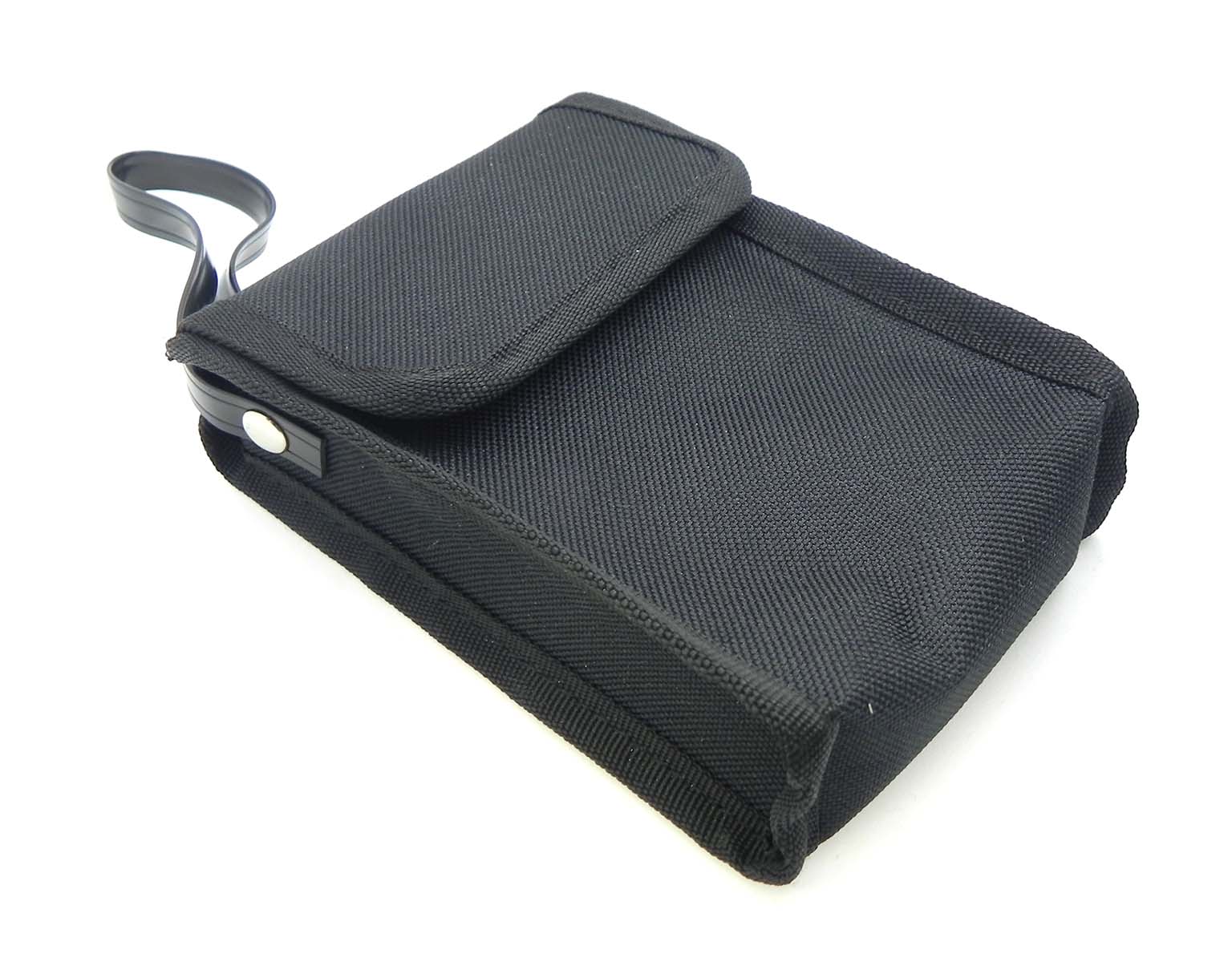

• Mesh Carrying Case (included)
• Large LCD display, 5 full digits
• Max, Min, Average, T1-T2 and Hold temperature reading functions
• Portable, 9V battery powered (included)

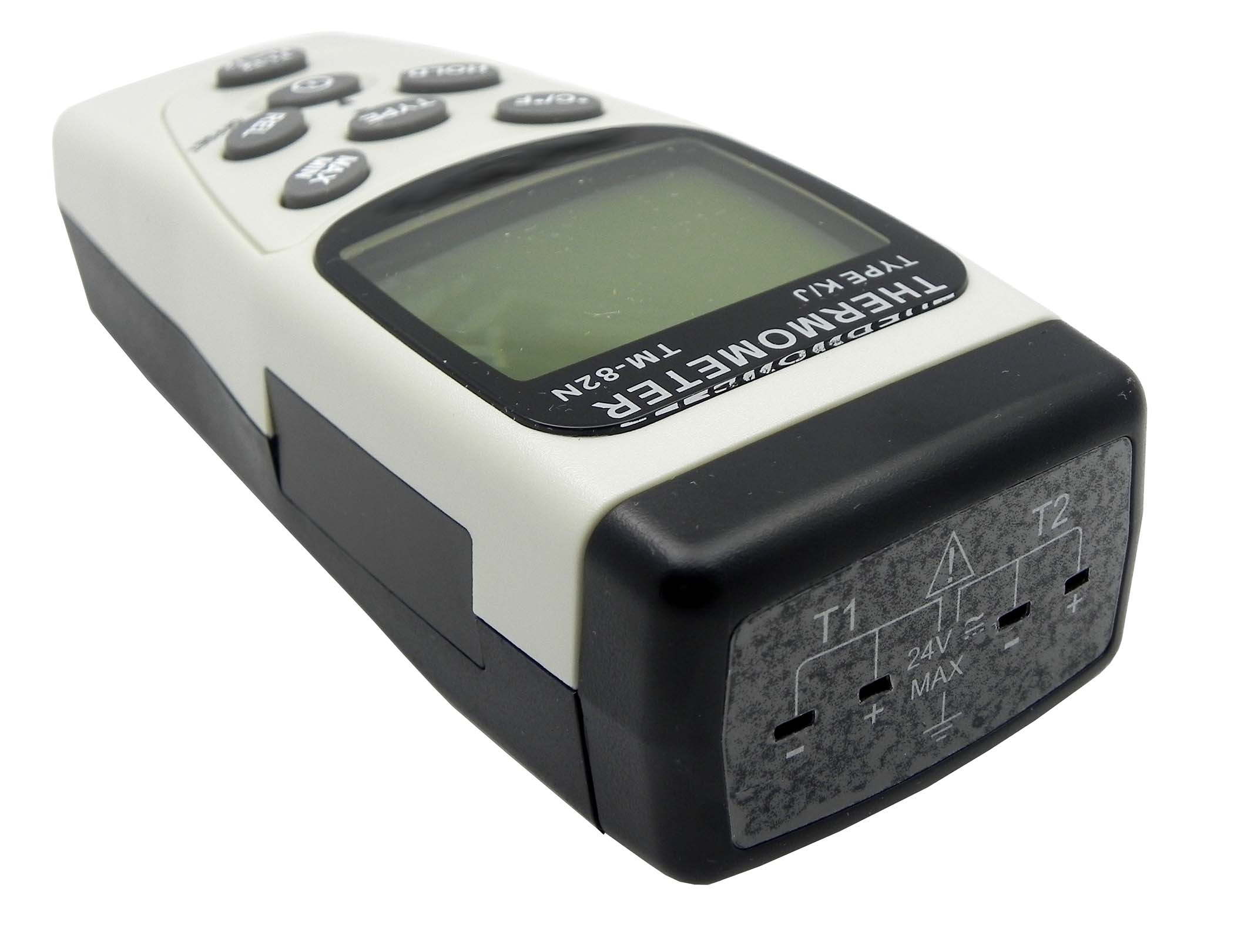

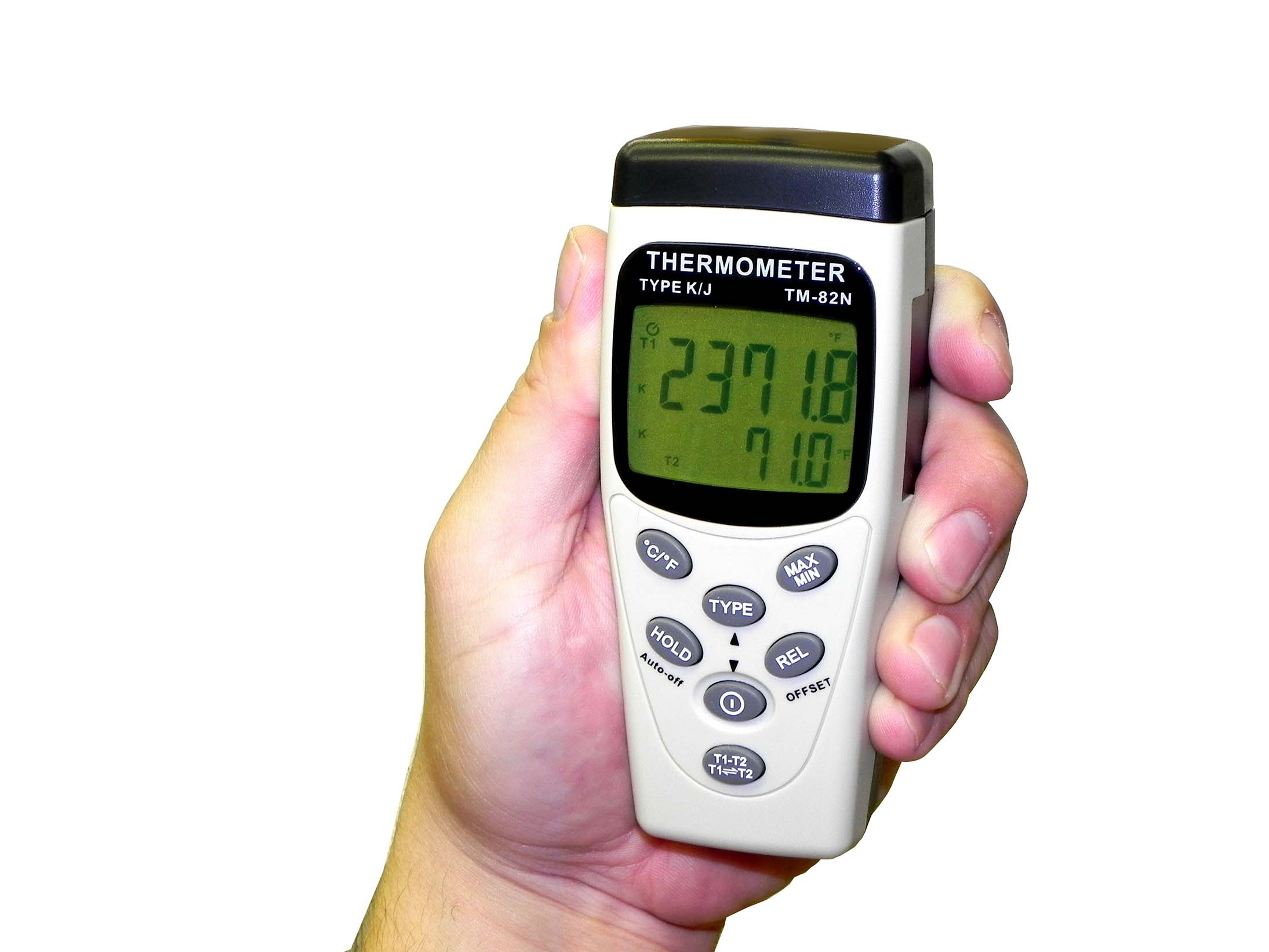

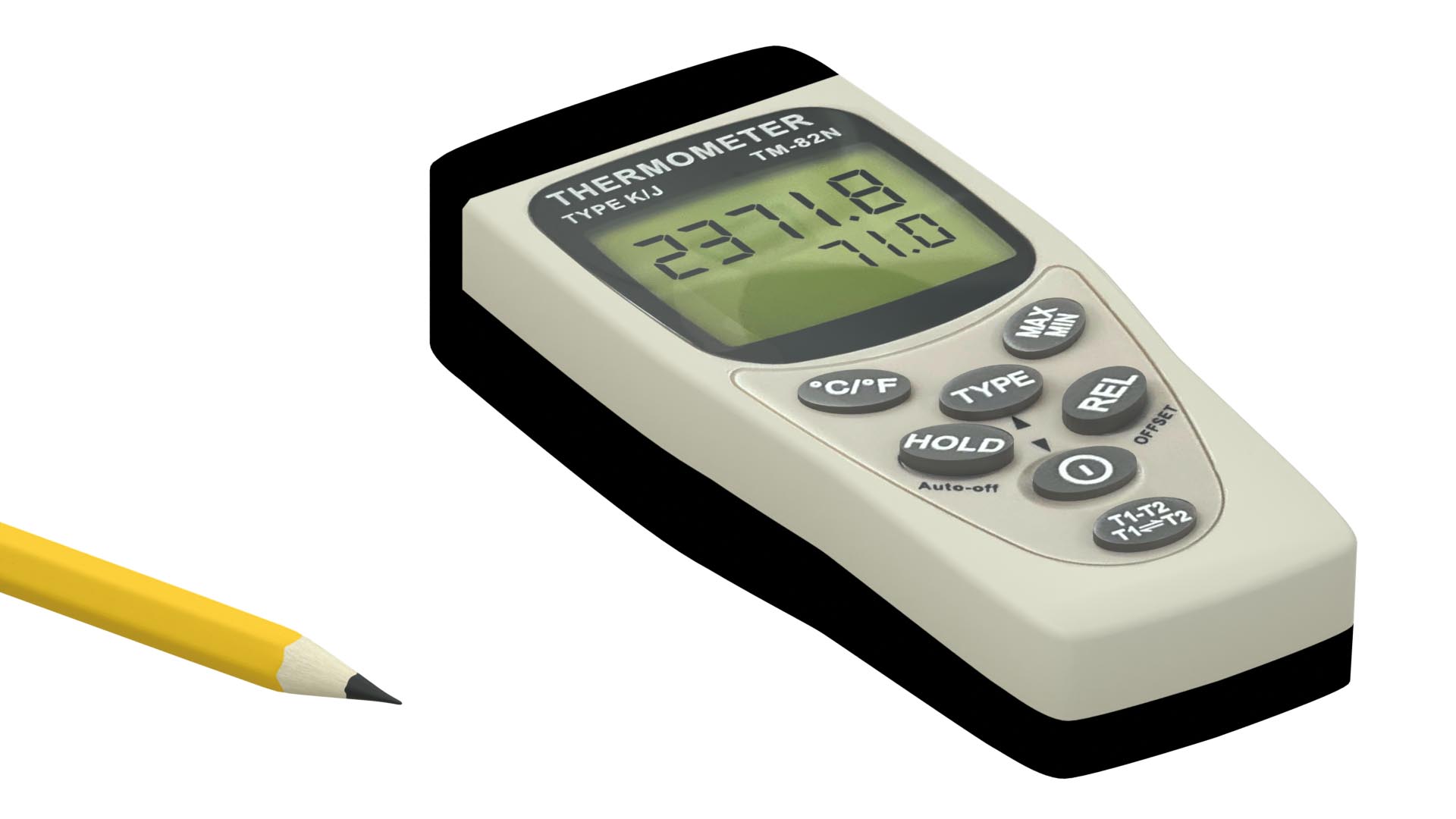

The HHMD DualChannel Digital Handheld Display has advanced operations including Max, Min, Average, T1-T2, and Hold temperature reading functions. The unit features a large five digit LCD display. All of our displays are manufactured from high quality materials for optimum performance in your demanding application. Includes (1) 9V battery, (1) mesh carrying case and (2) Type K thermocouple test leads.

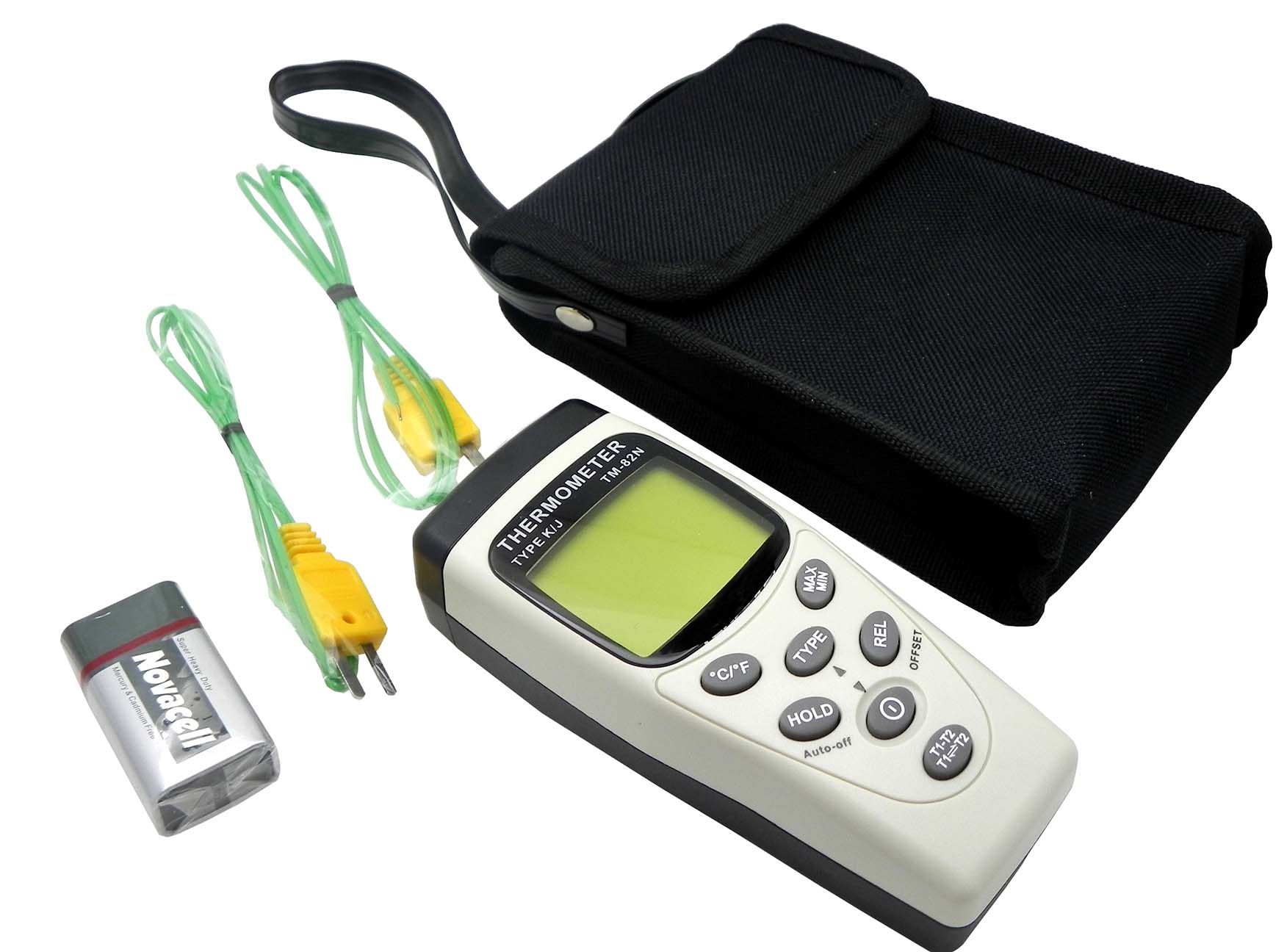

Includes:
• (1) 9V battery
• (1) Mesh carrying case
• (2) Type K thermocouple test leads
Options:
TECHNICAL SPECIFICATIONS
| Number of Inputs: | 2 |
| Input: | Type K, or J thermocouple (User Selectable) |
| Display Range - Type K thermocouple setting (0.1° resolution): | -328 to 2498°F (-200 to 1370°C) |
| Display Range - Type J thermocouple setting (0.1° resolution): | -328 to 1922°F (-200 to 1050°C) |
| Accuracy: | +/-0.1% of full scale + 0.7°C (K/J Types) |
| LCD Display (Primary): | 5-digit, 0.51 inch (13 mm) high, 1 second update rate |
| LCD Display (Secondary): | 5-digit, 0.37 inch (9.5 mm) high, 1 second update rate |
| Microprocessor Sampling Rate: | 1 sample/second |
| Environment: | 0 to 60°C, 80% Max. RH (non-condensing) |
| Operating Temperature: | -4 to +140°F (-20 to +60°C) |
| Power: | 1x 9V battery |
| Battery Life: | 250 hours (typical) |
| Case Dimensions: | 5.1" x 2.2" x 1.5" (130mm x 56mm x 38mm) |
| Weight: | 6 ounces (including batteries) |
