TCA-IND 8 Channel Amplifier - Universal Type J K T Thermocouple

Limited availability may still exist. Contact us for replacement options or equivalent solutions.

The TCA-IND 8 Channel Thermocouple Amplifier is a compact, high-performance signal conditioning module designed to convert low-level thermocouple signals into stable, linearized analog voltage outputs. Supporting up to eight independent thermocouple input channels, this amplifier enables accurate, real-time temperature data acquisition across a wide range of industrial, motorsports, and testing applications.

Designed for seamless integration into data acquisition systems, ECUs, and control platforms, the TCA-IND module delivers precise 0–5 VDC outputs, making it an ideal interface between thermocouple sensors and modern instrumentation systems.

Multi-Channel Thermocouple Signal Conditioning

The TCA-IND amplifier is designed to process up to eight independent thermocouple inputs simultaneously, making it ideal for applications that require multi-point temperature monitoring.

Each input channel is independently conditioned and converted into a corresponding linearized analog output signal, allowing users to monitor multiple temperature points with a single device.

This multi-channel capability is especially useful for:

• Engine and exhaust temperature monitoring

• Industrial process control

• Multi-zone thermal analysis

• Laboratory and R&D testing

• Data logging and instrumentation systems

Universal Thermocouple Compatibility

The TCA-IND supports a wide range of thermocouple types, providing flexibility for various measurement requirements. Supported thermocouple types include:

• Type J

• Type K

• Type T

• Type E

• Type N

• Type R

• Type S

• Type B

This broad compatibility allows the module to be used across applications ranging from low-temperature measurement to high-temperature industrial processes.

Users can select the appropriate thermocouple type and measurement range through the included software interface, ensuring optimal performance for each application.

Linearized 0–5 VDC Analog Outputs

The primary function of the TCA-IND amplifier is to convert thermocouple signals into linearized analog outputs:

• Output range: 0 to 5 VDC

• Resolution: 0.0625 VDC

• Response time: 10 milliseconds

These outputs are ideal for interfacing with a wide range of systems, including:

• Data acquisition systems (DAQ)

• Aftermarket ECUs and engine management systems

• Temperature indicators and displays

• Chart recorders

• Industrial controllers

By providing a stable and linear output signal, the TCA-IND simplifies integration with systems that require voltage-based inputs.

Built-In Cold Junction Compensation (CJC)

Accurate thermocouple measurement requires proper cold junction compensation. The TCA-IND features integrated on-board CJC, ensuring that temperature readings are automatically corrected for ambient conditions at the input connection.

This eliminates the need for external compensation hardware and helps maintain measurement accuracy across varying environmental conditions.

Advanced Digital Communication Options

In addition to analog outputs, the TCA-IND includes digital communication capabilities for enhanced system integration:

• USB (for configuration and data interface)

• CAN

• RS232

These digital protocols provide flexibility for both setup and real-time data transmission, allowing the module to be integrated into advanced monitoring and control systems.

Digital output resolution is user-selectable, ranging from:

• 12-bit to 18-bit resolution

Response times vary depending on resolution settings, offering flexibility between speed and precision.

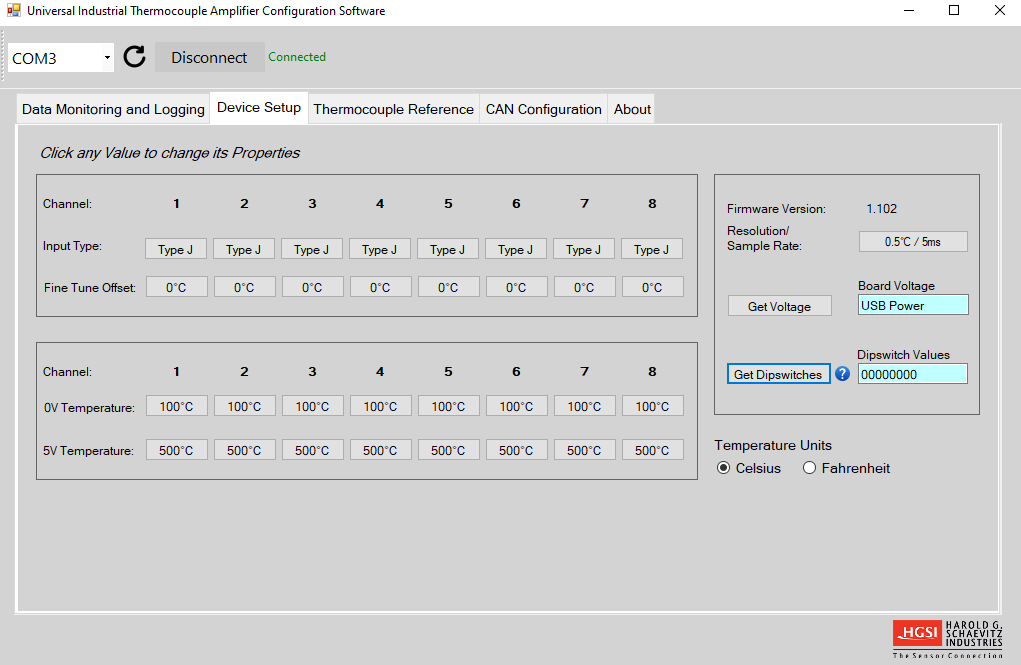

User-Friendly Programming Software

The TCA-IND includes a Windows-based programming software interface that simplifies configuration and setup.

Key features of the software include:

• Easy selection of thermocouple types

• Customizable measurement ranges

• Output scaling configuration

• Real-time monitoring and diagnostics

The module connects to a PC via USB, allowing users to quickly configure and optimize performance without complex setup procedures.

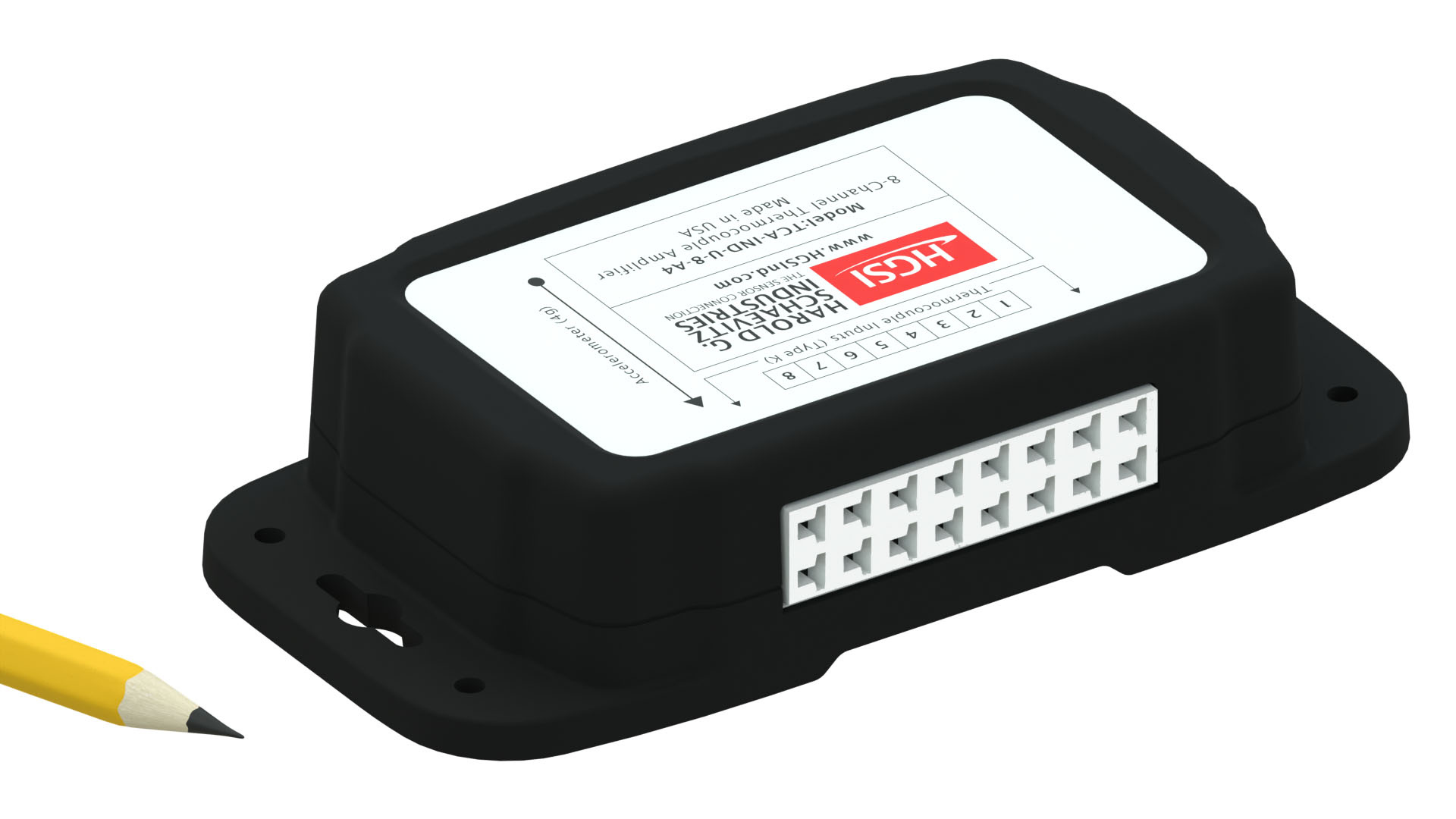

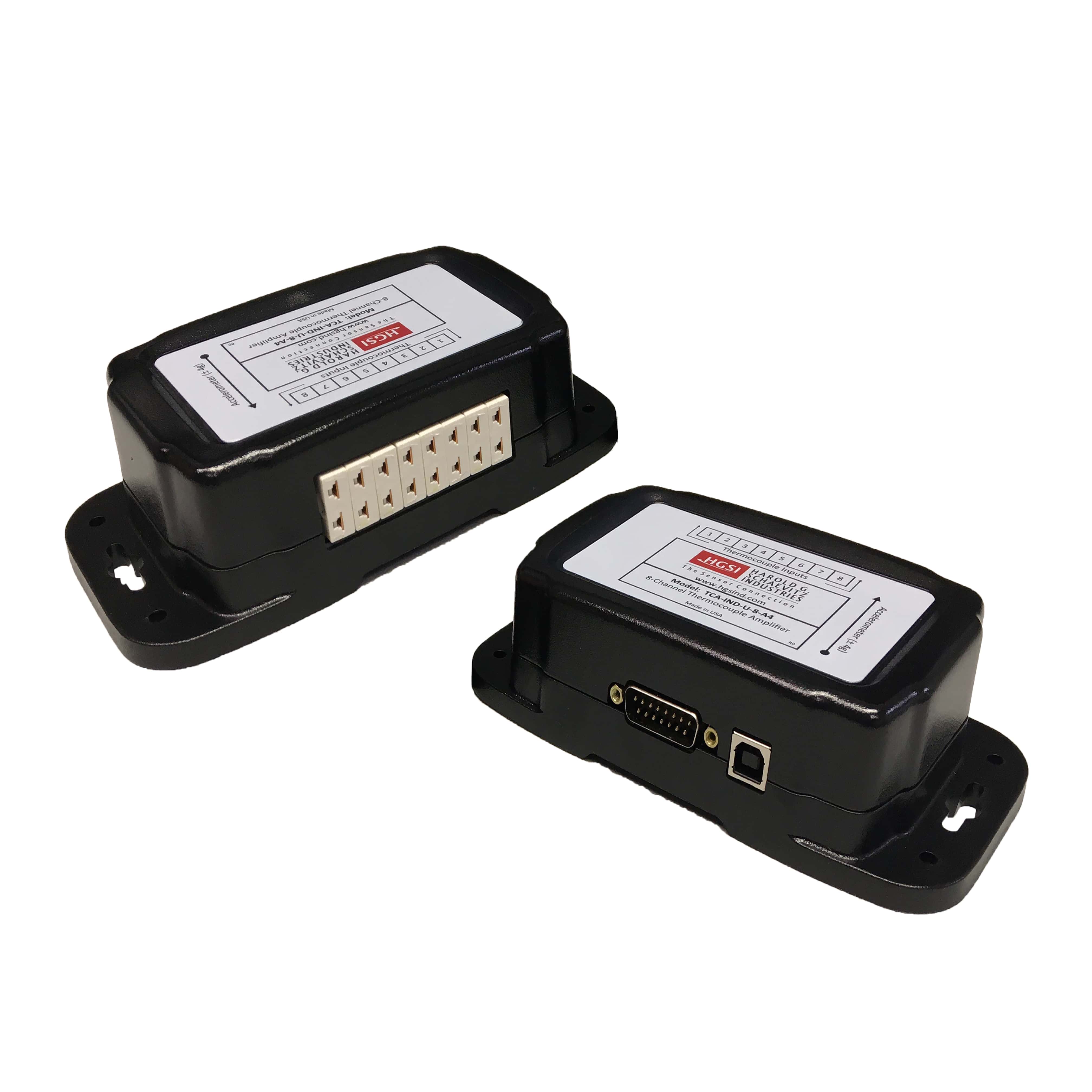

Compact, Rugged Design

The TCA-IND is designed with a compact footprint, making it easy to integrate into tight spaces:

• Dimensions: 7.0" x 3.5" x 1.6"

• Weight: approximately 0.6 lbs

Its durable housing provides protection in industrial and field environments, with:

• IP51-rated enclosure

• Operating temperature range: 32°F to 125°F (0°C to 50°C)

• Humidity tolerance up to 85% RH (non-condensing)

This combination of compact size and rugged construction makes the TCA-IND suitable for both laboratory and real-world applications.

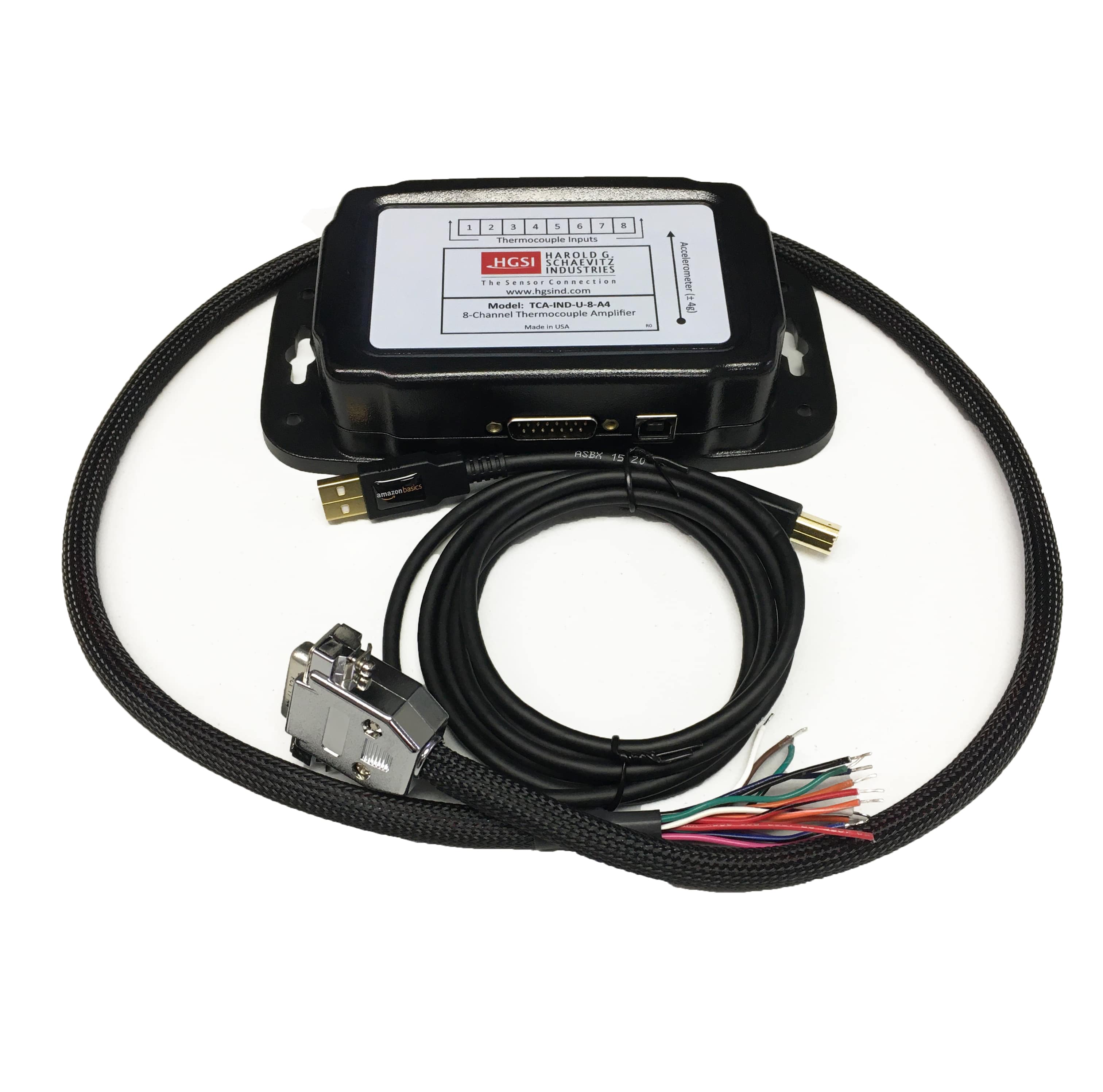

Easy Installation and Connectivity

The TCA-IND is designed for straightforward installation and wiring:

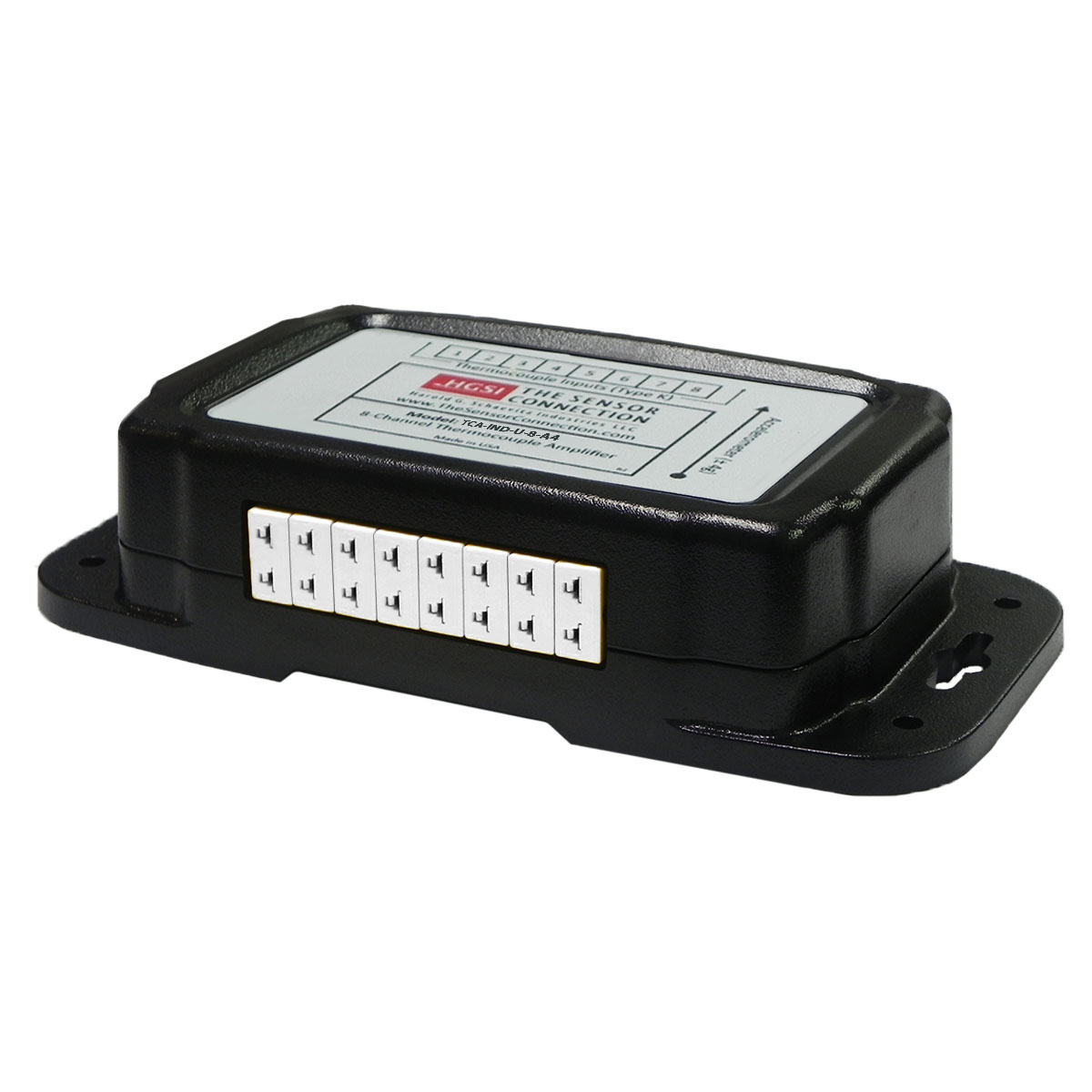

• Includes (8) mini thermocouple input connectors

• Includes detachable output and power wiring harness

• 15-conductor cable (22 AWG, PVC jacket, 3 ft long)

This plug-and-play design reduces installation time and simplifies system integration.

Low Power Consumption

The module operates on a wide supply voltage range:

• Supply voltage: 10 to 28 VDC

• Current draw: less than 50 mA

This low power consumption makes it suitable for battery-powered systems, mobile applications, and energy-efficient designs.

Typical Applications

The TCA-IND 8 Channel Thermocouple Amplifier is widely used in applications requiring multi-point temperature measurement and signal conditioning, including:

• Motorsports and engine development

• Exhaust gas temperature monitoring

• Industrial process control

• Thermal system testing

• Aerospace and automotive R&D

• Environmental and laboratory testing

Its ability to convert thermocouple signals into usable voltage outputs makes it a valuable tool in both testing and operational environments.

Made in the USA Quality

Manufactured in the USA, the TCA-IND is built to high quality standards, ensuring reliable performance and consistent operation across demanding applications.

Why Choose the TCA-IND Thermocouple Amplifier?

The TCA-IND stands out as a versatile and high-performance signal conditioning solution due to its:

• 8 independent thermocouple input channels

• Universal thermocouple compatibility (J, K, T, E, N, R, S, B)

• Linearized 0–5 VDC analog outputs

• Integrated cold junction compensation

• Advanced digital communication options

• User-friendly programming software

• Compact and rugged design

• Low power consumption

A Reliable Solution for Multi-Channel Temperature Measurement

Accurate temperature data is critical for performance, safety, and system optimization. The TCA-IND 8 Channel Thermocouple Amplifier provides a powerful and flexible solution for converting thermocouple signals into usable data across a wide range of applications.

Even though this product has been discontinued, it remains a proven solution for multi-channel temperature measurement systems.

Looking for a Replacement?

Since the TCA-IND has been discontinued, we recommend contacting our team to discuss replacement options or upgraded solutions that meet your application requirements.

Our engineers can help you select the right multi-channel thermocouple interface for your system.
