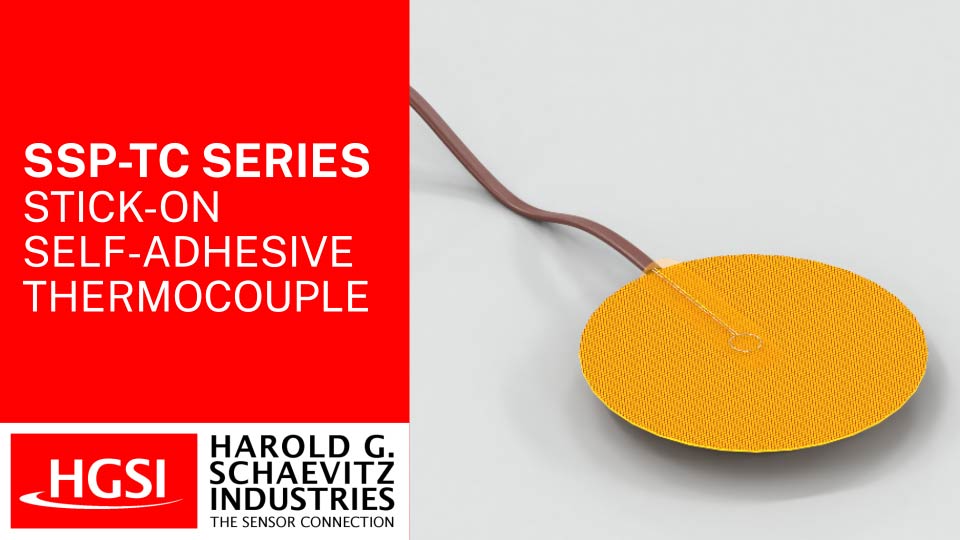

SSP-TC Stick-On Self-Adhesive Thermocouple

Price
$22.00
SKU
SSP-TC-072-20-TF-K-N
Availability
In stock
0
Add to Cart

OPTION

Thermocouple Type
Thermocouple Cable Length
Thermocouple Connector

OVERVIEW

• Type K thermocouple
• Kapton tape with self-adhesive backing for easy installation
• Teflon insulated wires with Teflon outer jacket
• Designed for research & development applications


MADE IN THE USA

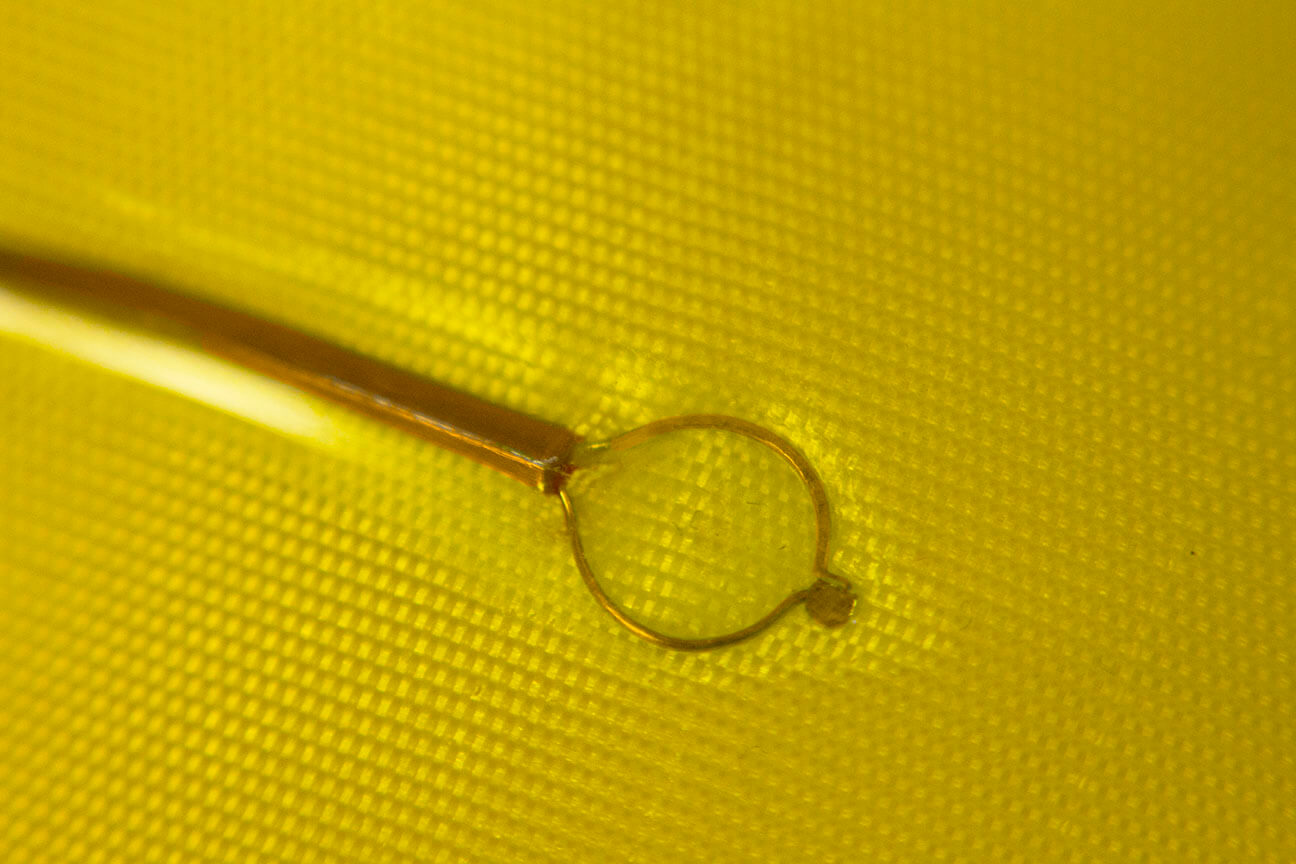

SSP-TC series Stick-On Self-Adhesive Thermocouples are an ideal solution for surface temperature measuring applications.  Special limits of error accuracy thermocouple wire is cut to the required length and the conductors are TIG welded to form a measuring junction.

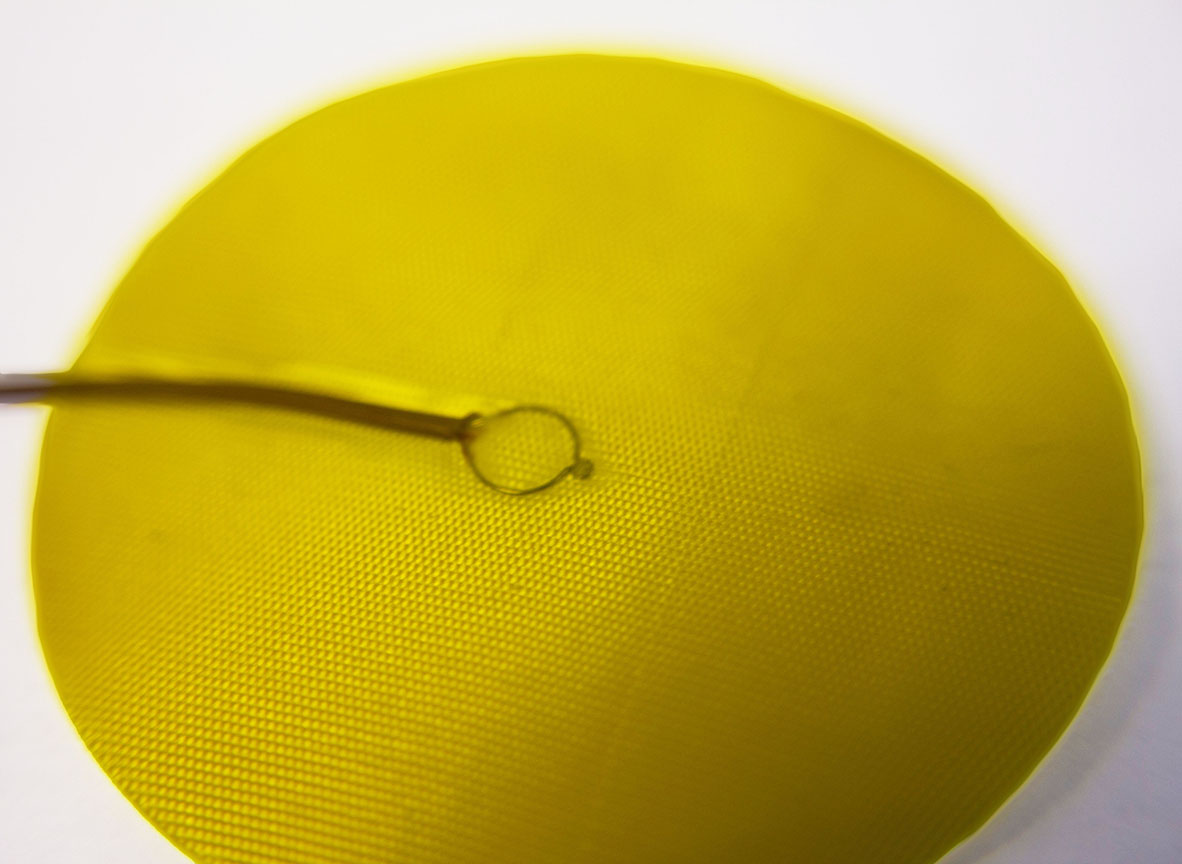

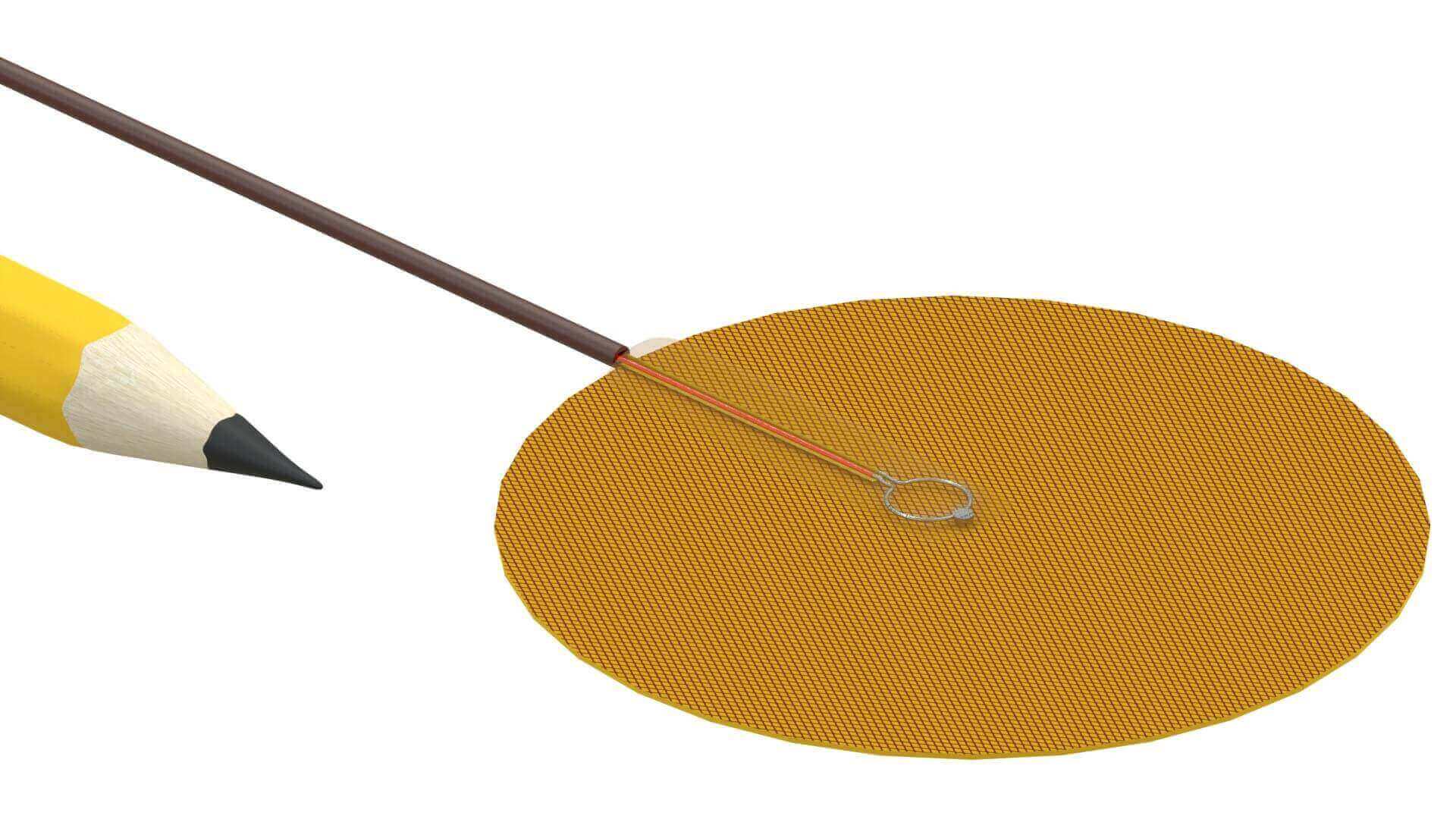

Tape material is Kapton (TM) Polyimide with a fiberglass mesh backing.  Tape Patch O.D. is 2.0 inch (50.8 mm).

The self-adhering Kapton (TM) Polyimide tape patch will stick to clean, dry, smooth surfaces. For best results surface may need to be prepared beforehand by burnishing smooth. Kapton (TM) Polyimide tape patch can also be cemented to surface using an air set type Epoxy cement.

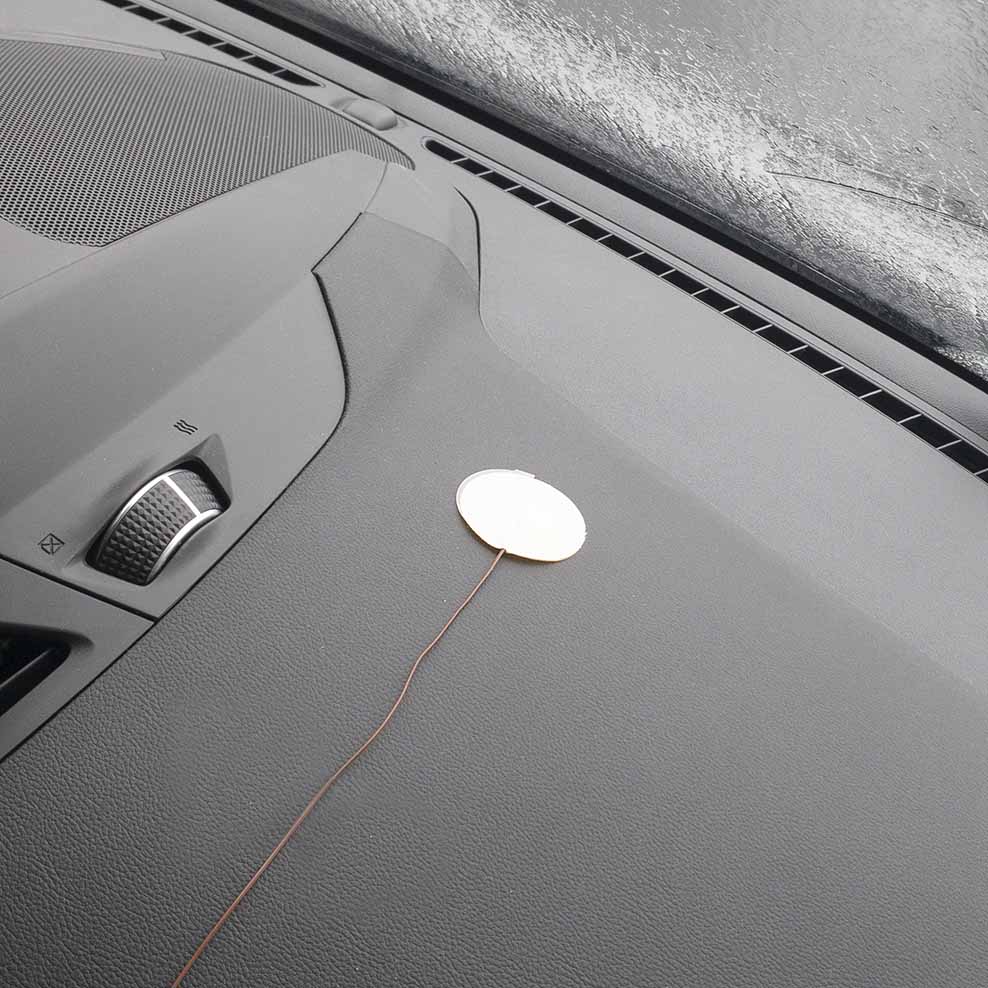

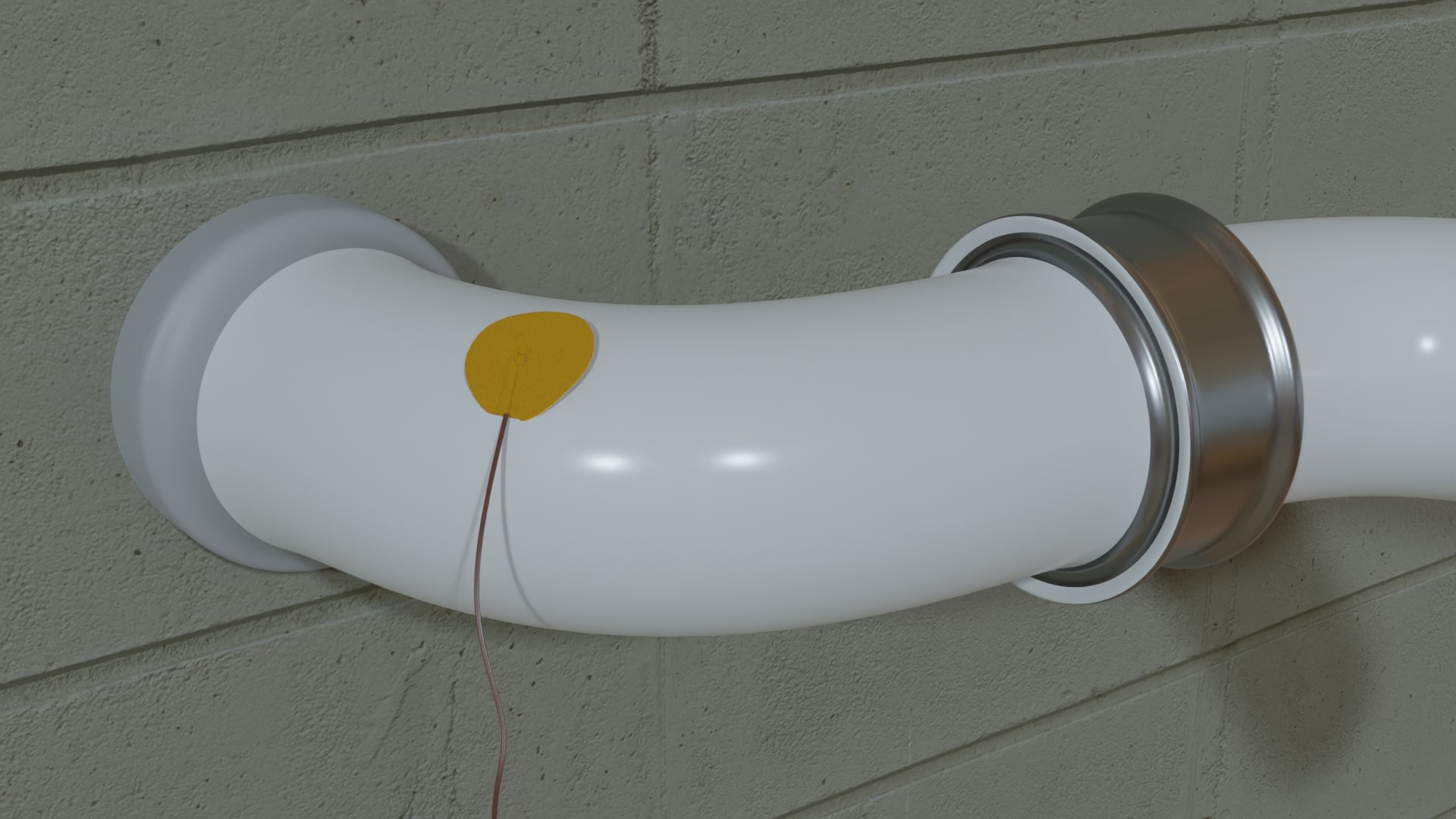

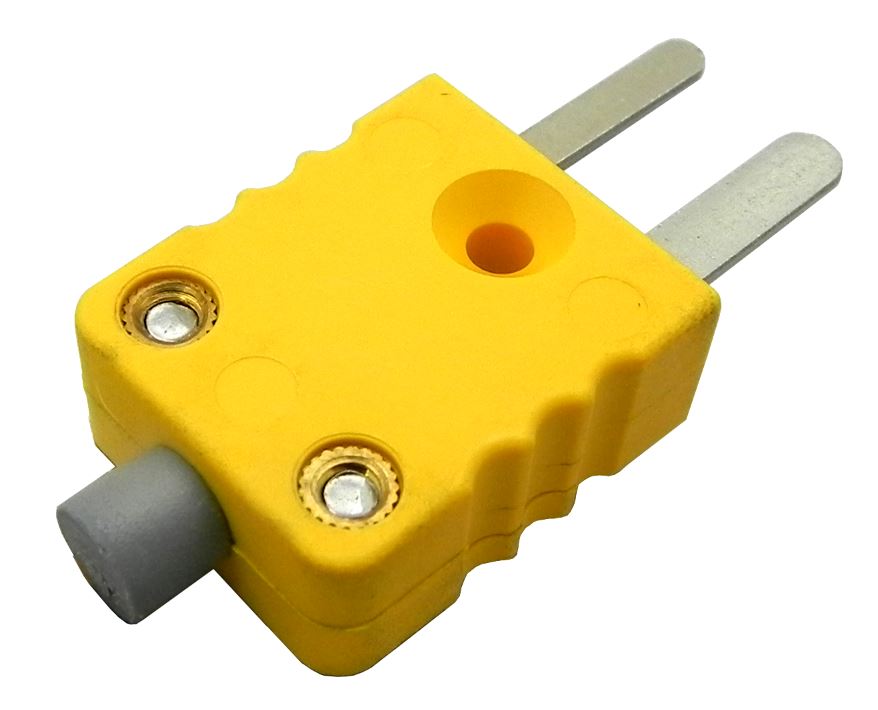

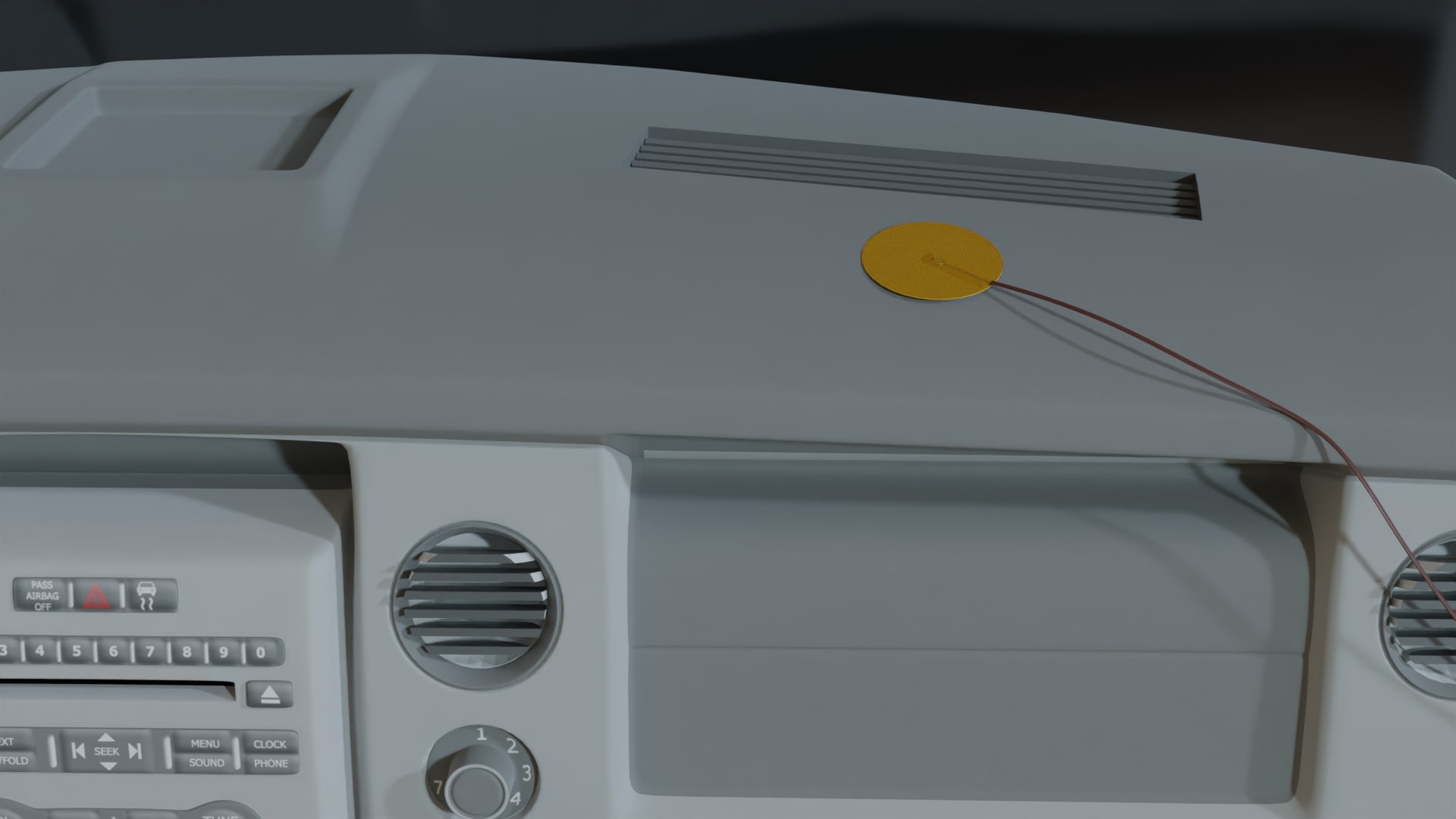

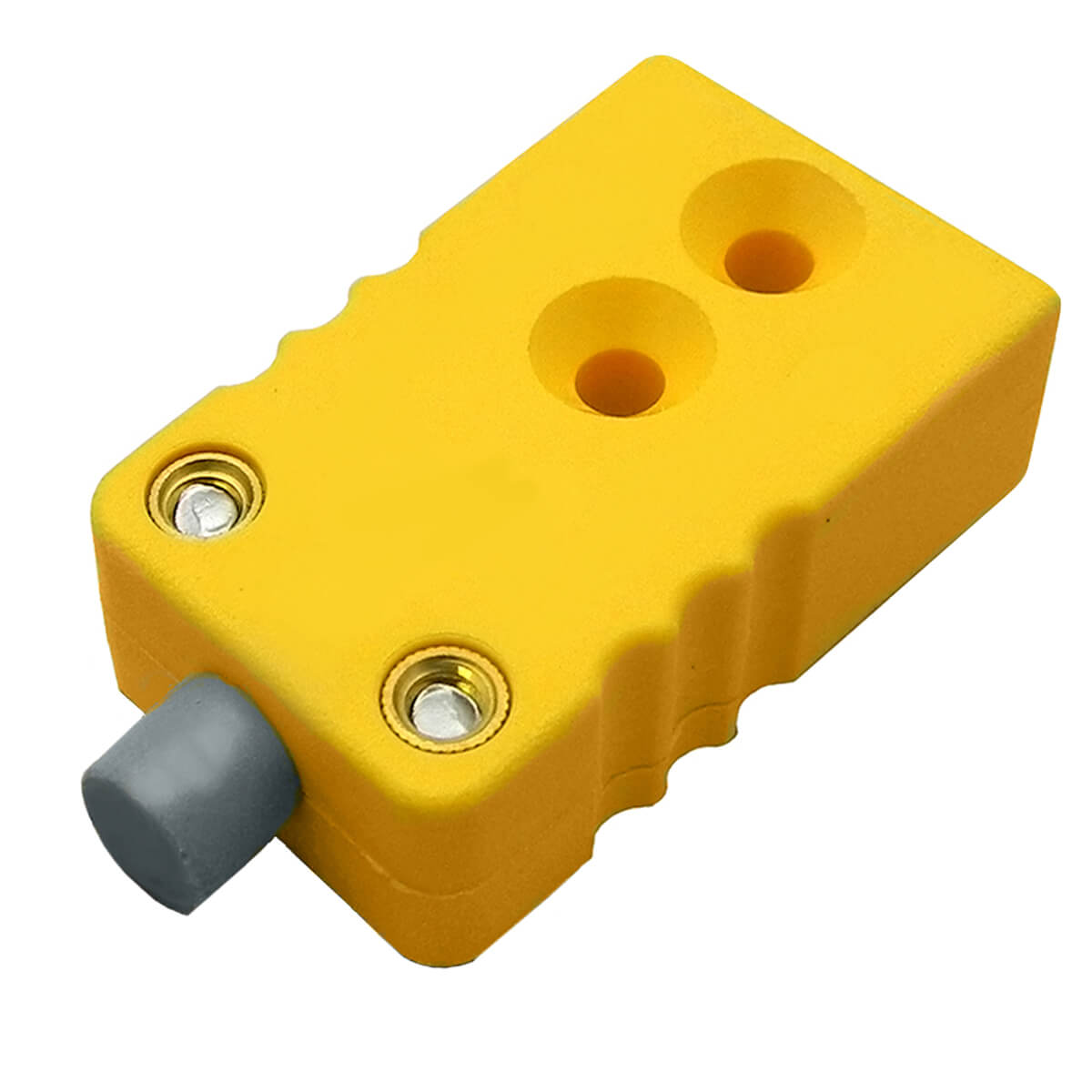

Ideal for, but not limited to, Surface temperature measurements of metal or glass surfaces.  As an option, we can install a Mini Connector on the adjacent wire lead termination end.

Contact us for volume pricing. Custom configurations available.


TECHNICAL SPECIFICATIONS

Thermocouple type:

J, K, or T

Measuring Range:

-50 to 500°F (-45 to 260°C)

Accuracy:

Greater of +/-0.4% of reading or +/- 1.1°C (Special Limits of Error)

Tape Material:

Kapton Polyimide with fiberglass mesh backing

Tape dimensions:

OD = 1.0” (25.4 mm) or 2.0” (50.8 mm), Thickness 0.011” (0.28 mm)

Sensing Junction:

Ungrounded

Response Time*:

500 mS

*Time Constant:

Defined as the time required to reach 63.2% of an instantaneous temperature change. Five time constants are required to approach 100% of the step change value

Lead Wire:

Teflon insulated, Teflon outer jacket, 30 AWG, solid
