OVERVIEW
• 30 AWG FEP insulated conductors, solid
• Easy installation, cement-on or bolt-down

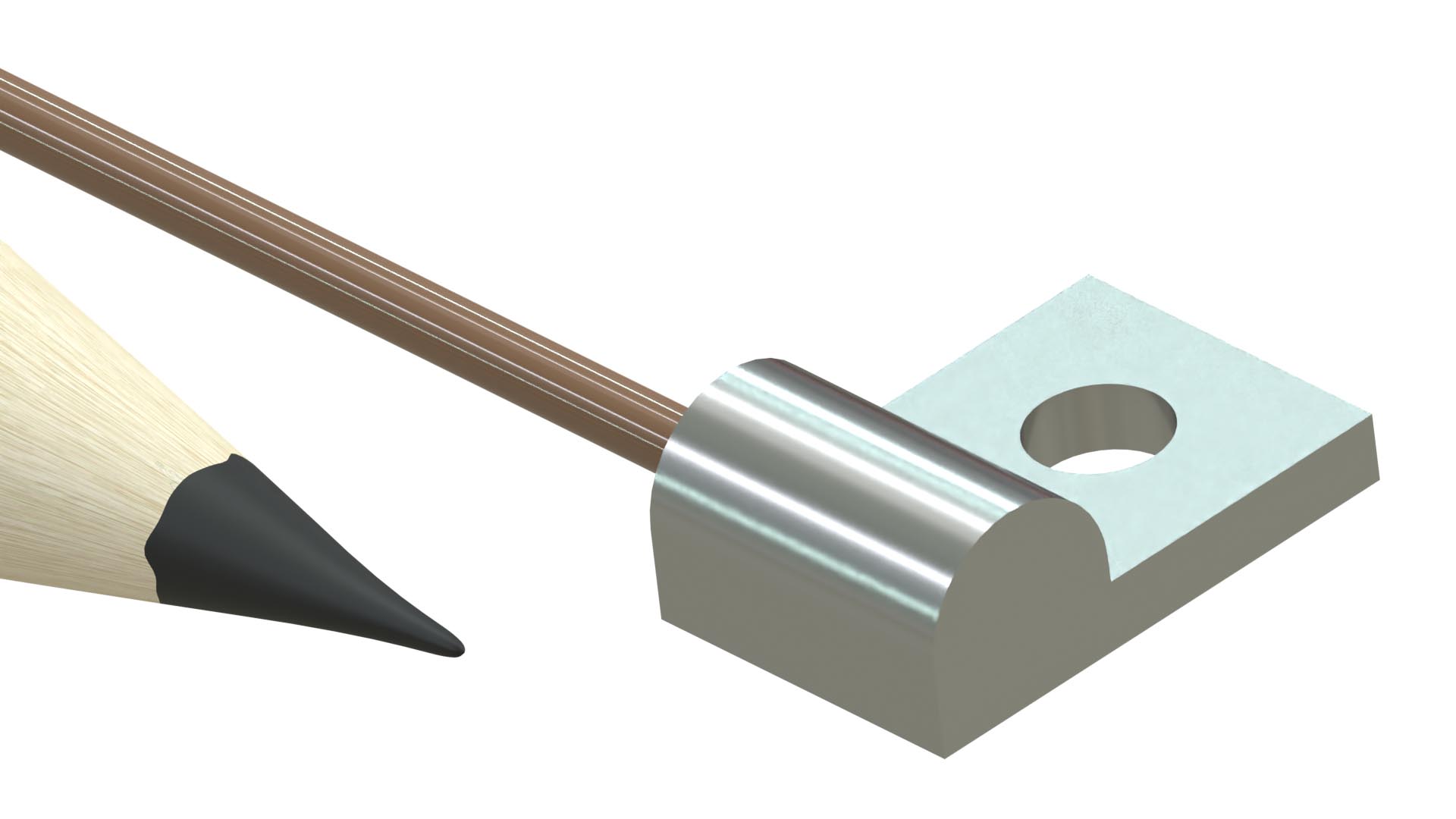

• Miniature size
MADE IN THE USA

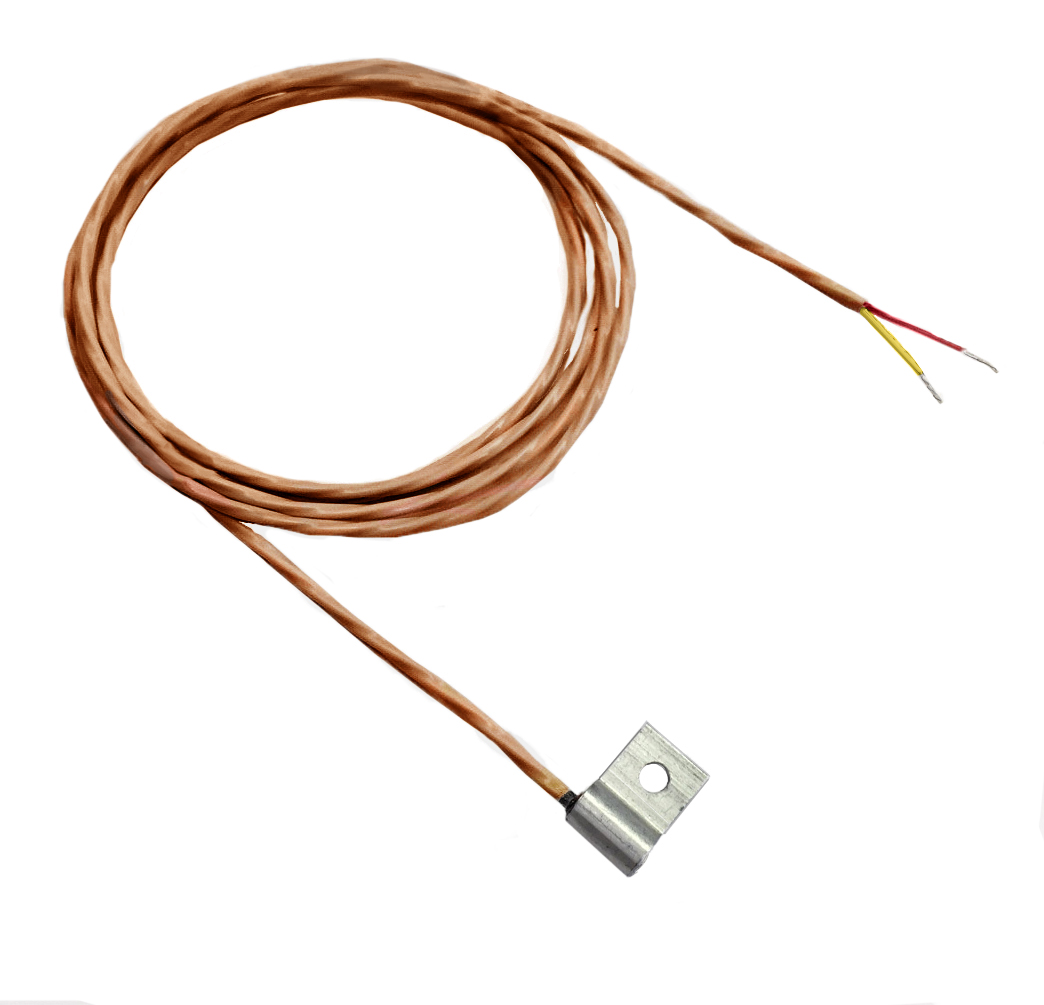

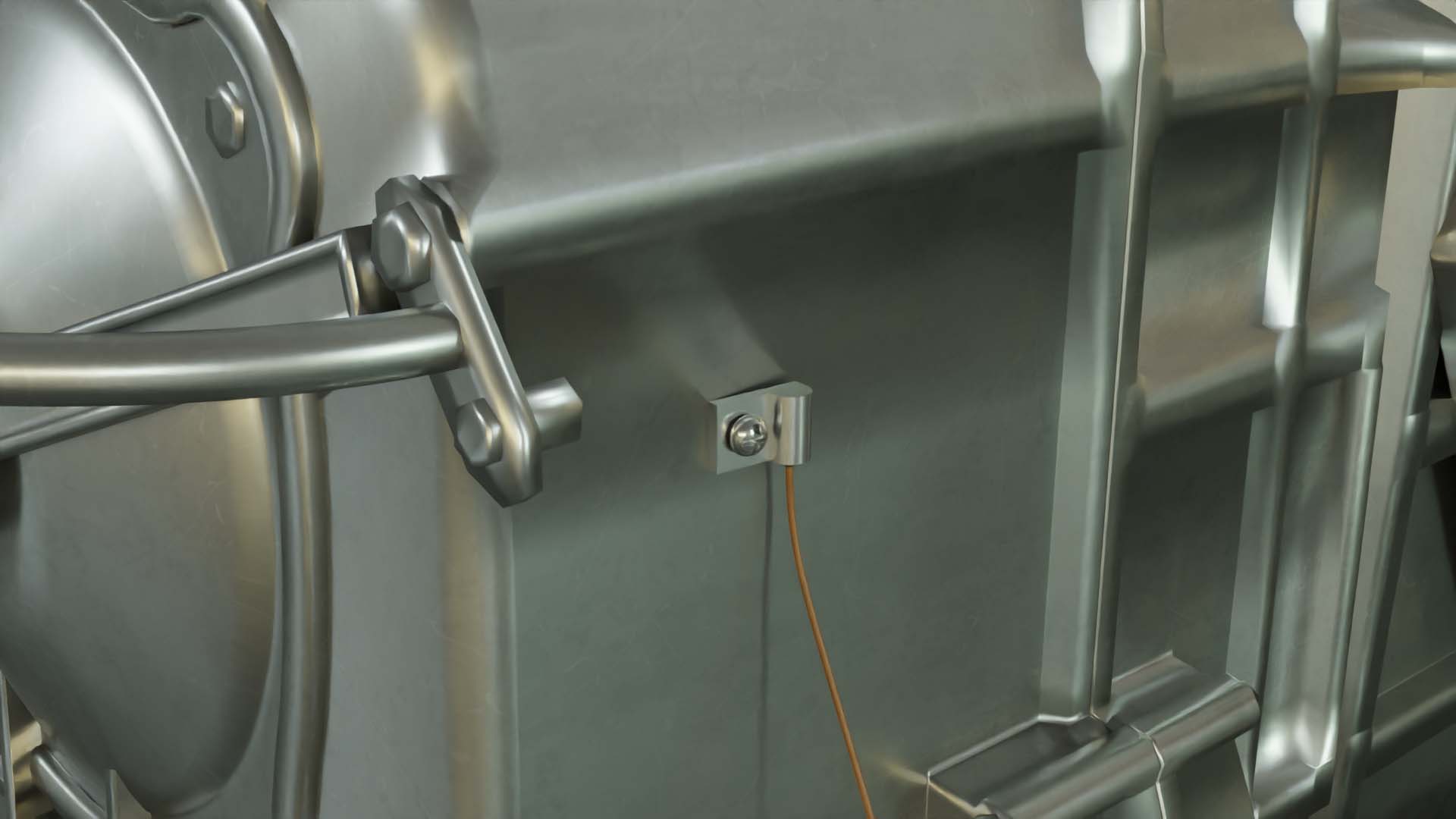

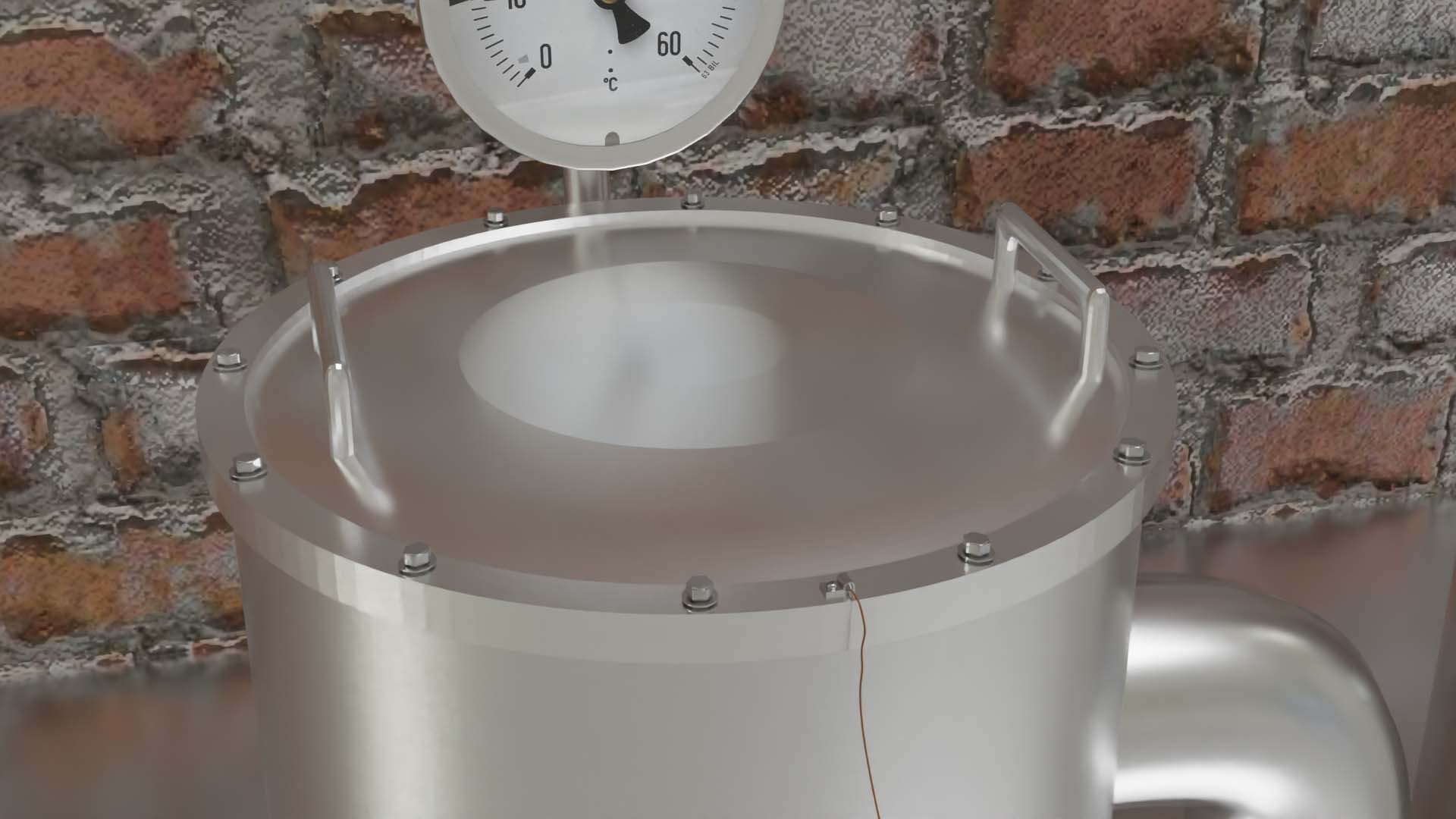

The SMBD-TC Surface Mount Bolt-Down or Cement-On Thermocouple Sensor is designed for use in R&D and Testing applications. The aluminum fitting may be bolted or cemented to almost any surface. For best results use a #4 screw or an air set type Epoxy cement.
The SMBD-TC Surface Mount Bolt-Down or Cement-On Thermocouple Sensor is designed to deliver high performance temperature measurements, reliably and consistently. These temperature sensors are designed for Research and Development, test labs, manufacturing engineering and production environments. They can be customized for OEM applications as well.
Contact us for volume pricing. Custom configurations available.
Options:
TECHNICAL SPECIFICATIONS
|
Thermocouple type: |
Type J, K, or T |
|
Junction: |
Ungrounded |
|
Operating Temperature Range |
-90 to 500°F (-70 to 260°C) |
|
Accuracy: |
Greater of +/-0.4% of reading or +/- 1.1°C (Special Limits of Error) |
|
Housing Material: |
Aluminum |
|
IP Rating: |
IEC IP64 |
|
Conductors: |
30 AWG FEP insulated conductors, solid |
|
Wire: |
3 foot (0.9 meter) lead wire |
|
Response Time: |
~6 seconds |
