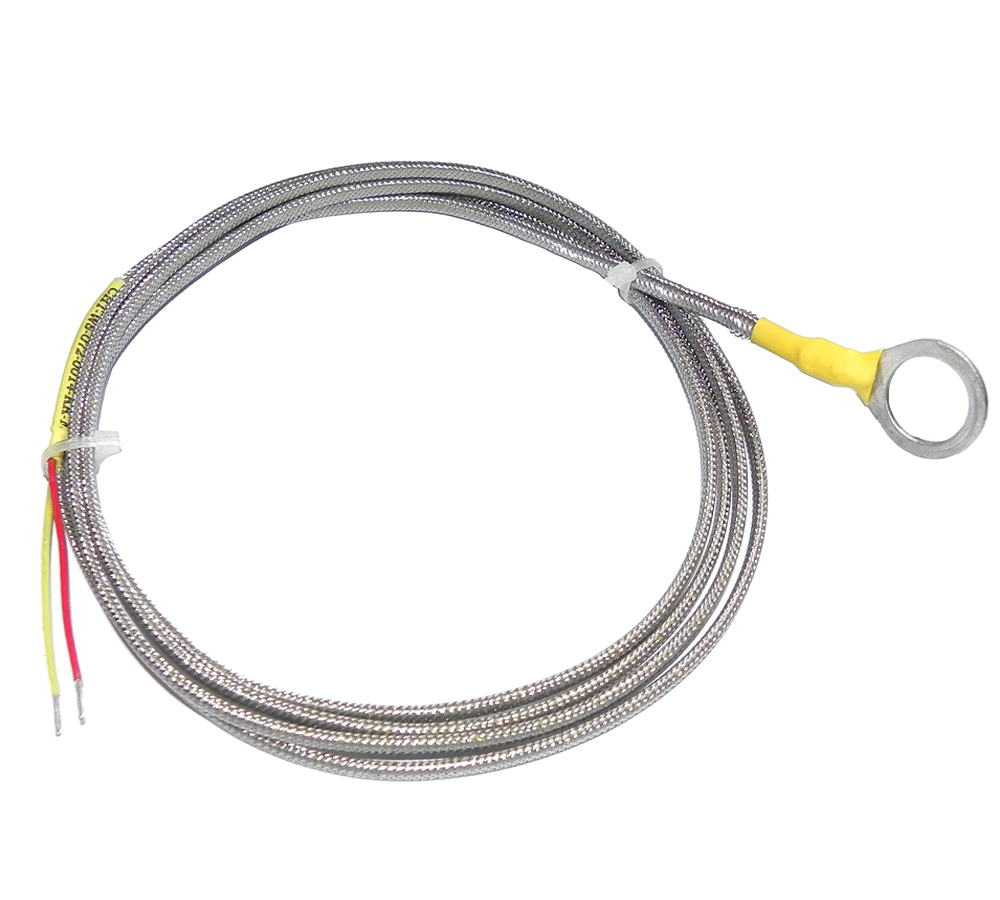

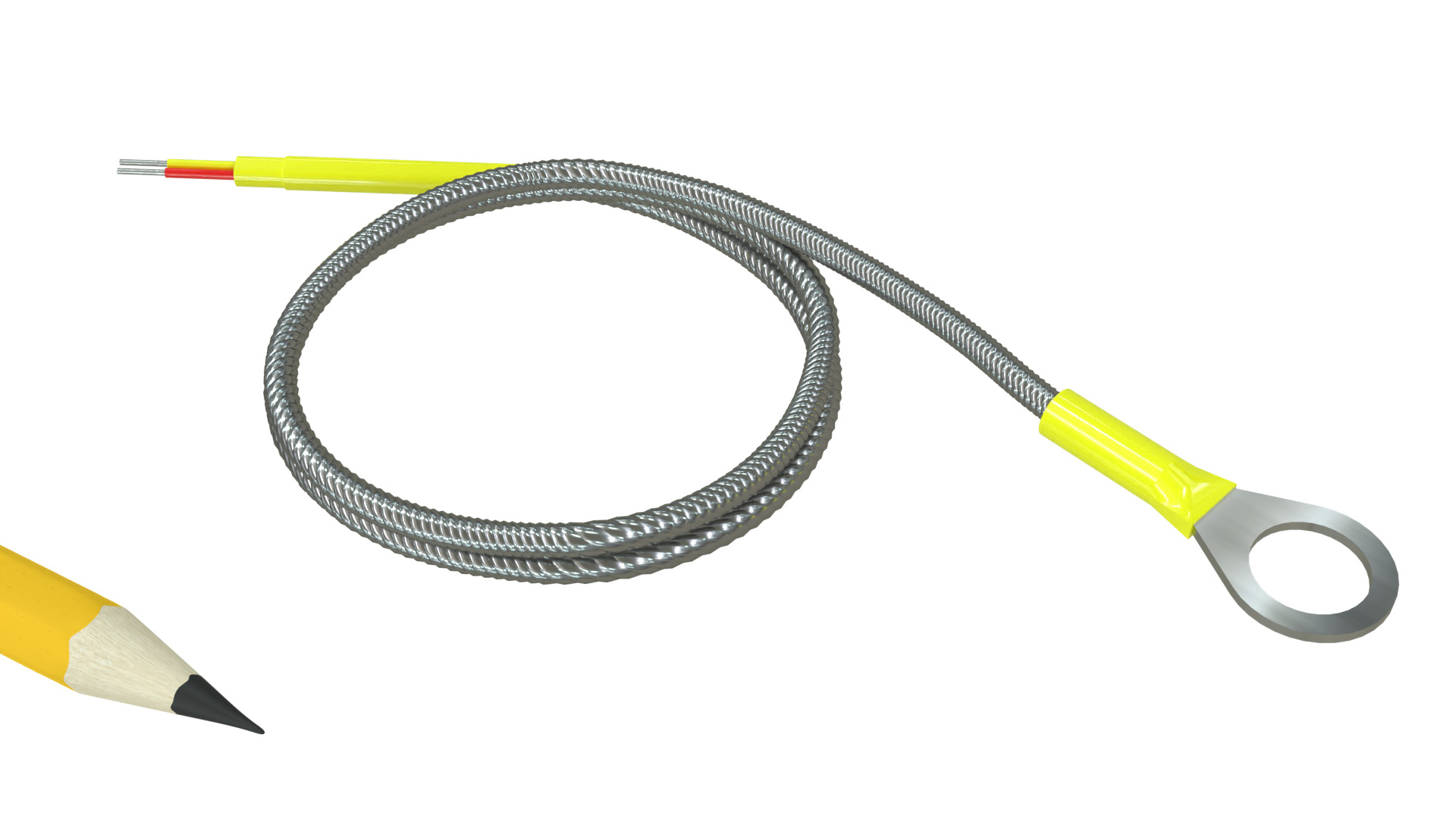

RTTC-WS Ring Terminal Thermocouple

Price
$36.75
SKU
RTTC-WS-K-10-U072B0
Availability
In Stock
0
Add to Cart

OPTION

Thermocouple Type
Ring Terminal ID
Thermocouple Cable Insulation
Thermocouple Connector
Thermocouple Junction Type

OVERVIEW

• Type J or K Thermocouple
• 10 mm, 12 mm, & 14 mm ID
• -40 °F to 500 °F operating range (-40 °C to 260 °C)
• Stainless steel over-braid cable with FEP insulated conductors
• Bolt or screw mounted
• Bendable ring terminal


MADE IN THE USA

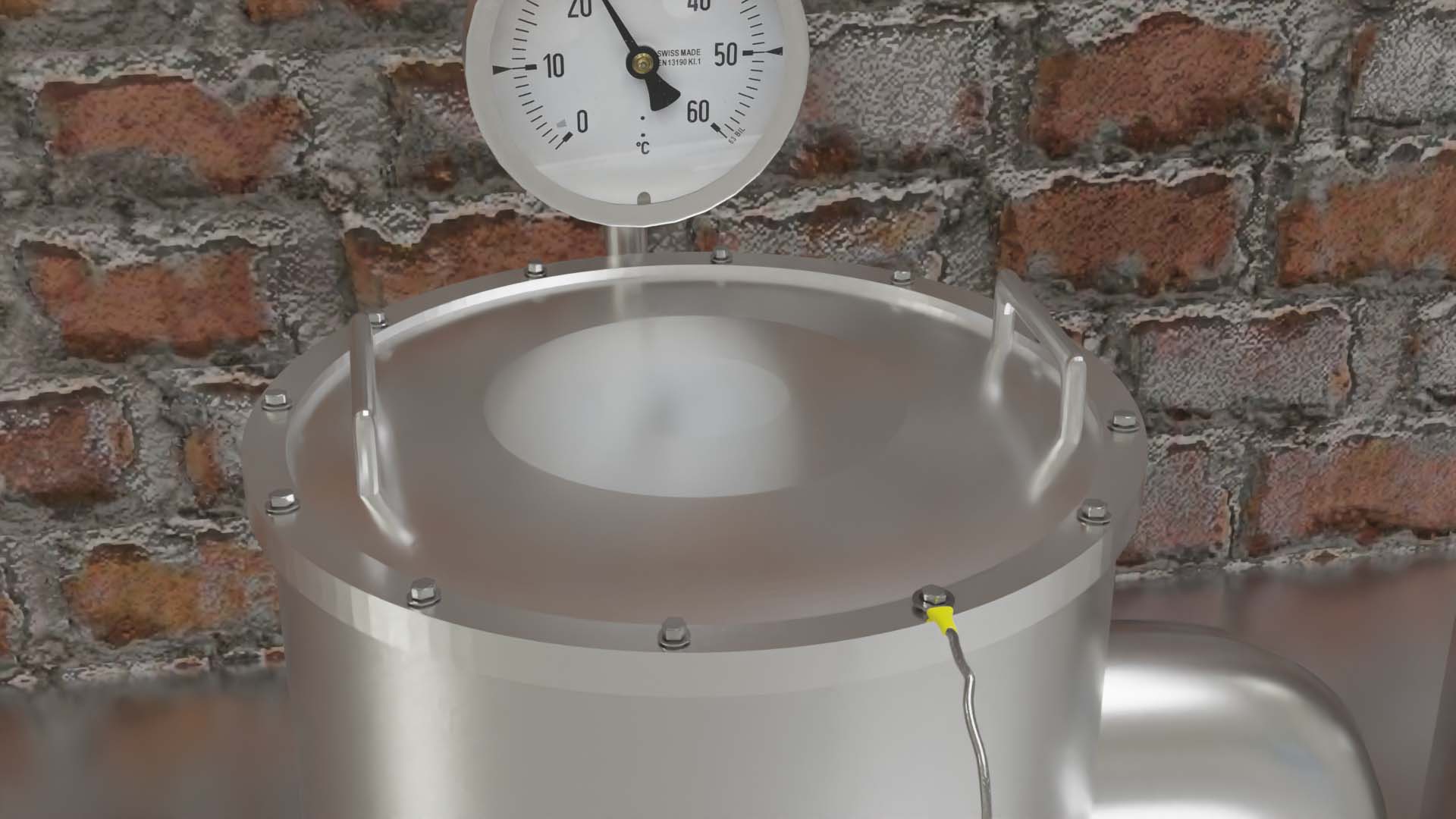

HGSI RTTC-WS series Ring Terminal Thermocouples can be mounted beneath existing screw or bolt heads for measurement of surface temperature. Designed for attachment to heater blocks, process tooling, engine blocks, or other surfaces where temperature monitoring or control is required.

Contact us for volume pricing. Custom configurations available.


TECHNICAL SPECIFICATIONS

Thermocouple type:

Type K

Operating Range:

-40 °F to 500 °F (-40 °C to 260 °C)

Accuracy:

Special Limits of Error accuracy (greater of +/- 0.4% of reading or +/- 1.1°C)

Terminal:

Bendable ring terminal

Cable:

Stainless steel over-braid cable with FEP insulated conductors; 6, 12 or 25 foot

Response time constant:

1500 milliseconds
