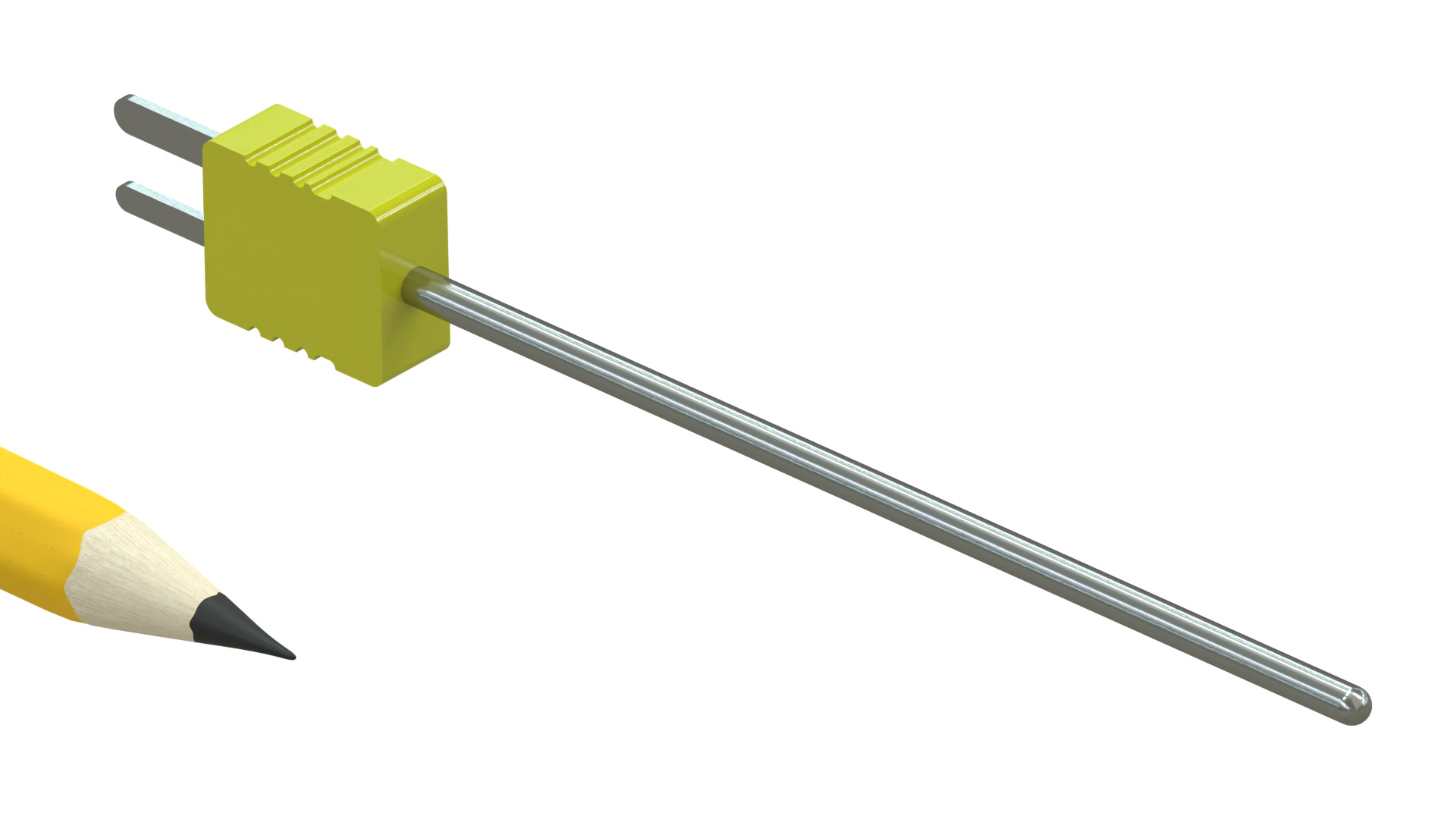

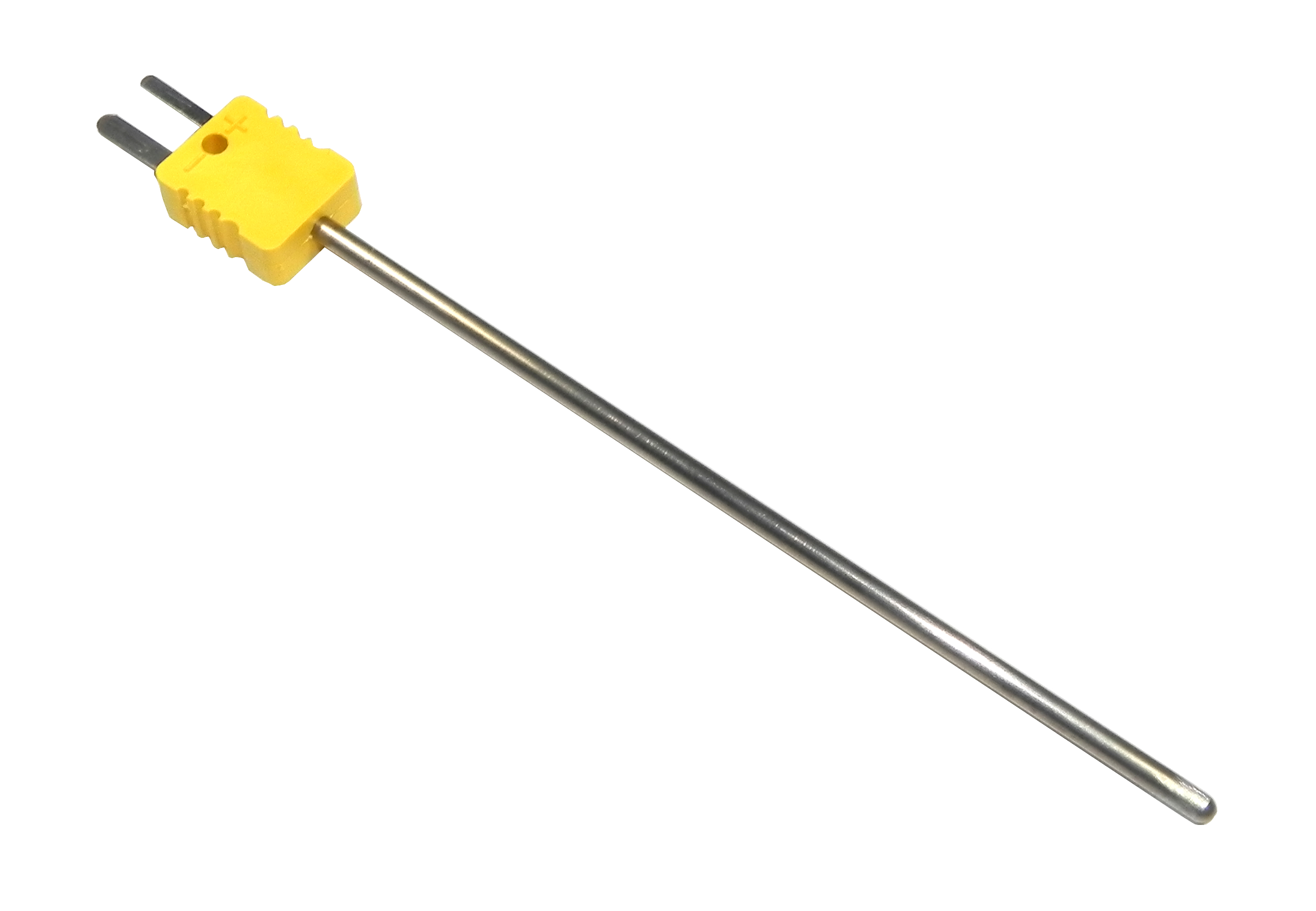

QDC Quick Disconnect Thermocouple Probe with Attached Connector

Price
$26.00
SKU
QDC-125-4.0-U-S4-K-MP
Availability
In Stock
0
Add to Cart

OPTION

Thermocouple Type
Thermocouple Connector QDC
Thermocouple Junction Type
Thermocouple Sheath Length
Thermocouple Sheath Material
Thermocouple Sheath OD

OVERVIEW

• Type E, J, K, or T thermocouple
• Miniature or Standard size quick disconnect connector
• Mineral insulated sheath for high strength, bendable
• Designed for research & development applications


MADE IN THE USA

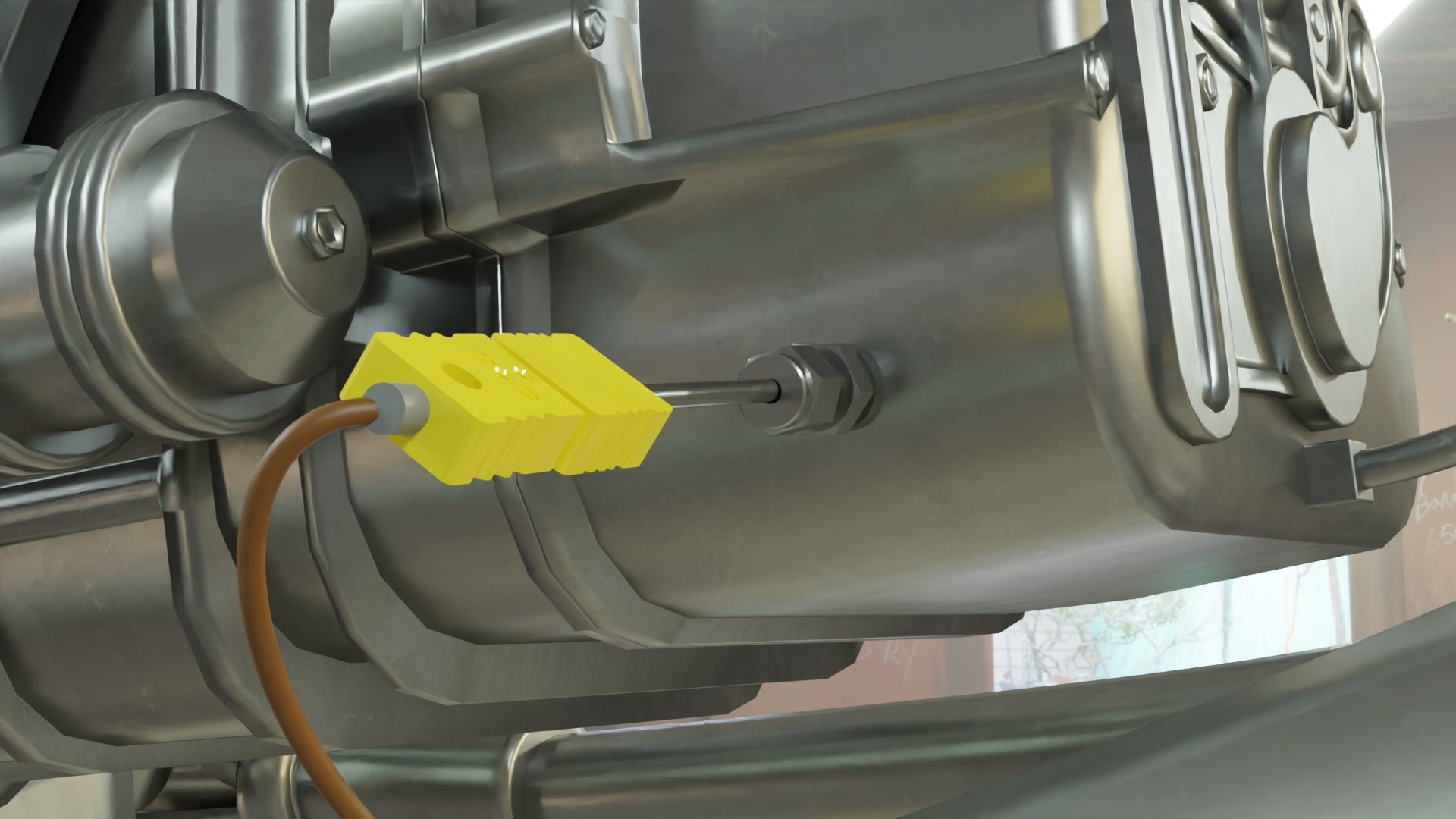

The QDC miniature thermocouples are an ideal solution for surface temperature measuring applications. These thermocouples feature an attached quick disconnect connector for easy connectivity and special Limits of Error accuracy. The mineral sheath is insulated for high strength and bendable. Ideal for Air, Gas, or Liquid temperature measurements

Contact us for volume pricing. Custom configurations available.


TECHNICAL SPECIFICATIONS

Thermocouple type:

E, J, K, or T

Accuracy:

Greater of +/-0.4% of reading or +/- 1.1°C (Special Limits of Error)

Operating Range:

(E = -328 to 1600°F) (J = 32 to 1400°F) (K = -328 to 2300°F) (T = -328 to 700°F)

Sheath Material:

304 Stainless Steel, 316 Stainless Steel, or Inconel 600

Sheath Insulation:

Magnesium Oxide (MgO)

Sensing Junction:

Exposed, Grounded, or Ungrounded

Connector:

Mini or Standard 2-pin Quick Disconnect ; Male Plug or Female Jack
