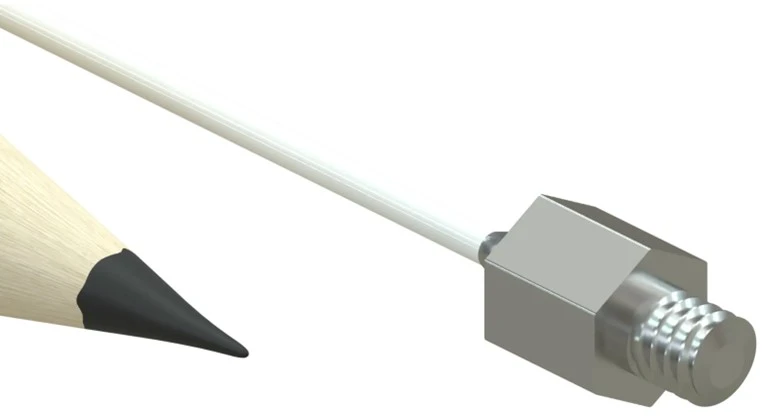

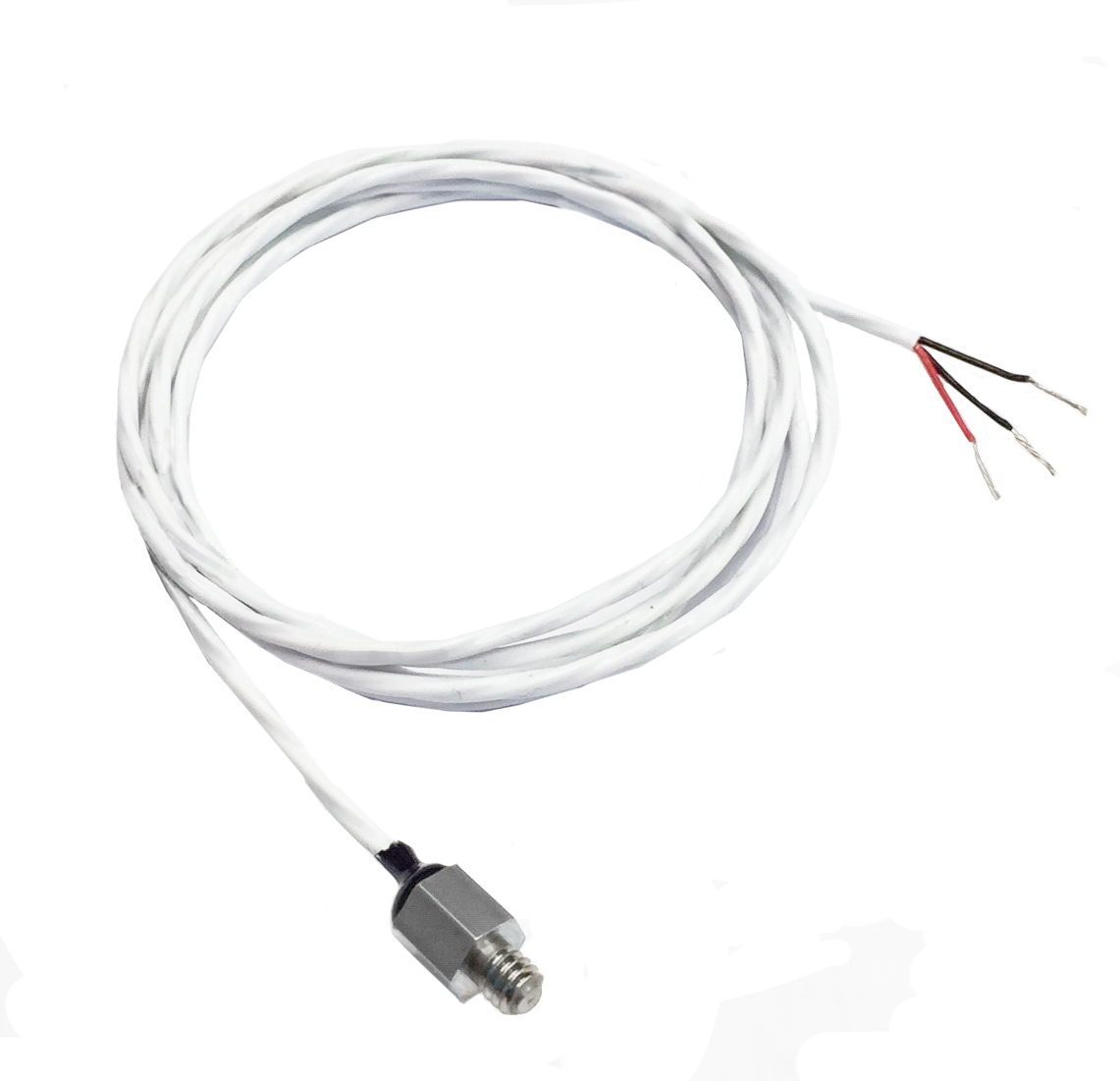

SMTS-RTD Miniature Surface Mount Threaded Stud RTD Sensor - PT100

Price
$50.00
SKU
SMTS-RTD-PT100-036-3-N
Availability
In stock
0
Add to Cart

OPTION

RTD Cable Length
RTD Connector
  • PT100 Class A Element
  • 28 AWG FEP insulated conductors, stranded
  • Easy installation, #8-32 male threaded fitting

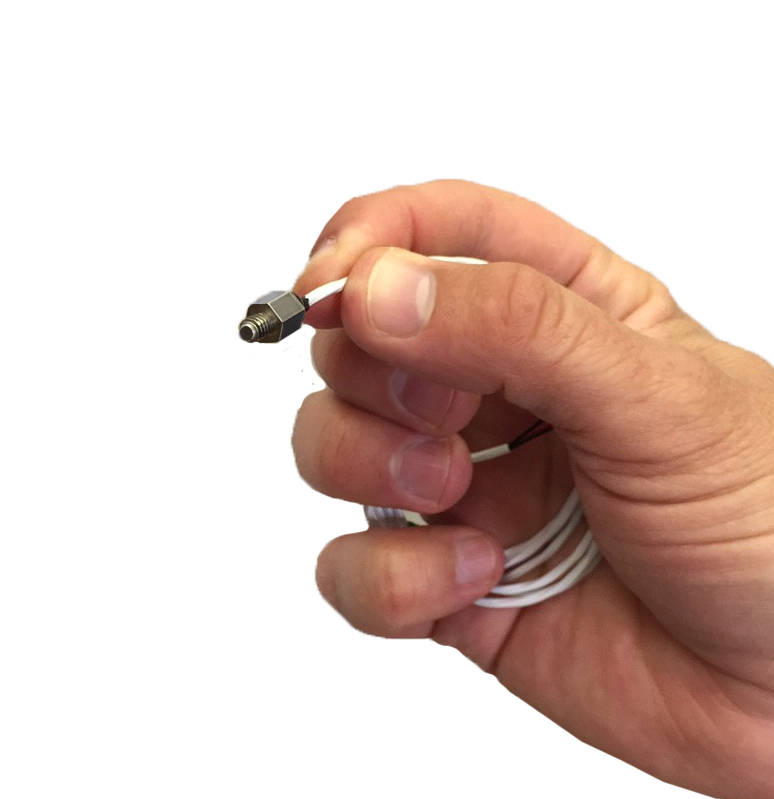

  • Miniature size

  • Made in the USA

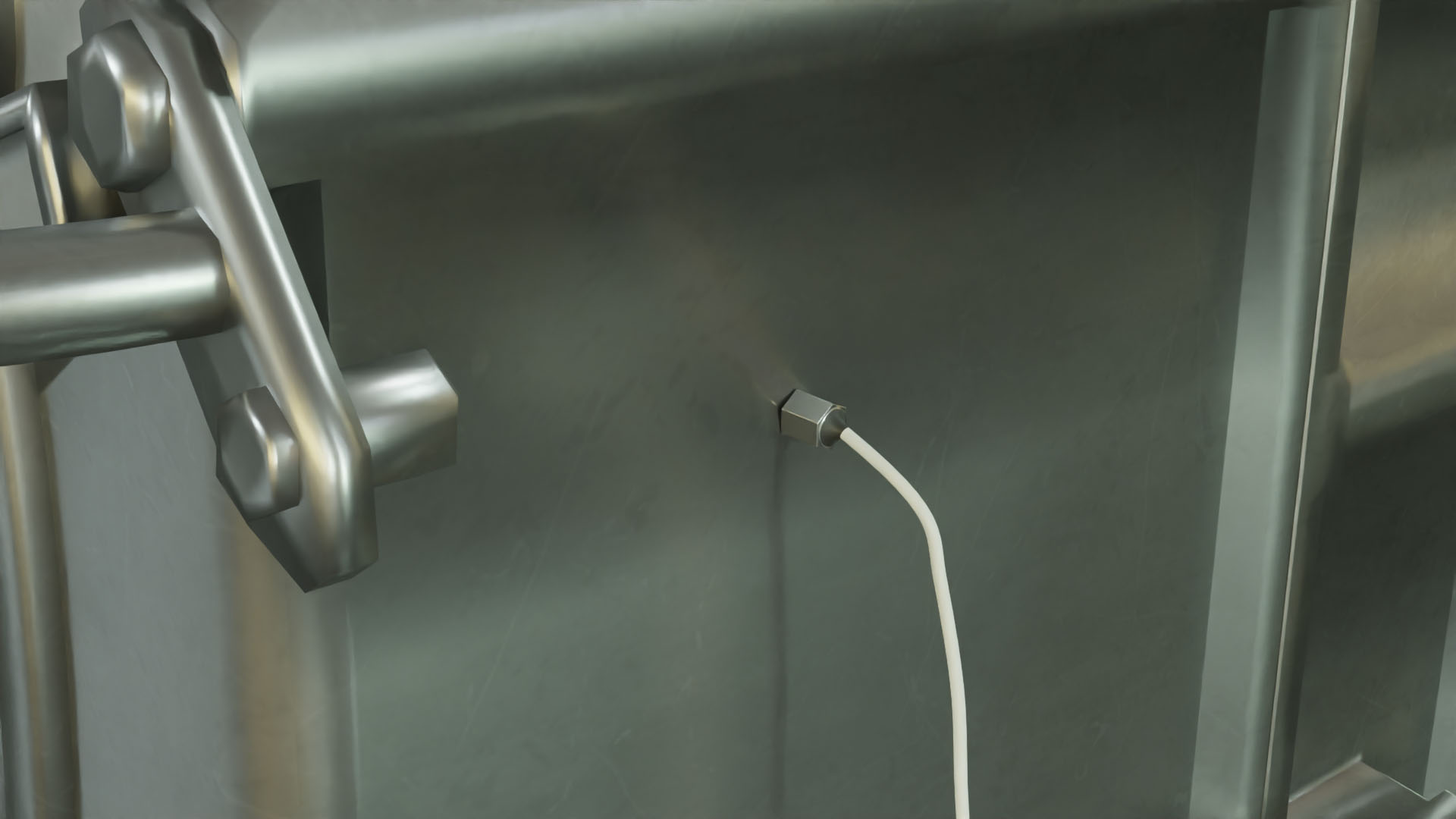

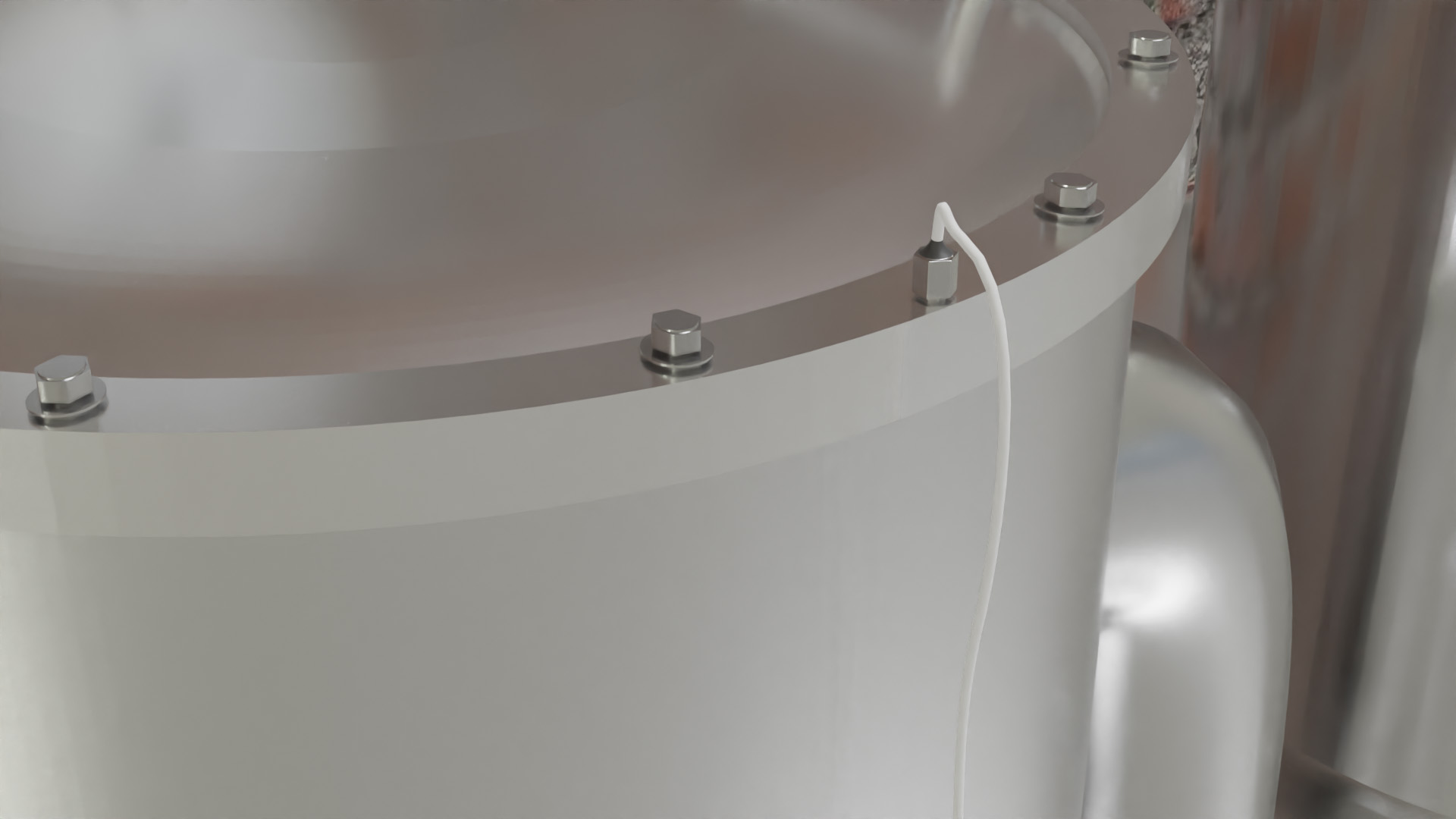

    The SMTS-RTD Surface Mount Threaded Stud RTD Sensor is designed for use in R&D and Testing applications. The stainless steel fitting may be threaded in to a #8-32 tapped surface.

    The SMTS-RTD Surface Mount Threaded Stud RTD Sensor is designed to deliver high performance temperature measurements, reliably and consistently. These temperature sensors are designed for Research and Development, test labs, manufacturing engineering and production environments. They can be customized for OEM applications as well.


    Contact us for volume pricing. Custom configurations available.

RTD Specifications:
• RTD element PT100Ω, single, 3-wire, α =0.00385
• Thin Film Platinum Resistance Temperature Detector, 100Ω at 0°C
• Class A accuracy (+/- 0.15°C), DIN EN 60751
• Operating Temperature Range Range -90 to 500°F (-70 to 260°C)
• Fitting housing material is 316 stainless steel
• #8-32 UNC 2A male thread
• 26 AWG FEP insulated conductors, stranded
• 3 foot (.9 meter) lead wire
• Response time ~6 seconds
