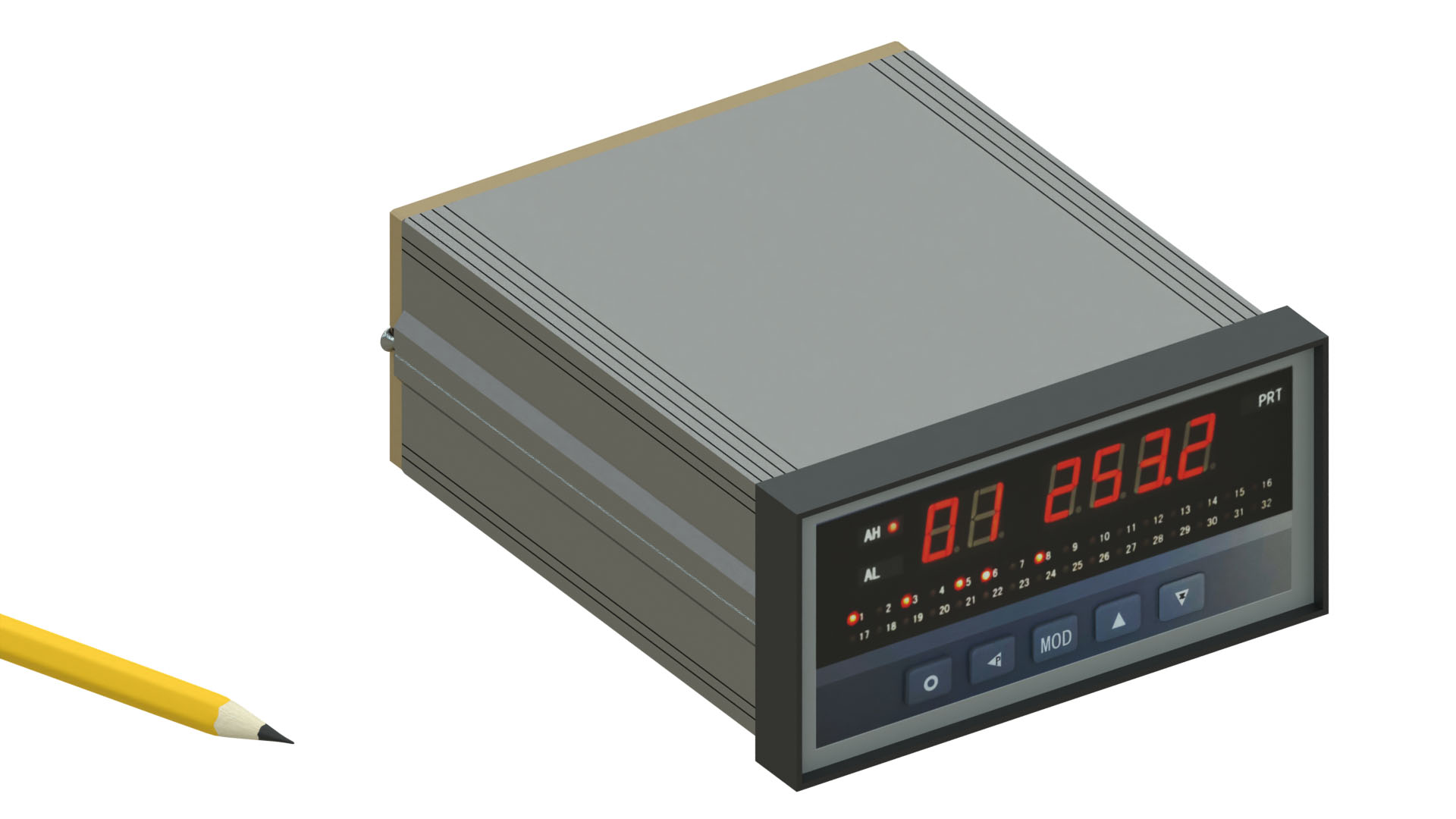

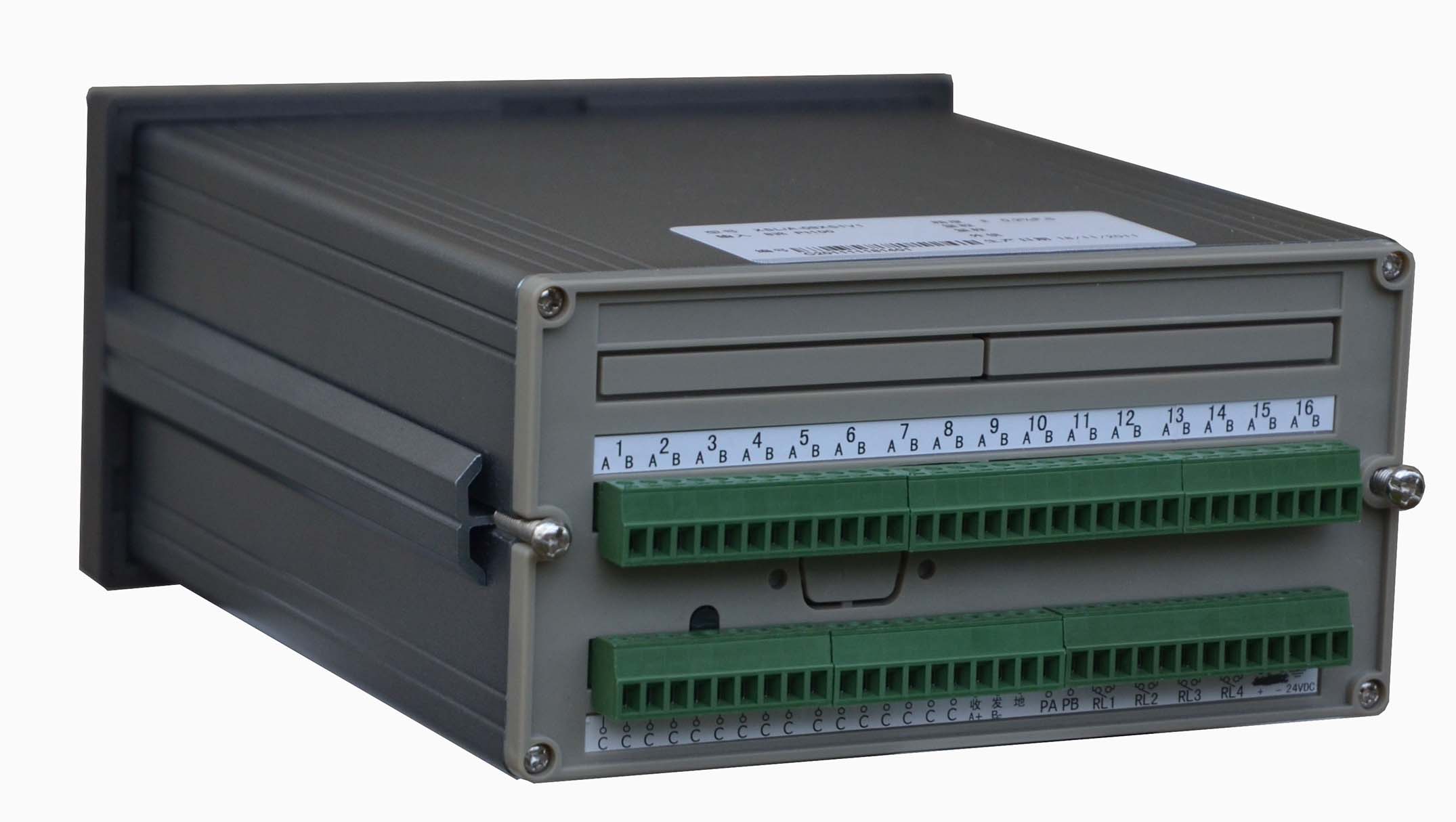

PMD-MXT 8, 16, 24, or 32 Channel Digital Temperature Scanner - RTD

OVERVIEW

• Available in 8, 16, 24, or 32 channels
• Thermocouple Input version accepts any combination of J, K, T, E, B, N, R, or S
• RTD Input version accepts any combination of PT100, CU100, or CU50 (2- or 3-wire)
• Temperature units field selectable for °F or °C
• Auto or Manual scanning
• Adjustable Auto scan rate
• Dual Limit Alarm trip points adjustable per channel

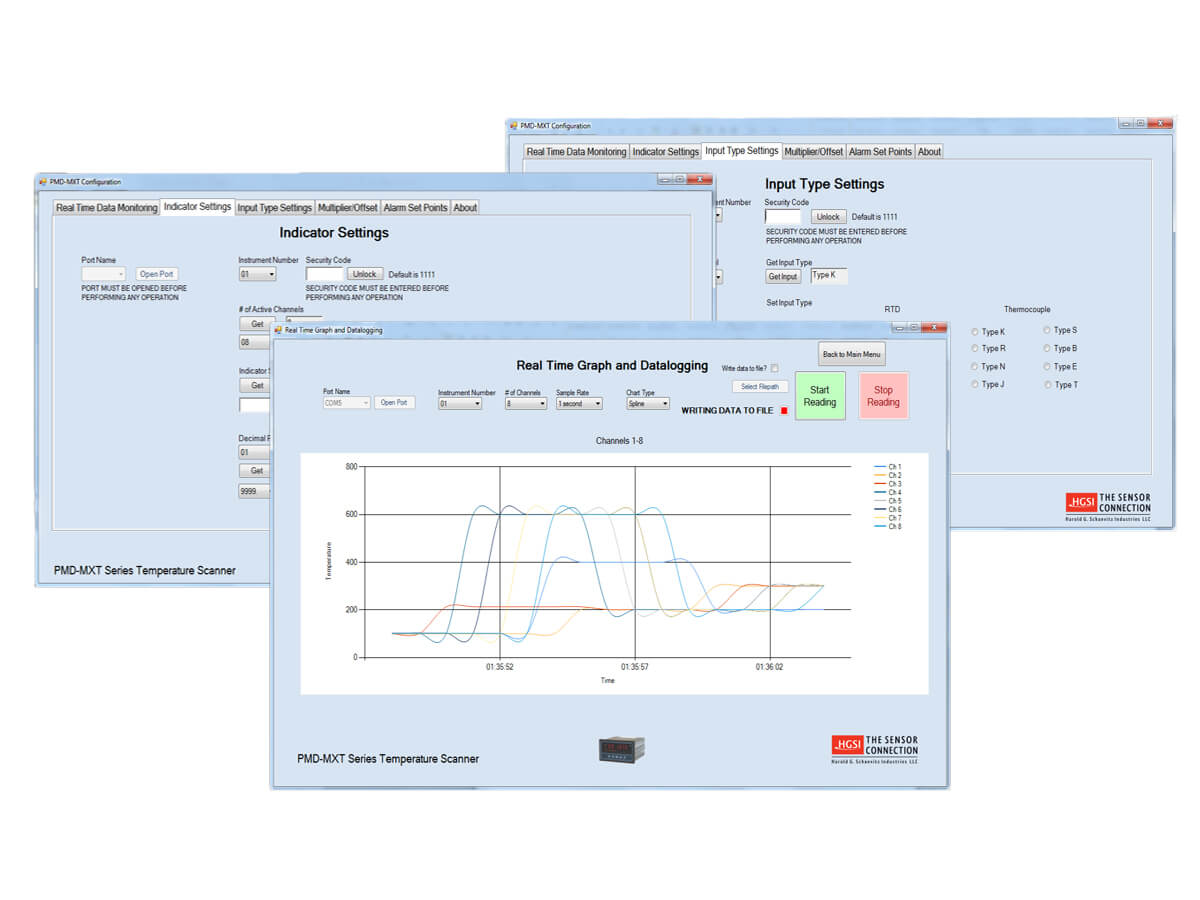

• RS-485 serial communication interface

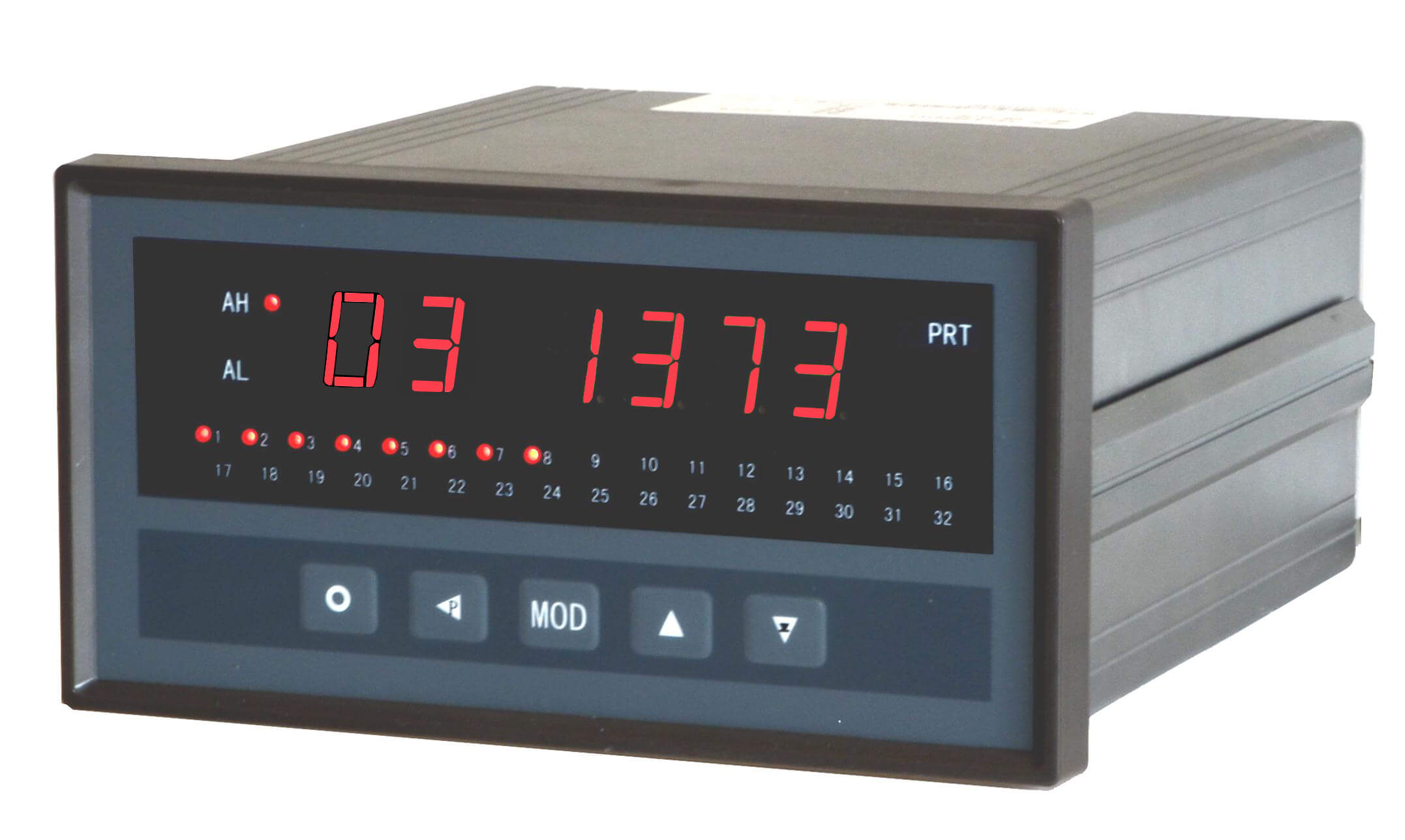

The PMD-MXT series microprocessor-based temperature scanners provide continuous monitoring of up to 32 channels of thermocouple or RTD sensors. The large 14 mm tall digit red LED display is easy to read, even at a distance. Rows of LED annunciators warn of specific channel alarm conditions.

The scanner has 2 user-selectable HI/LO, HI/HI, or LO/LO alarm set points, configured through the front panel push buttons. During an alarm condition a front panel LED annunciator is enabled & an internal 2 Amp relay contact output is engaged.

The scanner's display will auto cycle through all input channels at a user determined rate of 0.5~10 seconds per channel.

24 VDC powered. A must have for multi-point thermocouple or RTD temperature monitoring in the Lab, control room, or Dynamometer.


Options:

PMD-MXT Number of Input Channels

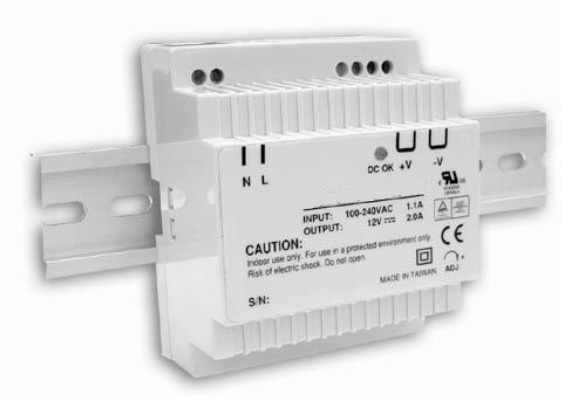

PMD-MXT Add External AC-DC Power Supply?
SKU
PMD-MXT-08-RTD
Availability
13 in stock
0
Price
$795.00
Add to Cart

TECHNICAL SPECIFICATIONS

Thermocouple Input Types: K, T, J, B, E, N, R, S (user selectable)
RTD Input Types: PT100, CU100, CU50 (user selectable)
Display Resolution RTD (0.1°): 167.9 to +999.9°F (-189.9 to +596.9°C)
Display Resolution TC (0.1°): -167.9 to +999.9°F (-199.9 to +999.9°C)
Display Resolution TC (1°): -412 to 3271°F (-257 to 1800°C)
Accuracy RTD: +/-1.0% of full scale
Accuracy TC: +/-0.5% of full scale
Channel Select Indication LEDs: Red, 2-digit, 0.56 inch (14 mm) tall
Measured Value Indication LEDs: Red, 4-digit, 0.56 inch (14 mm) tall
Microprocessor Sampling Rate: 0.1 second per channel
Microprocessor A/D Resolution: 16 bit
A/D Accuracy: +/- 0.2% FS +/- 1 unit
Environment: 0 to 60°C, 85% Max. RH (non-condensing)
Operating Temperature: +32 to +125°F (0 to +50°C)
Front Bezel Rating: IP51
Power: +20 to +28 VDC
Current Draw: < 400 mA @ 24 VDC
Alarm Relay Contact Rating: 2A @ 250 VAC
Case Dimensions: 6.3" x 3" x 7" (160 mm x 80 mm x 182 mm)
Panel Cutout Dimensions: 6" x 3" (152 mm x 76 mm)
Weight: 2 pounds (900 grams)
