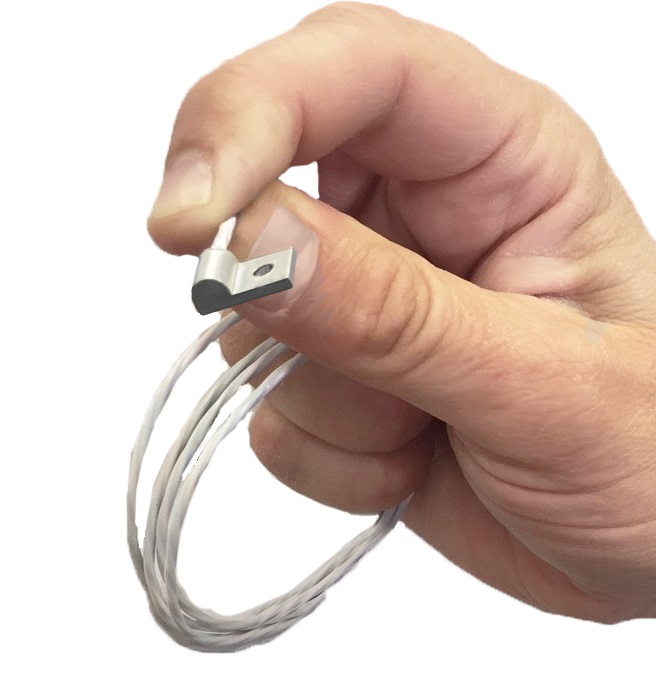

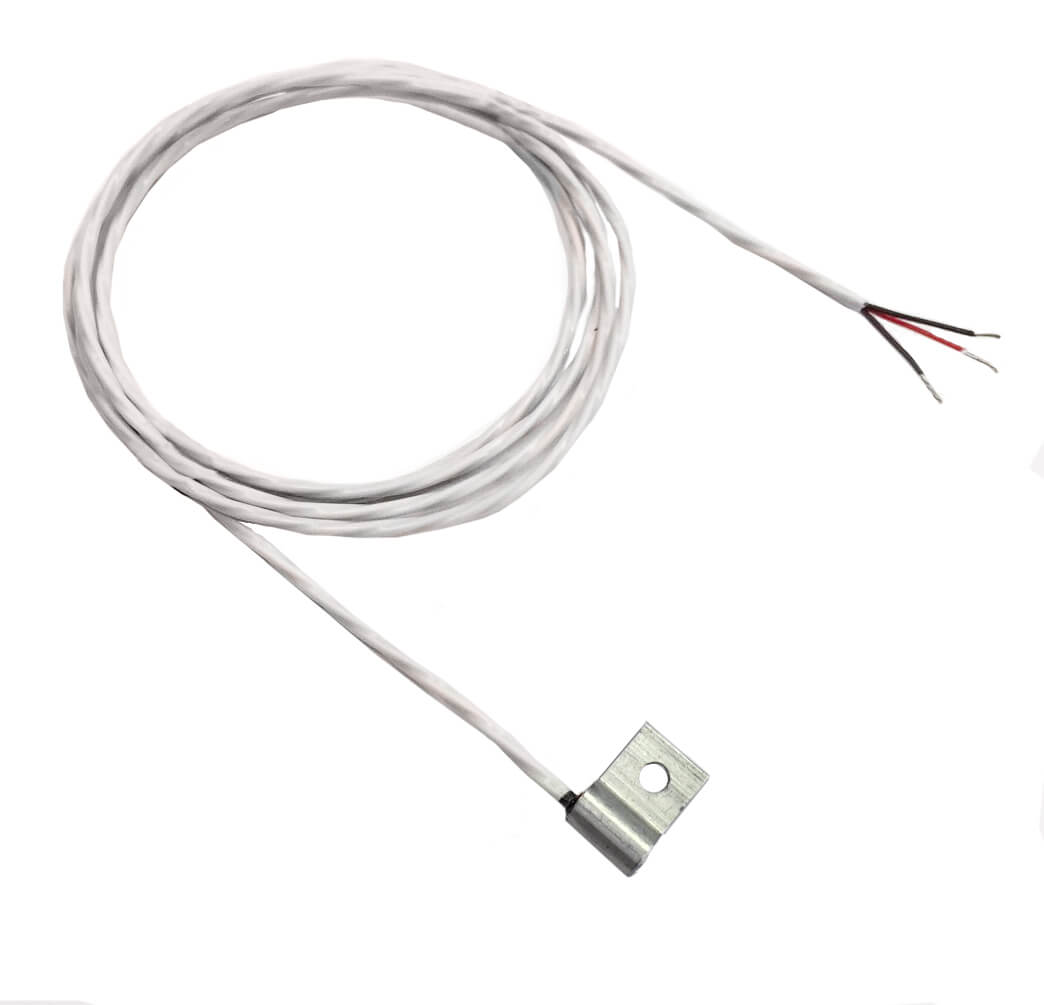

SMBD-RTD Surface Mount Bolt-Down or Cement-On RTD Sensor - PT100

OVERVIEW

• PT100 Class A RTD Element
• 26 AWG FEP insulated conductors, stranded
• Easy installation, cement-on or bolt-down

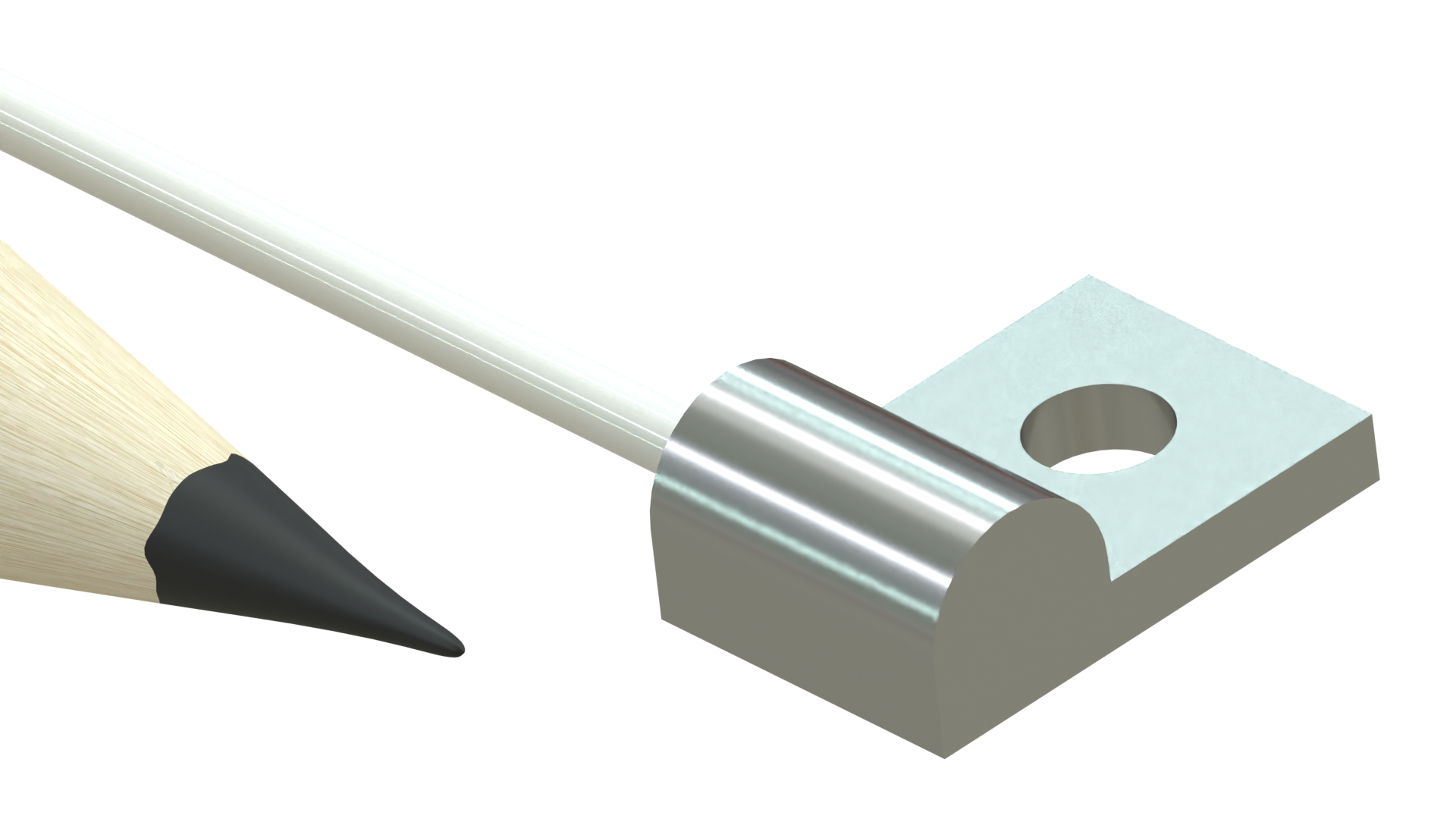

• Miniature size


MADE IN THE USA

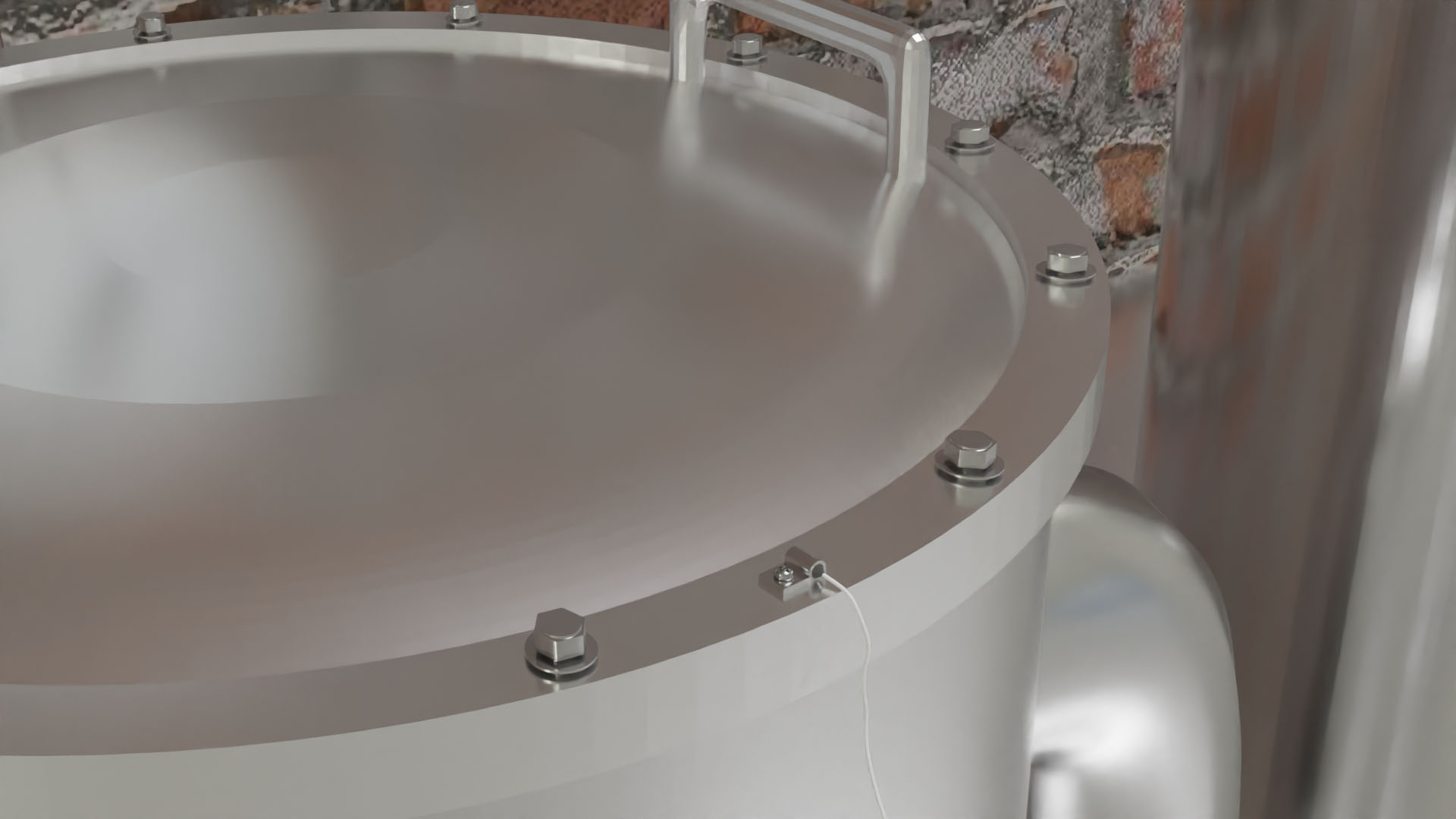

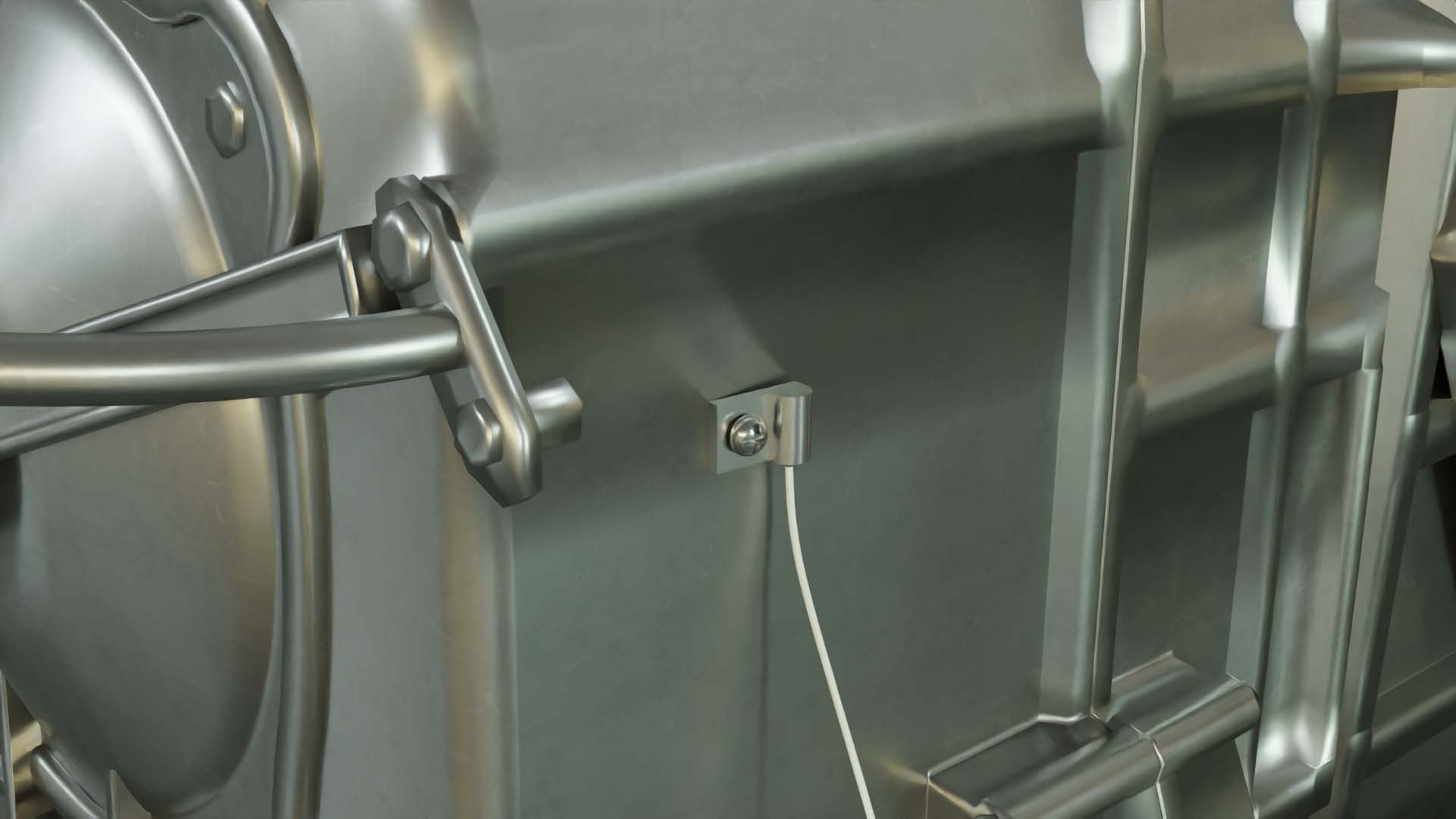

The SMBD-RTD Surface Mount Bolt-Down or Cement-On RTD Sensor is designed for use in R&D and Testing applications. The aluminum fitting may be bolted or cemented to most any a surface. For best results use a #4 screw or an air set type Epoxy cement.

The SMBD-RTD Surface Mount Bolt-Down or Cement-On RTD Sensor is designed to deliver high performance temperature measurements, reliably and consistently. These temperature sensors are designed for Research and Development, test labs, manufacturing engineering and production environments. They can be customized for OEM applications as well.

Contact us for volume pricing. Custom configurations available.


Options:

RTD Cable Length
RTD Connector
SKU
SMBD-RTD-PT100-036-3-N
Availability
In stock
0
Out of Stock
0
Discontinued
Off
Price
$50.00
Add to Cart

TECHNICAL SPECIFICATIONS

RTD Element Type:

Thin film platinum, 100Ω at 0°C, α =0.00385

Range:

-90 to 500°F (-70 to 260°C)

Accuracy:

Class A, +/- 0.15°C

Fitting Housing Material:

Aluminum

IP Rating:

IEC IP64

Response Time*:

6 Seconds

Lead Wire:

PFA Teflon™ insulated, 26 AWG, stranded conductors

Wiring:

3-Wire



PRODUCT NUMBERS
