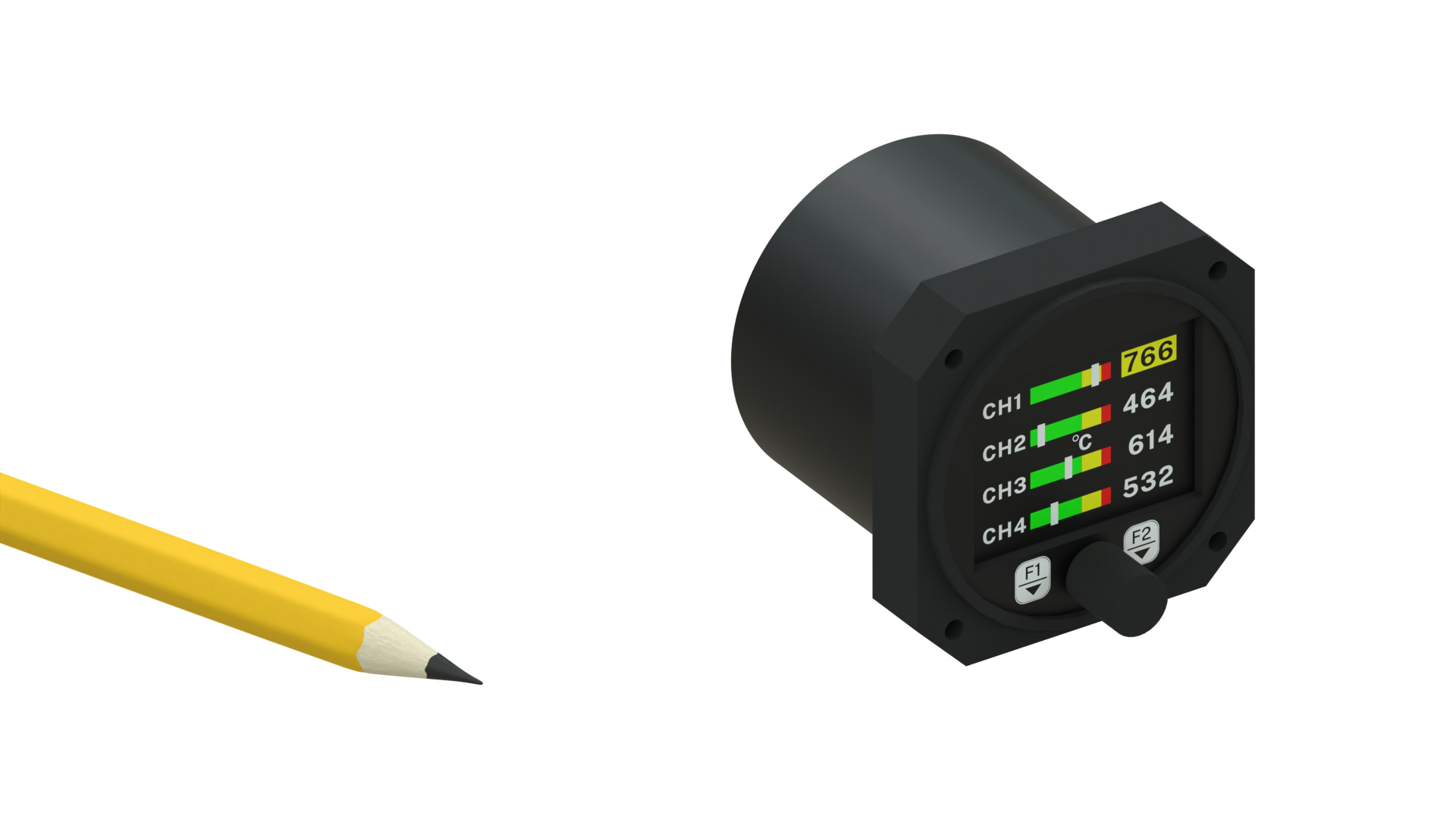

MPG-4C 4-Channel Round Digital Gauge - Type J & K Thermocouple

OVERVIEW

• Accepts four probes
• 2-1/4" (57 mm) Round Gauge
• High resolution LCD display with backlighting
• Temperatures can be displayed in °C or °F; from -100 to +1200ºC (-148 to +2192°F)

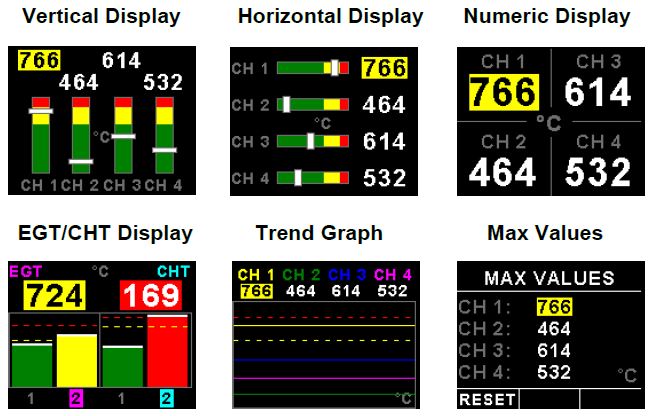

• 6 different user customized display screens
• Visible high temperature alarm; LED changes to red color
• Recall Max Peak temperature memory Button
• Each individual input channel can be labeled as either EGT or CHT
• Power from either 12 VDC or 24 VDC

• °F/°C selectable
• Programmable High Temperature set-point alarm
• Supports J, K, & E thermocouple probes (ungrounded only)


The 4-channel digital thermocouple pyrometer gauge display is 2.25” instrument that contains all the features necessary to monitor EGTs and/or CHTs. The instrument is fully programmable by the user resulting in the most flexible solution available. It contains 6 different display screens to allow easy customization. The gauge display can be configured to group EGTs/CHTs to common settings or each thermocouple channel can be independently setup for temperature ranges as well as alarms and probe types.

Temperature Probes not included, please purchase separately


IMPORTANT DISCLAIMER IF YOU ARE CONSIDERING USING THIS INSTRUMENT IN AN AIRCRAFT:

This instrument is not certified by the FAA. Fitting of this instrument to certified aircraft is subject to the rules and conditions pertaining to such in your country. Please check with your local aviation authorities if in doubt. This instrument is intended for ultralight, microlight, homebuilt and experimental aircraft. Operation of this instrument is the sole responsibility of the pilot in command (PIC) of the aircraft. This person must be proficient and carry a valid and relevant pilot’s license. This person has to make themselves familiar with the operation of this instrument and the effect of any possible failure or malfunction. Under no circumstances does The Sensor Connection or manufacturer condone usage of this instrument for IFR flights.

Options:

SKU
MPG-4C
Availability
In stock
0
Out of Stock
0
Discontinued
Off
Price
$329.00
Add to Cart

TECHNICAL SPECIFICATIONS

Input: Type K, Type J, & Type E thermocouple (ungrounded only)
Number of Inputs: 4
Display Range: -148 to +2192°F (-100 to +1200°C)
Accuracy: +/- 5° (typical) over full temperature range
LCD Display Resolution: 160 x 128 graphic color LCD display
LCD Backlight: Yes
LCD Contrast: User selectable
Microprocessor Resolution: 12-bit (over sampled successive approximation)
Environment: 85% Max. RH (non-condensing)
Operating Temperature: +14 to +1140°F (-10 to +60°C)
Front Bezel Rating: IP51
Input Voltage: 8 to 30 VDC
Current Draw: 73mA @ 13.8V (backlight highest setting), 33mA @ 13.8V (backlight lowest setting)
Alarm Relay Contact Rating: Normally open, open collector transistor, switches to ground upon activation, max rating of 0.25A DC
Enclosure: 2-1/4” ABS, black in color, front or rear mounting
Panel Cutout Dimensions: Drill round 2-1/4" (57 mm) hole
Weight: 170 grams
