MME-1000 TE Macro Sensors AC LVDT Signal Conditioner

0
Add to Cart

OPTION

HGSI is a factory authorized TE Connectivity Macro Sensors distributor.

Have Pricing or Technical questions? Contact us today.

Complete the contact form, call us at 248-636-1515, or email us at sales@hgsind.com


THIS PRODUCT WAS DISCONTINUED MAY 2018

Replaced by model LVC-4000



• MME-1000 for voltage output
• Push-button auto-calibration
• Supports 5- and 6-wire AC LVDT and RVDT sensors
• DIN-rail mountable

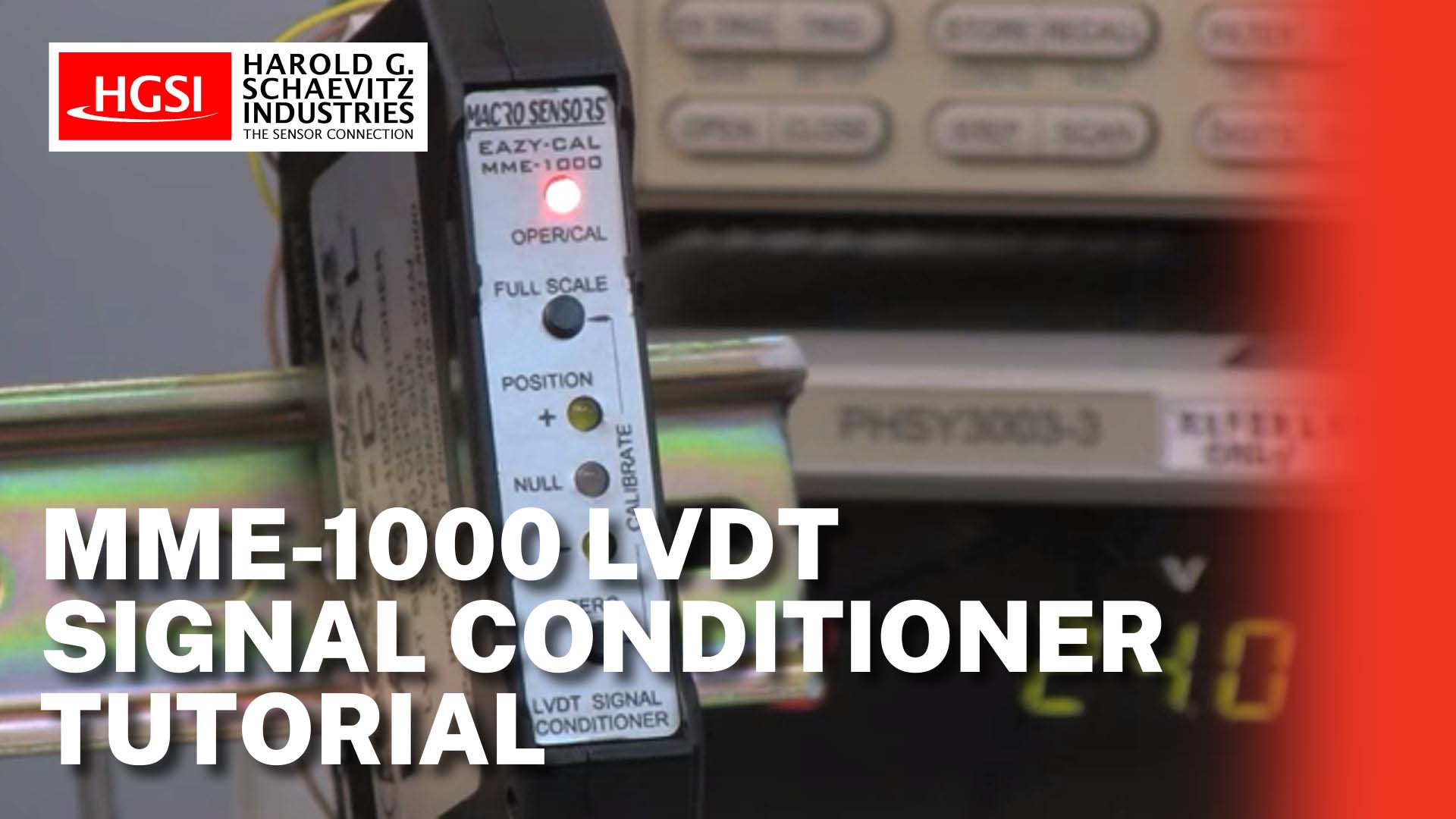

TE Connectivity Macro Sensors MME-1000 standalone AC LVDT signal conditioner featuring push-button calibration.


Note: The MMI-1000 current output version was discontinued by the manufacturer September 2016

Power Input:                              15-30 Volts DC (24 Volts nominal, 60 mA max.)

LVDT Connection:                     5 Wire (secondary centertap required)

LVDT Excitation:                        1.0 to 3.0 Vrms for primary impedance ≥ 180 Ω

LVDT Excitation Frequency:      2500 Hz Full Scale Outputs

Full Scale Output:                      0 to 10 V DC, 5 mA max. (MME-1000)

Output Non-Linearity:                ≤ 0.05% of full scale output

Output Noise / Ripple:               ≤ 5 mVrms @ 50 Hz

External Synchronization:          Master drives ≤ 10 slaves

Operating Temperature:            32°F to 160°F (0°C to 70°C)

Thermal Coeff of Sensitivity:     ≤ 0.01% of FSO/°F (≤ 0.02% of FSO/°C)
