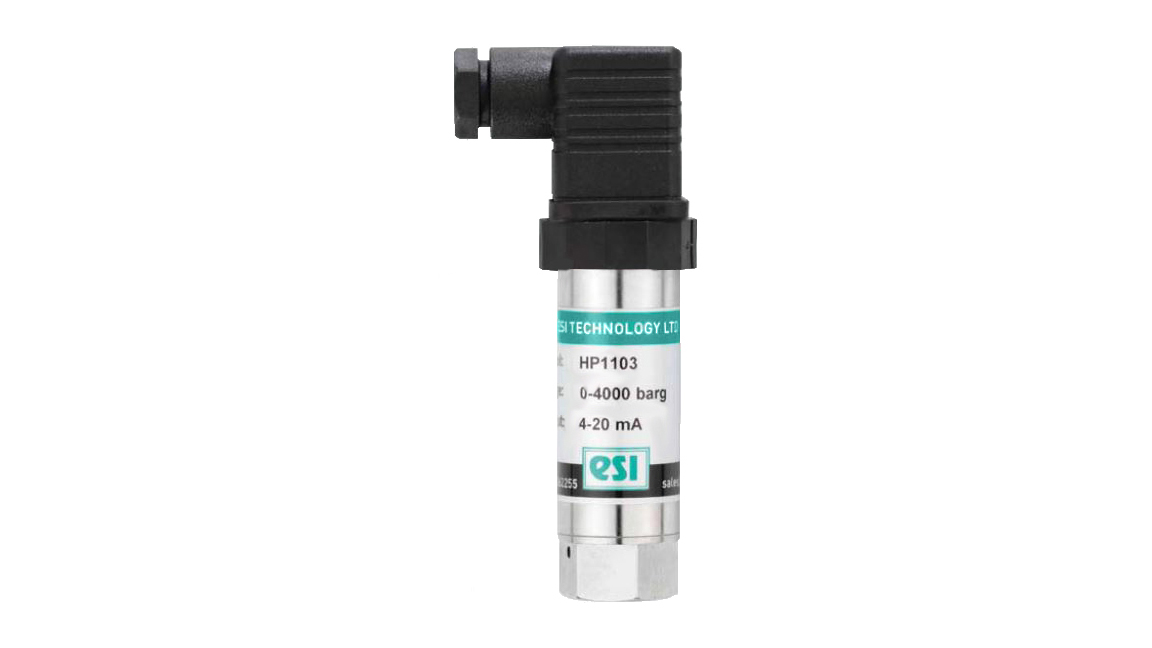

HP1000 High Pressure Transmitter


• Pressure ranges to 5,000 bar (72,500 psi)
• High pressure integrity for safe use due to unique sensor design
• Pressure diaphragm and process  connection is machined from one piece of Titanium with no seals or welds
• High resistance to overpressure and pressure transients
• Silicon-on-sapphire (SOS) sensor technology for outstanding performance and reliability
• ATEX/IECEx option available (includes M1 for mining applications) for 4-20 mA versions
• DNV GL certification available

The HP1000 series extends the Silicon-on-Sapphire pressure sensor technology into very high pressure applications, with operating ranges up to 5,000 bar and still maintaining an extremely high performance level.

The unique silicon-on-sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The wetted parts and pressure diaphragm are machined from a single piece of titanium alloy meaning no weld joints and therefore high pressure integrity and overload capacity. All titanium pressure ports offer unbeatable corrosion resistance. With a design to meet demanding environments, this transmitter will consistently maintain accurate performance while sustaining high durability. Using the industry standard autoclave connection enables safe and reliable sealing to such high pressures. Available in pressure ranges from 0-400 bar t0 0-5,000 bar (0-6,000 psi to 0-72,500 psi) and with electrical outputs of 0-100 mV, 0-5 VDC, 0-10 VDC, and 4-20 mA.

Applications include aerospace, laboratory, and test, oil and gas monitoring equipment and general industrial.

An optional ATEX and IECEx approved version of this product is available for explosion protection for flammable gases (zone 0), dusts (xone 20) and mining areas (group I MI).

DNV GL rules for classification of ships, high speed & light craft and DNV GL offshore standards.


Add to Cart


Sensor Technology:

Silicon-on-sapphire (SOS)

Output Signal:

10 mV/V (4 wire)

Supply voltage:

10 VDC (5-15V)

Pressure Reference:


Protection of supply voltage:

Protected against supply voltage reversal up to 50 V (amplified versions)

Standard pressure ranges:

HP10xx: 0-600 bar; 0-700 bar; 0-1,000 bar; 0-1,500 bar; 0-2,000 bar. HP11xx: 0-2,500 bar; 0-4,000 bar; 0-5,000 bar (other ranges available)
0-10,000 psi; 0-15,000 psi; 0-20,000 psi; 0-30,000 psi; 0-40,000 psi; 0-60,000 psi; 0-72,000 psi (other ranges available)

Overpressure safety:

1.5x for ranges 0-600 bar to 0-3,000 bar; 1.25x for 4,000 bar; 1.2x for 5,000 bar

Load driving capability:

4-20 mA: RL < [UB - 10 V] / 20 mA (e.g. with supply voltage (UB) of 36 V, max. load (RL) is 1300 Ω); 10 mV/V: n/a; 0-5 V: max. load RL > 5 KΩ; 0-10 V: max. load RL > 10 KΩ

Accuracy NLHR:

≤ ±0.25 % of span BFSL (Optional higher accuracy version of ≤ ±0.1 % of span BFSL available)

Zero offset and span tolerance:

±0.5 %FS at room temperature (HP1000/HP1100: ±1 mV); ±5 %FS (approx.) adjustment with easy access trimming potentiometers on amplified versions only

Operating ambient temperature:

-40 °C to +85 °C (-40 °F to +185 °F)

Operating media temperature:

-50 °C to +125 °C (-58 °F to +257 °F)

Storage temperature:

+5 °C to +40 °C (+41 °F to +104°F) Recommended Best Practice

Temperature effects:

±1.5 %FS total error band for -20 °C to +70 °C. Typical thermal zero and span coefficients ±0.015 %FS/ °C

DNV GL approval class: Temperature:

D; Humidity: B; Vibration: B; EMC: B; Enclosure: C (contact sales for more information)

Electromagnetic capability:

Emissions: EN61000-6-4; Immunity: EN61000-6-2; Certification: CE Marked

Insulation resistance:

   > 100 MΩ @ 50 VDC

Response time 10-90%:

1 mS

Wetted parts:

Titanium alloy machined from a single piece (≥1,000 bar); Titanium alloy and SAE 316 stainless steel (<1,000 bar)

Pressure media:

All fluids compatible with Titanium alloy (≥1,000 bar); All fluids compatible with Titanium alloy and SAE 316 stainless steel (<1,000 bar)

Pressure connection:

F250-C Autoclave fitting; thread type 9/16-18UNF-2B female or M16 x 1.5 female cone seal

Electrical connection:

Mating socket EN175301-803 Form A (ex DIN43650) rated IP65 with PG9 cable entry
(other options available)
