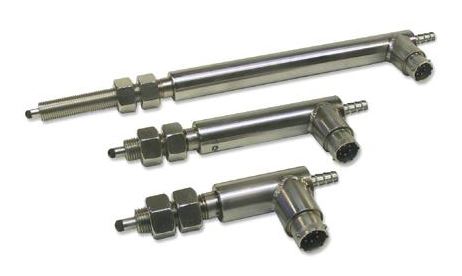

The TE Connectivity Macro Sensors’ GHSIR 750-A Series of 3/4 inch (19 mm) diameter, Air-Extend/Spring-Retract, 4-20 mA loop-powered LVDT position transmitters are designed for a wide range of position monitoring and feedback applications. These rugged hermetically sealed sensors are constructed entirely of stainless steel, and are intended for general industrial use. The coil windings are sealed against hostile environments to IEC standard IP-68 and input/output connections are made through a sealed radial (GHSIR) connector. The radial connector offers two important benefits. First, it results in a through-bore design, which allows for air purging of the sensor's bearings to remove potential contaminants. The second advantage of the radial connector is shorter installed length compared to units of the same range with axial connectors. The mating connector plug is supplied with the unit.
The sensor consists of a spring loaded shaft running in a precision sleeve bearing and connected to the core of an LVDT. The use of a precision sleeve bearing results in measurement repeatability of 0.000025 inches (0.6 ìm) or better. The shaft is extended by introduction of a low-pressure (10-30 psi), clean, dry air supply, with a regulated flow, through a 1/4 inch barbed fitting on the end of the unit. With the release of pressure, an internal spring returns the probe to its normal position. The contact tip supplied is an AGD standard number 9 made from chrome plated hardened tool steel. It is fully interchangeable with other AGD contact tips.
Available in ranges of 0.100 inch (2.5 mm) to 4.00 inches (100 mm), the linearity error for GHSIR 750-A Series sensors is ±0.10% of full range output or better using a statistically best-fit straight line derived by the least squares method.
For simplified mounting the GHSIR 750-A Series has a 1/2-20 UNF-2A thread on the front of the housing, permitting the user to install the LVDT in a mating threaded part or by using the two hex nuts furnished with the sensor. This results in a ready-to-use package for position measurements and longer range gaging applications.
Part Numbers
GHSIR-750-100-A
GHSIR-750-250-A
GHSIR-750-500-A
GHSIR-750-1000-A
GHSIR-750-2000-A
GHSIR-750-4000-A
