CD-375 TE MACRO SENSORS AC LVDT

OVERVIEW

HGSI is a factory authorized TE Connectivity Macro Sensors distributor.

Have Pricing or Technical questions? Contact us today.

Complete the contact form, call us at 248-636-1515, or email us at sales@hgsind.com

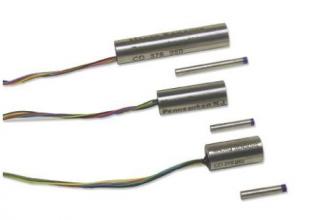

TE Connectivity Macro Sensors’ LVDT CD 375 Series of 3/8 inch (9.5 mm) diameter AC-operated LVDTs are small size contactless linear position sensors for both OEM and end user applications. They are available in full scale measuring ranges from ±0.025 inch (±0.63 mm) to ±1.0 inches (±25 mm) and offer 50% larger core-to-bore radial clearance, 0.012 inches (0.3 mm), than similar size units from competitors. The low mass of their cores makes these miniature LVDTs well suited for high response dynamic measurements. CD 375 Series sensors feature the high resolution, excellent repeatability, and low hysteresis associated with LVDT technology, as well as the highest sensitivity consistent with good linearity. The maximum linearity error for a CD 375 sensor is ±0.25% of full range output, using a statistically best-fit straight line derived by the least squares method.

Features

• Miniature 3/8 inch size, low core mass
• Ranges of ±0.025 inch to ±1.0 inches
• Non-linearity less than ±0.25% of FRO
• 220°F (105°C) operating temperature
• Coil assembly sealed to IEC IP-61
• Magnetically shielded SS housing

Part Numbers

CD-375-025
CD-375-050
CD-375-100
CD-375-250
CDM-375-500
CDM-375-1000

Options:

Variations
LVDT Bi-Polar Measuring Range
SKU
CD-375-025
Availability
Request Availability
Call For Price
1
Out of Stock
0
Discontinued
Off
Price
$9,999.99
Add to Cart

TECHNICAL SPECIFICATIONS

DOCUMENTS & DOWNLOADS

Documents

VIDEOS

No Result Found

PRODUCT NUMBERS
