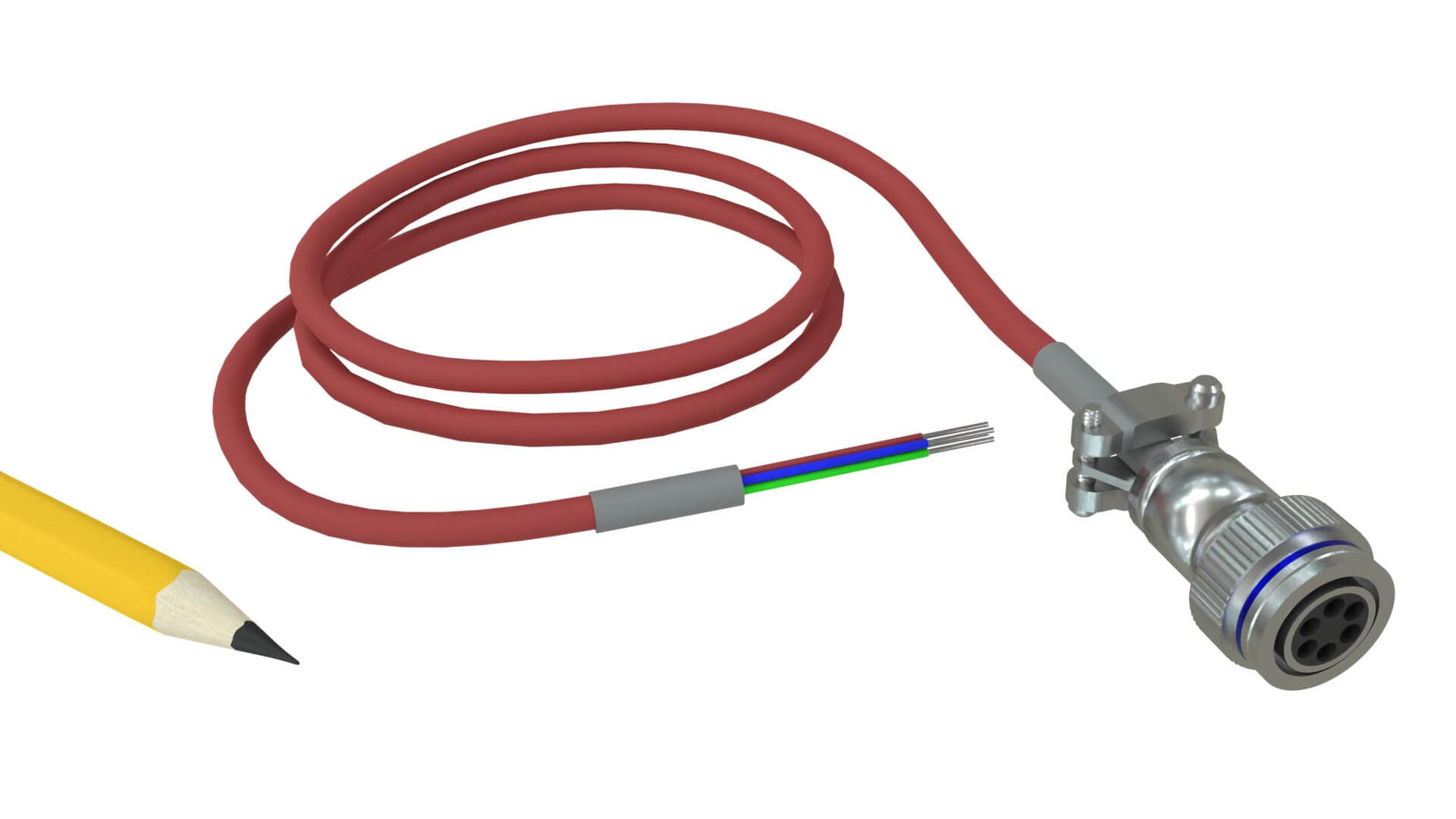

LVDT Position Sensor PT06 Cable Assembly - High Temperature Rated

OVERVIEW

• Mates with most HGSI, MACRO SENSORS, and MSI brand LVDT Position Sensors with PT02 connector
• Attached water resistant 6-pin female Amphenol plug connector
• Available in 10, 20, 30 and 50 foot lengths
• Rated to +200°C (+392°F)


*Wiring pin-out conforms to HGSI, Macro Sensors, and MSI Schaevitz standard wiring color codes:

AC LVDT Cable Pin-Out:

A Red
B Black
C Black
D Green
E Black
F White




Drop-in substitutes for the following TE Macro Sensors LVDT cable assemblies...

AC LVDT Cable Assemblies:

010888777010-M 10 foot
010888777020-M 20 foot
010888777030-M 30 foot
010888777050-M 50 foot

Options:

Cable Assembly Cable Length
Cable Assembly Sensor Type
SKU
LVDT-AC-CABLE-10-HT
Availability
Ships within 1 week
0
Price
$269.00
Add to Cart

TECHNICAL SPECIFICATIONS

Connector:
Amphenol
Circular, 6-pin, Female

Cable:

Belden p/n: 88777
Type: Twisted Pair, Shielded
Number of Conductors: 3 pair
Conductors: Tinned Copper, Stranded
Conductor Insulation: FEP
Shield: Aluminum Drain Wire, Polyester Tape
Outer Jacket: FEP
Temperature Rating: -16°C to +200°C (-4°F to 392°F)
