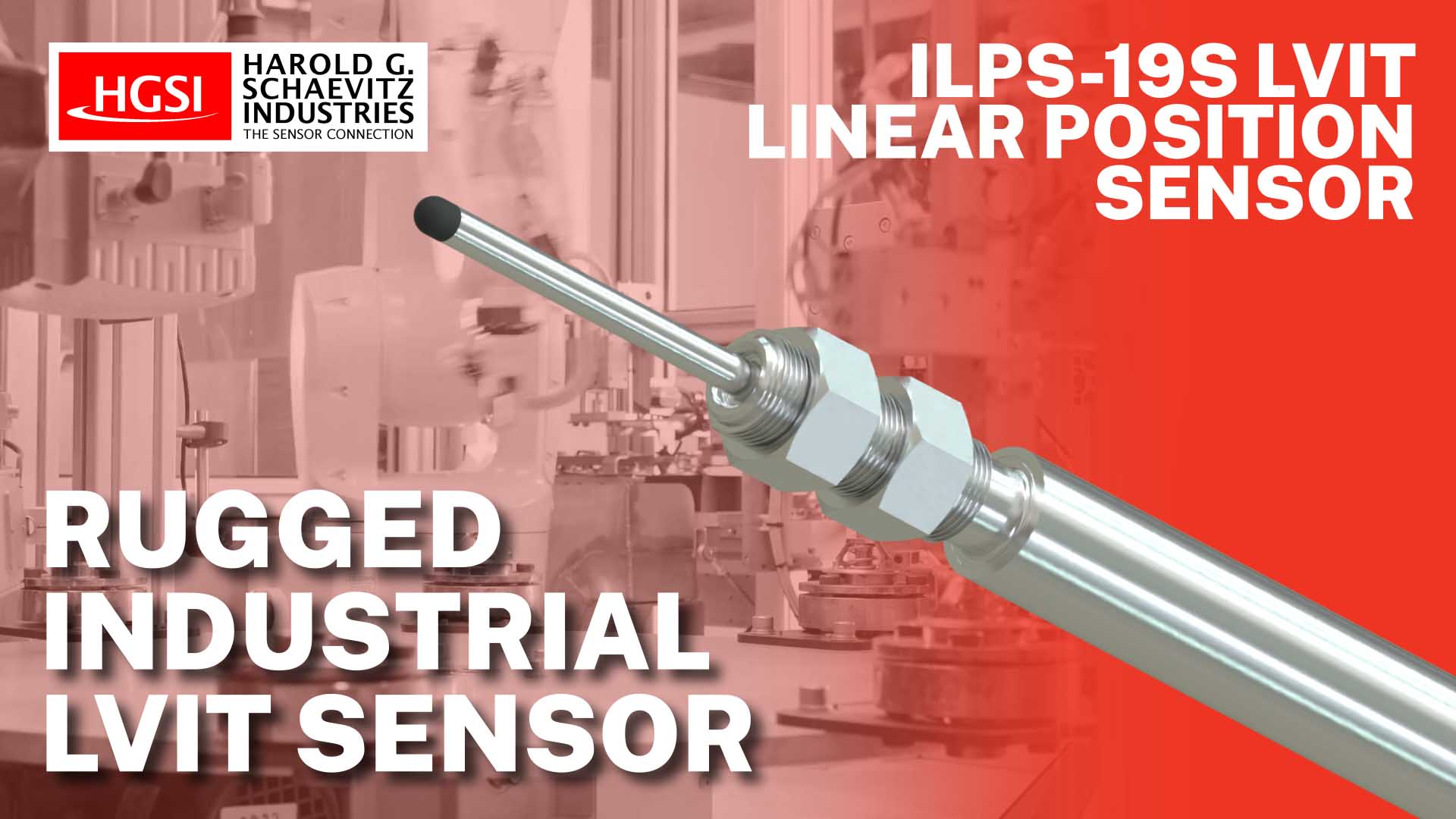

ILPS-19S Linear LVIT Position Sensor Spring Loaded

OVERVIEW

• Linear Variable Inductive Transducer (LVIT)
• Sensing element is contactless, virtually wear-free
• Stroke lengths available from 6.5 to 100 mm (0.25 to 4 inches)
• Tested to over 110 million cycles
• Spring loaded for simple mounting
• Environmental rating of IP67 (Dust tight,
Short term water immersion)
• 0.75" (19 mm) diameter
• A more robust alternative to Linear Potentiometers


MADE IN THE USA


LVIT Technology = a longer life-span than a Potentiometer!

HGSI ILPS-19S series Spring Loaded Linear Variable Inductive Transducer (LVIT) Position Sensors are used to monitor and track the linear motion or position of a target.. These ruggedized sensors are ideal for use in industrial and laboratory applications including automotive R&D, motorsports, industrial, motion control, medical, military and aerospace.

The inductive coil and spoiler combination is a contactless solution, eliminating the wear and dithering issues commonly experienced with Potentiometer type sensors. The amplifier electronics are contained within the housing, no need for an external signal conditioner.

The ILPS-19S series sensor is made from industrial duty materials for resistance to dust, water, temperature, shock, and vibration.

The SenSet Field Programmability feature allows for quick and easy recalibration of the units’ zero and full scale electrical output.



Options:

ILPS-19S Electrical Termination
ILPS Housing Material
ILPS Measuring Range
ILPS Signal Output
SKU
ILPS-19S-006-A-02-50-S
Availability
3 weeks
0
Out of Stock
0
Discontinued
Off
Price
$649.00
Add to Cart

TECHNICAL SPECIFICATIONS

Stroke Lengths:

0.25" (6.5mm), 0.5" (12.5mm), 1" (25mm),  2" (50mm), 3" (75mm), 4" (100mm)

Non-Linearity (BFSL method):

Stroke Length + 0.12" (3 mm)

Non-Linearity (BFSL method):

+/- 0.15% of full stroke max, +/- 0.10% of full stroke typical

Resolution:

0.025% of full stroke

Repeatability:

0.025% of full stroke

Bandwidth:

300 Hz (3.3 mS)

Element Type:

Variable Inductive

Excitation Voltage:

12 to 30 VDC

Current Draw:

~35 mA (nominal)

Output Cable:

4 conductor with drain, 22 AWG, PVC jacket, 3 foot long

Operating Temperature Range:

-40 to +105°C (-40 to +220°F)

Thermal Coefficient of Sensitivity:

+/- 0.015%/°C nominal

Humidity:

95% Max. RH (non-condensing)

Liquid & Dust Protection:

IP67

Shock Rating:

1000 g, 11 ms

Vibration Rating:

5-20 Hz 0.5 inch p-p; 20-2000 Hz 4.2 g p-p

Housing Dimension (O.D):

0.75 inch (19 mm)
