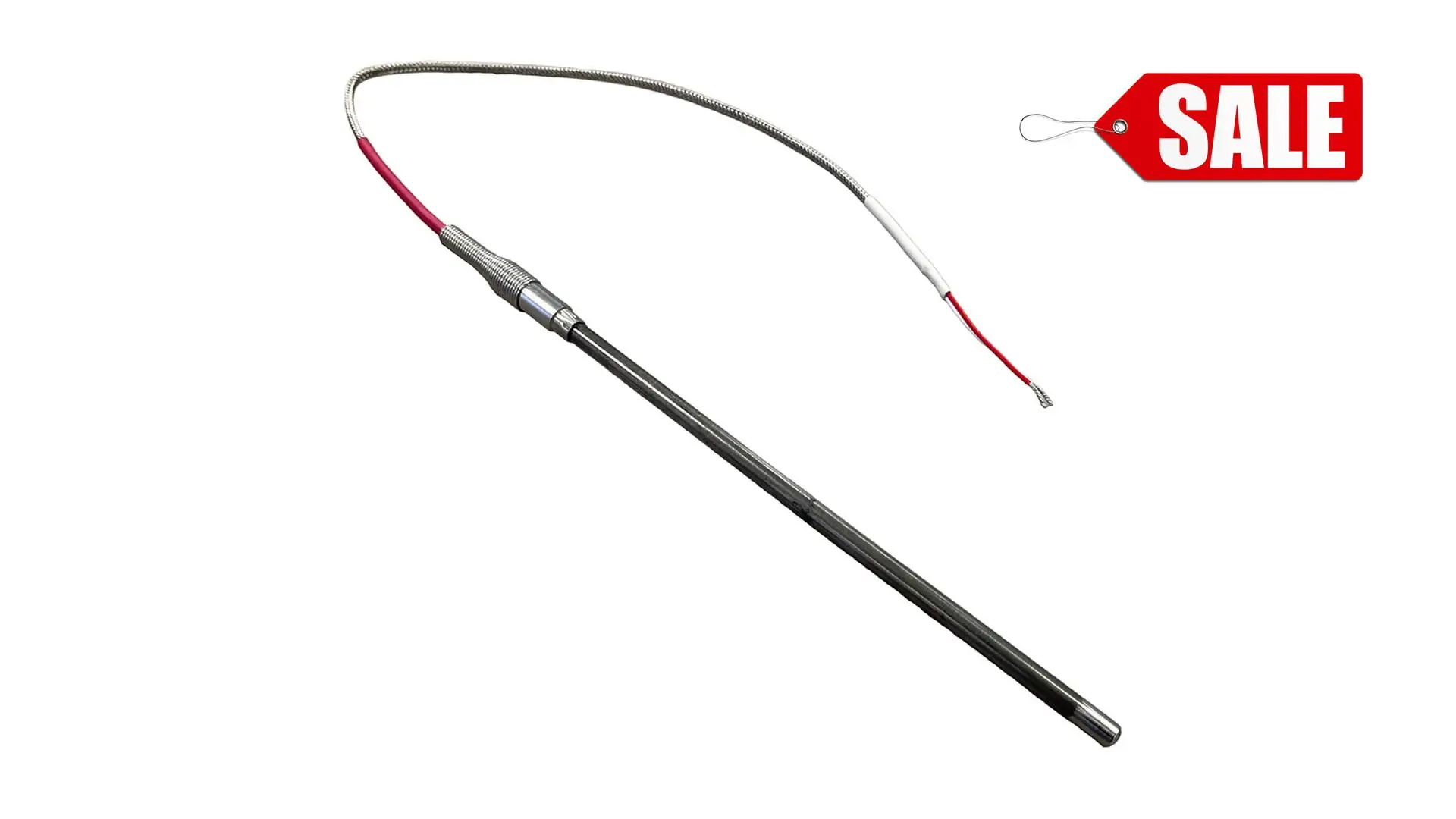

TTJ0-J250D070U12B0 - Enclosed Junction Thermocouple

Price
$25.00
SKU
TTJ0-J250D070U12B0
Availability
10 remain in stock
0
Add to Cart

OPTION

Thermocouple Type
Thermocouple Cable Insulation
Thermocouple Connector
Thermocouple Junction Type
Thermocouple Sheath Length
Thermocouple Sheath Material
Thermocouple Sheath OD

OVERVIEW

 Overstock sale from a canceled order, 50% off normal price

  • 0.250" Sheath OD
  • 316SS Sheath Material
  • 7" Straight sheath length
  • 12" FEP with Stainless Steel Over Braid cable
  • Enclosed Ungrounded Junction
  • Heavy Duty Transition Joint with Spring Strain Relief
  • Special Limits of Error accuracy
  • Mineral insulated sheath for high strength

TECHNICAL SPECIFICATIONS

• Type J Thermocouple
• -58°F to 1400°F range (-70°C to 760°C)
• Special Limits of Error accuracy (greater of +/- 0.4% of reading or +/- 1.1°C)
• Probe diameter 1/4 inch (0.250 inch) (6.35 mm)

• 316 SS protective sheathing for longevity at high temperatures

• Sheath Wall Thickness 0.023" (.58 mm), MgO insulated
• Stainless steel over-braid cable with FEP insulated conductors
• Response time constant: 1200 milliseconds
