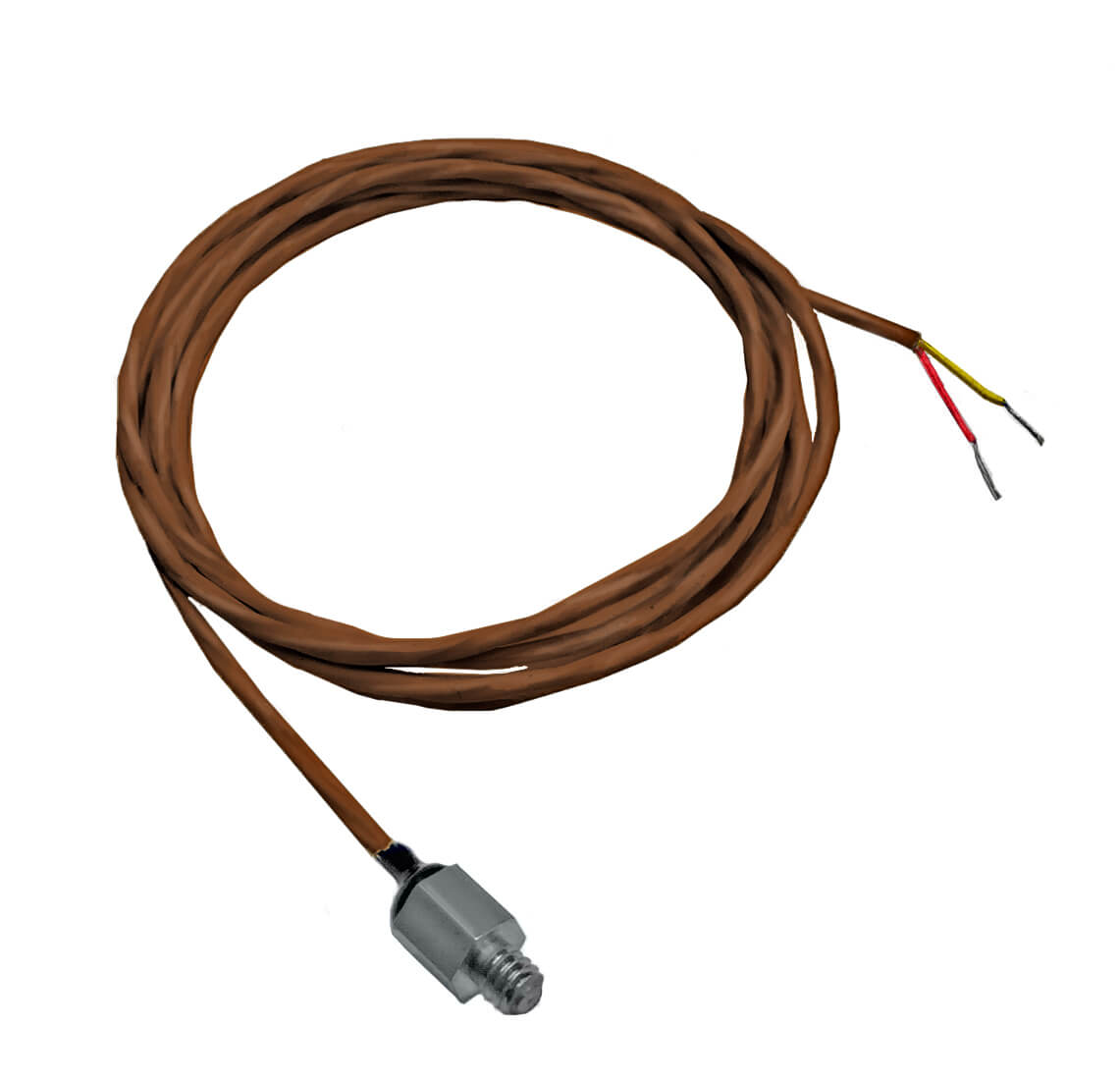

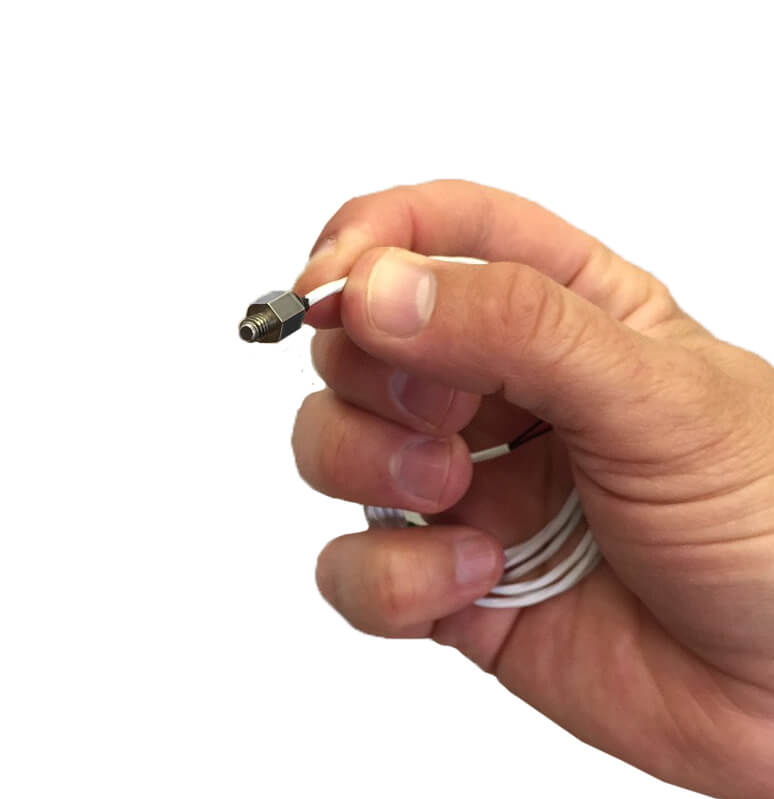

SMTS-TC Miniature Surface Mount Threaded Stud Thermocouple Sensor

The SMTS-TC Miniature Surface Mount Threaded Stud Thermocouple Sensor is a compact, durable temperature measurement solution designed for accurate surface temperature monitoring in industrial, laboratory, and research applications. Featuring a threaded stud mounting design and stainless steel construction, this sensor provides secure attachment and consistent thermal contact for repeatable, reliable measurements.

Manufactured in the USA and built using Special Limits of Error thermocouple materials, the SMTS-TC delivers high accuracy and dependable performance in applications where precise surface temperature measurement is critical.

Designed for Accurate Surface Temperature Measurement

The SMTS-TC thermocouple is specifically engineered for measuring surface temperatures through direct contact. The threaded stud design allows the sensor to be securely mounted to a surface, ensuring consistent thermal coupling and minimizing measurement variability.

This design makes it ideal for:

• Surface temperature monitoring on machinery and components

• Heat transfer studies and thermal profiling

• R&D testing and validation

• Process monitoring in controlled environments

By providing a stable mechanical connection, the SMTS-TC ensures more accurate and repeatable readings compared to non-mounted surface sensors.

Compact Threaded Stud Design for Secure Mounting

The defining feature of the SMTS-TC is its miniature threaded stud mounting configuration, which allows for direct installation into tapped holes or threaded interfaces.

Available thread options include:

• #6-32

• #8-32

• #10-32

• 1/4"-20

• M4 x 0.7

This range of thread sizes provides flexibility for integration into a wide variety of equipment and test setups.

The threaded stud ensures:

• Firm mechanical attachment

• Improved thermal contact with the measurement surface

• Reduced risk of sensor movement or detachment

Stainless Steel Construction for Durability

The SMTS-TC features a robust stainless steel hex fitting designed for durability and long-term use:

• Fitting material: 316 stainless steel

This material offers:

• Excellent corrosion resistance

• High mechanical strength

• Compatibility with a wide range of industrial environments

The rugged construction ensures reliable performance in demanding applications.

Multiple Thermocouple Types for Application Flexibility

The SMTS-TC is available in a variety of thermocouple types to match different temperature ranges and sensitivities:

• Type E

• Type J

• Type K

• Type T

Each thermocouple type offers specific advantages:

• Type K: Wide temperature range and general-purpose use

• Type J: Suitable for moderate temperature applications

• Type T: Excellent accuracy at lower temperatures

• Type E: High sensitivity for precise measurement

This flexibility allows users to select the best sensor for their application.

Operating Temperature Range

The SMTS-TC is designed for moderate temperature surface measurement applications:

• Operating range: –50°F to 500°F (–45°C to 260°C)

This range makes it suitable for a wide variety of industrial, laboratory, and equipment monitoring applications.

Special Limits of Error Accuracy

The SMTS-TC is manufactured using Special Limits of Error (SLE) thermocouple materials, providing enhanced measurement accuracy:

• Accuracy: Greater of ±0.4% of reading or ±1.1°C

This level of accuracy ensures reliable data for critical measurement and testing applications.

Fast Response for Surface Measurements

The SMTS-TC provides responsive temperature measurement with a defined time constant:

• Response time: 6 seconds (time to reach 63.2% of a step change)

This allows the sensor to effectively track temperature changes in surface-mounted applications while maintaining stable readings.

Flexible Lead Wire and Insulation Options

The sensor includes flexible lead wire options to accommodate different environments and installation requirements:

• Wire type: 24 AWG stranded conductors

Available insulation options include:

• FEP (standard)

• PFA

• Fiberglass (rated to 900°F)

• High-temperature fiberglass (rated to 1200°F)

• Kapton

These options allow the sensor to be tailored for different temperature conditions and environmental requirements.

Grounded or Ungrounded Junction Options

The SMTS-TC is available with different junction configurations to suit specific application needs:

• Grounded junction: Faster response, suitable for many industrial applications

• Ungrounded junction: Electrical isolation for noise-sensitive environments

This flexibility allows users to optimize performance based on response time and electrical requirements.

IP64 Rated for Industrial Environments

The SMTS-TC is designed to withstand typical industrial conditions:

• Ingress protection rating: IP64

This rating provides protection against dust and splashing water, making the sensor suitable for a variety of environments.

Optional Connector Configurations

The SMTS-TC can be supplied with or without connectors, depending on application needs:

• No connector (bare leads)

• Mini thermocouple connectors

• Standard thermocouple connectors

This allows for flexible integration into existing systems and instrumentation.

Typical Applications

The SMTS-TC Miniature Surface Mount Thermocouple is ideal for:

• Surface temperature measurement on machinery

• Industrial process monitoring

• Laboratory and R&D testing

• Thermal performance analysis

• Equipment validation and diagnostics

Its compact size and secure mounting make it especially useful in confined spaces or applications requiring consistent surface contact.

Why Use a Threaded Surface Thermocouple?

Threaded surface thermocouples provide several advantages over adhesive or clamp-on sensors:

• More consistent thermal contact

• Improved measurement repeatability

• Secure mechanical attachment

• Reduced risk of sensor displacement

The SMTS-TC combines these benefits with a compact, durable design for reliable performance.

Key Features at a Glance

• Miniature threaded stud mounting design

• Type E, J, K, or T thermocouple options

• Special Limits of Error accuracy

• 316 stainless steel construction

• Operating range: –50°F to 500°F

• Flexible lead wire with multiple insulation options

• Grounded or ungrounded junction configurations

• IP64 environmental protection

• Made in the USA

A Reliable Solution for Surface Temperature Measurement

The SMTS-TC Miniature Surface Mount Threaded Stud Thermocouple Sensor provides a durable, accurate, and easy-to-install solution for surface temperature measurement. Its threaded design ensures reliable contact, while its configurable options allow it to be tailored to a wide range of applications.

Optimize Your Temperature Measurement System

Whether you are monitoring equipment performance, conducting research, or validating thermal processes, the SMTS-TC offers the accuracy, durability, and flexibility needed to capture reliable temperature data.

Contact us today to learn more or configure the right thermocouple sensor for your application.
