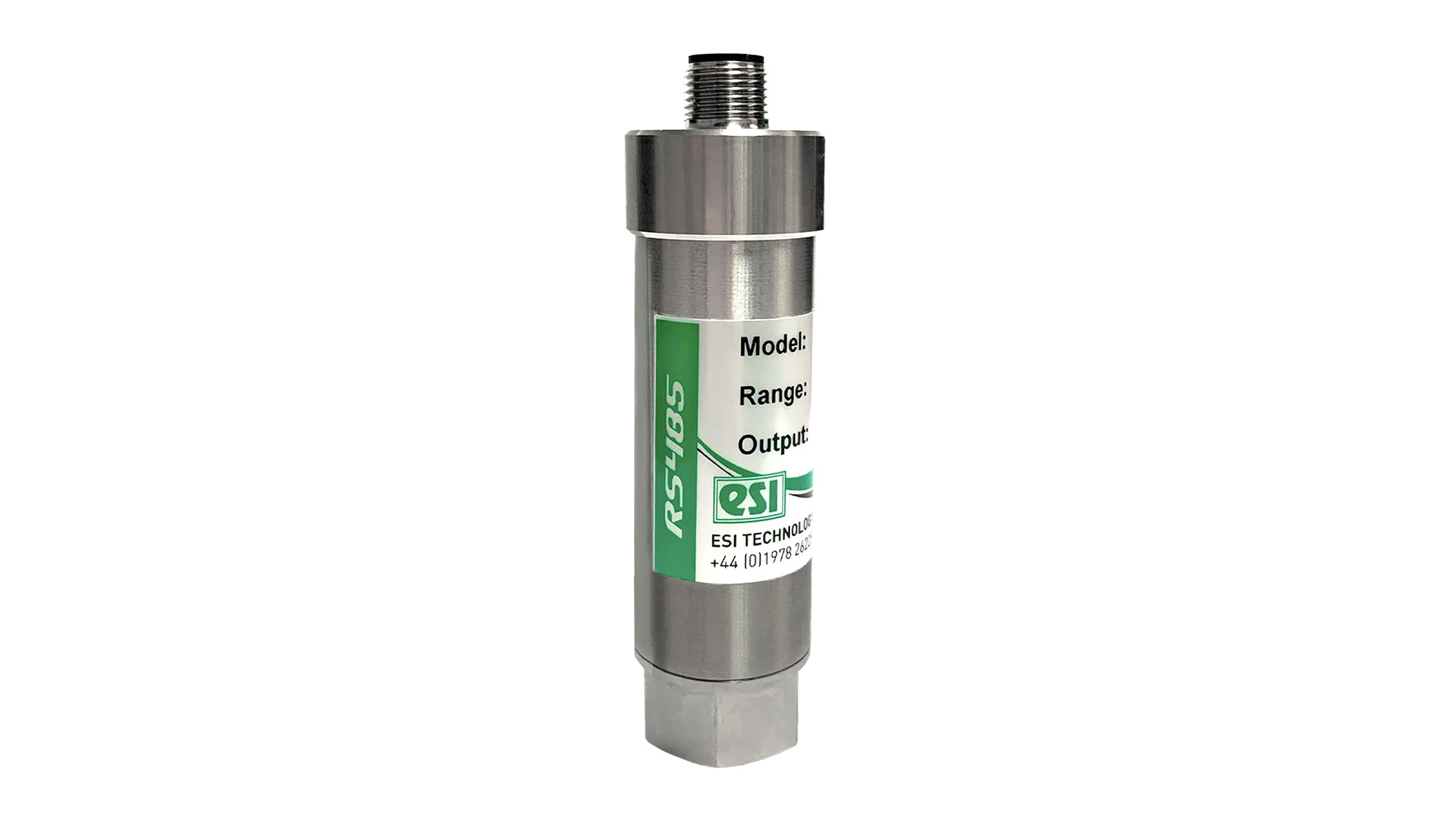

HP1400 High Pressure Transmitter with RS-485 Interface

OVERVIEW

• RS-485 communication up to 1200 m
• Pressure ranges to 5,000 bar
• Machined from one piece of Titanium
• No seals or welds for high pressure integrity
• High resistance to overpressure and pressure transients
• Silicon-on-Sapphire (SOS) sensor technology


The HP1400 series has been developed with RS-485 interface for very high pressure applications, with operating ranges up to 5,000 bar. Providing a half-duplex digital RS-485 output signal and 0-5V analog output, the HP1400 provides high stability and repeatability. It can be configured to suit a multitude of applications and with proprietary RS-485 protocol, each sensor can be allocated a unique device address and connected in series to other sensors and devices on the same communications link.

The unique Silicon-on-Sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The wetted parts and pressure diaphragm are machined from a single piece of titanium alloy meaning no weld joints and therefore high pressure integrity and overload capability. All titanium pressure port offers unbeatable corrosion resistance.

With a design to meet demanding environments, this transmitter will consistently maintain accurate performance while sustaining high durability. Using the industry standard autoclave process connection enables safe and reliable sealing to such high pressures.

Options:

SKU
HP1400-X
Availability
Request Availability
1
Out of Stock
0
Discontinued
Off
Price
$9,999.99
Add to Cart

TECHNICAL SPECIFICATIONS

Sensor Technology:

Silicon-on-Sapphire

Output Signal (Digital):

RS-485 Interface, proprietary communications protocol

Digital Signal Baud Rate:

1200, 2400, 4800, 9600, 14400, 19200, 28800, 57600

Output Signal (Analog):

0V – 5V analog output, 16bit

Sample Rate:

5Hz (max – digital), 1kHz (max – analog)

Zero Output:

0V

Full Scale Output:

5V

Calibration Output:

Combination of digital and analog signal

Zero Adjustment Range:

User Programmable

Span Adjustment Range:

User Programmable

Supply voltage:

6-36VDC

Pressure Reference:

Gauge

Protection of Supply Voltage:

Supply: up 36V
Analog Output: -0.3V to 5.3V
Digital Output: ±15KV ESD

Standard Pressure Ranges (bar):

HP1400: 0 - 600 bar; 0 - 700 bar; 0 - 1,000 bar; 0 - 1,500 bar; 0-2,000 bar. HP1410: 0 - 2,500 bar; 0 - 4,000 bar; 0 - 5,000 bar (other ranges available)

Standard Pressure Ranges (psi):

HP1400: 0-10,000 psi; 0-15,000 psi; 0-20,000 psi; 0-30,000 psi. HP1410: 0-40,000 psi; 0-60,000 psi; 0-72,000 psi (other ranges available)

Overpressure Safety:

1.5x for ranges 0 - 600 bar to 0 - 3,000 bar; 1.25x for 4,000 bar; 1.2x for 5,000 bar



PRODUCT NUMBERS

HP1400B0600DE HP1400B0600FK HP1410B0600DE HP1410B0600FK
HP1400B1000DE HP1400B1000FK HP1410B1000DE HP1410B1000FK
HP1400B1500DE HP1400B1500FK HP1410B1500DE HP1410B1500FK
HP1400B2000DE HP1400B2000FK HP1410B2000DE HP1410B2000FK
HP1400B3000DE HP1400B3000FK HP1410B3000DE HP1410B3000FK
HP1400B4000DE HP1400B4000FK HP1410B4000DE HP1410B4000FK
HP1400B5000DE HP1400B5000FK HP1410B5000DE HP1410B5000FK
