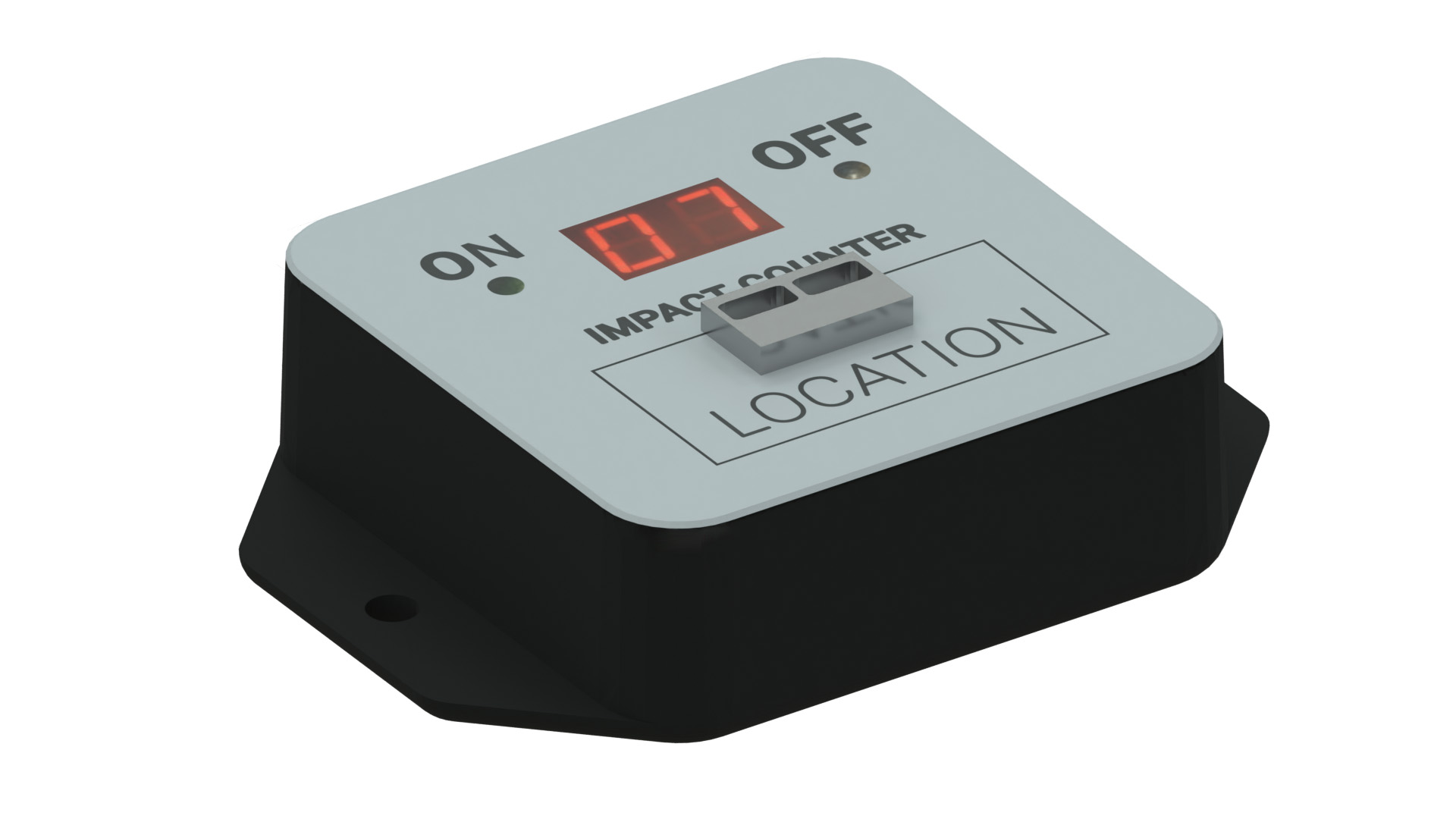

Digital Impact Sensor / Counter, Tamper-proof, Battery powered

OVERVIEW

• Power: Internal Battery - 3 year life span
• Measuring Axis: X, Y, and/or Z (customer specified)
• Trigger Threshold: > 3g, 5g, 10g, 20g, 50g, or 100g (customer specified)
• Operating Temperature: -40C to +85C
• Environment: Water tight NEMA-4

Applications include:

  1. Monitor critical goods and equipment that require special care and handling in transport, storage, and use.
  2. Race Cars: for impacts related to hitting other vehicles and stationary objects.
  3. DOT: Use for guard rail moitoring
  4. Shipping terminals: loading dock bumpers
  5. Marine: Piling and Piers
  6. Railroad: Impacts related to rail cars coupling and de-coupling
  7. Process Industry: Large Pipes, Valves and conveyor systems
  8. Shipping containers
  9. Road barriers
  10. Monitor leased equipment
  11. Machine monitoring
  12. Structural monitoring
  13. Quality control

MADE IN THE USA


This is a stand-alone, tamper-proof, battery powered, device to sense & count impacts. The Impact Counter / Sensor is reset & enabled by using a special magnet held to the face of the counter, once the magnet is removed the counter can not be tampered with. When an impact event above the trigger threshold is detected the counter will increment by one. The total stays in the counter's memory until reset. The impact sensor can be placed either the X Y or Z axis providing accurate counts. The unit's sensor can be set for 3g, 5g, 10g, 20g, 50g, or 100g impacts. This rugged impact sensor is designed to survive in adverse conditions over long periods of time, resetable, long battery life lowering cost of ownership.

The unit is intended for high volume OEM applications (order quantity 100+ units) and is customizable to customer requirements for specific applications.

Options:

SKU
DIC-001
Availability
Made to order
1
Price
$9,999.99
Add to Cart

TECHNICAL SPECIFICATIONS

Power:

Internal Battery - 3 year life span

Measuring Axis:

X, Y, and/or Z (customer specified)

Trigger Threshold:

 > 3g, 5g, 10g, 20g, 50g, or 100g (customer specified)

Operating Temperature:

-40C to +85C

Environment:

Water tight NEMA-4
