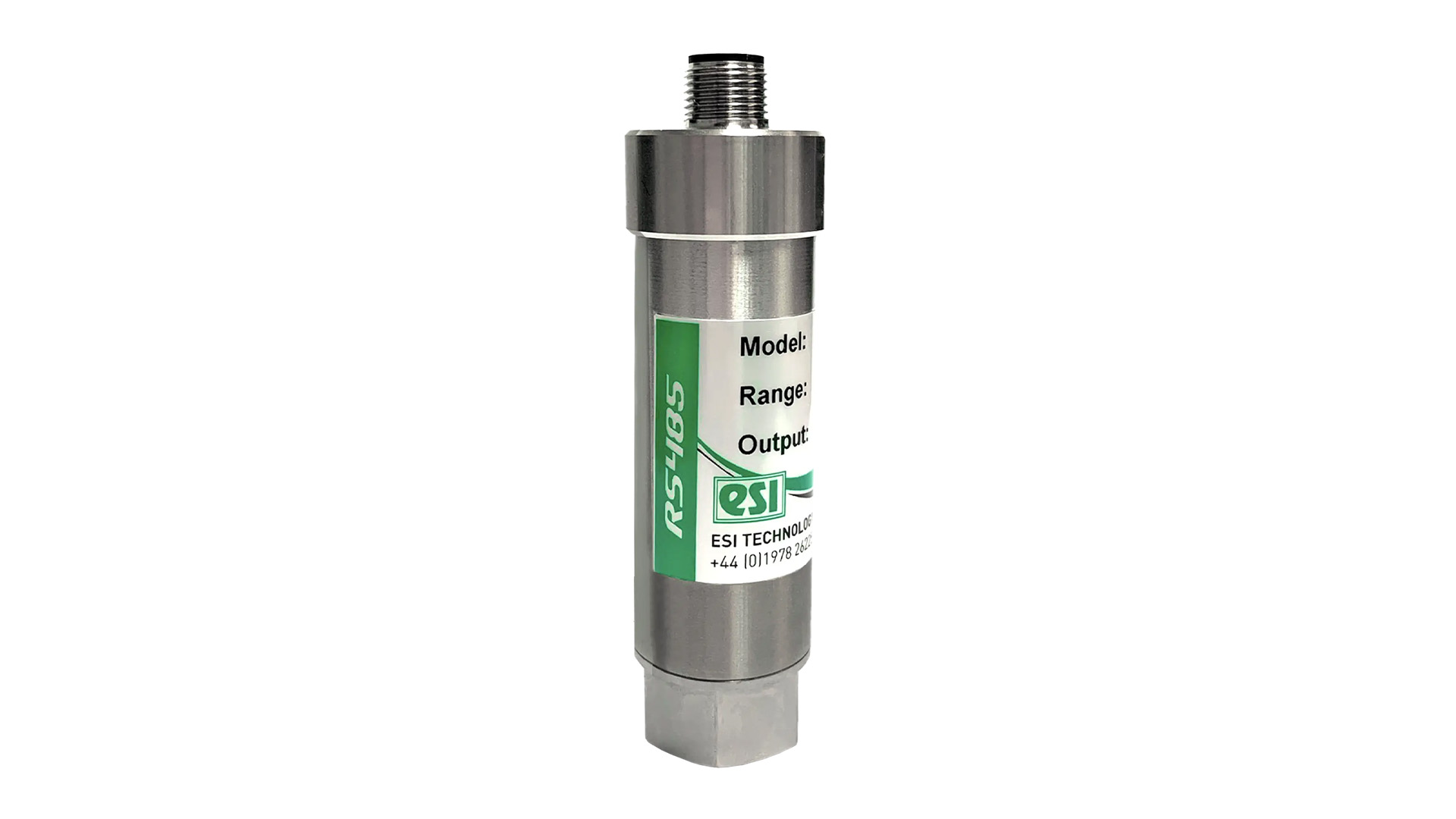

GS4400 General Purpose Pressure Transducer with RS-485 Interface

OVERVIEW

• RS-485 communication up to 1200 m
• Pressure ranges to 1,500 bar
• Excellent Corrosion Resistance
• High Strength Titanium Pressure Port
• High resistance to overpressure and pressure transients
• Silicon-on-Sapphire (SOS) sensor technology for outstanding performance


The GS4400 series pressure transmitter is designed to meet the operational requirements of demanding pressure measurement applications where good quality, fast delivery and low cost are of the highest priority.

Providing a half-duplex digital RS-485 output signal and 0-5V analog output, the GS4400 provides high stability and repeatability. It can be configured to suit a multitude of applications with proprietary RS-485 protocol, each sensor can be allocated a unique device address and connected in series to other sensors and devices on the same communications link.

The unique Silicon-on-Sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The advanced sensor design consists of a piezoresistive silicon strain gauge circuit, which is epitaxially grown onto the surface of a sapphire diaphragm to form a single crystalline structure. The sapphire sensor element is then molecularly bonded to a titanium alloy sub-diaphragm. This enables the sensor to endure higher over-pressures and provides superb corrosion resistance. The sensor exhibits virtually no hysteresis and excellent long-term stability.

Options:

SKU
GS4400BXXXXAB
Availability
Call
1
Out of Stock
0
Discontinued
Off
Price
$9,999.99
Add to Cart

TECHNICAL SPECIFICATIONS

Sensor Technology:

Silicon-on-Sapphire

Output Signal (Digital):

Proprietary RS-485 Protocol

Digital Signal Baud Rate:

1200, 2400, 4800, 9600, 14400, 19200, 28800, 57600

Output Signal (Analog):

0V – 5V analog output, 16bit

Sample Rate:

5Hz (max – digital), 1kHz (max – analog)

Zero Output:

0V

Full Scale Output:

5V

Calibration Output:

Combination of digital and analog signal

Zero Adjustment Range:

User Programmable

Span Adjustment Range:

User Programmable

Supply voltage:

6-36VDC

Pressure Reference:

Sealed Gauge

Protection of Supply Voltage:

Supply: up 36V
Analog Output: -0.3V to 5.3V
Digital Output: ±15KV ESD

Standard Pressure Ranges (bar):

0 - 1 bar VAC; 0 - 0.5 bar; 0 - 1 bar; 0 - 2.5 bar; 0 - 6 bar; 0 - 10 bar; 0 - 16 bar; 0 - 25 bar; 0 - 100 bar; 0 - 250 bar; 0 - 400 bar; 0 - 600 bar; 0 - 1000 bar; 0 - 1500 bar (other ranges available)

Standard Pressure Ranges (psi):

0 - 30 in Hg; 0 - 7.5 psi; 0 - 15 psi; 0 - 30 psi; 0 - 100 psi; 0 - 150 psi; 0 - 200 psi; 0 - 300 psi; 0 - 1500 psi; 0 - 3000 psi; 0 - 6000 psi; 0 - 8,700 psi; 0 - 15,000 psi; 0 - 20,000 psi (other ranges available)

Overpressure Safety:

4x for 0.5 bar range; 2x for ranges -1 bar to 600 bar; 1.5x for 1000 bar range; 1.1x for 1,500 bar range
