CPTC Surface Temperature Thermocouple with Miniature Copper Pad

OVERVIEW

• Type J, K, or T thermocouple
• Glue copper pad to test surface
• FEP insulated cable
• Designed for research & development applications


MADE IN THE USA

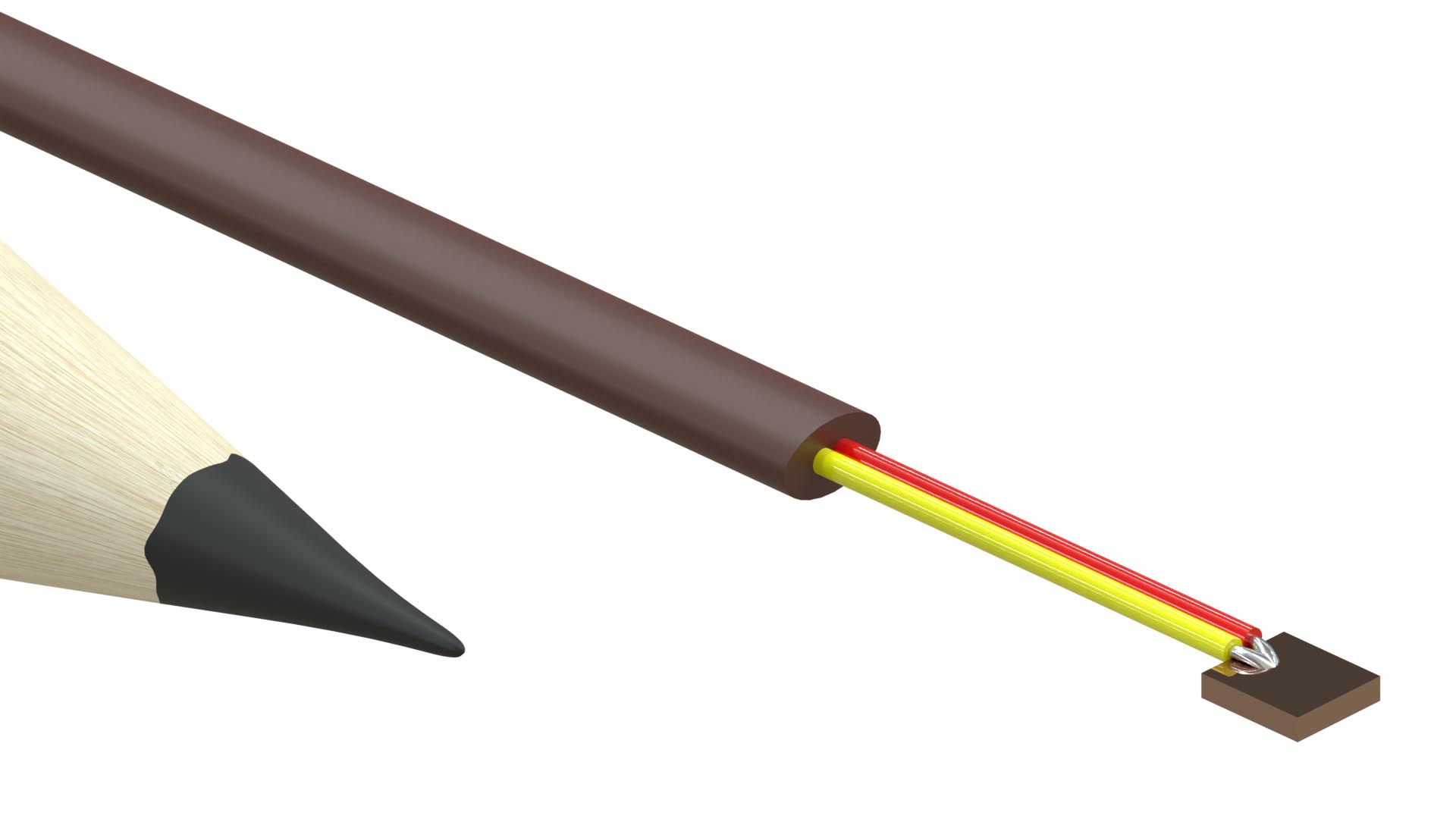

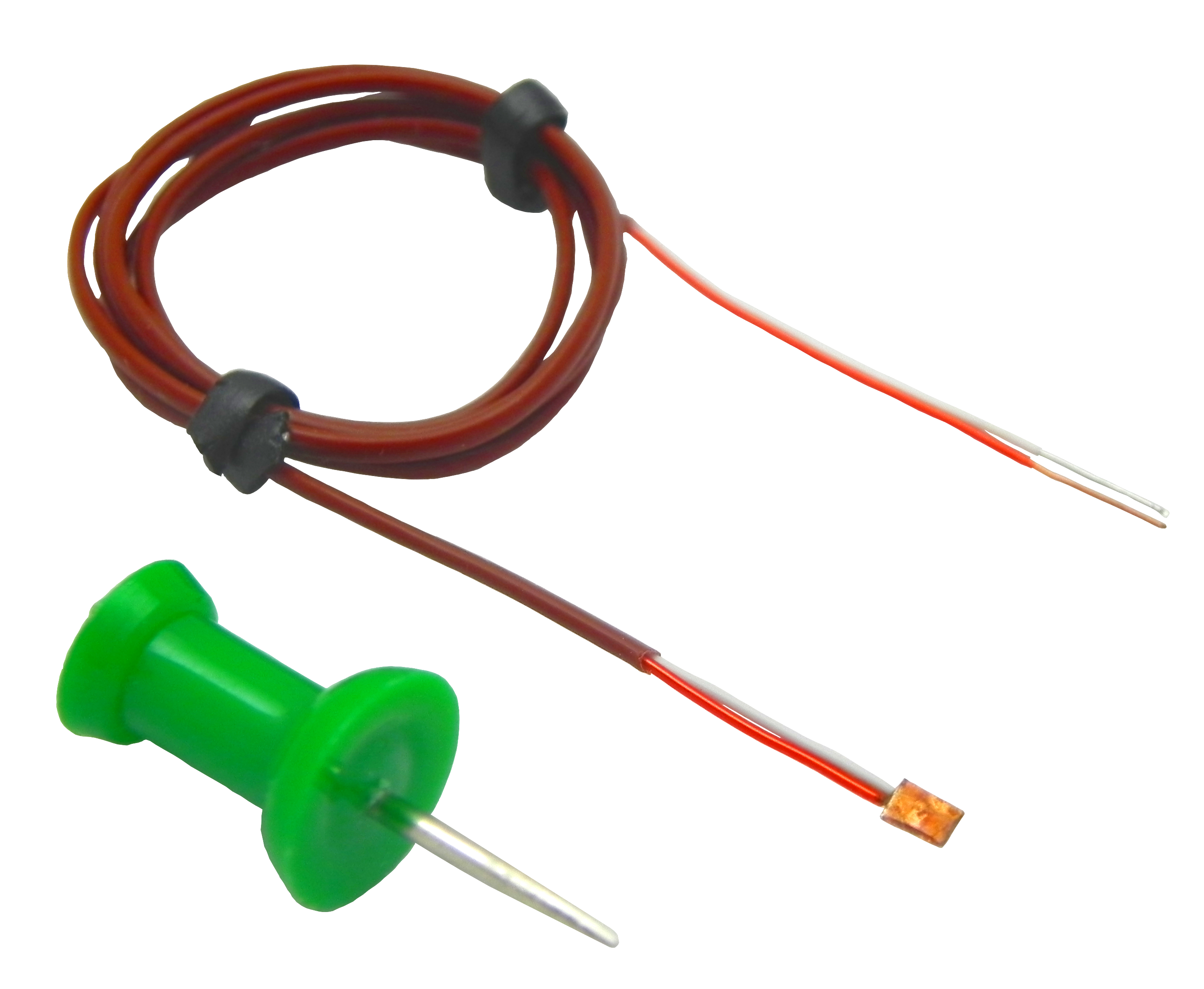

CPTC series Copper Pad Thermocouples are an ideal solution for surface temperature measuring applications.  Special limits of error accuracy thermocouple wire is cut to the required length and the conductors are soldered to the copper pad to form a measuring junction. The copper pad is bonded to the surface using an Epoxy resin or Cyanoacrylate based glue.

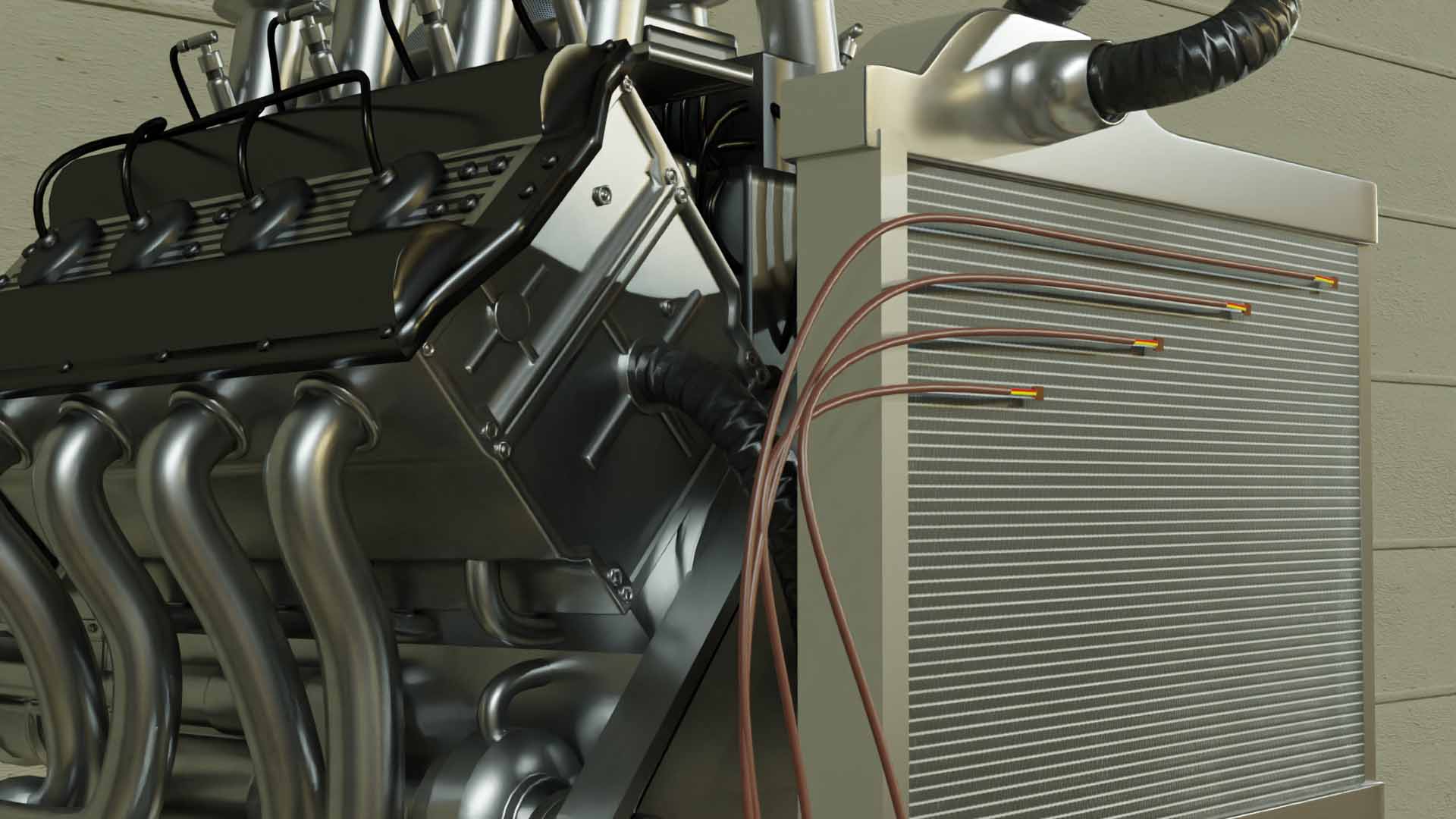

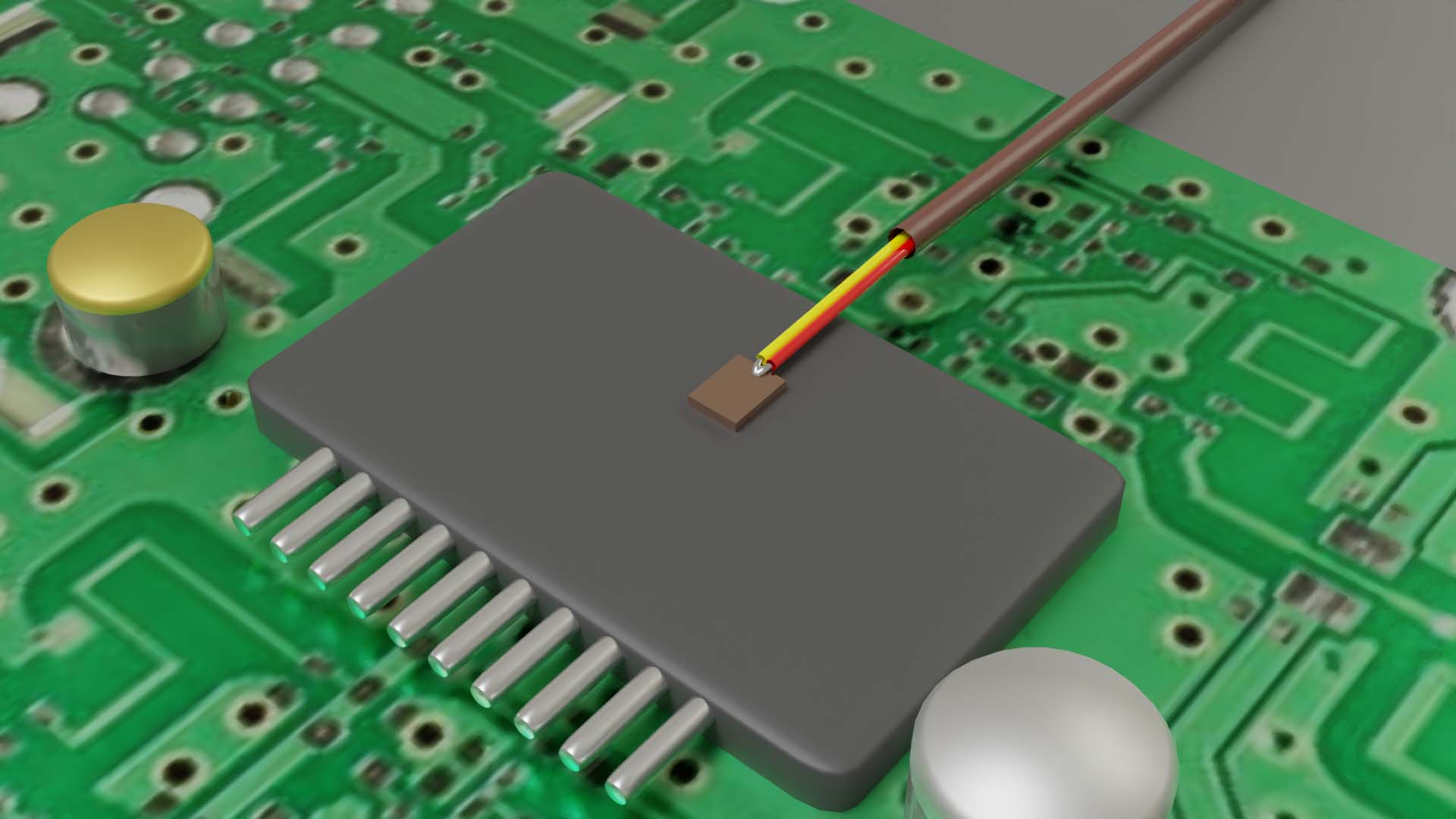

Ideal for, but not limited to, surface temperature measurements of metal, glass, or PCB board surfaces.  As an option, we can install a Mini Connector on the adjacent wire lead termination end.

Contact us for volume pricing. Custom configurations available.


Options:

Thermocouple Type
Thermocouple Cable Length
Thermocouple Connector
SKU
CPTC-120-J-N
Availability
In Stock
0
Out of Stock
0
Discontinued
Off
Price
$31.75
Add to Cart

TECHNICAL SPECIFICATIONS

Thermocouple type:

Type J, K, or T

Measuring Range:

-50 to 325°F (-45 to 162°C)

Accuracy:

Greater of +/-0.4% of reading or +/- 1.1°C (Special Limits of Error)

Copper Pad dimensions:

2.1mm x 2.4mm, 0.5mm thick

Sensing Junction:

Grounded

Lead Wire:

30 AWG FEP insulated conductors, solid core. 5 foot, 10 foot, or 20 foot

Response Time:

500 milliseconds
